◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#3204) — 16 parça

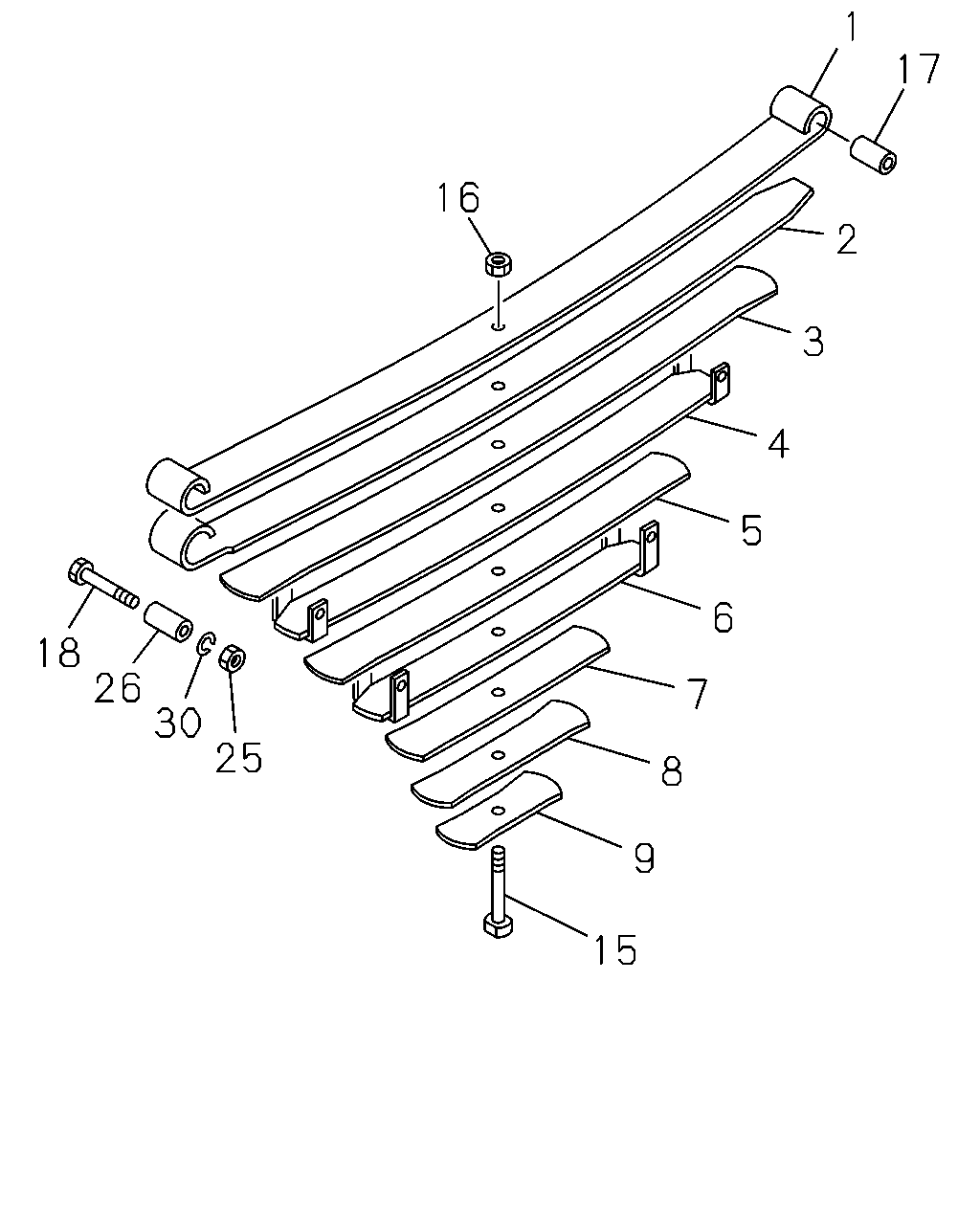

çizim 37681
1 17 16 2 3 4 5 6 18 26 30 25 7 8 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-142-0 		1-51131-142-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-142-0 		1-51132-142-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-142-0 		1-51133-142-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-142-0 		1-51134-142-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51130-142-0 		1-51135-142-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51130-142-0 		1-51136-142-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51130-142-0 		1-51137-142-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51130-142-0 		1-51138-142-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: A = 1-51130-142-0 		1-51139-142-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: A = 1-51130-142-0 		1-51156-199-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-142-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ASM PART: A = 1-51130-142-0 		9-51351-018-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: A = 1-51130-142-0 		1-09000-391-0 04 1 -
25 NUT; CLAMP
M8 ASM PART: A = 1-51130-142-0 		9-09110-008-0 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51130-142-0 		1-51353-009-0 04 1 -
30 WASHER; CLIP,LEAF SPR,FRT
ID=8.2 ASM PART: A = 1-51130-142-0 		9-09150-508-0 04 1 -
