◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11137 - FRR-LHD(EU)SPACE EU4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#32028) — 20 parça

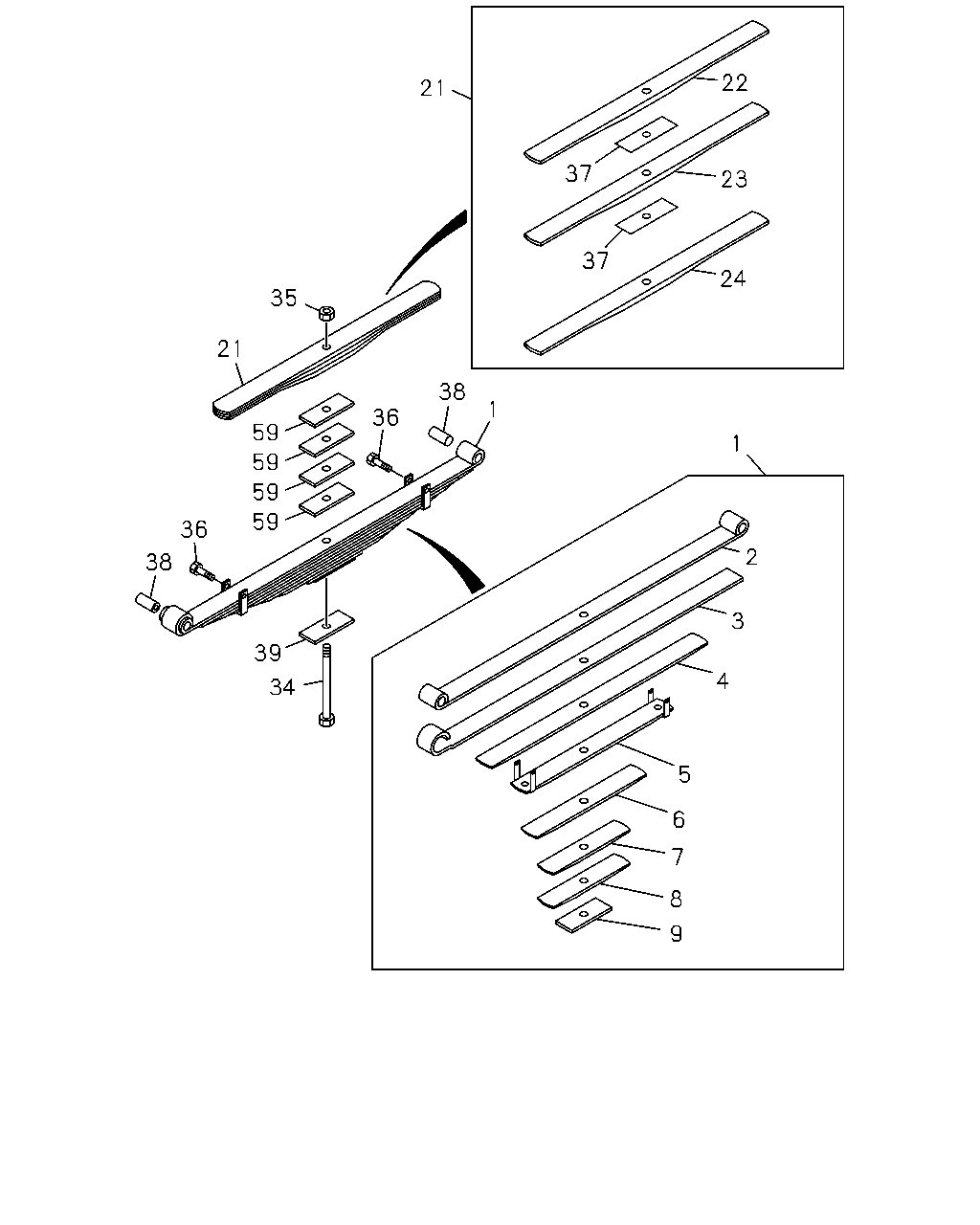

çizim 144685
22 21 37 23 37 24 35 21 38 1 36 59 1 59 59 59 36 2 38 3 39 4 34 5 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-274-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-275-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-276-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-277-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-278-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-279-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-280-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-281-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-98079-006-0 		8-98031-282-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98079-006-0 		8-98031-283-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98079-006-0 		8-98031-284-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98079-006-0 		8-98031-285-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98079-006-0 		8-98031-286-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: A = 8-98079-006-0 		1-51356-352-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98079-006-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: A = 8-98079-006-0 		1-09000-366-0 02 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98079-006-0 		1-51377-361-0 02 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 8-98079-006-0 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=7 ASM PART: A = 8-98079-006-0 		1-51377-356-0 01 1 -
59 SEAT; RR SPRING,SUB
T=7 ASM PART: A = 8-98079-006-0 		1-51377-356-0 04 1 -
