4-55 — FRONT LEAF SPRING (#32026) — 25 parça

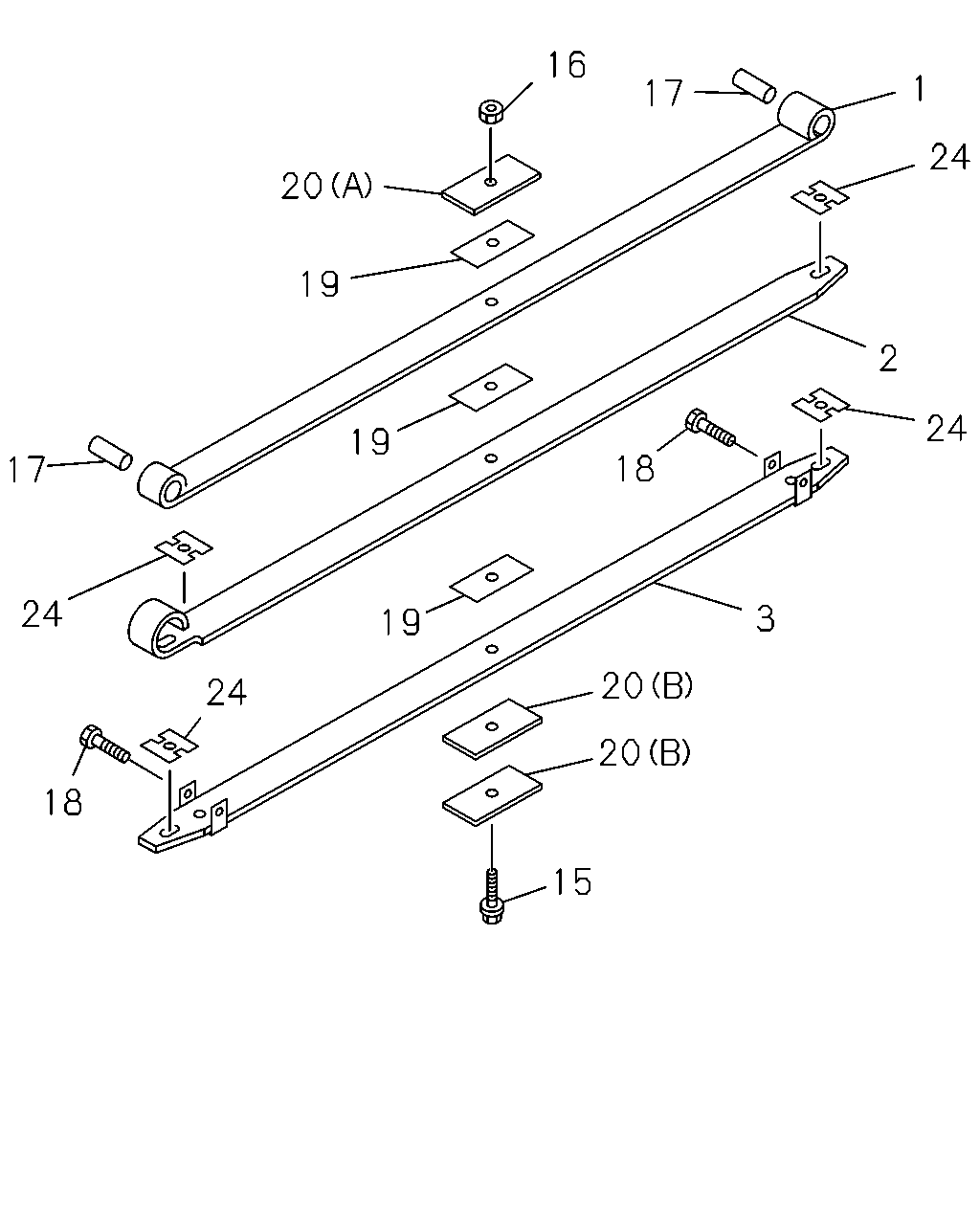

çizim 144666
16 1 17 24 20 1 2 24 19 18 17 24 3 19 20 24 20 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98080-779-0 		8-98081-660-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98080-780-0 		8-98081-662-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98111-360-0 		8-98124-850-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98111-361-0 		8-98124-853-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98080-780-0 		8-98030-036-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98080-779-0 		8-98030-041-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98111-360-0 		8-98124-851-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98111-361-0 		8-98124-855-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98080-779-0 		8-98081-661-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98080-780-0 		8-98081-663-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98111-360-0 		8-98124-852-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-98111-361-0 		8-98124-856-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: A = 8-98080-779-0, B = 8-98080-780-0 		1-51156-325-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0 		1-51156-416-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0 		9-99110-512-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M14 ASM PART: A = 8-98080-779-0, B = 8-98080-780-0 		9-99110-514-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 8-98080-779-0, B = 8-98080-780-0, C = 8-98111-360-0, D = 8-98111-361-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X93.5 ASM PART: A = 8-98080-779-0, B = 8-98080-780-0, C = 8-98111-360-0, D = 8-98111-361-0 		8-94407-134-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98080-779-0, B = 8-98080-780-0 		1-51177-263-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0 		1-51177-287-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-98080-779-0, B = 8-98080-780-0 		1-51177-262-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0 		1-51177-285-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 8-98080-779-0, B = 8-98080-780-0 		1-51177-334-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: C = 8-98111-360-0, D = 8-98111-361-0 		8-98124-862-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-98080-779-0, B = 8-98080-780-0, C = 8-98111-360-0, D = 8-98111-361-0 		1-51159-025-0 04 1 -
