4-36 — POWER STEERING CONTROL; ENGINE SIDE (#32022) — 28 parça

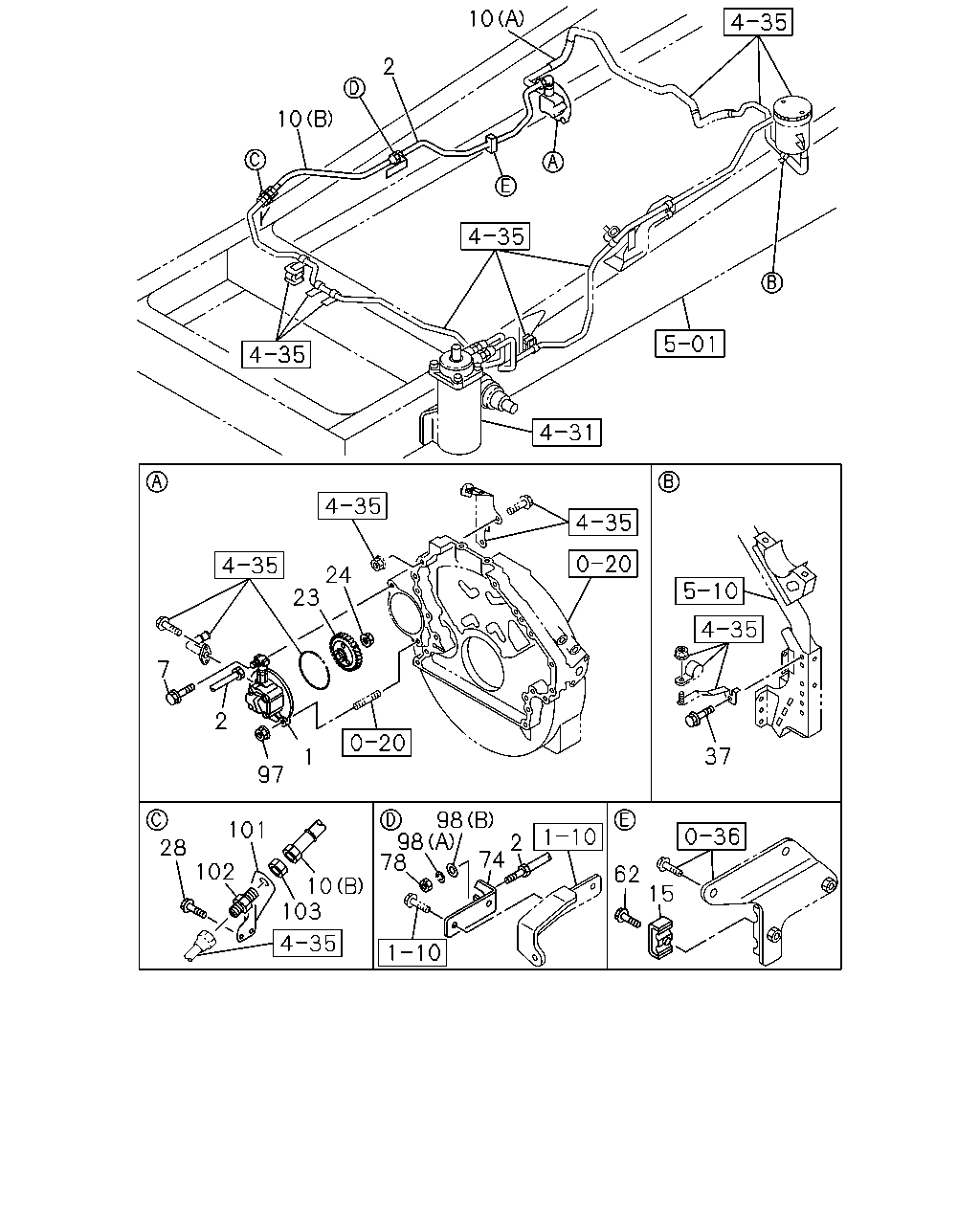

çizim 144698
10 2 10 24 23 7 2 37 1 97 98 98 78 101 2 74 28 102 62 10 103 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 1103-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 0901-1101
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-0 01 1 0803-0812
2 PIPE ASM; OIL,SUCTION
GENERATOR 24V90A(K44) 		8-98086-995-0 01 1 0803-
2 PIPE ASM; OIL,SUCTION
EXC. GENERATOR 24V90A(K44) 		8-98086-746-0 01 1 0803-
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 01 1 0803-
10 HOSE; FLEX,P/S OIL PUMP,INL
(A) 		8-98071-168-0 01 1 0803-
10 HOSE; FLEX,P/S OIL PUMP,INL
GENERATOR 24V90A(K44) (B) L=460 		1-09365-026-0 01 1 0803-
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. GENERATOR 24V90A(K44) (B) L=500 		1-09364-957-2 01 1 0803-
15 CLIP; OIL PIPE SUCTION
ID=9 & 9 L=25 		1-09701-212-2 01 1 0803-
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 1103-
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0901-1101
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0803-0812
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 1103-
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0803-1101
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28050-825-0 02 1 0803-
37 BOLT; P/S PUMP
M8X25 FLANGE 		0-28650-825-0 01 1 0803-
62 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 01 1 0803-
74 BRACKET; PIPE
GENERATOR 24V90A(K44) 		8-98073-737-0 01 1 0803-
74 BRACKET; PIPE
EXC. GENERATOR 24V90A(K44) 		8-98060-044-1 01 1 0803-
78 NUT; BRKT
M20 		0-91111-520-0 01 1 0803-
97 NUT; OIL PUMP,P/S
M10 FLANGE 		0-91180-110-0 01 1 0803-
98 WASHER; LK,BRKT
(A) ID=20.2 		0-91510-620-0 01 1 0803-
98 WASHER; LK,BRKT
(B) ID=21 		0-91610-520-0 01 1 0803-
101 BRACKET; UNION
GENERATOR 24V90A(K44) 		8-98077-651-0 01 1 0803-
101 BRACKET; UNION
EXC. GENERATOR 24V90A(K44) 		8-98076-297-0 01 1 0803-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0803-
103 NUT; UNION
M22 		0-91111-522-0 01 1 0803-
