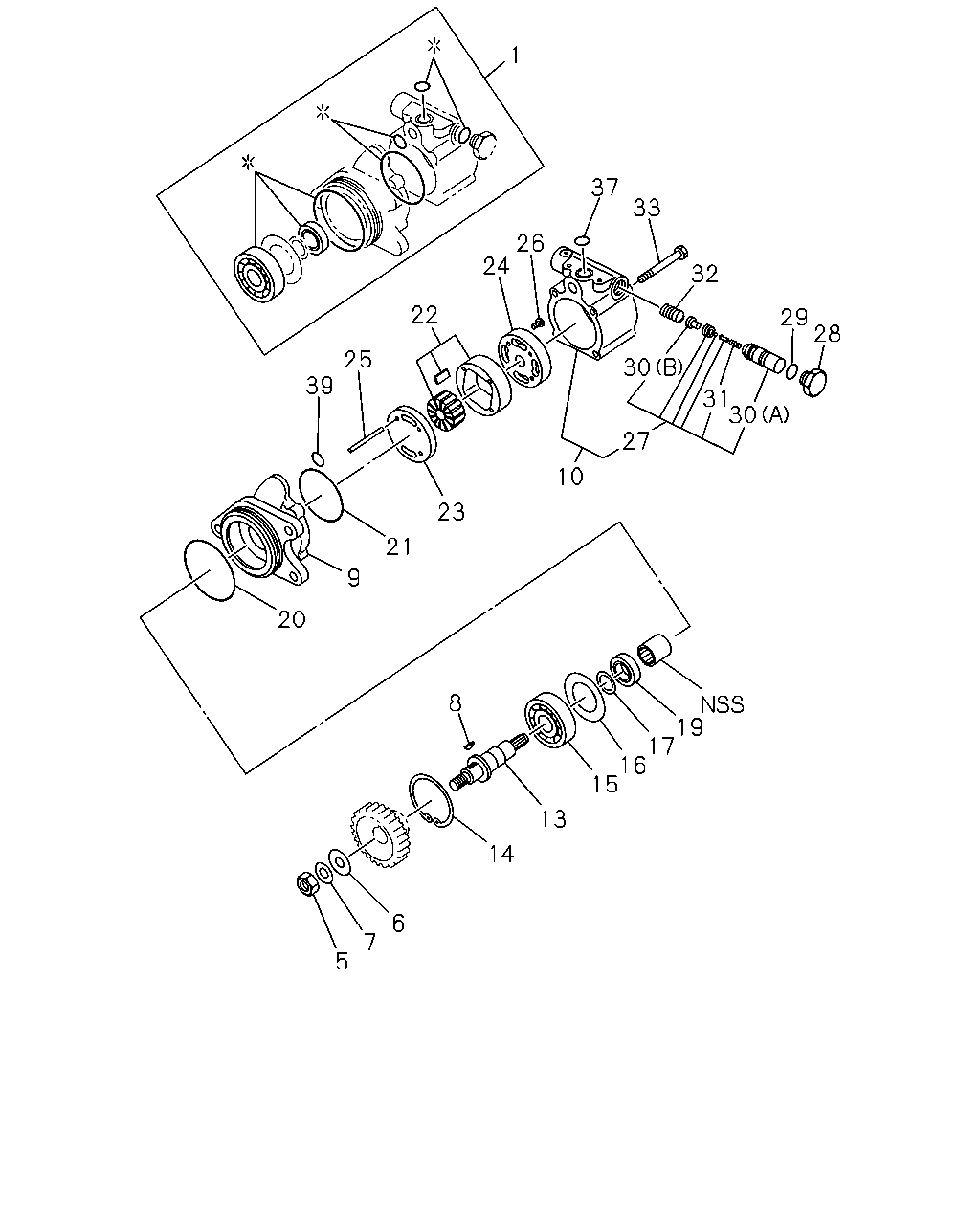

1 |
REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-85574-008-0 |
02 |
1 |
- |
| |
5 |
NUT; SHAFT,P/S PUMP
ASM PART: A = 1-19500-285-3
|
9-88510-424-0 |
02 |
1 |
- |
| |
6 |
WASHER; PL,OIL PUMP
ASM PART: A = 1-19500-285-3
|
9-19519-088-0 |
02 |
1 |
- |
| |
7 |
WASHER; SHAFT
ASM PART: A = 1-19500-285-3
|
9-09150-016-0 |
02 |
1 |
- |
| |
8 |
KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-285-3
|
9-19519-036-0 |
02 |
1 |
- |
| |
9 |
BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19511-057-0 |
02 |
1 |
- |
| |
10 |
BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19511-091-0 |
02 |
1 |
- |
| |
13 |
SHAFT KIT; RET
ASM PART: A = 1-19500-285-3
|
1-19521-018-0 |
02 |
1 |
- |
| |
14 |
RING; RET,OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19519-135-0 |
02 |
1 |
- |
| |
15 |
BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19515-004-0 |
02 |
1 |
- |
| |
16 |
RING; RET,OIL PUMP
ASM PART: A = 1-19500-285-3
|
9-19519-078-0 |
02 |
1 |
- |
| |
17 |
RING; RET
ASM PART: A = 1-19500-285-3
|
1-19519-177-0 |
02 |
1 |
- |
| |
19 |
SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19519-252-0 |
02 |
1 |
- |
| |
20 |
GASKET; FRT,OIL PUMP
ID=77
ASM PART: A = 1-19500-285-3
|
1-09623-143-0 |
02 |
1 |
- |
| |
21 |
GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-285-3
|
9-88510-234-0 |
02 |
1 |
- |
| |
22 |
CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19519-132-0 |
02 |
1 |
- |
| |
23 |
PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19519-234-0 |
02 |
1 |
- |
| |
24 |
PLATE ASM; THRUST
ASM PART: A = 1-19500-285-3
|
1-19519-233-0 |
02 |
1 |
- |
| |
25 |
PIN; HSG,P/S
ASM PART: A = 1-19500-285-3
|
9-88510-408-0 |
04 |
1 |
- |
| |
26 |
SCREW; PLATE
ASM PART: A = 1-19500-285-3
|
1-19519-106-0 |
04 |
1 |
- |
| |
27 |
VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19519-236-0 |
02 |
1 |
- |
| |
28 |
PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19519-230-0 |
02 |
1 |
- |
| |
29 |
GASKET; PLUG TO VLV
ASM PART: A = 1-19500-285-3
|
9-88510-248-0 |
02 |
1 |
- |
| |
30 |
VALVE; OIL PUMP
(A) ASM PART: A = 1-19500-285-3
|
1-19519-098-0 |
01 |
1 |
- |
| |
30 |
VALVE; OIL PUMP
(B) ASM PART: A = 1-19500-285-3
|
1-19519-179-0 |
01 |
1 |
- |
| |
31 |
SPRING; INNER,OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19519-175-0 |
01 |
1 |
- |
| |
32 |
SPRING; OIL PUMP
ASM PART: A = 1-19500-285-3
|
9-19529-013-0 |
02 |
1 |
- |
| |
33 |
BOLT; COVER
ASM PART: A = 1-19500-285-3
|
1-19519-244-0 |
08 |
1 |
- |
| |
37 |
GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-285-3
|
9-48429-028-0 |
02 |
1 |
- |
| |
39 |
GASKET; OIL PUMP
ASM PART: A = 1-19500-285-3
|
1-19519-100-0 |
02 |
1 |
- |
