0-42 — FUEL PUMP AND PIPE (#32013) — 81 parça

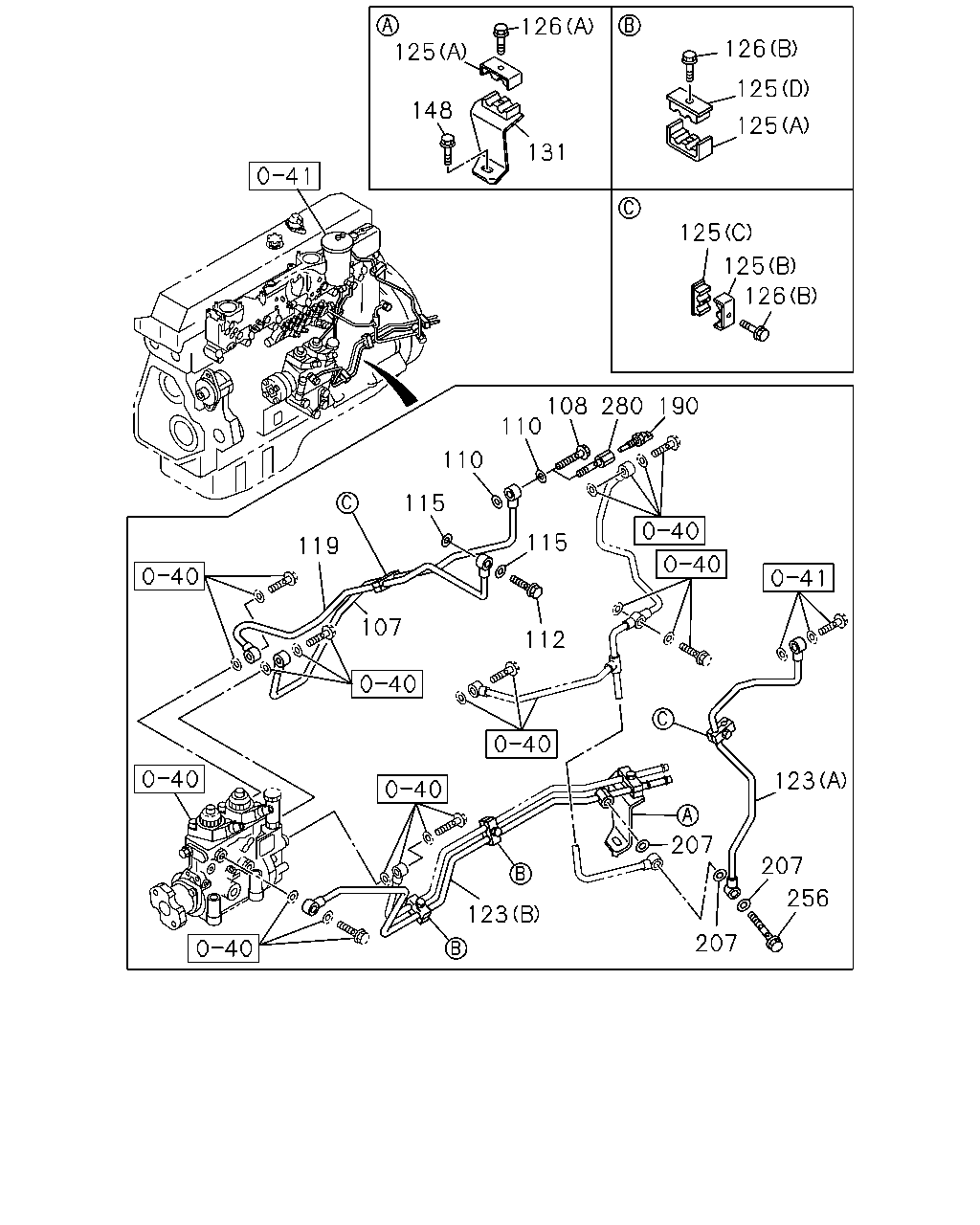

126 125 126 125 148 125 131 125 125 126 280 190 108 110 110 115 115 119 107 112 123 207 207 256 123 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97610-907-1	01	1	0806-1008	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97610-907-1	01	1	1009-	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0806-1008	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	1009-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0806-1008	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1009-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0806-1008	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	1009-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0806-1008	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1009-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97610-906-1	01	1	0806-1008	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97610-906-1	01	1	1009-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97608-901-1	01	1	0806-1008	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97608-901-1	01	1	1009-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97610-909-1	01	1	0806-1008	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97610-909-1	01	1	1009-	●	●
125	CLIP; FUEL PIPE (C) ID=9 & 9 L=25	1-09701-180-0	02	1	0806-1008	●
125	CLIP; FUEL PIPE (C) ID=9 & 9 L=25	1-09701-180-0	02	1	1009-	●	●
125	CLIP; FUEL PIPE (D) ID=9 & 11 L=28	1-09701-193-1	03	1	0806-1008	●
125	CLIP; FUEL PIPE (D) ID=9 & 11 L=28	1-09701-193-1	03	1	1009-	●	●
125	CLIP; FUEL PIPE (A) ID=9 & 11 L=28	1-09701-194-1	02	1	0806-1008	●
125	CLIP; FUEL PIPE (A) ID=9 & 11 L=28	1-09701-194-1	02	1	1009-	●	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	02	1	0806-1008	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	02	1	1009-	●	●
126	BOLT; CLIP,FUEL PIPE (A) M6X30 FLANGE	0-28050-630-0	01	1	0806-1008	●
126	BOLT; CLIP,FUEL PIPE (A) M6X30 FLANGE	0-28050-630-0	01	1	1009-	●	●
126	BOLT; CLIP,FUEL PIPE (B) M6X40 FLANGE	0-28050-640-0	04	1	0806-1008	●
126	BOLT; CLIP,FUEL PIPE (B) M6X40 FLANGE	0-28050-640-0	04	1	1009-	●	●
131	BRACKET; FUEL PIPE CLIP	8-97606-142-0	01	1	0806-1008	●
131	BRACKET; FUEL PIPE CLIP	8-97606-142-0	01	1	1009-	●	●
148	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	01	1	0806-1008	●
148	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	01	1	1009-	●	●
190	SENSOR; FUEL TEMP	8-97224-993-0	01	1	0806-1008	●
190	SENSOR; FUEL TEMP	8-97224-993-0	01	1	1009-	●	●
207	GASKET; EYE BOLT ID=14.2 OD=25	1-09630-141-0	03	1	0806-1008	●
207	GASKET; EYE BOLT ID=14.2 OD=25	1-09630-141-0	03	1	1009-	●	●
256	BOLT; EYE,FUEL PIPE M14X43 EYE-BOLT	8-98037-829-0	01	1	0806-1008	●
256	BOLT; EYE,FUEL PIPE M14X43 EYE-BOLT	8-98037-829-0	01	1	1009-	●	●
280	ADAPTER; FUEL TEMP SEN M12 & M14 STRAIGHT	1-15419-716-1	01	1	0806-1008	●
280	ADAPTER; FUEL TEMP SEN M12 & M14 STRAIGHT	1-15419-716-1	01	1	1009-	●	●

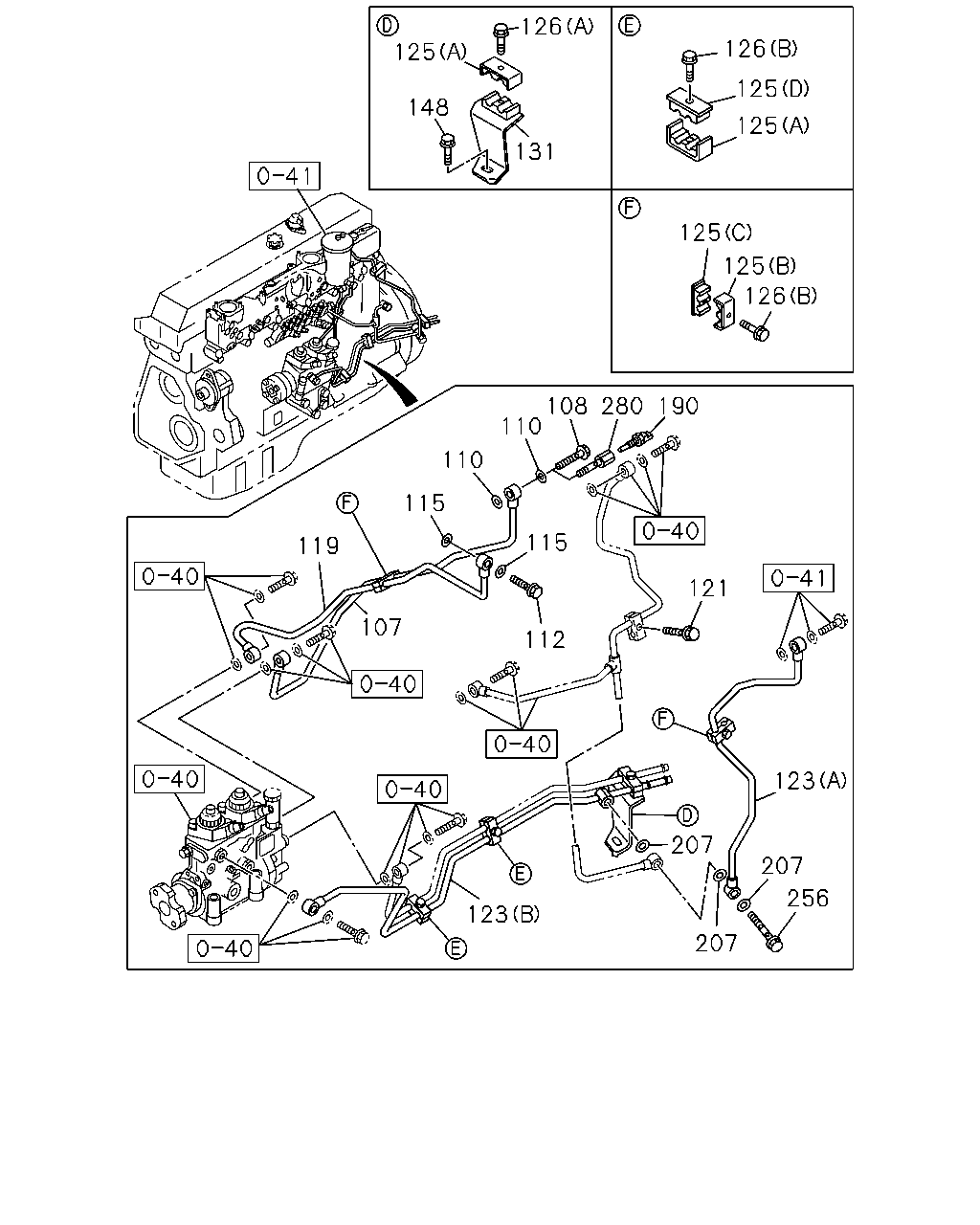

207 256 207 207 123 121 112 115 110 110 108 280 190 115 119 107 123 126 125 125 125 125 126 126 131 148 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97610-907-1	01	1	0806-1008	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97610-907-1	01	1	1009-	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0806-1008	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	1009-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0806-1008	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1009-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0806-1008	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	1009-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0806-1008	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1009-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97610-906-1	01	1	0806-1008	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97610-906-1	01	1	1009-	●	●
121	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	01	1	1206-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97608-901-1	01	1	0806-1008	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97608-901-1	01	1	1009-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97610-909-1	01	1	0806-1008	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97610-909-1	01	1	1009-	●	●
125	CLIP; FUEL PIPE (C) ID=9 & 9 L=25	1-09701-180-0	02	1	0806-1008	●
125	CLIP; FUEL PIPE (C) ID=9 & 9 L=25	1-09701-180-0	02	1	1009-	●	●
125	CLIP; FUEL PIPE (D) ID=9 & 11 L=28	1-09701-193-1	03	1	0806-1008	●
125	CLIP; FUEL PIPE (D) ID=9 & 11 L=28	1-09701-193-1	03	1	1009-	●	●
125	CLIP; FUEL PIPE (A) ID=9 & 11 L=28	1-09701-194-1	02	1	0806-1008	●
125	CLIP; FUEL PIPE (A) ID=9 & 11 L=28	1-09701-194-1	02	1	1009-	●	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	02	1	0806-1008	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	02	1	1009-	●	●
126	BOLT; CLIP,FUEL PIPE (A) M6X30 FLANGE	0-28050-630-0	01	1	0806-1008	●
126	BOLT; CLIP,FUEL PIPE (A) M6X30 FLANGE	0-28050-630-0	01	1	1009-	●	●
126	BOLT; CLIP,FUEL PIPE (B) M6X40 FLANGE	0-28050-640-0	04	1	0806-1008	●
126	BOLT; CLIP,FUEL PIPE (B) M6X40 FLANGE	0-28050-640-0	04	1	1009-	●	●
131	BRACKET; FUEL PIPE CLIP	8-97606-142-0	01	1	0806-1008	●
131	BRACKET; FUEL PIPE CLIP	8-97606-142-0	01	1	1009-	●	●
148	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	01	1	0806-1008	●
148	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	01	1	1009-	●	●
190	SENSOR; FUEL TEMP	8-97224-993-0	01	1	0806-1008	●
190	SENSOR; FUEL TEMP	8-97224-993-0	01	1	1009-	●	●
207	GASKET; EYE BOLT ID=14.2 OD=25	1-09630-141-0	03	1	0806-1008	●
207	GASKET; EYE BOLT ID=14.2 OD=25	1-09630-141-0	03	1	1009-	●	●
256	BOLT; EYE,FUEL PIPE M14X43 EYE-BOLT	8-98037-829-0	01	1	0806-1008	●
256	BOLT; EYE,FUEL PIPE M14X43 EYE-BOLT	8-98037-829-0	01	1	1009-	●	●
280	ADAPTER; FUEL TEMP SEN M12 & M14 STRAIGHT	1-15419-716-1	01	1	0806-1008	●
280	ADAPTER; FUEL TEMP SEN M12 & M14 STRAIGHT	1-15419-716-1	01	1	1009-	●	●
