4-40 — STEERING UNIT (#3201) — 133 parça

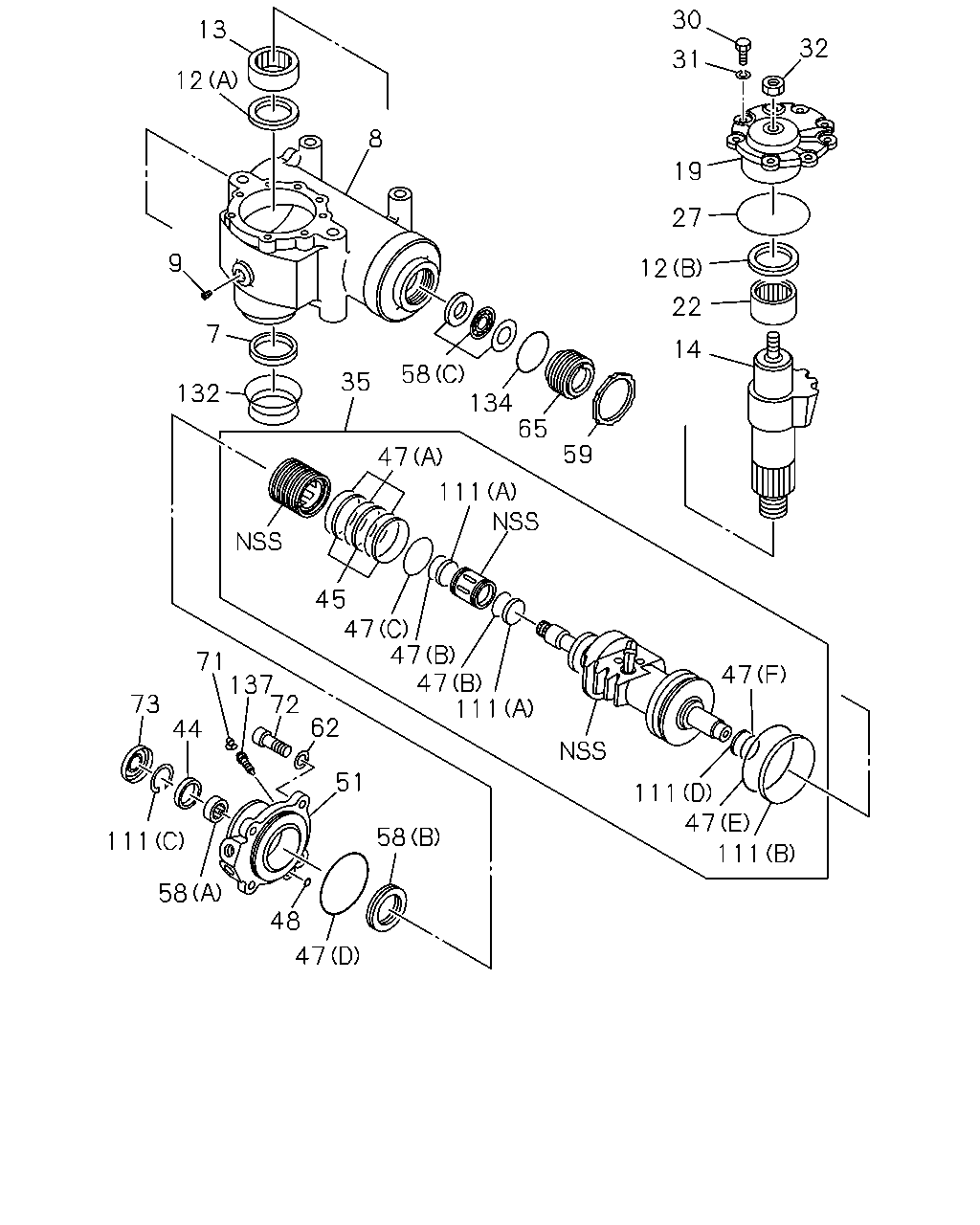

30 13 32 31 12 8 19 27 9 12 22 7 14 58 134 65 35 132 59 47 111 45 47 47 47 111 71 137 72 47 73 62 44 51 11 47 111 58 111 58 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: B = 1-44000-836-0	1-85574-030-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-703-1	1-44249-036-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: B = 1-44000-836-0	1-44249-041-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: B = 1-44000-836-0	1-44240-040-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: A = 1-44000-703-1	1-44241-106-1	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-703-1	1-44249-037-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-071-0	02	1	-
11	RING; BACKUP,STRG UNIT ASM PART: B = 1-44000-836-0	1-44249-040-0	01	1	-
11	RING; BACKUP,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-103-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-703-1	1-44249-035-0	01	1	-
12	GASKET; SHAFT,STRG UNIT ASM PART: B = 1-44000-836-0	1-44249-071-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-703-1	1-44269-013-0	01	1	-
12	GASKET; SHAFT,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-226-0	01	1	-
13	BEARING; SHAFT,BOX SIDE,STRG UNIT ASM PART: A = 1-44000-703-1	1-44249-034-0	01	1	-
13	BEARING; SHAFT,BOX SIDE,STRG UNIT ASM PART: B = 1-44000-836-0	1-44249-038-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-703-1	1-44320-002-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 1-44000-836-0	1-44321-022-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: B = 1-44000-836-0	1-44260-006-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-703-1	1-44261-032-0	01	1	-
22	BEARING; SHAFT,COVER SIDE,STRG UNIT ASM PART: A = 1-44000-703-1	1-44269-012-0	01	1	-
22	BEARING; SHAFT,COVER SIDE,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-105-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: B = 1-44000-836-0	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: B = 1-44000-836-0	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-703-1	1-44269-014-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: B = 1-44000-836-0	1-44269-016-0	01	1	-
30	BOLT; COVER STRG UNIT ASM PART: B = 1-44000-836-0	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT ASM PART: A = 1-44000-703-1	1-44269-015-0	08	1	-
30	BOLT; COVER STRG UNIT ASM PART: B = 1-44000-836-0	1-44279-012-0	05	1	-
31	WASHER; COVER STRG UNIT ASM PART: A = 1-44000-703-1	5-09509-011-0	08	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: B = 1-44000-836-0	1-44269-007-0	01	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-703-1	5-44277-002-0	01	1	-
33	PLUG; DRAIN,STRG UNIT ASM PART: B = 1-44000-836-0	9-83331-704-0	01	1	-
34	PROTECTOR; STRG UNIT ASM PART: B = 1-44000-836-0	9-83335-044-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 1-44000-703-1	1-44150-005-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 1-44000-836-0	1-44150-065-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: B = 1-44000-836-0	1-44560-073-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: B = 1-44000-836-0	1-44259-036-1	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-703-1	1-44569-116-0	01	1	-
45	RING; RET ASM PART: A = 1-44000-703-1	1-44159-023-0	03	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44159-037-0	01	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-100-0	03	1	-
47	GASKET; HSG,STRG UNIT (E) ASM PART: A = 1-44000-703-1	1-44159-026-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-703-1	1-44159-027-0	04	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-703-1	1-44159-028-0	02	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-703-1	1-44159-029-0	01	1	-
47	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44159-036-0	01	1	-
47	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-099-0	01	1	-
47	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-116-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-703-1	1-44569-118-0	01	1	-
47	GASKET; HSG,STRG UNIT (F) ASM PART: A = 1-44000-703-1	5-09623-053-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-097-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-703-1	1-44569-119-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: B = 1-44000-836-0	1-44560-072-0	01	1	-
51	HOUSING; VALVE STRG UNIT ASM PART: A = 1-44000-703-1	1-44561-014-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: B = 1-44000-836-0	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: B = 1-44000-836-0	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44259-029-0	01	1	-
58	BEARING; HSG STRG UNIT (A) ASM PART: A = 1-44000-703-1	1-44569-115-0	01	1	-
58	BEARING; HSG STRG UNIT (B) ASM PART: A = 1-44000-703-1	1-44569-122-0	01	1	-
58	BEARING; HSG STRG UNIT (C) ASM PART: A = 1-44000-703-1	5-09811-041-0	01	1	-
59	NUT; COVER STRG UNIT ASM PART: A = 1-44000-703-1	5-44259-003-0	01	1	-
62	WASHER; HSG BOLT ASM PART: A = 1-44000-703-1	1-44569-124-0	04	1	-
65	COVER; FRT,STRG UNIT ASM PART: A = 1-44000-703-1	1-44251-063-0	01	1	-
71	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-703-1	5-44249-003-0	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: B = 1-44000-836-0	1-44259-017-0	04	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-703-1	1-44569-123-0	04	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-703-1	1-44159-030-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-114-0	01	1	-
111	RING; BACKUP (A) ASM PART: A = 1-44000-703-1	1-44159-024-0	02	1	-
111	RING; BACKUP (B) ASM PART: A = 1-44000-703-1	1-44159-025-0	01	1	-
111	RING; BACKUP (C) ASM PART: A = 1-44000-703-1	1-44569-117-0	01	1	-
111	RING; BACKUP (D) ASM PART: A = 1-44000-703-1	5-09629-004-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-703-1	1-44329-002-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-227-0	01	1	-
134	GASKET; COVER,STRG UNIT ASM PART: A = 1-44000-703-1	1-44159-027-0	01	1	-
137	PLUG; BREATHER STRG UNIT ASM PART: A = 1-44000-703-1	5-44249-002-0	01	1	-

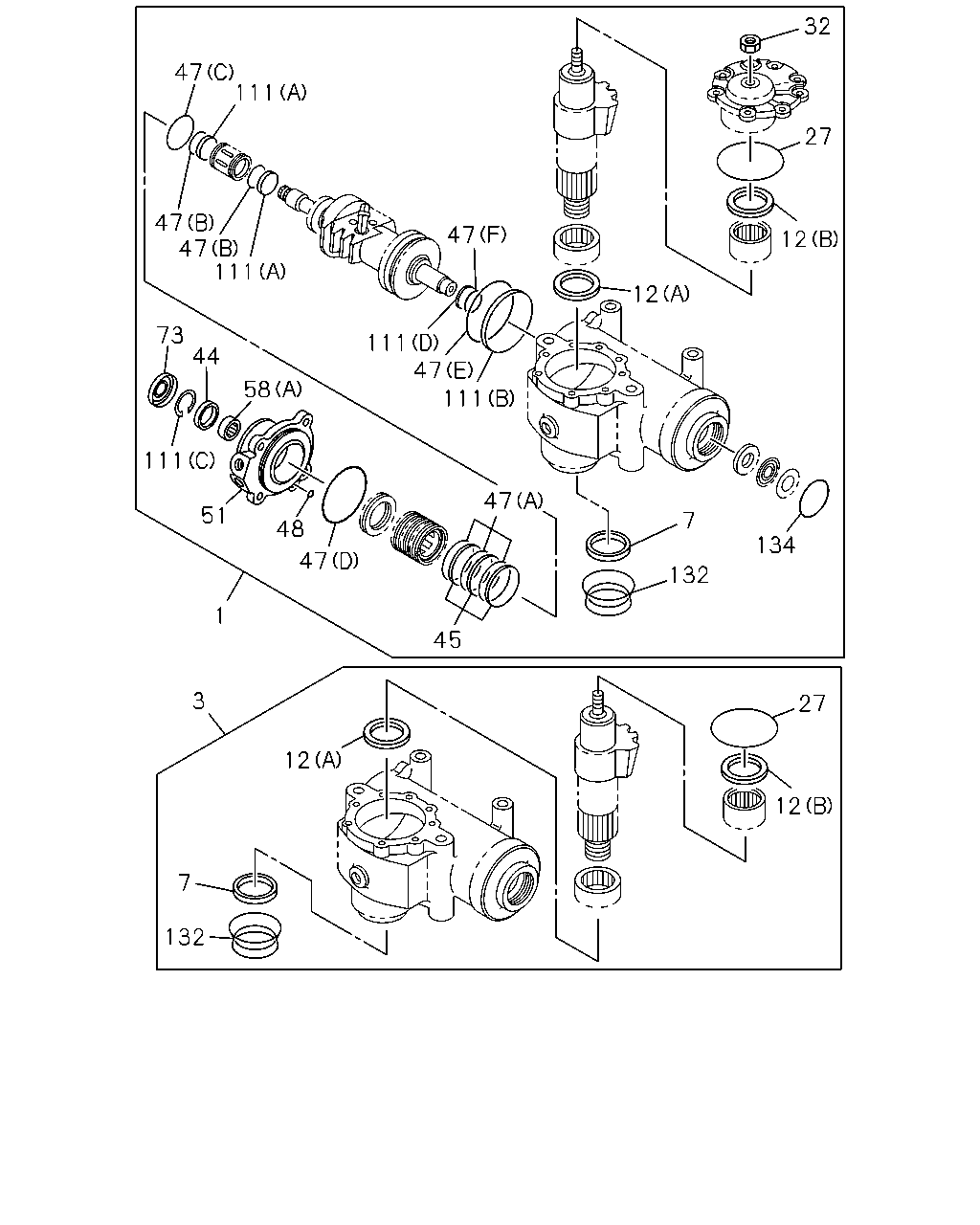

32 47 111 27 47 47 111 47 12 12 73 44 111 47 111 58 111 47 51 7 48 134 47 132 1 45 3 27 12 12 7 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 1-44000-703-1	1-44159-042-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: B = 1-44000-836-0	1-85574-030-0	01	1	-
3	SEAL KIT; SECTOR SHAFT ASM PART: A = 1-44000-703-1	1-44329-003-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-703-1	1-44249-036-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: B = 1-44000-836-0	1-44249-041-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-703-1	1-44249-035-0	01	1	-
12	GASKET; SHAFT,STRG UNIT ASM PART: B = 1-44000-836-0	1-44249-071-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-703-1	1-44269-013-0	01	1	-
12	GASKET; SHAFT,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-226-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: B = 1-44000-836-0	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: B = 1-44000-836-0	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-703-1	1-44269-014-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: B = 1-44000-836-0	1-44269-016-0	01	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: B = 1-44000-836-0	1-44269-007-0	01	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-703-1	5-44277-002-0	01	1	-
33	PLUG; DRAIN,STRG UNIT ASM PART: B = 1-44000-836-0	9-83331-704-0	01	1	-
34	PROTECTOR; STRG UNIT ASM PART: B = 1-44000-836-0	9-83335-044-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: B = 1-44000-836-0	1-44560-073-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: B = 1-44000-836-0	1-44259-036-1	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-703-1	1-44569-116-0	01	1	-
45	RING; RET ASM PART: A = 1-44000-703-1	1-44159-023-0	03	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44159-037-0	01	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-100-0	03	1	-
47	GASKET; HSG,STRG UNIT (E) ASM PART: A = 1-44000-703-1	1-44159-026-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-703-1	1-44159-027-0	04	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-703-1	1-44159-028-0	02	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-703-1	1-44159-029-0	01	1	-
47	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44159-036-0	01	1	-
47	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-099-0	01	1	-
47	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-116-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-703-1	1-44569-118-0	01	1	-
47	GASKET; HSG,STRG UNIT (F) ASM PART: A = 1-44000-703-1	5-09623-053-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-097-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-703-1	1-44569-119-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: B = 1-44000-836-0	1-44560-072-0	01	1	-
51	HOUSING; VALVE STRG UNIT ASM PART: A = 1-44000-703-1	1-44561-014-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: B = 1-44000-836-0	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: B = 1-44000-836-0	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: B = 1-44000-836-0	1-44259-029-0	01	1	-
58	BEARING; HSG STRG UNIT (A) ASM PART: A = 1-44000-703-1	1-44569-115-0	01	1	-
58	BEARING; HSG STRG UNIT (B) ASM PART: A = 1-44000-703-1	1-44569-122-0	01	1	-
58	BEARING; HSG STRG UNIT (C) ASM PART: A = 1-44000-703-1	5-09811-041-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-703-1	1-44159-030-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-114-0	01	1	-
111	RING; BACKUP (A) ASM PART: A = 1-44000-703-1	1-44159-024-0	02	1	-
111	RING; BACKUP (B) ASM PART: A = 1-44000-703-1	1-44159-025-0	01	1	-
111	RING; BACKUP (C) ASM PART: A = 1-44000-703-1	1-44569-117-0	01	1	-
111	RING; BACKUP (D) ASM PART: A = 1-44000-703-1	5-09629-004-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-703-1	1-44329-002-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: B = 1-44000-836-0	1-44519-227-0	01	1	-
134	GASKET; COVER,STRG UNIT ASM PART: A = 1-44000-703-1	1-44159-027-0	01	1	-
