◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#32007) — 12 parça

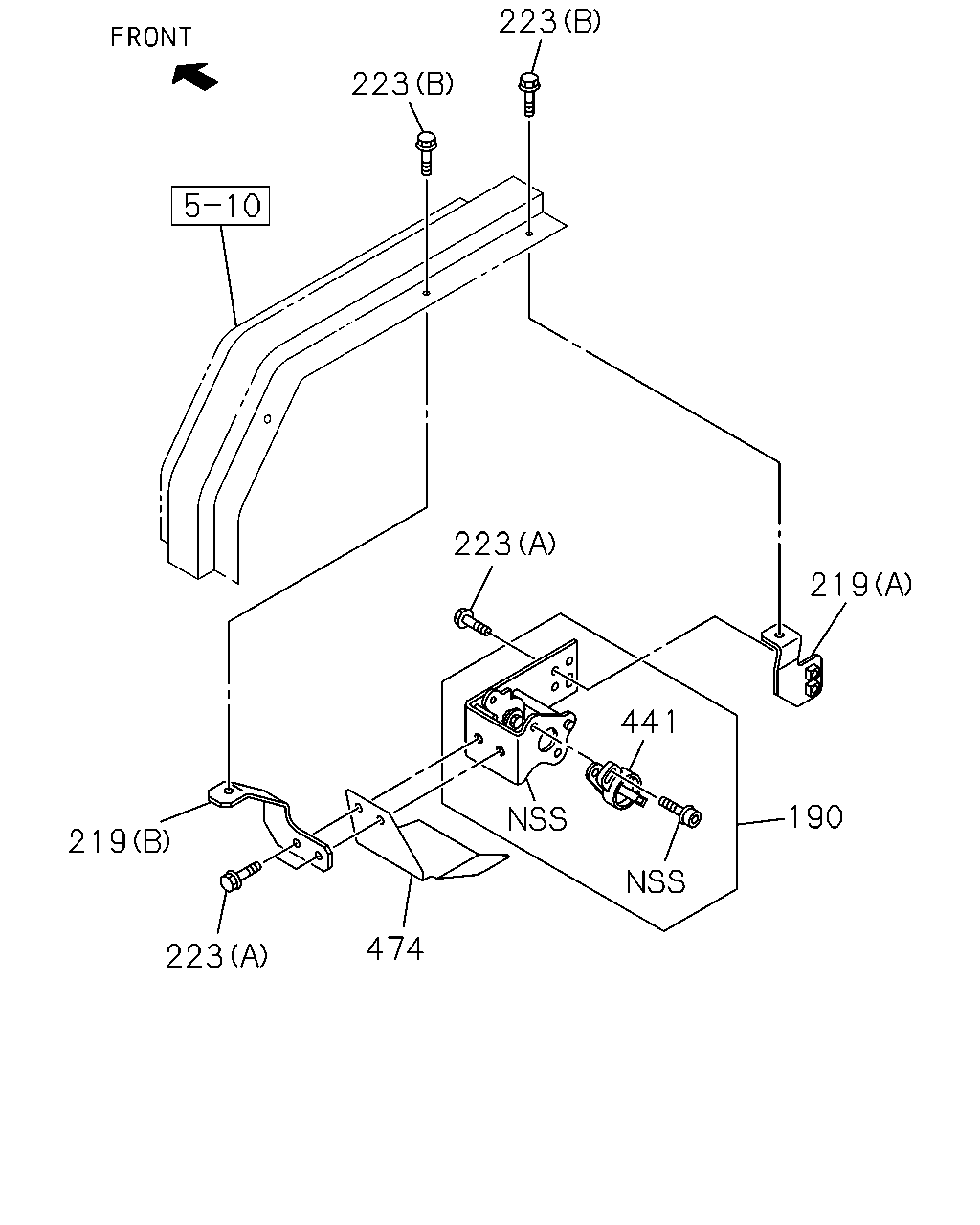

çizim 142415
223 223 223 219 441 190 219 474 223
BalonParca AdiParca NoAdetTipApplied Date
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97219-466-4 01 1 0806-
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-98046-183-0 01 1 1009-
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		8-98046-184-0 01 1 1009-
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-98080-371-0 01 1 0806-1008
219 BRACKET; ENG CONT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-98080-371-0 01 1 1009-
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		8-98080-935-0 01 1 0806-1008
219 BRACKET; ENG CONT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		8-98080-935-0 01 1 1009-
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X16 FLANGE 		0-28050-816-0 04 1 0806-
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
441 SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 0806-
474 PROTECTOR; HEAT
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-98080-377-0 01 1 0806-1008
474 PROTECTOR; HEAT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PTO CONTROL OPERATION CAB BACK<TBZ> 		8-98080-377-0 01 1 1009-
