Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#32005) — 407 parça

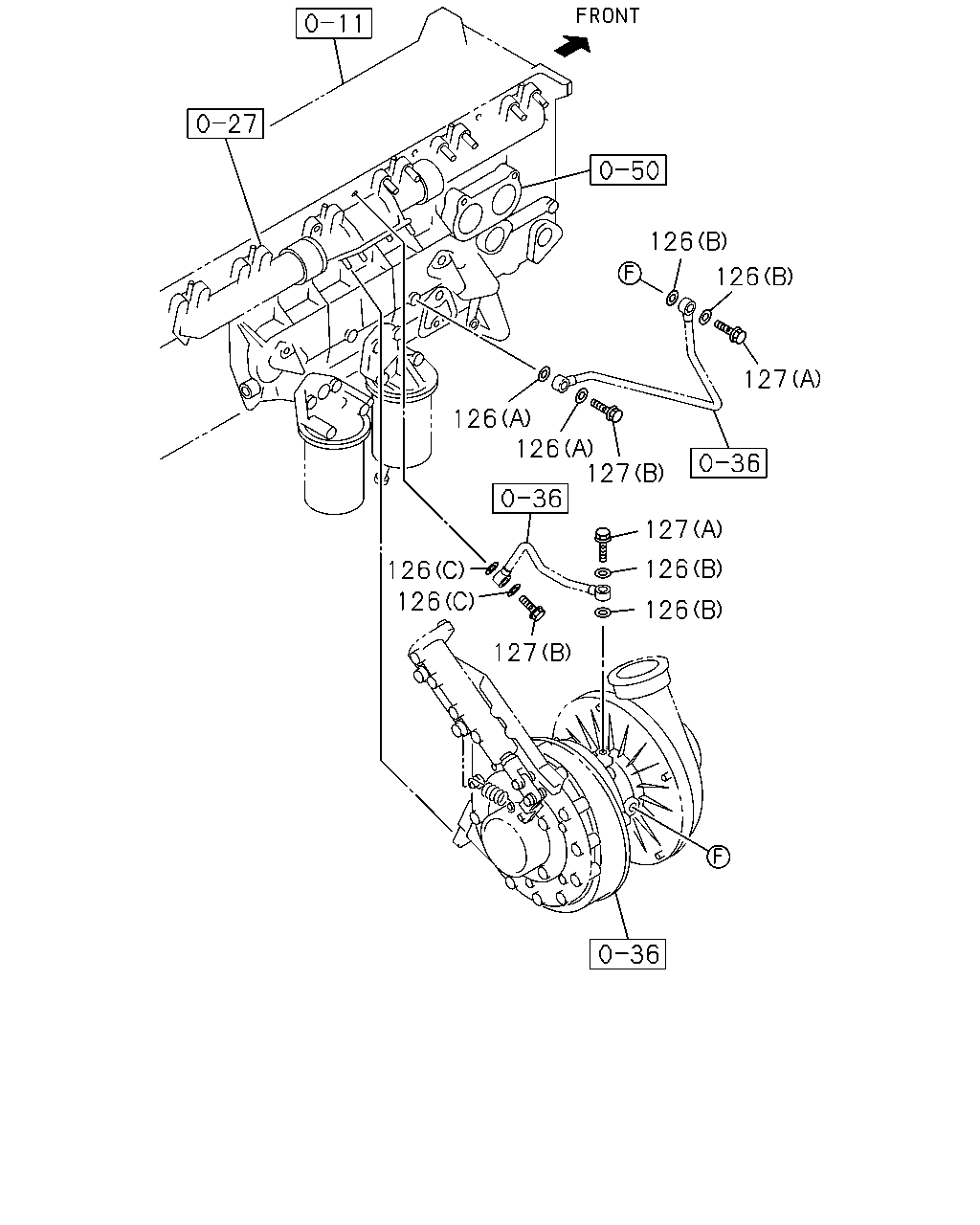

126 126 127 126 126 127 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0806-1008	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1009-1312	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0806-1008	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1009-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0806-1008	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1009-	●	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	0806-1008	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1009-	●	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	0806-1008	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1009-	●	●

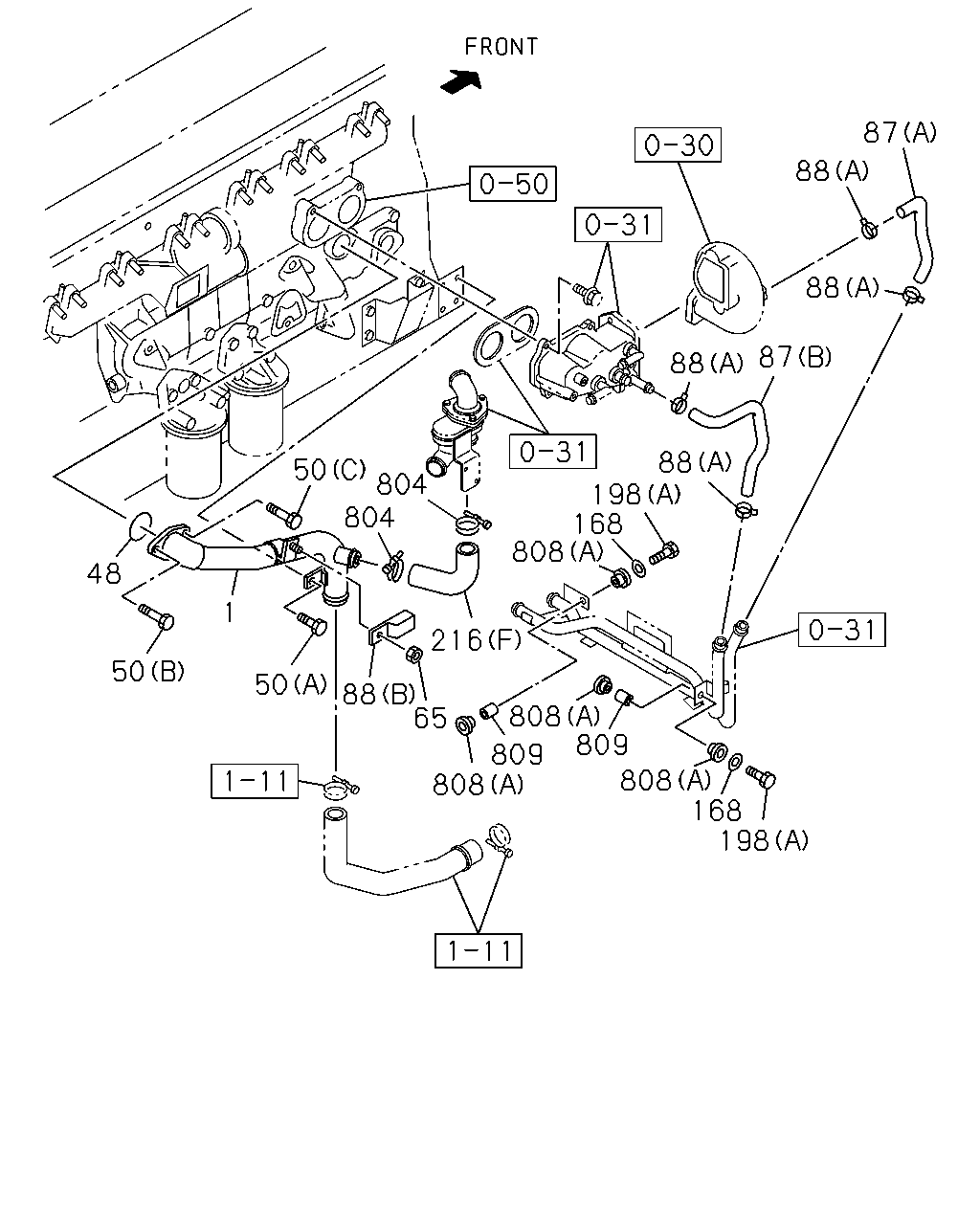

87 88 88 87 88 50 804 804 88 198 168 808 48 1 216 50 50 88 65 808 809 809 808 808 168 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL	8-97618-510-1	01	1	0806-0808	●
1	PIPE; WATER PUMP,INL	8-98100-167-0	01	1	0809-1008	●
1	PIPE; WATER PUMP,INL	8-98100-167-0	01	1	1009-	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0806-1008	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1009-	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0806-1008	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1009-	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0806-1008	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	1009-	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0806-0810	●
50	BOLT; WATER PIPE INL (A)	0-28951-450-0	01	1	0811-1008	●
50	BOLT; WATER PIPE INL (A)	0-28951-450-0	01	1	1009-1306	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1307-1309	●	●
50	BOLT; WATER PIPE INL (A)	0-28951-450-0	01	1	1310-	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	0806-1008	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	0806-1008	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	1009-	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	0806-1008	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	1009-	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0806-1008	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	1009-	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0806-1008	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	1009-1206	●	●
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0806-1008	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1009-	●	●
198	BOLT; PIPE (A) M10X45 FLANGE	0-28051-045-0	02	1	0806-1008	●
198	BOLT; PIPE (A) M10X45 FLANGE	0-28051-045-0	02	1	1009-	●	●
198	BOLT; PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	0806-1008	●
198	BOLT; PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
198	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	0806-1008	●
198	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
216	HOSE; WATER (A)	1-21430-174-2	01	1	0806-1006	●
216	HOSE; WATER (A)	8-98176-294-0	01	1	1007-1008	●
216	HOSE; WATER (A)	8-98176-294-0	01	1	1009-	●	●
216	HOSE; WATER (B)	1-21430-175-1	01	1	0806-1006	●
216	HOSE; WATER (B)	8-98176-295-0	01	1	1007-1008	●
216	HOSE; WATER (B)	8-98176-295-0	01	1	1009-	●	●
216	HOSE; WATER (C)	1-21430-176-3	01	1	0806-1006	●
216	HOSE; WATER (C)	8-98176-296-0	01	1	1007-1008	●
216	HOSE; WATER (C)	8-98176-296-0	01	1	1009-	●	●
216	HOSE; WATER (D)	1-21430-177-2	01	1	0806-1006	●
216	HOSE; WATER (D)	8-98176-297-0	01	1	1007-1008	●
216	HOSE; WATER (D)	8-98176-297-0	01	1	1009-	●	●
216	HOSE; WATER (E)	1-21430-178-3	01	1	0806-1008	●
216	HOSE; WATER (E)	1-21430-178-3	01	1	1009-	●	●
216	HOSE; WATER (F)	1-21430-180-2	01	1	0806-1008	●
216	HOSE; WATER (F)	1-21430-180-2	01	1	1009-	●	●
804	CLIP; BAND ID=58-79	1-09707-136-0	08	1	1007-1008	●
804	CLIP; BAND ID=58-79	1-09707-136-0	08	1	1009-	●	●
804	CLIP; BAND ID=72	1-09704-068-0	12	1	0806-1006	●
804	CLIP; BAND ID=72	1-09704-068-0	04	1	1007-1008	●
804	CLIP; BAND ID=72	1-09704-068-0	04	1	1009-	●	●
808	RUBBER; MTG (B)	8-98090-853-0	02	1	0806-1008	●
808	RUBBER; MTG (B)	8-98090-853-0	02	1	1009-	●	●
808	RUBBER; MTG (A)	1-09337-017-0	04	1	0806-1008	●
808	RUBBER; MTG (A)	1-09337-017-0	04	1	1009-	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0806-1008	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1009-	●	●

126 126 127 126 126 127 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0806-1008	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1009-1312	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0806-1008	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1009-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0806-1008	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1009-	●	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	0806-1008	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1009-	●	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	0806-1008	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1009-	●	●

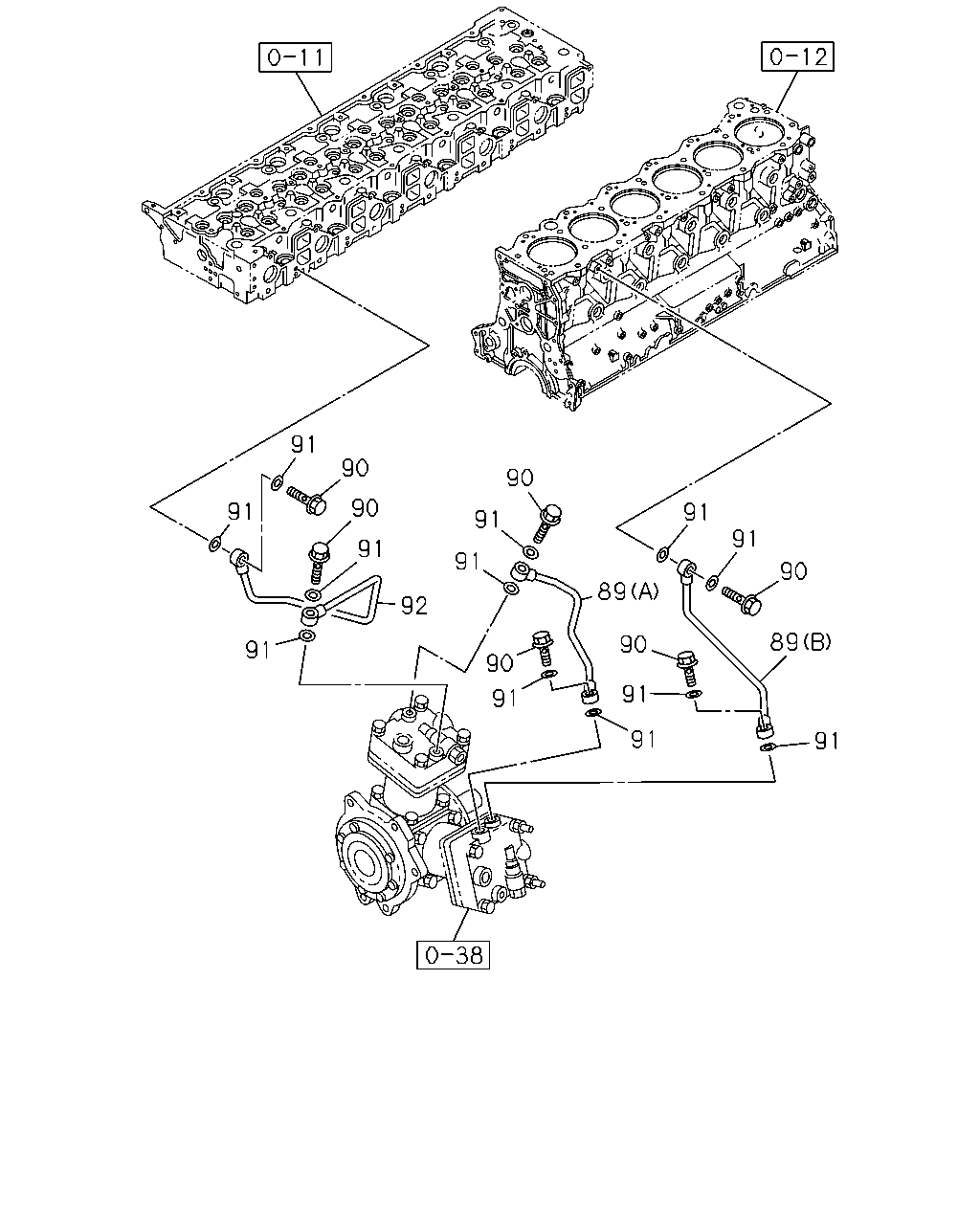

91 90 90 90 91 91 91 91 91 91 90 89 92 89 90 91 90 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	0806-1008	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1009-	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	0806-1008	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1009-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0806-1008	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1009-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0806-1008	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1009-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0806-1008	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1009-	●	●

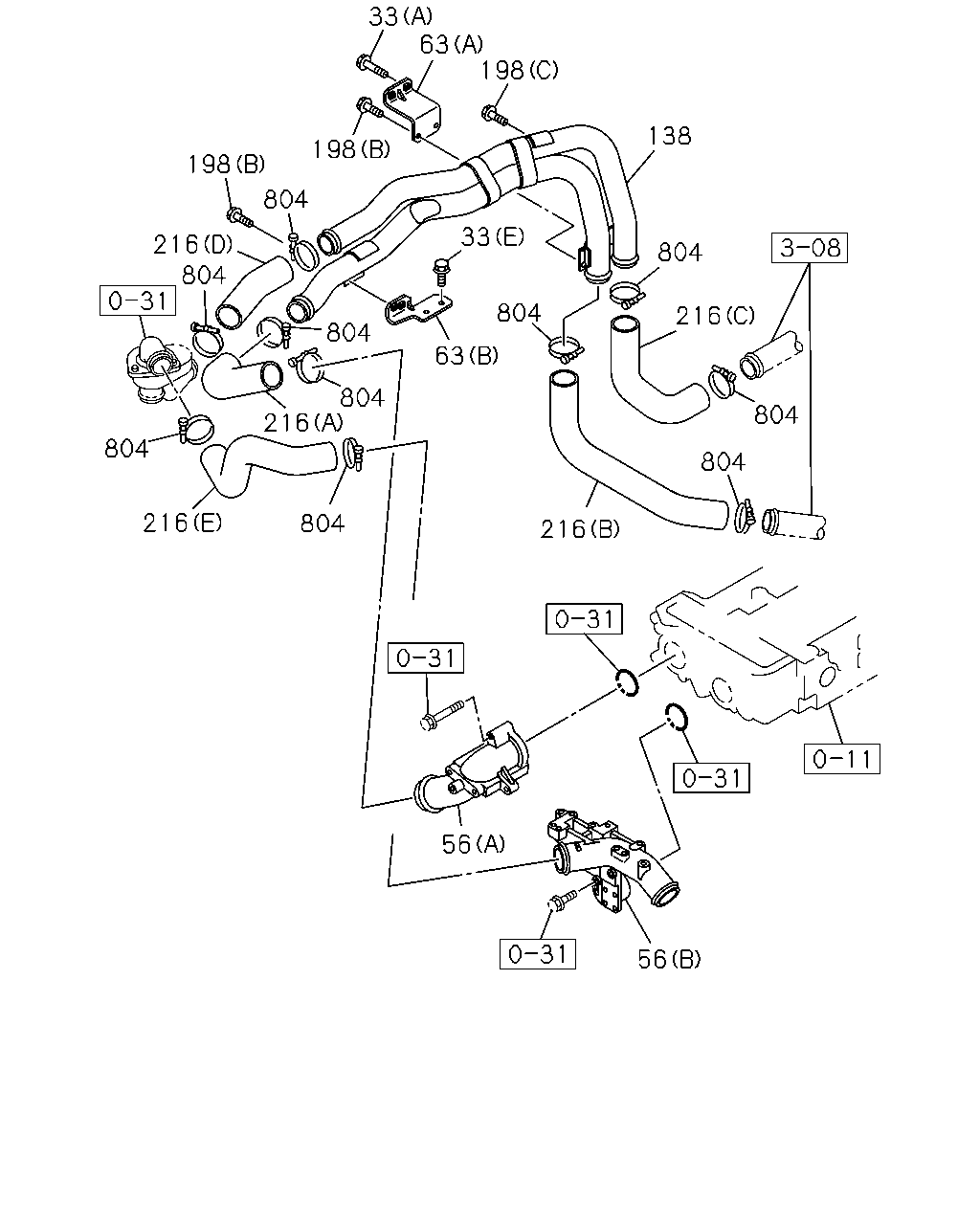

33 63 198 138 198 198 804 33 216 804 804 804 216 804 63 804 804 216 804 804 216 804 216 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0806-1008	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1009-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0806-1008	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1009-	●	●
33	BOLT; BRKT (C) M10X50 FLANGE	0-28051-050-0	02	1	0806-1008	●
33	BOLT; BRKT (C) M10X50 FLANGE	0-28051-050-0	02	1	1009-	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	07	1	0806-1008	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	07	1	1009-	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0806-1008	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1009-	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0806-1008	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1009-	●	●
33	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	0806-1008	●
33	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
33	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0806-1008	●
33	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
56	PIPE; WATER OUTLET (A)	8-98059-769-0	01	1	0806-1008	●
56	PIPE; WATER OUTLET (A)	8-98059-769-0	01	1	1009-	●	●
56	PIPE; WATER OUTLET (B)	8-98090-465-0	01	1	0806-1008	●
56	PIPE; WATER OUTLET (B)	8-98090-465-0	01	1	1009-	●	●
63	BRACKET; WATER PIPE (A)	8-98070-149-1	01	1	0806-1008	●
63	BRACKET; WATER PIPE (A)	8-98070-149-1	01	1	1009-	●	●
63	BRACKET; WATER PIPE (B)	8-98071-949-1	01	1	0806-1008	●
63	BRACKET; WATER PIPE (B)	8-98071-949-1	01	1	1009-	●	●
138	PIPE; WATER	8-98054-611-4	01	1	0806-1008	●
138	PIPE; WATER	8-98054-611-4	01	1	1009-	●	●
198	BOLT; PIPE (A) M10X45 FLANGE	0-28051-045-0	02	1	0806-1008	●
198	BOLT; PIPE (A) M10X45 FLANGE	0-28051-045-0	02	1	1009-	●	●
198	BOLT; PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	0806-1008	●
198	BOLT; PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
198	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	0806-1008	●
198	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
216	HOSE; WATER (A)	1-21430-174-2	01	1	0806-1006	●
216	HOSE; WATER (A)	8-98176-294-0	01	1	1007-1008	●
216	HOSE; WATER (A)	8-98176-294-0	01	1	1009-	●	●
216	HOSE; WATER (B)	1-21430-175-1	01	1	0806-1006	●
216	HOSE; WATER (B)	8-98176-295-0	01	1	1007-1008	●
216	HOSE; WATER (B)	8-98176-295-0	01	1	1009-	●	●
216	HOSE; WATER (C)	1-21430-176-3	01	1	0806-1006	●
216	HOSE; WATER (C)	8-98176-296-0	01	1	1007-1008	●
216	HOSE; WATER (C)	8-98176-296-0	01	1	1009-	●	●
216	HOSE; WATER (D)	1-21430-177-2	01	1	0806-1006	●
216	HOSE; WATER (D)	8-98176-297-0	01	1	1007-1008	●
216	HOSE; WATER (D)	8-98176-297-0	01	1	1009-	●	●
216	HOSE; WATER (E)	1-21430-178-3	01	1	0806-1008	●
216	HOSE; WATER (E)	1-21430-178-3	01	1	1009-	●	●
216	HOSE; WATER (F)	1-21430-180-2	01	1	0806-1008	●
216	HOSE; WATER (F)	1-21430-180-2	01	1	1009-	●	●
804	CLIP; BAND ID=58-79	1-09707-136-0	08	1	1007-1008	●
804	CLIP; BAND ID=58-79	1-09707-136-0	08	1	1009-	●	●
804	CLIP; BAND ID=72	1-09704-068-0	12	1	0806-1006	●
804	CLIP; BAND ID=72	1-09704-068-0	04	1	1007-1008	●
804	CLIP; BAND ID=72	1-09704-068-0	04	1	1009-	●	●

58 113 58 109 33 31 31 31 94 94 94 206 94 94 94 153 94 94 94 94 58 113 58 108 115 153 206 803 808 153 115 153 95 165 165 109 24 165 104 107 104 33 112 112 111 24 212 105 107 33 56 104 814 813 813 813 107 33 107 24 95 24 110 33 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (A)	8-97618-515-2	01	1	0806-1008	●
24	BRACKET; WATER PIPE (A)	8-97618-515-2	01	1	1009-	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (G)	8-97620-760-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (G)	8-97620-760-1	01	1	1009-	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0806-1008	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1009-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0806-1008	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1009-	●	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0806-1008	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1009-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0806-1008	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1009-	●	●
33	BOLT; BRKT (C) M10X50 FLANGE	0-28051-050-0	02	1	0806-1008	●
33	BOLT; BRKT (C) M10X50 FLANGE	0-28051-050-0	02	1	1009-	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	07	1	0806-1008	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	07	1	1009-	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0806-1008	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1009-	●	●

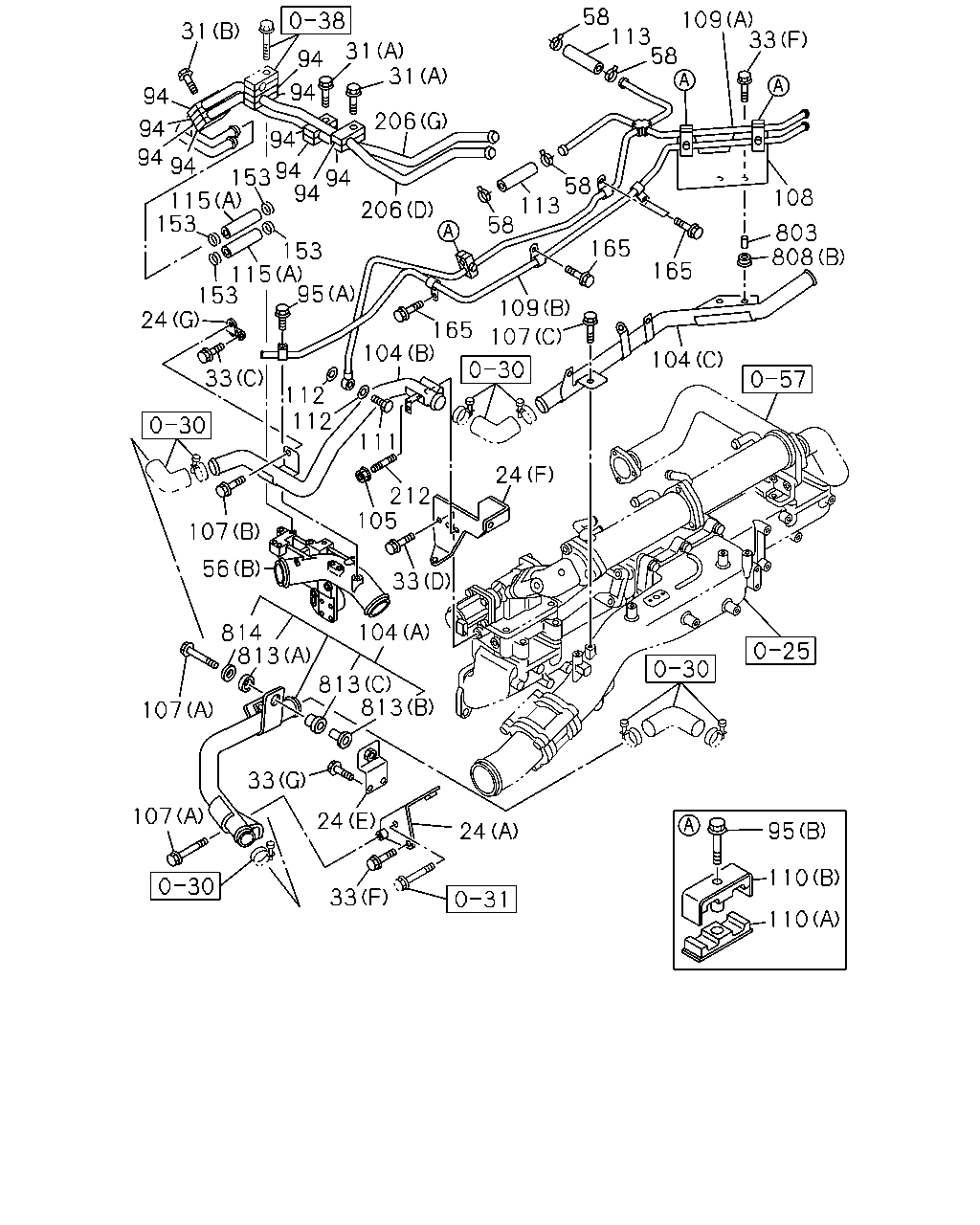

33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0806-1008	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1009-	●	●
33	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	0806-1008	●
33	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
33	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0806-1008	●
33	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
56	PIPE; WATER OUTLET (A)	8-98059-769-0	01	1	0806-1008	●
56	PIPE; WATER OUTLET (A)	8-98059-769-0	01	1	1009-	●	●
56	PIPE; WATER OUTLET (B)	8-98090-465-0	01	1	0806-1008	●
56	PIPE; WATER OUTLET (B)	8-98090-465-0	01	1	1009-	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	0806-1008	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	1009-	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0806-1008	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1009-	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	01	1	0806-1008	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	01	1	1009-	●	●
95	BOLT; CLIP (B) M6X35 FLANGE	0-28050-635-0	04	1	0806-1008	●
95	BOLT; CLIP (B) M6X35 FLANGE	0-28050-635-0	04	1	1009-	●	●
104	PIPE; WATER CHARGE (A)	8-97618-511-2	01	1	0806-1008	●
104	PIPE; WATER CHARGE (A)	8-97618-511-2	01	1	1009-	●	●
104	PIPE; WATER CHARGE (B)	8-97620-789-1	01	1	0806-1008	●
104	PIPE; WATER CHARGE (B)	8-97620-789-1	01	1	1009-	●	●
104	PIPE; WATER CHARGE (C)	8-98090-874-0	01	1	0806-1008	●
104	PIPE; WATER CHARGE (C)	8-98090-874-0	01	1	1009-	●	●
105	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0806-1008	●
105	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
107	BOLT; WATER PIPE (B) M10X20 FLANGE	0-28151-020-0	01	1	0806-1008	●
107	BOLT; WATER PIPE (B) M10X20 FLANGE	0-28151-020-0	01	1	1009-	●	●
107	BOLT; WATER PIPE (C) M10X30 FLANGE	0-28151-030-0	01	1	0806-1008	●
107	BOLT; WATER PIPE (C) M10X30 FLANGE	0-28151-030-0	01	1	1009-	●	●
107	BOLT; WATER PIPE (A) M10X35 FLANGE	0-28151-035-0	02	1	0806-1008	●
107	BOLT; WATER PIPE (A) M10X35 FLANGE	0-28151-035-0	02	1	1009-	●	●
108	BRACKET; WATER CHARGE	8-97615-508-2	01	1	0806-1008	●
108	BRACKET; WATER CHARGE	8-97615-508-2	01	1	1009-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97620-107-0	01	1	0806-1008	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97620-107-0	01	1	1009-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97620-788-0	01	1	0806-1008	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97620-788-0	01	1	1009-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0806-1008	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	1009-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	03	1	0806-1008	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	03	1	1009-	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0806-1008	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1009-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0806-1008	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1009-	●	●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0806-1008	●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1009-	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0806-0806	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1008	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1009-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0806-0806	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1008	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1009-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0806-1008	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1009-	●	●
165	BOLT; PIPE TO BRKT M6X16 FLANGE	0-28050-616-0	04	1	0806-1008	●
165	BOLT; PIPE TO BRKT M6X16 FLANGE	0-28050-616-0	04	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1009-	●	●
212	STUD; PIPE M8X20 L=32	0-41010-820-0	01	1	0806-1008	●
212	STUD; PIPE M8X20 L=32	0-41010-820-0	01	1	1009-	●	●
803	SPACER	8-98090-852-0	01	1	0806-1008	●
803	SPACER	8-98090-852-0	01	1	1009-	●	●
808	RUBBER; MTG (B)	8-98090-853-0	02	1	0806-1008	●
808	RUBBER; MTG (B)	8-98090-853-0	02	1	1009-	●	●
808	RUBBER; MTG (A)	1-09337-017-0	04	1	0806-1008	●
808	RUBBER; MTG (A)	1-09337-017-0	04	1	1009-	●	●
813	MOUNTING (A) ID=19 OD=26	8-94160-177-0	01	1	0806-1008	●
813	MOUNTING (A) ID=19 OD=26	8-94160-177-0	01	1	1009-	●	●
813	MOUNTING (B) OD=28	8-94390-551-0	01	1	0806-1008	●
813	MOUNTING (B) OD=28	8-94390-551-1	01	1	1009-	●	●
813	MOUNTING (C) OD=26	8-94394-529-0	01	1	0806-1008	●
813	MOUNTING (C) OD=26	8-94394-529-0	01	1	1009-	●	●
814	PLATE ID=13 OD=28	8-94394-504-0	01	1	0806-1008	●
814	PLATE ID=13 OD=28	8-94394-504-0	01	1	1009-	●	●

153 115 153 206 153 115 153 31 31 206 31 31 24 33 24 33 31 31 94 94 94 94 94 94

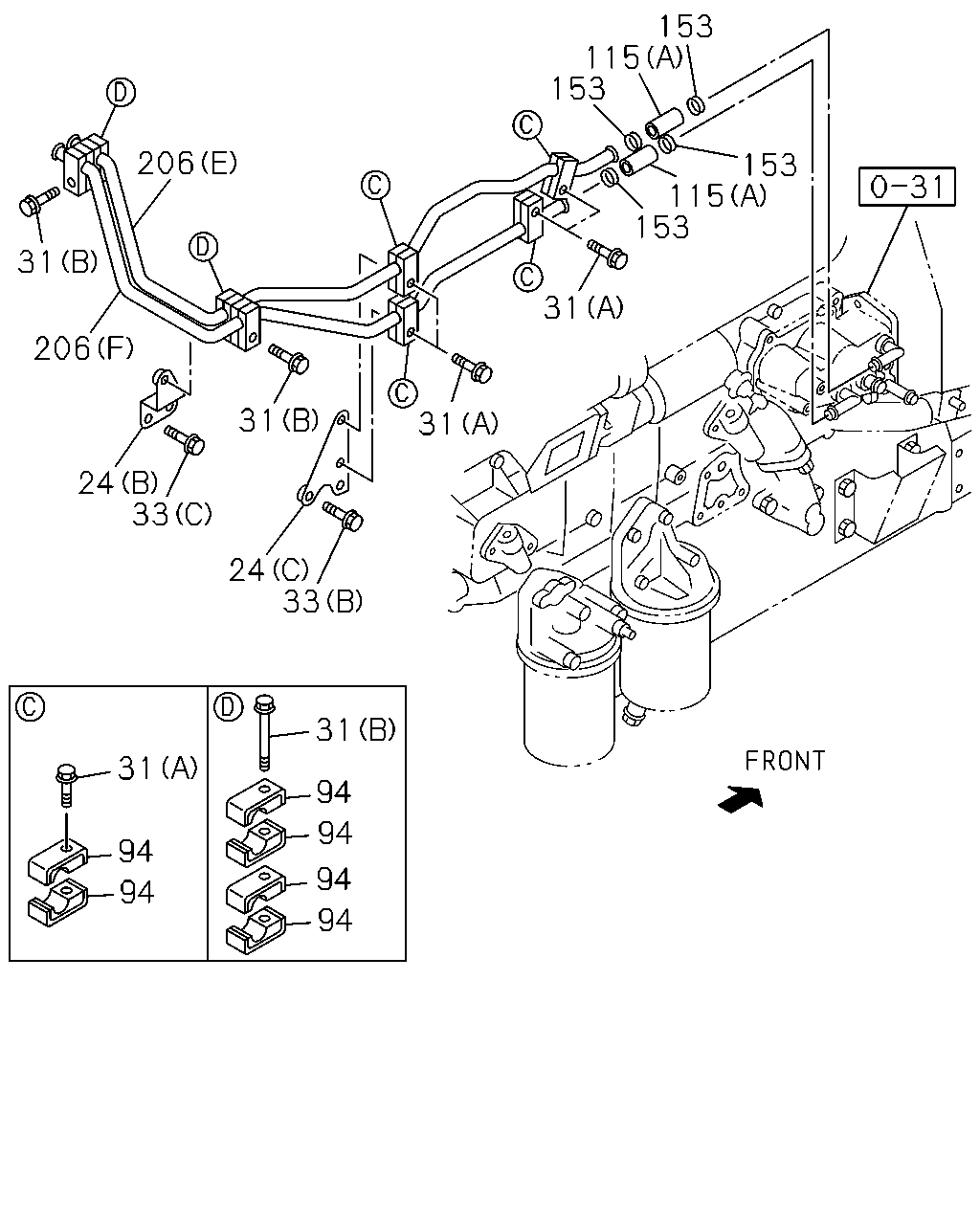

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (A)	8-97618-515-2	01	1	0806-1008	●
24	BRACKET; WATER PIPE (A)	8-97618-515-2	01	1	1009-	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (G)	8-97620-760-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (G)	8-97620-760-1	01	1	1009-	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0806-1008	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1009-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0806-1008	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1009-	●	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0806-1008	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1009-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0806-1008	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1009-	●	●
33	BOLT; BRKT (C) M10X50 FLANGE	0-28051-050-0	02	1	0806-1008	●
33	BOLT; BRKT (C) M10X50 FLANGE	0-28051-050-0	02	1	1009-	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	07	1	0806-1008	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	07	1	1009-	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0806-1008	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1009-	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0806-1008	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1009-	●	●
33	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	0806-1008	●
33	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
33	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0806-1008	●
33	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0806-1008	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1009-	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0806-0806	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1008	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1009-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0806-0806	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1008	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1009-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0806-1008	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1009-	●	●

33 24 153 115 153 153 115 153 153 115 153 115 153 31 153 153 153 115 206 153 115 153 153 206 115 31 153 153 206 206 115 153 31 31 115 153 31 153 24 24 33 115 206 206 31 31 94 94 24 33 24 94 94 94 94 33 153 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1009-	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (A)	8-97618-515-2	01	1	0806-1008	●
24	BRACKET; WATER PIPE (A)	8-97618-515-2	01	1	1009-	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0806-1008	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1009-	●	●
24	BRACKET; WATER PIPE (G)	8-97620-760-1	01	1	0806-1008	●
24	BRACKET; WATER PIPE (G)	8-97620-760-1	01	1	1009-	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0806-1008	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1009-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0806-1008	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1009-	●	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0806-1008	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1009-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0806-1008	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1009-	●	●
33	BOLT; BRKT (C) M10X50 FLANGE	0-28051-050-0	02	1	0806-1008	●
33	BOLT; BRKT (C) M10X50 FLANGE	0-28051-050-0	02	1	1009-	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	07	1	0806-1008	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	07	1	1009-	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0806-1008	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1009-	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0806-1008	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1009-	●	●
33	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	0806-1008	●
33	BOLT; BRKT (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
33	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0806-1008	●
33	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0806-1008	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1009-	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	0806-0806	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0806-1008	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1009-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	07	1	0806-0806	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0806-1008	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1009-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0806-1008	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1009-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0806-1008	●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
