◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#32003) — 58 parça

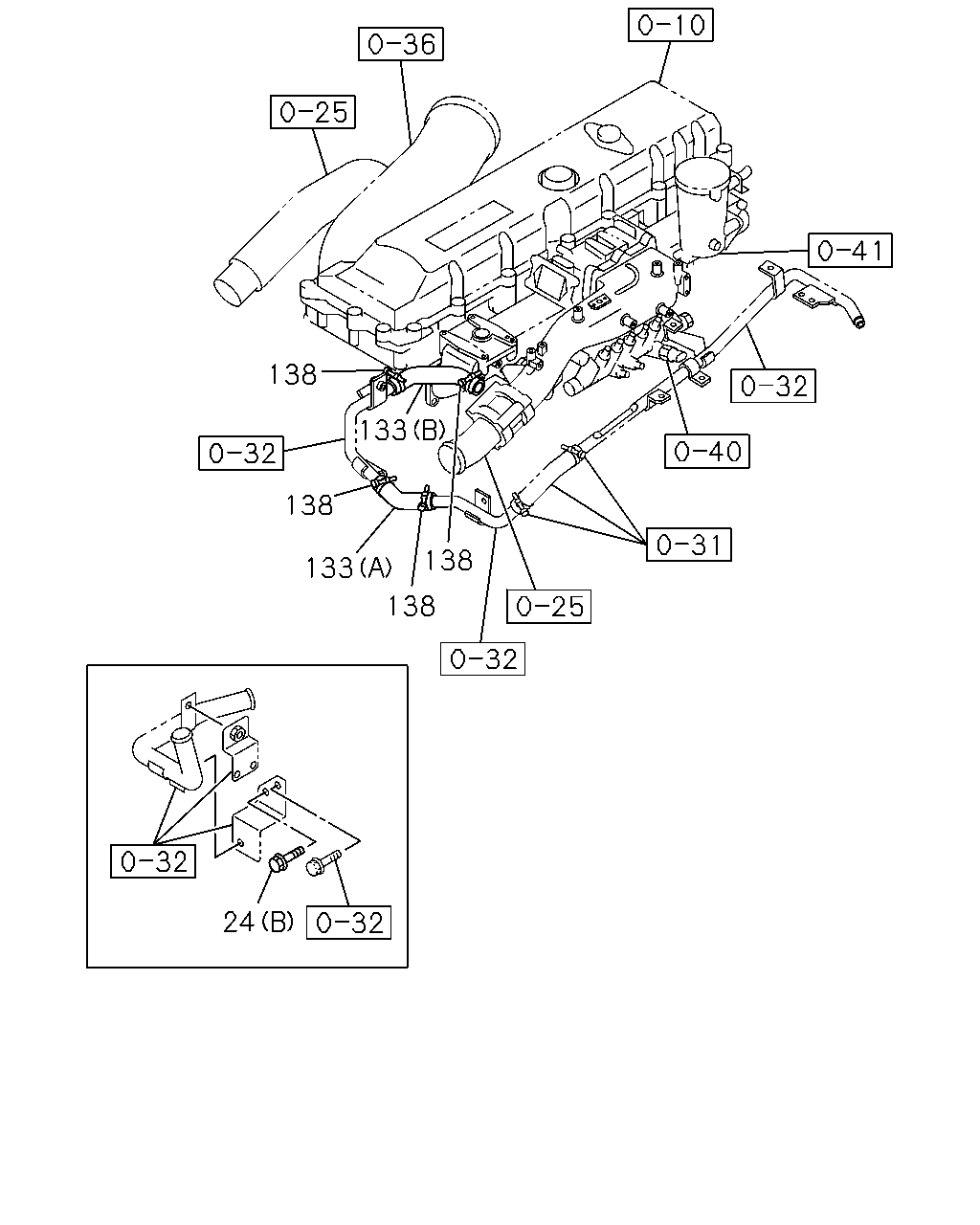

çizim 142404
138 133 138 138 133 138 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 0806-1008 ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 1009- ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 0806-1008 ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 1009- ● ●
133 HOSE; RUBBER,WATER PIPE
(A) 		8-97612-998-0 02 1 0806-1008 ●
133 HOSE; RUBBER,WATER PIPE
(A) 		8-97612-998-0 02 1 1009- ● ●
133 HOSE; RUBBER,WATER PIPE
(B) 		8-97617-185-0 01 1 0806-1008 ●
133 HOSE; RUBBER,WATER PIPE
(B) 		8-97617-185-0 01 1 1009- ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 06 1 0806-1008 ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 06 1 1009- ● ●

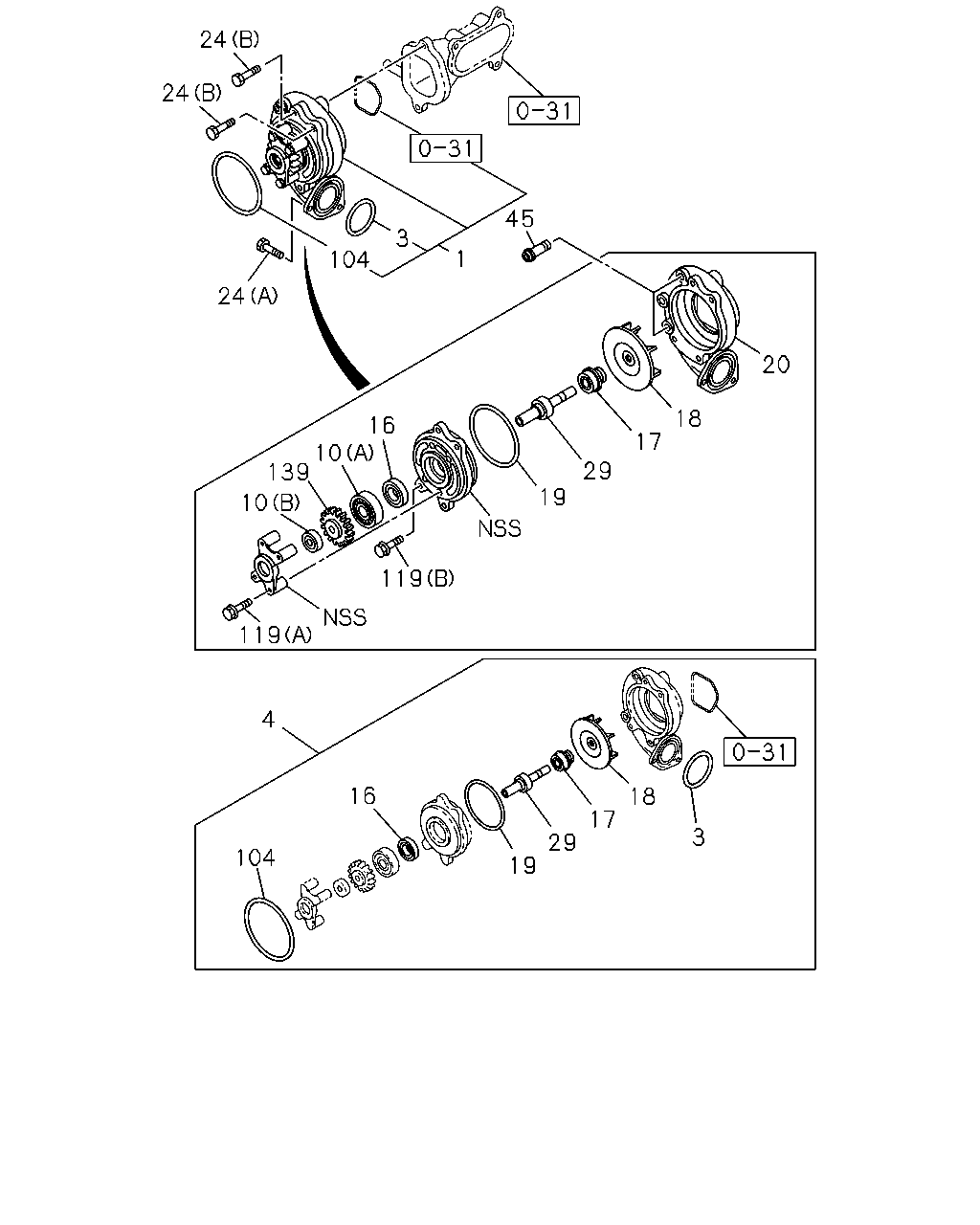

çizim 142406
24 24 45 3 1 104 24 20 18 16 17 10 139 29 19 10 119 119 4 16 18 17 3 29 104 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 8-98098-792-0 01 1 0806-0902 ●
1 PUMP ASM; WATER,W/GASKET 8-98146-072-0 01 1 0903-1008 ●
1 PUMP ASM; WATER,W/GASKET 8-98146-072-0 01 1 1009-1207 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-864-0 01 1 1208-1312 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-956-0 01 1 1401-1406 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-995-0 01 1 1407- ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0806-1008 ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 1009- ● ●
4 REPAIR KIT; WATER PUMP 1-87813-314-1 01 1 0806-1008 ●
4 REPAIR KIT; WATER PUMP 1-87813-314-1 01 1 1009-1111 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-815-0 01 1 1112-1207 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-955-0 01 1 1208-1312 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-815-0 01 1 1401-1406 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-620-0 01 1 1407- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0806-1008 ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 1009- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0806-1008 ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 1009- ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0806-1008 ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 1009- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0806-1008 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1009-1207 ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1208-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1406 ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1407- ● ●
18 IMPELLER; WATER PUMP 8-98075-723-0 01 1 0806-1008 ●
18 IMPELLER; WATER PUMP 8-98075-723-0 01 1 1009- ● ●
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 0806-1008 ●
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 1009- ● ●
20 COVER; WATER PUMP 8-97611-134-0 01 1 0806-1008 ●
20 COVER; WATER PUMP 8-97611-134-0 01 1 1009- ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 0806-1008 ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 1009- ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 0806-1008 ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 1009- ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0806-0902 ●
29 SHAFT; WATER PUMP 8-98141-463-0 01 1 0903-1008 ●
29 SHAFT; WATER PUMP 8-98141-463-0 01 1 1009- ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 03 1 0806-1008 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 03 1 1009- ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0806-1008 ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 1009- ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 0806-1008 ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 1009- ● ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0806-1008 ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 1009- ● ●
139 GEAR; WATER PUMP,DRIVE 8-97606-219-0 01 1 0806-1008 ●
139 GEAR; WATER PUMP,DRIVE 8-97606-219-1 01 1 1009- ● ●
