0-28 — VENTILATION SYSTEM (#32002) — 79 parça

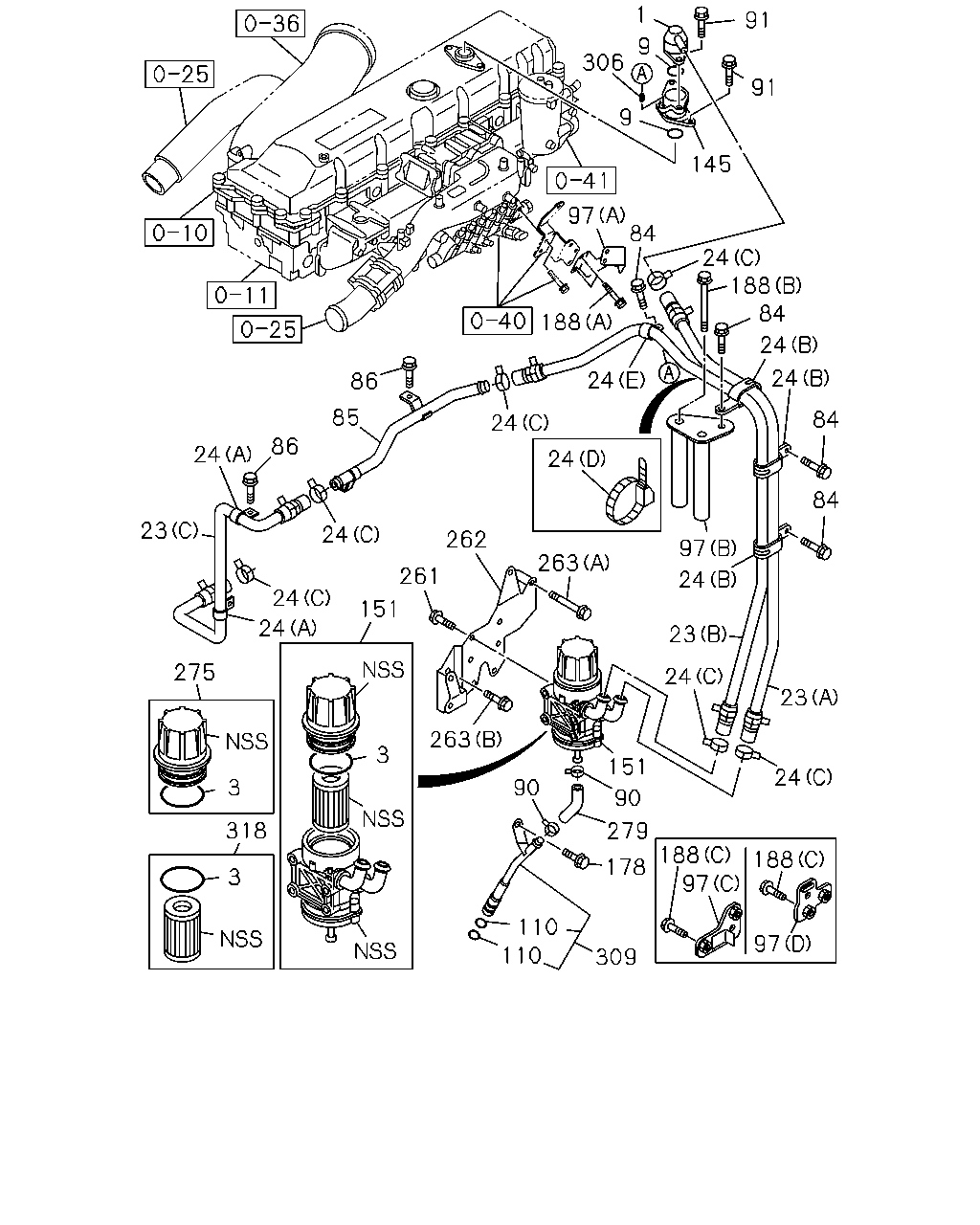

çizim 142405
3 318 3 275 24 23 24 3 110 188 97 188 97 178 90 279 151 90 263 151 262 263 97 24 23 24 23 24 84 84 24 24 84 188 24 24 24 24 24 188 86 85 86 24 97 145 84 9 9 306 91 91 1 261 309 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 BREATHER; AIR 1-11740-181-1 01 1 0806-1008 ●
1 BREATHER; AIR 1-11740-181-1 01 1 1009- ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0806-1008 ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1009- ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 0806-1008 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 1009- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-2 01 1 0806-1008 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-3 01 1 1009-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-98122-989-0 01 1 1211-1309 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-98254-532-0 01 1 1310- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-1 01 1 0806-1008 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-2 01 1 1009-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98227-927-0 01 1 1211- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-2 01 1 0806-1008 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-3 01 1 1009-1210 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-98227-928-0 01 1 1211- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 0806-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 1009-1210 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 08 1 1211- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 0806-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1009-1210 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 0806-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 1009- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 0806-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 1009-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		8-98216-430-0 01 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 0806-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 1009-1210 ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 05 1 0806-1008 ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 05 1 1009-1210 ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 07 1 1211- ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X50 FLANGE 		0-28050-850-0 01 1 0806-1008 ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X50 FLANGE 		0-28050-850-0 01 1 1009- ● ●
85 PIPE; BREATHER 8-97611-021-1 01 1 0806-1008 ●
85 PIPE; BREATHER 8-97611-021-1 01 1 1009- ● ●
86 BOLT; BREATHER PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0806-1008 ●
86 BOLT; BREATHER PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0806-1008 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1009- ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 04 1 0806-1008 ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 04 1 1009- ● ●
97 BRACKET; HOSE
(C) 		8-98227-930-0 01 1 1211- ● ●
97 BRACKET; HOSE
(D) 		8-98227-931-0 01 1 1211- ● ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0806-1008 ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 1009- ● ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 0806-1008 ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 1009-1210 ● ●
97 BRACKET; HOSE
(B) 		8-98227-929-0 01 1 1211- ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 0806-1008 ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1009- ● ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 0806-1008 ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 1009- ● ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 0806-1008 ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 1009- ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0806-1008 ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1009- ● ●
188 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1211- ● ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 0806-1008 ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 1009- ● ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0806-1008 ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 0806-1008 ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1009- ● ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0806-1008 ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 1009- ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0806-1008 ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1009- ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0806-1008 ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1009- ● ●
275 CAP; PCV 8-97385-918-0 01 1 0806-1008 ●
275 CAP; PCV 8-97385-918-0 01 1 1009- ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 0806-1008 ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1009- ● ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 0806-1008 ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 1009- ● ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 0806-1008 ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 1009- ● ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 0806-1008 ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 1009- ● ●
