Isuzu WW
▶
TRUCKS
▶
FSR
▶
10624 - FSR-RHD
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶

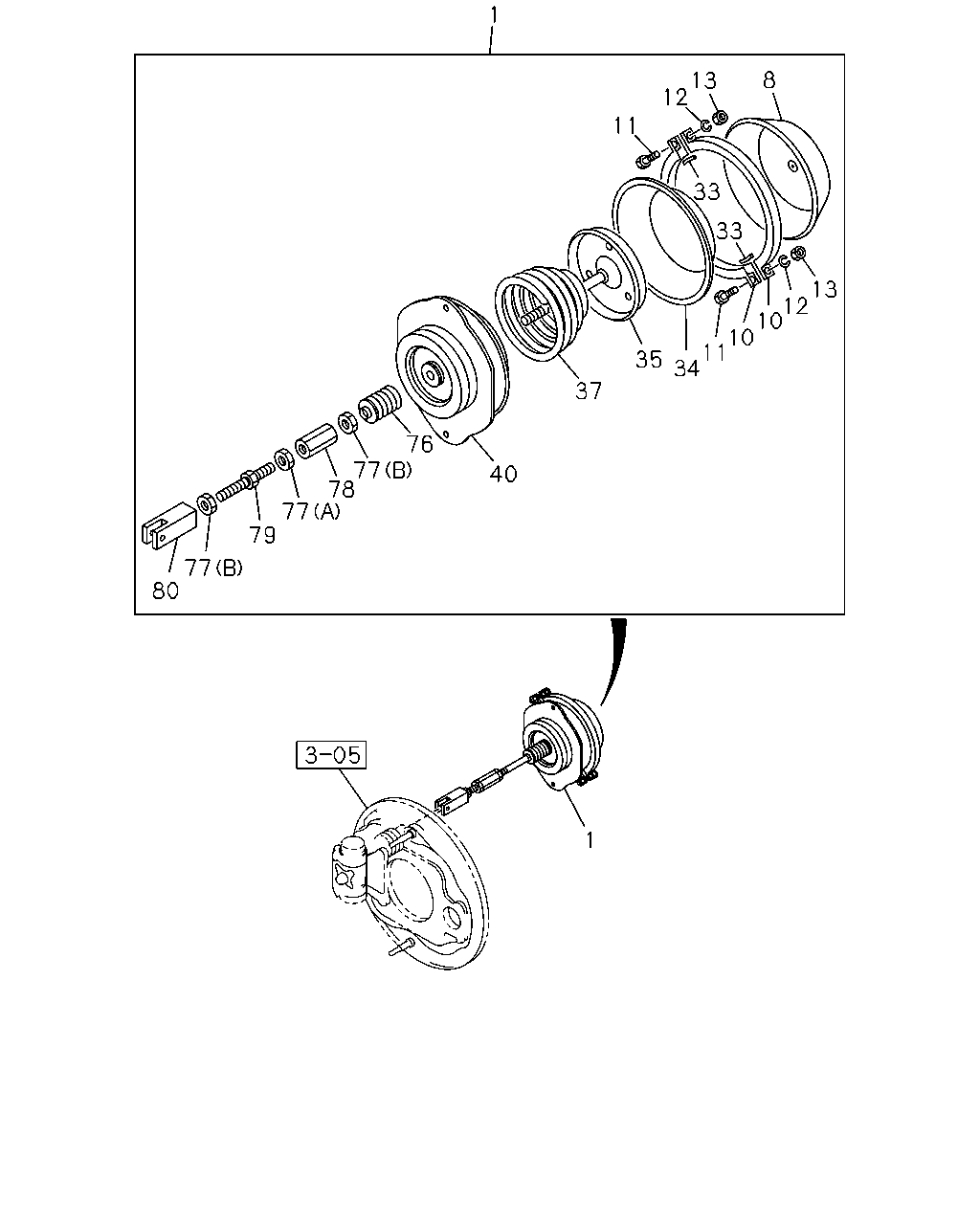

3-41 — REAR BRAKE POWER CHAMBER
(#32) — 21 parça
Tümü
A - FSR5MF
B - FSR5WF
1
8
13
12
11
33
33
13
12
10
10
11
34
35
37
76
77
78
77
79
40
77
80
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-305-1
01
1
9202-
●
●
1
CHAMBER ASM; SPRING
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-304-1
01
1
9202-
●
●
1
CHAMBER ASM; SPRING
FINAL GEAR 15.5"<B2X>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-433-1
01
1
9202-
●
●
1
CHAMBER ASM; SPRING
FINAL GEAR 15.5"<B2X>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-432-1
01
1
9202-
●
●
8
SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-031-0
02
1
9202-
●
●
10
RING; CLAMP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48259-016-0
04
1
9202-
●
●
11
BOLT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48259-035-0
04
1
9202-
●
●
12
WASHER; LK,CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2
9-09150-510-0
04
1
9202-
●
●
13
NUT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10
9-09110-510-0
04
1
9202-
●
●
33
RETAINER; DIAPH
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48259-044-0
04
1
9202-
●
●
34
DIAPHRAGM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48252-026-0
02
1
9202-
●
●
35
PLATE; ROD END,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-024-0
02
1
9202-
●
●
37
SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48255-008-0
02
1
9202-
●
●
40
COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-032-0
02
1
9202-
●
●
76
GUARD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48259-096-0
02
1
9202-
●
●
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48253-021-0
02
1
9202-
●
●
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
9-88510-432-0
04
1
9202-
●
●
78
TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-023-0
02
1
9202-
●
●
79
STUD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-027-0
02
1
9202-
●
●
80
CLEVIS; SPR CHAMBER BRK
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-026-0
02
1
9202-
●
●
80
CLEVIS; SPR CHAMBER BRK
FINAL GEAR 15.5"<B2X>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48253-038-0
02
1
9202-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
