0-12 — CYLINDER BLOCK (#31994) — 73 parça

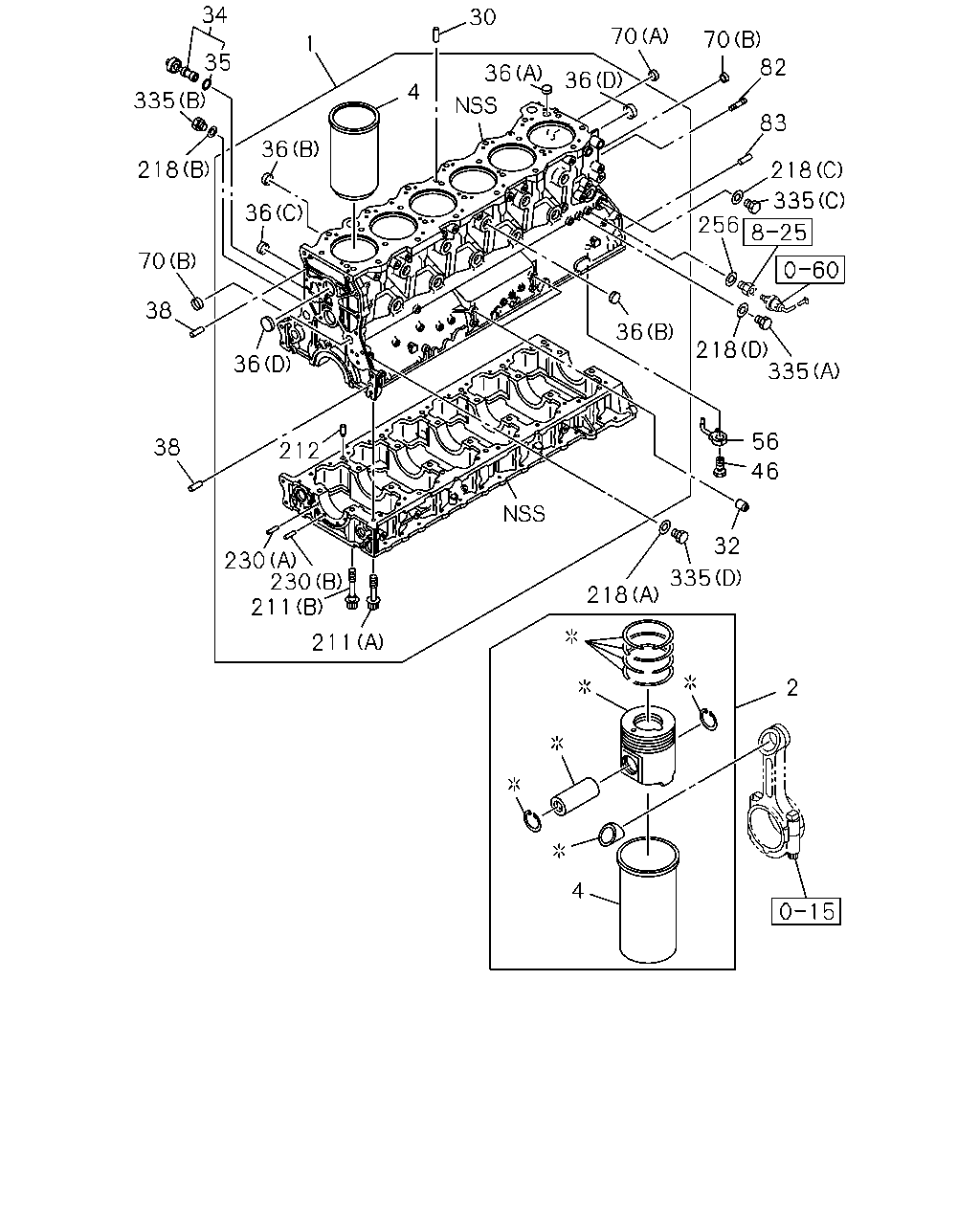

çizim 142397
38 230 211 211 218 32 335 46 56 335 36 256 335 218 83 70 70 36 36 4 1 36 36 218 335 34 35 70 38 36 212 230 2 4 218 30 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-98180-451-1 01 1 0806- ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-650-2 06 1 1112- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-651-2 06 1 1112- ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-095-3 06 1 0806-1008 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-095-3 06 1 1009-1111 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-095-5 06 1 1112- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-096-3 06 1 0806-1008 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-096-3 06 1 1009-1111 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-096-5 06 1 1112- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0806-1008 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 1009- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0806-1008 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 1009- ● ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 0806-0807 ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 02 1 0808-1008 ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 02 1 1009- ● ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 0806-1008 ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 1009- ● ●
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 0806-1008 ●
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 1009- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 0806-1008 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 1009- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=25 		1-09600-016-0 01 1 0806-1008 ●
36 CUP; SEALING,WATER JACKET
(A) OD=25 		1-09600-016-0 01 1 1009- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=40 		1-09600-065-1 02 1 0806-1008 ●
36 CUP; SEALING,WATER JACKET
(B) OD=40 		1-09600-065-1 02 1 1009- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 0806-1008 ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 1009- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=45 		8-97351-451-0 04 1 0806-1008 ●
36 CUP; SEALING,WATER JACKET
(D) OD=45 		8-97351-451-0 04 1 1009- ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 0806-1008 ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 1009- ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 0806-1008 ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 1009- ● ●
56 JET; OIL,PISTON COOLING 1-13342-139-1 06 1 0806-1008 ●
56 JET; OIL,PISTON COOLING 1-13342-139-2 06 1 1009- ● ●
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 0806-1008 ●
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 1009- ● ●
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 0806-1008 ●
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 1009- ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		0-44011-435-0 01 1 0806-1008 ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		0-44011-435-0 01 1 1009- ● ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 0806-1008 ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 1009- ● ●
211 BOLT; CRANKCASE
(A) M12X114 		1-09070-087-2 28 1 0806-1008 ●
211 BOLT; CRANKCASE
(A) M12X114 		1-09070-087-3 28 1 1009- ● ●
211 BOLT; CRANKCASE
(B) M18X150 		1-09070-151-0 14 1 0806-1008 ●
211 BOLT; CRANKCASE
(B) M18X150 		1-09070-151-0 14 1 1009- ● ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 0806-1008 ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 1009- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0806-1008 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 0806-1008 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 1009-1312 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22 		1-09630-089-0 01 1 0806-1008 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22 		1-09630-089-0 01 1 1009- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 0806-1008 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 1009- ● ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 0806-1008 ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 1009- ● ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 0806-1008 ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 1009- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 02 1 0806-1008 ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 02 1 1009- ● ●
335 PLUG; C/BL,SIDE
(A) M14X9 		8-98042-944-0 01 1 0806-1008 ●
335 PLUG; C/BL,SIDE
(A) M14X9 		8-98042-944-0 01 1 1009- ● ●
335 PLUG; C/BL,SIDE
(B) M12X9 		8-98047-054-0 01 1 0806-1008 ●
335 PLUG; C/BL,SIDE
(B) M12X9 		8-98047-054-0 01 1 1009- ● ●
335 PLUG; C/BL,SIDE
(C) M22X12 		1-09604-035-0 01 1 0806-1008 ●
335 PLUG; C/BL,SIDE
(C) M22X12 		1-09604-035-0 01 1 1009- ● ●
335 PLUG; C/BL,SIDE
(D) M10X7 		1-09604-094-0 01 1 0806-1008 ●
335 PLUG; C/BL,SIDE
(D) M10X7 		1-09604-094-0 01 1 1009- ● ●
