◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#31991) — 17 parça

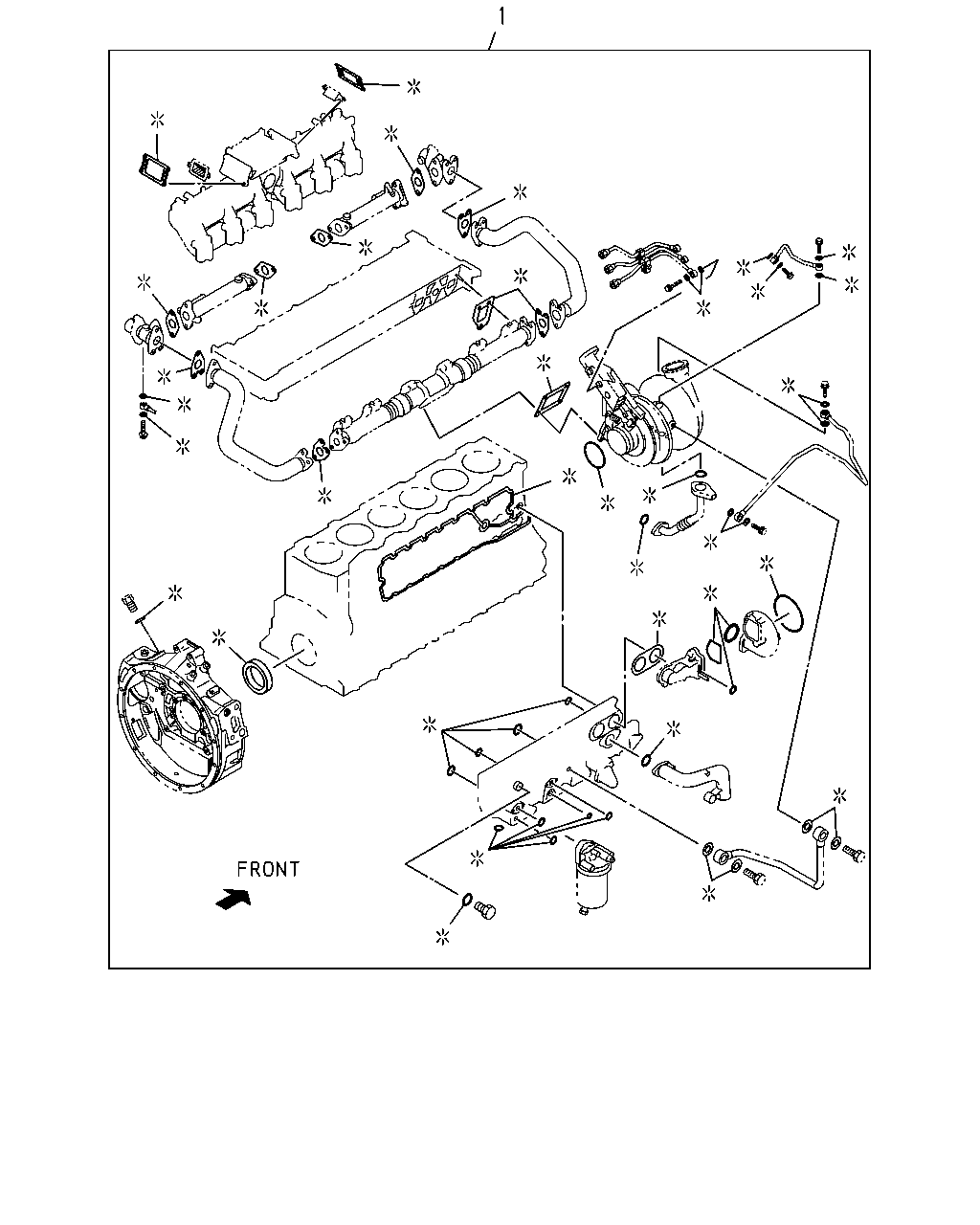

çizim 142389
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-367-4 01 1 0806-1001 ●
1 GASKET SET; ENG OVERHAUL 1-87813-565-0 01 1 1002-1008 ●
1 GASKET SET; ENG OVERHAUL 1-87813-565-2 01 1 1009-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-816-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-661-0 01 1 1401-1502 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-585-0 01 1 1503- ● ●

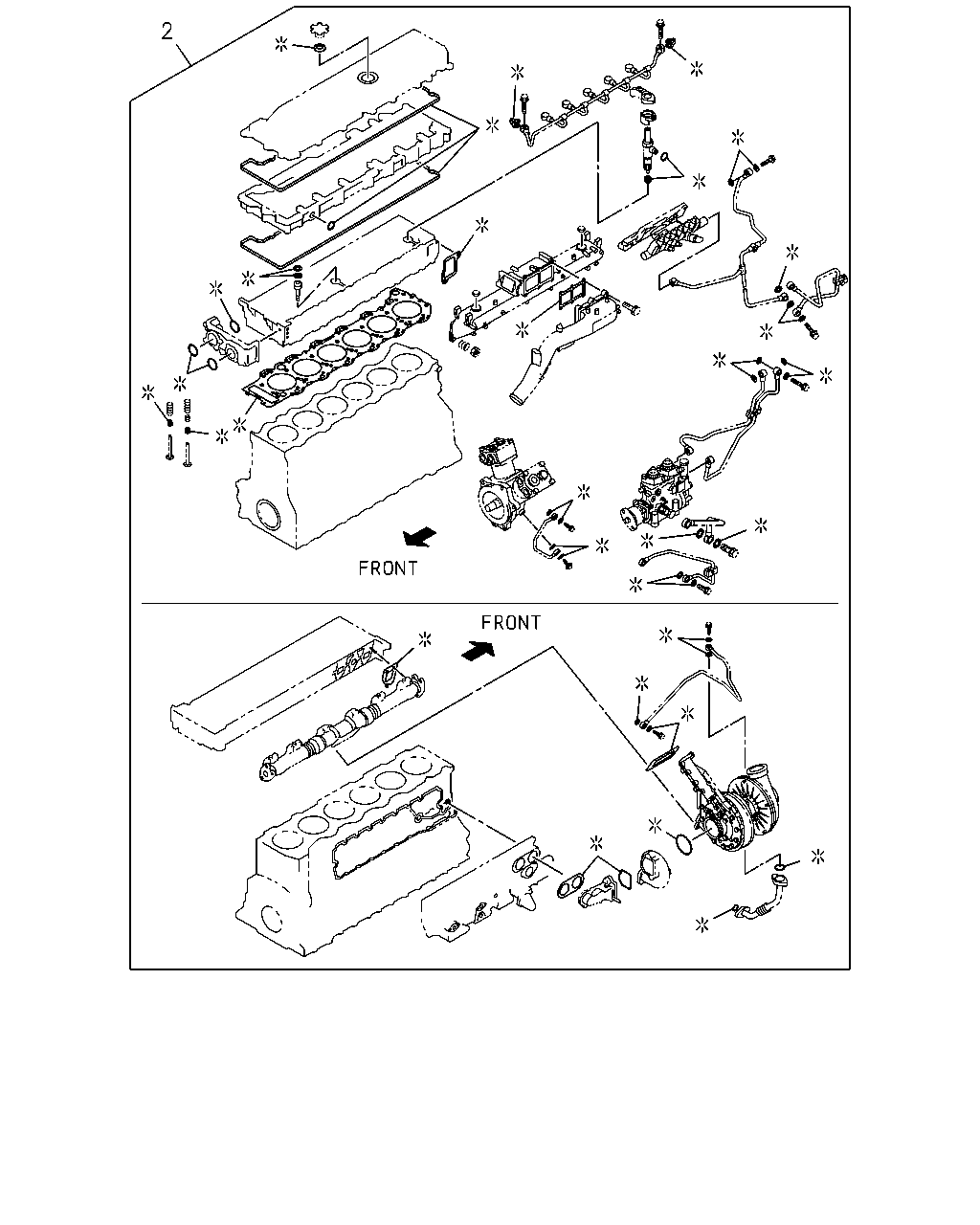

çizim 142391
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87813-368-3 01 1 0806-1001 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-566-0 01 1 1002-1008 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-566-1 01 1 1009-1111 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-817-0 01 1 1112-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-662-0 01 1 1401- ● ●

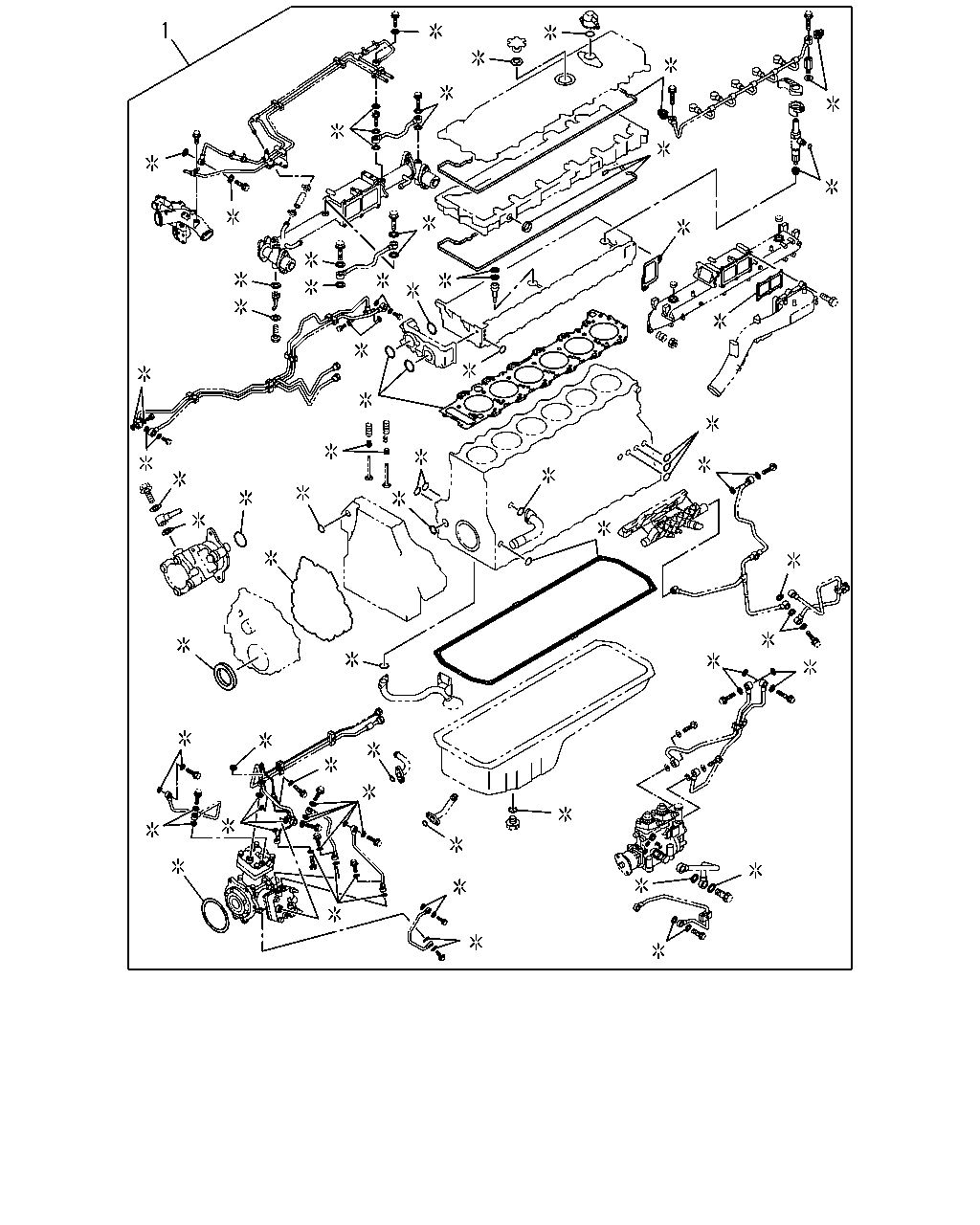

çizim 142392
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-367-4 01 1 0806-1001 ●
1 GASKET SET; ENG OVERHAUL 1-87813-565-0 01 1 1002-1008 ●
1 GASKET SET; ENG OVERHAUL 1-87813-565-2 01 1 1009-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-816-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-661-0 01 1 1401-1502 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-585-0 01 1 1503- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
