◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#3199) — 58 parça

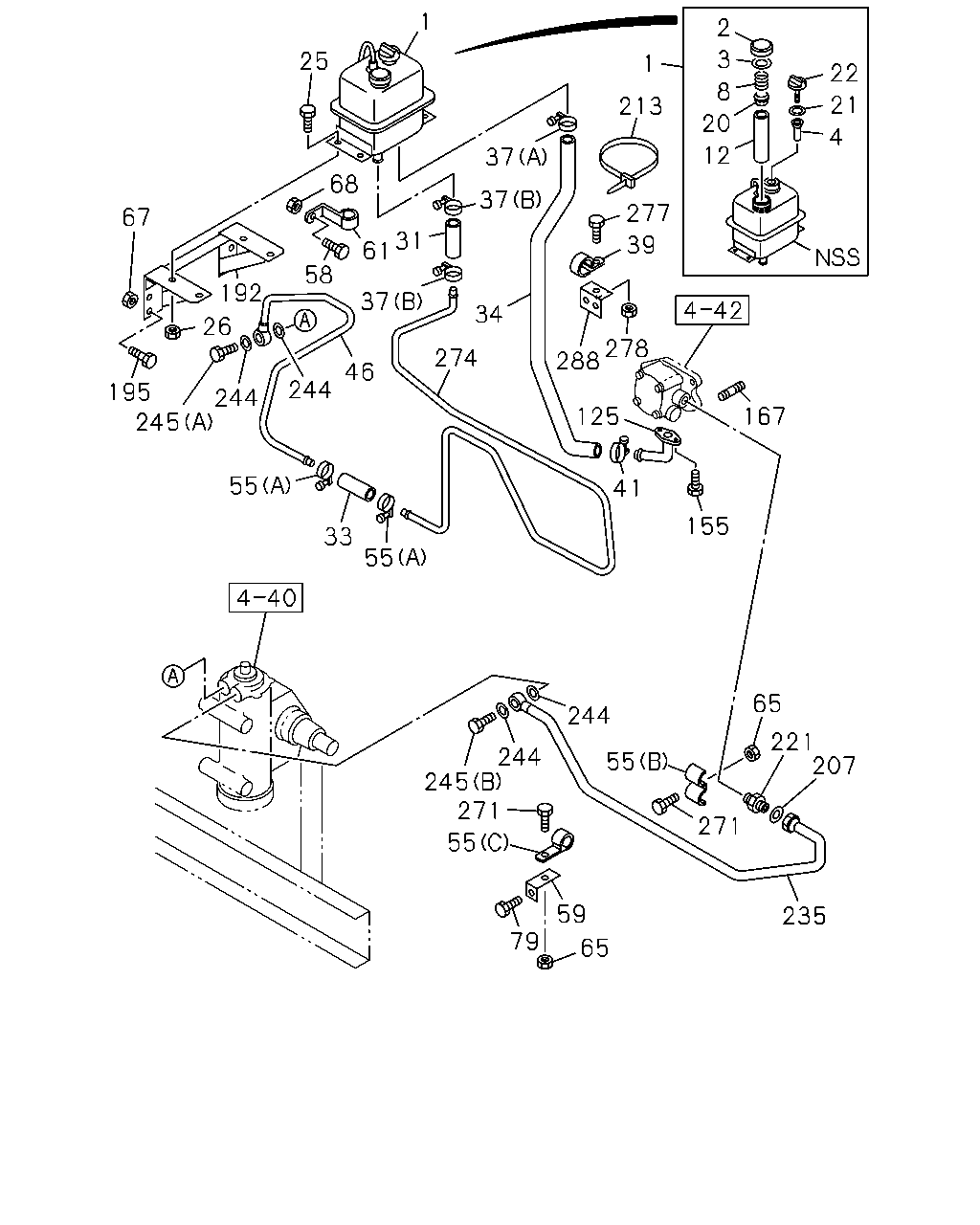

çizim 5269
1 2 3 25 1 22 8 21 213 20 4 37 12 68 37 277 67 31 61 39 58 192 37 34 26 278 288 274 46 244 195 245 244 125 167 55 41 155 33 55 65 244 221 207 244 245 271 55 271 55 59 235 79 65
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-199-0 01 1 9104-
2 CAP; OIL TANK,P/S 1-21241-009-0 01 1 9104-
3 GASKET; OIL TANK,P/S 1-09630-106-0 01 1 9104-
4 FILTER; OIL TANK,P/S 1-21231-002-0 01 1 9104-
8 SPRING; OIL TANK,P/S 1-09580-365-0 01 1 9104-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-005-0 01 1 9104-
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-005-0 01 1 9104-
21 GASKET; OIL GAUGE,P/S TANK 1-09630-095-1 01 1 9104-
22 GAUGE; OIL TANK,P/S 1-21240-001-1 01 1 9104-
25 BOLT; OIL TANK BRKT
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9104-9204
25 BOLT; OIL TANK BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 04 1 9104-
31 HOSE; P/S OIL TANK,INL
L=80 		1-09360-570-0 01 1 9104-
33 HOSE; RUBBER,POWER STRG
L=80 		1-09360-570-0 01 1 9104-
34 HOSE; P/S OIL TANK,OUTLET 1-09360-706-1 01 1 9104-
37 CLIP; HOSE,P/S
(A) ID=38 		9-09915-666-1 01 1 9104-
37 CLIP; HOSE,P/S
(B) ID=28 		9-09915-672-1 02 1 9104-
39 CLIP; FLEX HOSE
ID=31 L=35 		1-09700-329-1 01 1 9104-
41 CLIP; HOSE,P/S
ID=32 		9-09915-692-1 01 1 9104-
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21112-644-0 01 1 9104-
55 CLIP; P/S RUBBER HOSE
(B) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 9104-
55 CLIP; P/S RUBBER HOSE
(C) ID=16 L=20 		9-09525-535-0 01 1 9104-
55 CLIP; P/S RUBBER HOSE
(A) ID=28 		9-09915-672-1 02 1 9104-
58 BOLT; CLIP
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9104-9204
58 BOLT; CLIP
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-
59 BRACKET; CLIP,OIL PIPE
L=55 		1-47475-304-0 01 1 9104-
61 CLIP; OIL PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 9104-
65 NUT; BRKT
M8 		9-09110-408-0 05 1 9104-
67 NUT; BRKT
M8 		9-09110-408-0 04 1 9104-
68 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9104-
79 BOLT; BRKT
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9104-9204
79 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-
125 CONNECTOR; P/S PUMP 1-21122-011-1 01 1 9104-
125 CONNECTOR; P/S PUMP 1-21122-011-1 01 1 0108-
155 BOLT; CONNECTOR
M8X16 W/LK&PL WASHER 		0-50140-816-0 02 1 9104-
155 BOLT; CONNECTOR
M8X16 W/LK&PL WASHER 		0-50140-816-0 02 1 0108-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77 		1-09623-143-0 01 1 0210-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77 		1-09623-143-0 01 1 0210-
167 STUD; OIL PIPE FIX 1-09300-040-0 01 1 9104-
167 STUD; OIL PIPE FIX 1-09300-040-0 01 1 0108-
192 BRACKET; P/S OIL TANK 1-59459-025-0 01 1 9104-
195 BOLT; BRKT
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9104-9204
195 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-
207 GASKET; FLEX HOSE,P/S PUMP
ID=18.2 OD=24.4 		1-09630-087-0 01 1 9104-
213 CLIP; BAND,RUBBER SLEEVE
L=250 		5-09707-030-1 01 1 9104-
221 CONNECTOR; OIL PIPE,P/S 1-09660-011-1 01 1 9104-
235 HOSE; FLEX,BOOSTER,DELIVERY
L=450 		0-09672-450-0 01 1 9104-
244 GASKET; OIL PIPE,P/S
ID=18 		9-09571-418-0 04 1 9104-
245 BOLT; EYE,OIL PIPE
(A) M18X39 		1-09675-114-0 01 1 9104-
245 BOLT; EYE,OIL PIPE
(B) M18X36 		1-09675-059-0 01 1 9104-9310
245 BOLT; EYE,OIL PIPE
(B) M18X36 		1-09675-205-0 01 1 9311-
271 BOLT; P/S OIL PIPE FIX
M8X16 W/LK WASHER 		9-01900-816-0 02 1 9104-9204
271 BOLT; P/S OIL PIPE FIX
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-
274 PIPE; OIL,HOSE TO OIL TANK 1-21112-645-1 01 1 9104-
277 BOLT; HOSE CLIP
M8X16 W/LK WASHER 		9-01900-816-0 02 1 9104-9204
277 BOLT; HOSE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-
278 NUT; HOSE CLIP
M8 		9-09110-408-0 01 1 9104-
288 BRACKET; CLIP,P/S 1-47475-272-1 01 1 9104-
