◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYM ▶ 11045 - CYM LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#31963) — 37 parça

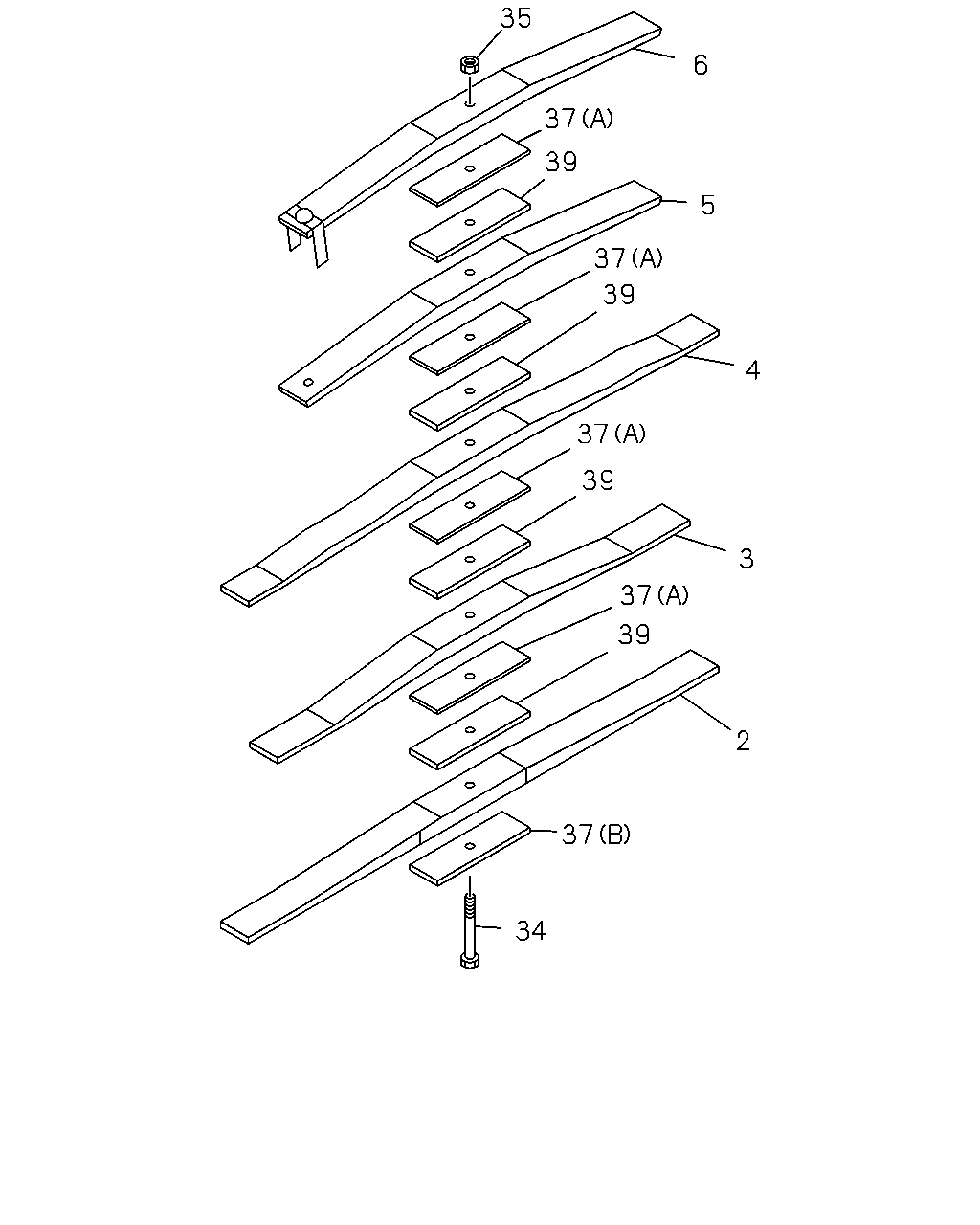

çizim 91132
35 6 37 39 5 37 39 4 37 39 3 37 39 2 37 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51311-467-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-644-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51312-467-3 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-645-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51313-467-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-646-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51314-467-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-647-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51315-467-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-648-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: A = 1-51310-467-4 		1-51356-134-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: B = 8-97614-044-0 		1-51356-368-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51310-467-4 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: B = 8-97614-044-0 		1-09400-061-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
(A), T=1.2 ASM PART: B = 8-97614-044-0 		1-51359-038-0 04 1 -
37 SPACER; CENTER,LEAF SPR,RR
(B), T=3.2 ASM PART: B = 8-97614-044-0 		8-97618-101-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=6 ASM PART: B = 8-97614-044-0 		1-51377-403-0 04 1 -
çizim 91183
34 2 3 36 4 5 7 6 8 9 10 35 11
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51311-467-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-644-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51312-467-3 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-645-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51313-467-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-646-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51314-467-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-647-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51315-467-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-97614-044-0 		8-97614-648-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
W/CLIP ASM PART: A = 1-51310-467-4 		1-51316-467-2 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51317-467-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51318-467-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51319-467-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
ASM PART: A = 1-51310-467-4 		1-51321-467-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: A = 1-51310-467-4 		1-51356-134-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: B = 8-97614-044-0 		1-51356-368-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51310-467-4 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: B = 8-97614-044-0 		1-09400-061-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-467-4 		1-09000-326-0 01 1 -
