4-25 — REAR FINAL DRIVE (#3195) — 187 parça

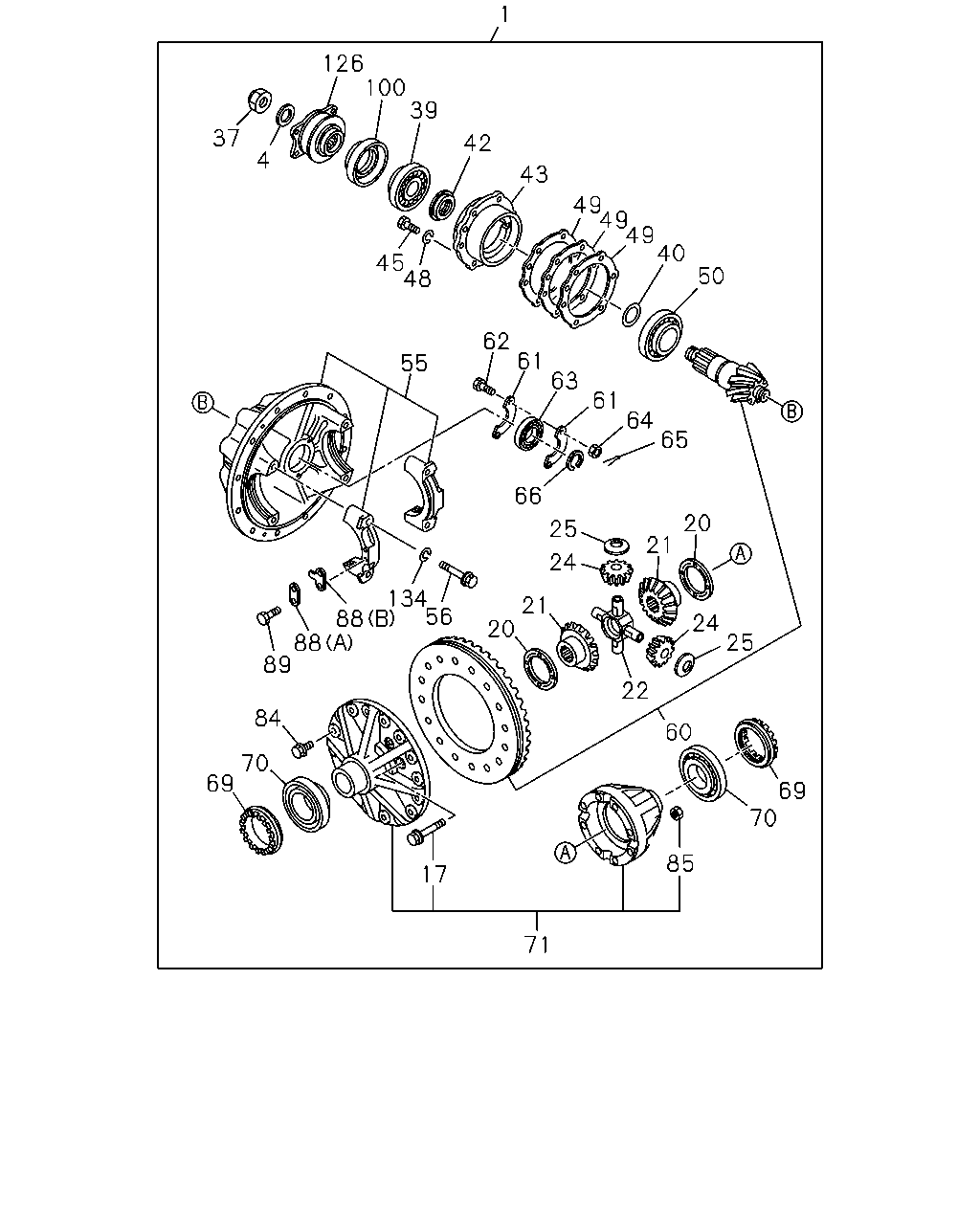

çizim 5316
1 126 100 39 37 42 4 43 49 49 49 40 45 48 50 62 61 55 63 61 64 65 66 20 25 21 24 134 88 56 88 89 21 24 25 22 84 60 70 69 69 70 85 17 71 20
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-256-0 01 1 9104-
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-256-0 01 1 0108-
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 9104-0208
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0209-
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 0108-0208
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0209-
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 9104-
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 02 1 9104-9109
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 9110-
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 0108-
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 0108-
21 GEAR; SIDE,DIFF
Z=16 		1-41561-064-0 02 1 9104-
21 GEAR; SIDE,DIFF
Z=16 		1-41561-064-0 02 1 0108-
22 PIN; CROSS,DIFF PINION
OD=30 		1-41521-014-1 01 1 9104-
22 PIN; CROSS,DIFF PINION
OD=30 		1-41521-014-1 01 1 0108-
24 GEAR; PINION,DIFF
Z=10 		1-41551-010-2 04 1 9104-
24 GEAR; PINION,DIFF
Z=10 		1-41551-010-2 04 1 0108-
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 9104-
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 0108-
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 9104-
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 0108-
39 BEARING; FINAL PINION
NTN 		1-09812-007-0 01 1 9104-9612
39 BEARING; FINAL PINION
KOYO 		1-09812-218-0 01 1 9701-
39 BEARING; FINAL PINION
KOYO 		1-09812-218-0 01 1 0108-
40 SHIM; FINAL PINION
T=3.50 		1-41229-020-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.51 		1-41229-021-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.52 		1-41229-022-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.53 		1-41229-023-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.54 		1-41229-024-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.55 		1-41229-025-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.56 		1-41229-026-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.57 		1-41229-027-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.58 		1-41229-028-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.59 		1-41229-029-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.60 		1-41229-030-0 AR 1 9104-9404
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 9405-
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 0108-
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 0108-
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-053-0 AR 1 9104-9404
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 9405-
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-054-0 AR 1 9104-9404
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 9405-
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-055-0 AR 1 9104-9404
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 9405-
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-056-0 AR 1 9104-9404
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 9405-
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-057-0 AR 1 9104-9404
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 9405-
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 0108-
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 0108-
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 0108-
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 0108-
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 0108-
43 CAGE; FINAL PINION 1-41151-028-1 01 1 9104-
43 CAGE; FINAL PINION 1-41151-028-1 01 1 0108-
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 9104-
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 0108-
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 9104-
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 0108-
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 9104-
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 9104-
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 9104-
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 9104-
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 0108-
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 0108-
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 0108-
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 0108-
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9104-
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0108-
55 CARRIER; DIFF 1-41110-052-0 01 1 9104-
55 CARRIER; DIFF 1-41110-052-0 01 1 0108-
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 9104-
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 0108-
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-277-3 01 1 9104-
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-277-3 01 1 0108-
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9104-
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 0108-
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 9104-
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 0108-
63 BEARING; PINION PILOT
KOYO 		1-09810-007-0 01 1 9104-9509
63 BEARING; PINION PILOT
KOYO 		1-09810-229-2 01 1 9510-
63 BEARING; PINION PILOT
NSK 		1-09810-015-0 01 1 9104-9509
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 9510-
63 BEARING; PINION PILOT
KOYO 		1-09810-229-2 01 1 0108-
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 0108-
64 NUT; RET
M8 4T SLOTTED 		9-09117-408-0 02 1 9104-9707
64 NUT; RET
M8 7T SLOTTFS 		9-09117-508-0 02 1 9708-
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 0108-
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9104-
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0108-
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 9104-
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 0108-
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 9104-0107
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0108-
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 9104-0107
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0108-
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0108-
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0108-
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 NACHI 		1-09812-144-0 02 1 9104-
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 KOYO 		1-09812-145-0 02 1 9104-
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 NSK 		1-09812-146-0 02 1 9104-
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 NACHI 		1-09812-144-0 02 1 0108-
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 KOYO 		1-09812-145-0 02 1 0108-
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 NSK 		1-09812-146-0 02 1 0108-
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 9104-
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0108-
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		9-09802-561-0 16 1 9104-9804
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 9805-
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 0108-
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 9104-
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 0108-
88 PLATE; LK,ADJ NUT
(B) T=2.3 		1-41124-002-0 02 1 9104-
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 9104-
88 PLATE; LK,ADJ NUT
T=2.3 		1-41124-002-0 02 1 0108-
88 PLATE; LK,ADJ NUT
T=1.0 		9-41124-005-0 02 1 0108-
89 BOLT; LK PLATE
M8X16 		9-02040-816-0 04 1 9104-9204
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9205-
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 0108-
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 9104-
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 0108-
126 COUPLING; DRIVING PINION 1-37245-215-3 01 1 9104-0208
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0209-
126 COUPLING; DRIVING PINION 1-37245-215-3 01 1 0108-0208
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0209-
134 WASHER; LK,BRG CAP
ID=18.2 		9-09150-518-0 04 1 9104-
134 WASHER; LK,BRG CAP
ID=18.2 		9-09150-518-0 04 1 0108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
