◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#3193) — 124 parça

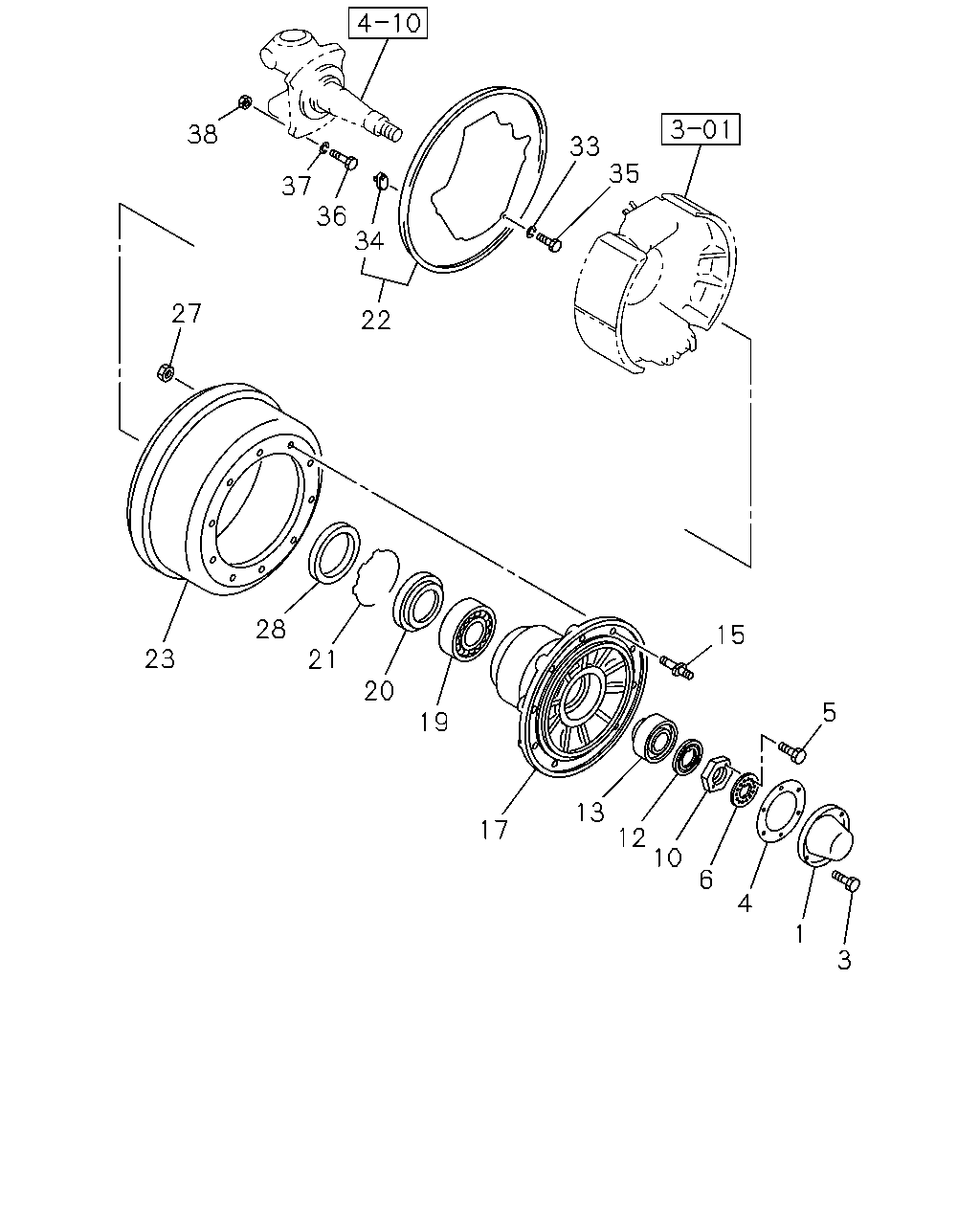

çizim 36743
38 33 35 37 36 34 27 22 28 15 23 21 20 5 19 13 17 12 10 6 4 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9104-0107
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0108-0108
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0108-
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0108-0108
1 CAP; HUB,FRT AXLE
EXC. NON PENDANT TIE ROD<C3V> OD=156 		9-42313-123-2 02 1 0108-
3 BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER 		9-01900-814-0 12 1 9104-9204
3 BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER 		0-50040-814-0 12 1 9205-9509
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9510-0107
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0108-0108
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0108-
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0108-0108
3 BOLT; HUB CAP,FRT WHEEL
EXC. NON PENDANT TIE ROD<C3V> M8X12 FLANGE 		0-28080-812-0 12 1 0108-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 02 1 9104-9906
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 9907-0107
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 0108-0108
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 0108-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 0108-0108
4 GASKET; HUB CAP,FRT WHEEL
EXC. NON PENDANT TIE ROD<C3V> 		1-42319-185-0 02 1 0108-
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9104-9701
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9702-0107
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0108-0108
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0108-
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0108-0108
5 BOLT; LK WASHER
EXC. NON PENDANT TIE ROD<C3V> M6X16 FLANGE 		0-28680-616-0 04 1 0108-
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9104-0107
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0108-0108
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0108-
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0108-0108
6 WASHER; LK,FRT HUB
EXC. NON PENDANT TIE ROD<C3V> ID=48 		1-09533-012-1 02 1 0108-
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 9104-0107
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 0108-0108
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 0108-
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 0108-0108
10 NUT; FRT HUB BRG
EXC. NON PENDANT TIE ROD<C3V> M48 		1-09840-012-3 02 1 0108-
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9104-0107
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0108-0108
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0108-
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0108-0108
12 WASHER; LK,FRT HUB BRG
EXC. NON PENDANT TIE ROD<C3V> ID=48 		1-09533-016-0 02 1 0108-
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-084-0 02 1 9104-9809
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 9810-0107
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 0108-0108
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 0108-
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-085-0 02 1 9104-9809
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 0108-0108
13 BEARING; HUB OUTER,FRT AXLE
EXC. NON PENDANT TIE ROD<C3V> KOYO 		1-09812-234-0 02 1 0108-
15 PIN; WHEEL,FRT AXLE
M20X37.5,M22X55.5 RH THREAD 		1-42331-047-0 08 1 9104-0107
15 PIN; WHEEL,FRT AXLE
M20X37.5,M22X55.5 RH THREAD 		1-42331-047-0 08 1 0108-0108
15 PIN; WHEEL,FRT AXLE
M20X37.5,M22X55.5 RH THREAD 		1-42331-047-0 08 1 0108-
15 PIN; WHEEL,FRT AXLE
M20X37.5 LH THREAD,M22X55.5 RH THREAD 		1-42332-047-0 08 1 9104-0107
15 PIN; WHEEL,FRT AXLE
M20X37.5 LH THREAD,M22X55.5 RH THREAD 		1-42332-047-0 08 1 0108-0108
15 PIN; WHEEL,FRT AXLE
M20X37.5 LH THREAD,M22X55.5 RH THREAD 		1-42332-047-0 08 1 0108-
17 HUB; FRT AXLE 1-42312-047-2 02 1 9104-9211
17 HUB; FRT AXLE 1-42312-111-0 02 1 9212-9404
17 HUB; FRT AXLE 1-42312-109-0 02 1 9405-9506
17 HUB; FRT AXLE 1-42312-128-2 02 1 9507-0107
17 HUB; FRT AXLE 1-42312-128-2 02 1 0108-0108
17 HUB; FRT AXLE 1-42312-128-2 02 1 0108-
17 HUB; FRT AXLE 1-42312-128-2 02 1 0108-0108
17 HUB; FRT AXLE
EXC. NON PENDANT TIE ROD<C3V> 		1-42312-128-2 02 1 0108-
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-142-0 02 1 9104-9809
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 9810-0107
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 0108-0108
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 0108-
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-143-0 02 1 9104-9809
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 0108-0108
19 BEARING; HUB INNER,FRT AXLE
EXC. NON PENDANT TIE ROD<C3V> KOYO 		1-09812-231-0 02 1 0108-
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9104-0107
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0108-0108
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0108-
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0108-0108
20 COVER; HUB BRG INNER
EXC. NON PENDANT TIE ROD<C3V> 		1-42319-039-0 02 1 0108-
21 RING; SNAP,HUB 1-09587-017-0 02 1 9104-0107
21 RING; SNAP,HUB 1-09587-017-0 02 1 0108-0108
21 RING; SNAP,HUB 1-09587-017-0 02 1 0108-
21 RING; SNAP,HUB 1-09587-017-0 02 1 0108-0108
21 RING; SNAP,HUB
EXC. NON PENDANT TIE ROD<C3V> 		1-09587-017-0 02 1 0108-
22 COVER SET; FRT BRK DRUM 1-47151-458-1 02 1 9104-0107
22 COVER SET; FRT BRK DRUM 1-47151-458-1 02 1 0108-0108
22 COVER SET; FRT BRK DRUM 1-47151-458-1 02 1 0108-
22 COVER SET; FRT BRK DRUM 1-47151-458-0 02 1 0108-0108
22 COVER SET; FRT BRK DRUM
EXC. NON PENDANT TIE ROD<C3V> 		1-47151-458-0 02 1 0108-
23 DRUM; BRK,FRT
H=195 		1-42315-208-2 02 1 9104-0107
23 DRUM; BRK,FRT
H=195 		1-42315-208-2 02 1 0108-0108
23 DRUM; BRK,FRT
H=195 		1-42315-208-2 02 1 0108-
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-037-0 16 1 9104-0107
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-037-0 16 1 0108-0108
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-037-0 16 1 0108-
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9104-0107
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0108-0108
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0108-
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0108-0108
28 SEAL; OIL,FRT HUB
EXC. NON PENDANT TIE ROD<C3V> OD=140 		1-09625-041-0 02 1 0108-
33 WASHER; LK,DRUM COVER
ID=10.2 		9-09150-510-0 12 1 9104-9108
34 COVER; CHECK HOLE,DRUM COVER 1-09333-095-0 04 1 9104-9501
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9502-0107
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0108-0108
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0108-
34 COVER; CHECK HOLE,DRUM COVER 1-09333-095-0 04 1 0108-0108
34 COVER; CHECK HOLE,DRUM COVER
EXC. NON PENDANT TIE ROD<C3V> 		1-09333-095-0 04 1 0108-
35 BOLT; DRUM COVER
M10X16 FLANGE 		0-28081-016-0 12 1 9205-9409
35 BOLT; DRUM COVER
'941031- M10X16 W/LK WASHER 		0-50041-016-0 12 1 9410-0107
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0108-0108
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0108-
35 BOLT; DRUM COVER
M10X16 		9-02041-016-0 12 1 9104-9108
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		9-01901-016-0 12 1 9109-9204
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0108-0108
35 BOLT; DRUM COVER
EXC. NON PENDANT TIE ROD<C3V> M10X16 W/LK WASHER 		0-50041-016-0 12 1 0108-
36 BOLT; BACK PLATE
M16X52 		1-09044-001-2 04 1 9104-0107
36 BOLT; BACK PLATE
M16X52 		1-09044-001-2 04 1 0108-0108
36 BOLT; BACK PLATE
M16X52 		1-09044-001-2 04 1 0108-
36 BOLT; BACK PLATE
M16X52 		1-09044-001-2 04 1 0108-0108
36 BOLT; BACK PLATE
EXC. NON PENDANT TIE ROD<C3V> M16X52 		1-09044-001-2 04 1 0108-
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-516-0 04 1 9104-9401
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-816-0 04 1 9402-0107
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-816-0 04 1 0108-0108
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-816-0 04 1 0108-
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-816-0 04 1 0108-0108
37 WASHER; LK,BACK PLATE
EXC. NON PENDANT TIE ROD<C3V> ID=16.2 		9-09150-816-0 04 1 0108-
38 NUT; BACK PLATE
M16 		9-99110-416-0 04 1 9104-0107
38 NUT; BACK PLATE
M16 		9-99110-416-0 04 1 0108-0108
38 NUT; BACK PLATE
M16 		9-99110-416-0 04 1 0108-
38 NUT; BACK PLATE
M16 		9-99110-416-0 04 1 0108-0108
38 NUT; BACK PLATE
EXC. NON PENDANT TIE ROD<C3V> M16 		9-99110-416-0 04 1 0108-
