◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36B - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#31909) — 17 parça

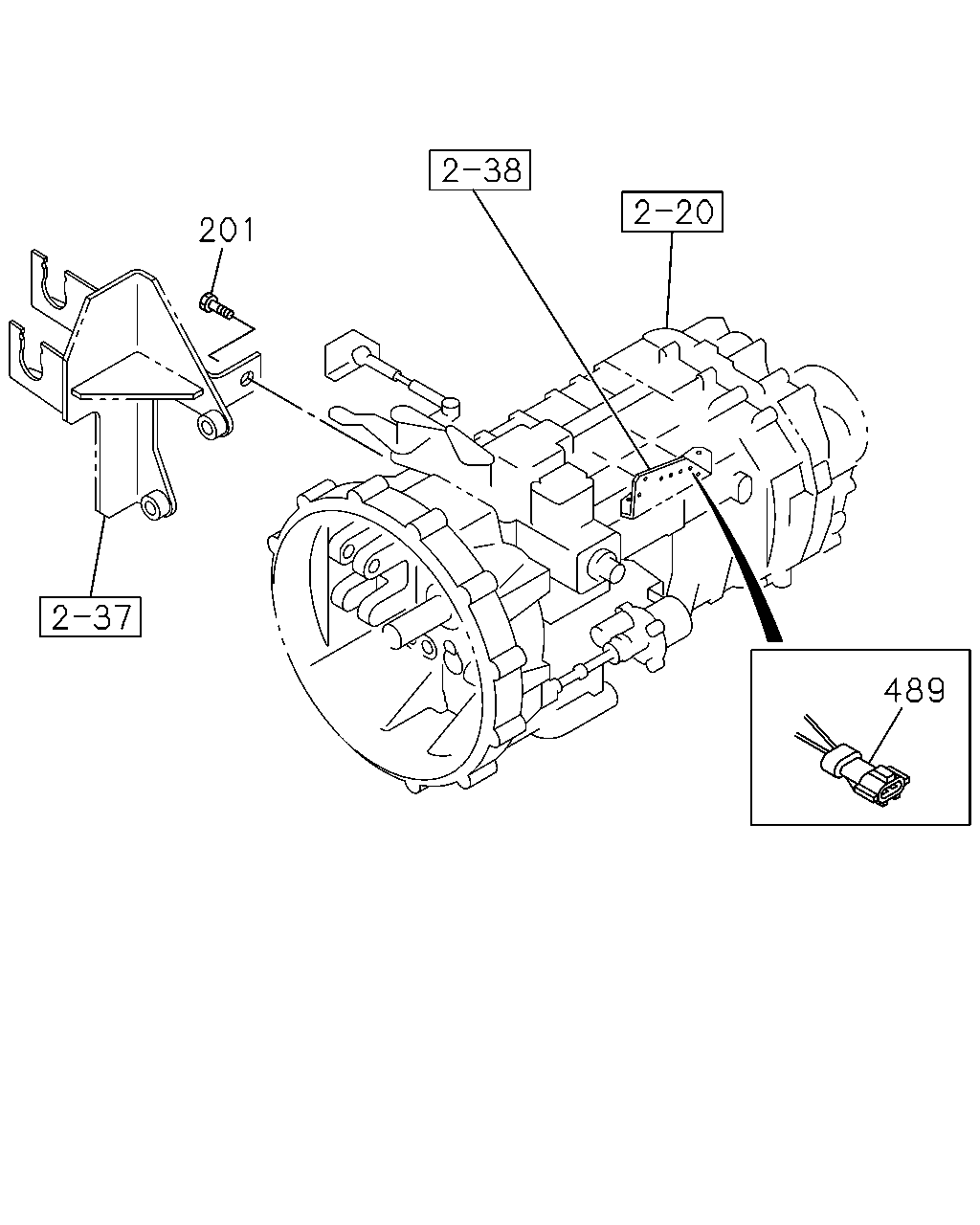

çizim 25454
201 489
BalonParca AdiParca NoAdetTipApplied Date
201 BOLT; BRKT
M10X20 FLANGE 		0-28781-020-0 01 1 0210-
489 CONNECTOR
2P MALE RED THA 		8-94447-499-0 02 1 0210-

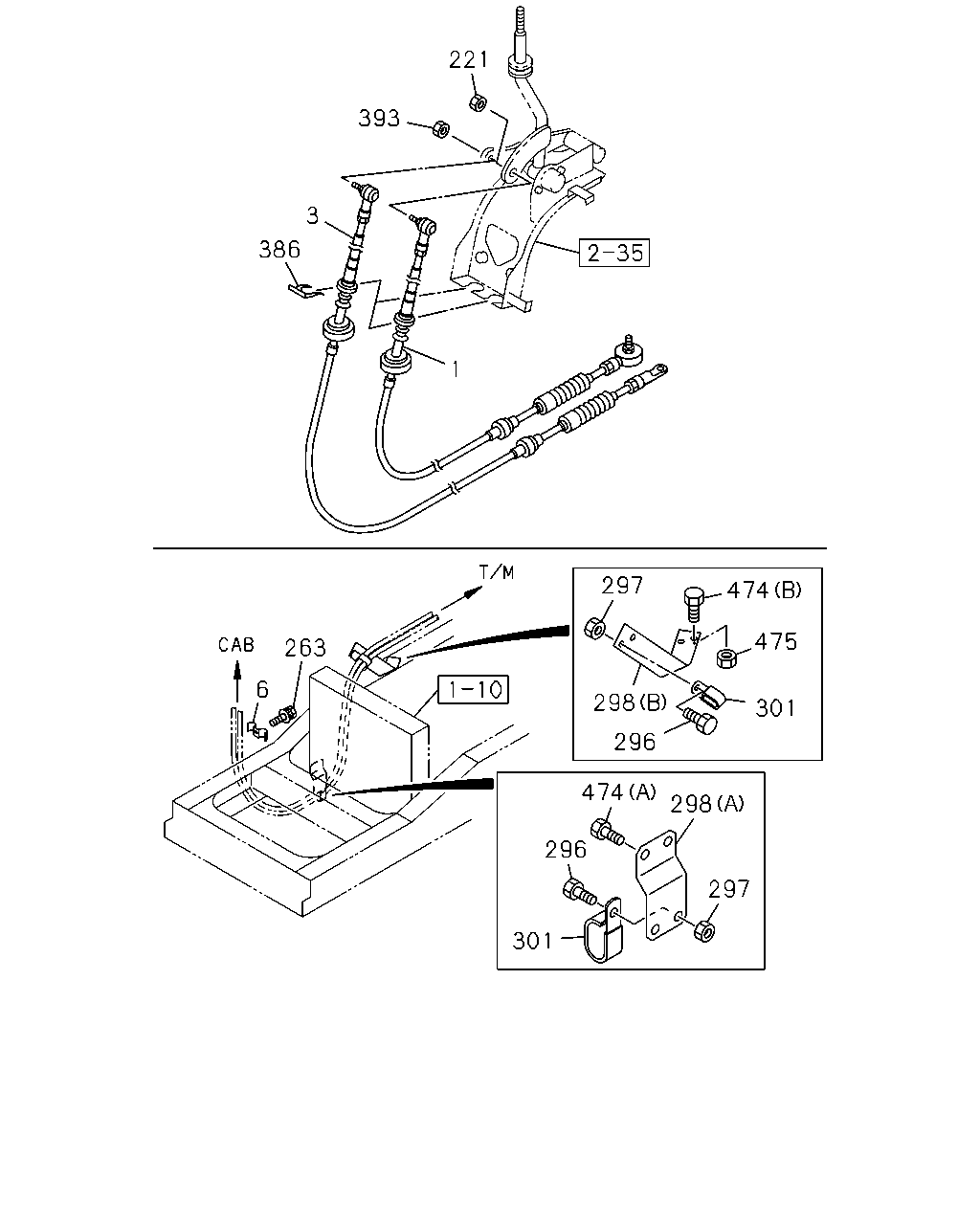

çizim 81951
221 393 3 386 1 297 474 475 263 6 298 301 296 474 298 296 297 301
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=3575 THA 		8-97510-005-0 01 1 0210-
3 CABLE; SELECT,TRANS CONT
L=3475 THA 		8-97510-009-0 01 1 0210-
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 THA 		1-09700-739-0 01 1 0210-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0210-
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0210-
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 0210-
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0210-
298 BRACKET
(A) 		1-47477-519-2 01 1 0210-
298 BRACKET
(B) 		1-47477-520-0 01 1 0210-
301 CLIP; WIRE
ID=11X2 L=16 		9-09535-026-0 02 1 0210-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0210-
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0210-
474 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0210-
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0210-
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0210-
