2-30A — GEAR SHIFTER AND QUADRANT BOX (#31904) — 99 parça

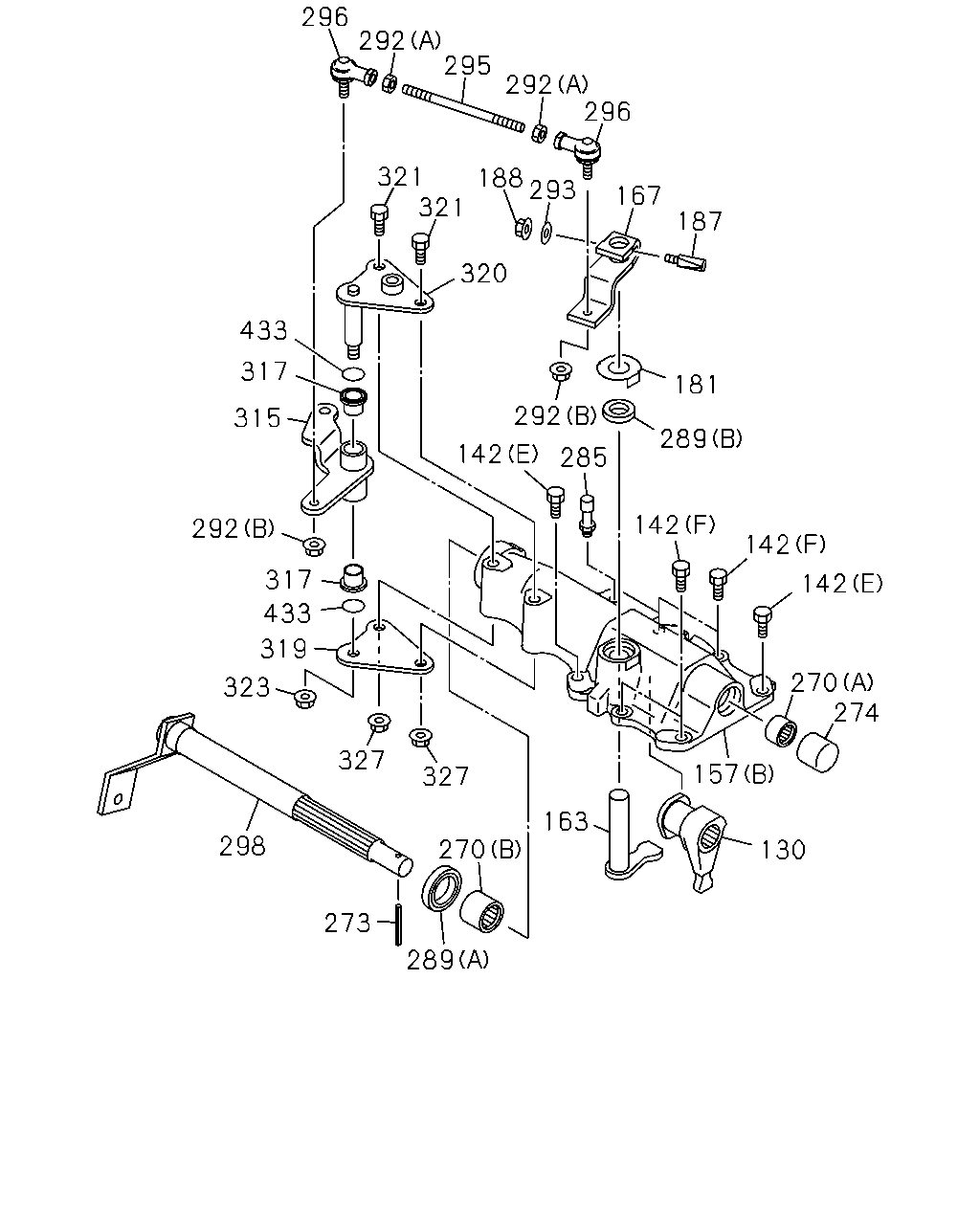

296 292 295 292 296 321 321 188 293 167 187 320 433 317 181 292 315 289 142 285 142 292 142 317 142 433 319 270 274 323 327 157 327 163 298 270 130 273 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	0210-
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0210-
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0210-
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	0210-
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0210-
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0210-
142	BOLT; QUAD BOX (A) M10X55 FLANGE THA	8-94399-863-1	02	1	0210-
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	0210-
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	0210-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0210-
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0210-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0210-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0210-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0210-
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	0210-
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	0210-
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	0210-
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	0210-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0210-
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0210-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0210-0307
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=41	1-09625-647-0	01	1	0308-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0210-
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0210-
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0210-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0210-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0210-
296	ROD END L=48	1-09760-038-1	02	1	0210-0309
296	ROD END L=45.5	1-09760-118-1	02	1	0310-
298	SHAFT; SHIFT LEVER	1-33522-145-1	01	1	0210-
315	LEVER; SELECT	1-33651-669-0	01	1	0210-
317	BUSHING; LEVER	1-09330-119-0	02	1	0210-
319	BRACKET; SELECT LEVER	1-33657-628-0	01	1	0210-
320	SHAFT; LEVER	1-33619-537-0	01	1	0210-
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0210-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0210-
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0210-
433	GASKET; BUSHING	1-09623-594-0	02	1	0210-

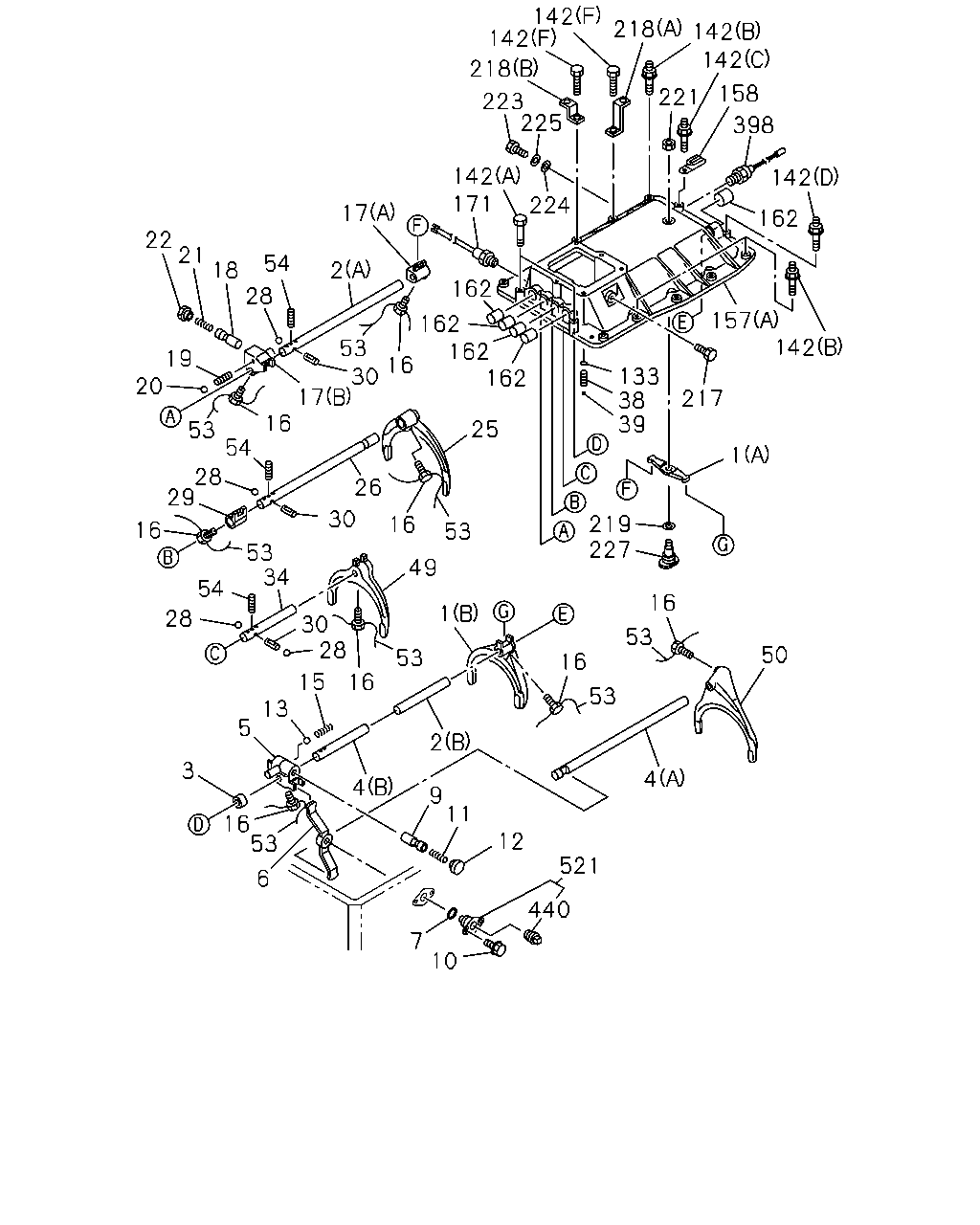

142 142 218 142 142 218 158 221 223 225 398 142 171 142 224 17 162 22 21 54 18 28 2 162 157 162 162 162 142 53 30 17 16 19 20 16 133 38 39 217 25 53 54 1 28 29 26 219 227 30 16 16 53 53 34 49 54 16 1 28 30 28 53 50 53 16 15 16 53 13 5 2 3 4 9 11 4 16 53 12 521 6 440 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0210-
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0210-
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	0210-
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	0210-
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	0210-
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0210-
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	0210-
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	0210-
6	LEVER; RELAY	9-33511-402-1	01	1	0210-
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0210-
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	0210-
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0210-
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0210-
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0210-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0210-
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	0210-
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0210-
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0210-
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0210-
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0210-
19	SPRING; COIL COMP	1-09580-438-0	01	1	0210-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0210-
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0210-
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0210-
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0210-
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0210-
28	BALL; INTER LK	9-00097-501-0	04	1	0210-
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0210-
30	PIN; INTER LK	9-33534-003-0	03	1	0210-
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	0210-
38	SPRING; DETENT	1-09580-379-0	04	1	0210-
39	BALL; DETENT	1-09843-012-0	04	1	0210-
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	0210-
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0210-
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0210-
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0210-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0210-
133	SEAT; SPR	1-33549-072-0	04	1	0210-
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0210-
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0210-
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	0210-
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0210-
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0210-
142	BOLT; QUAD BOX (A) M10X55 FLANGE THA	8-94399-863-1	02	1	0210-
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	0210-
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	0210-
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0210-
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0210-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0210-
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0210-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0210-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0210-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0210-
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0210-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0210-
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0210-
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0210-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0210-
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0210-
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	0210-
521	SPINDLE; 6TH	1-33119-255-0	01	1	0210-
