3-78 — FIXING PARTS; AIR PIPING (#3190) — 154 parça

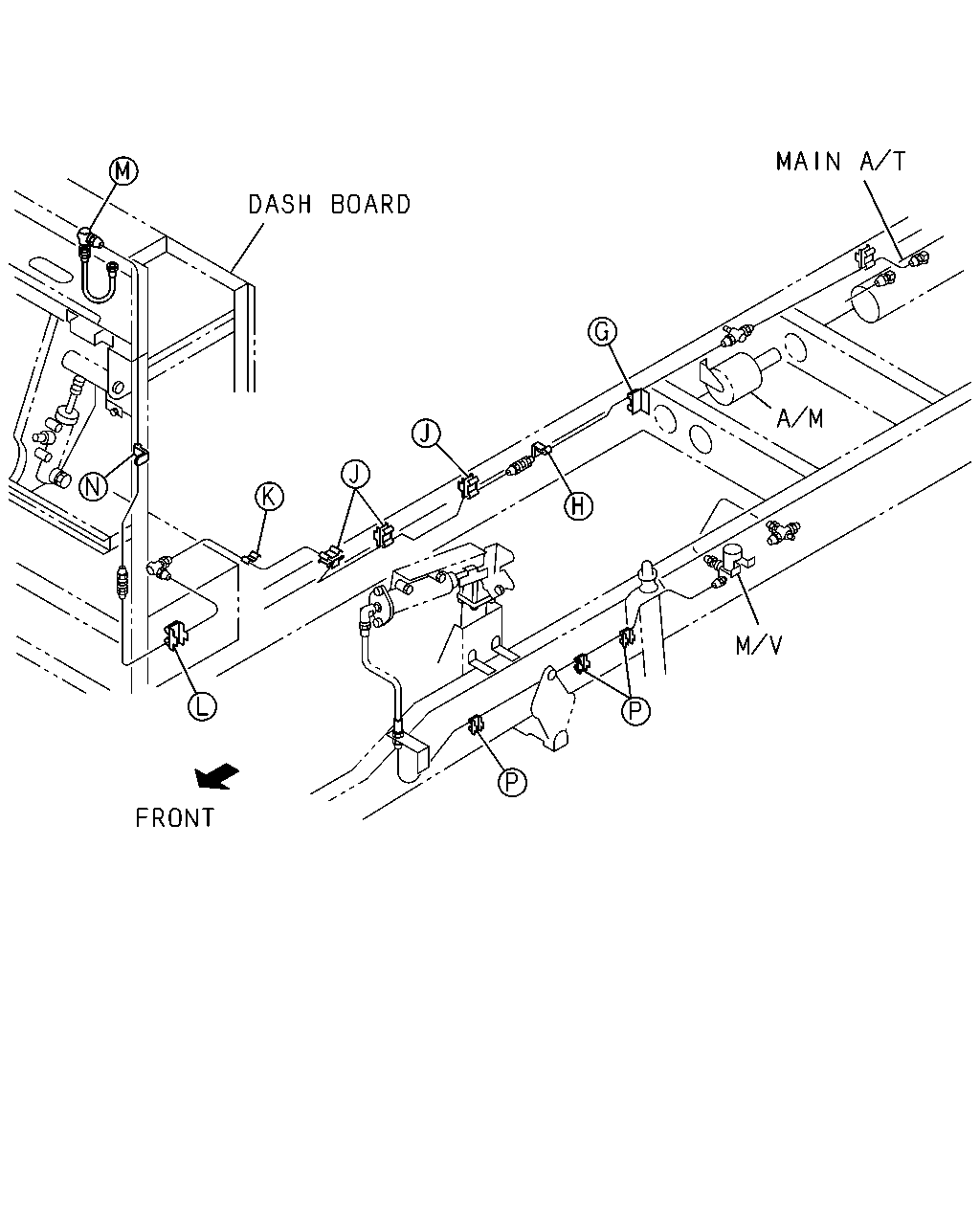

çizim 4651
BalonParca AdiParca NoAdetTipApplied Date
333 BRACKET; BRK AIR PIPE 1-47475-427-1 03 1 9104-
çizim 5021
BalonParca AdiParca NoAdetTipApplied Date
333 BRACKET; BRK AIR PIPE 1-47475-427-1 03 1 9104-

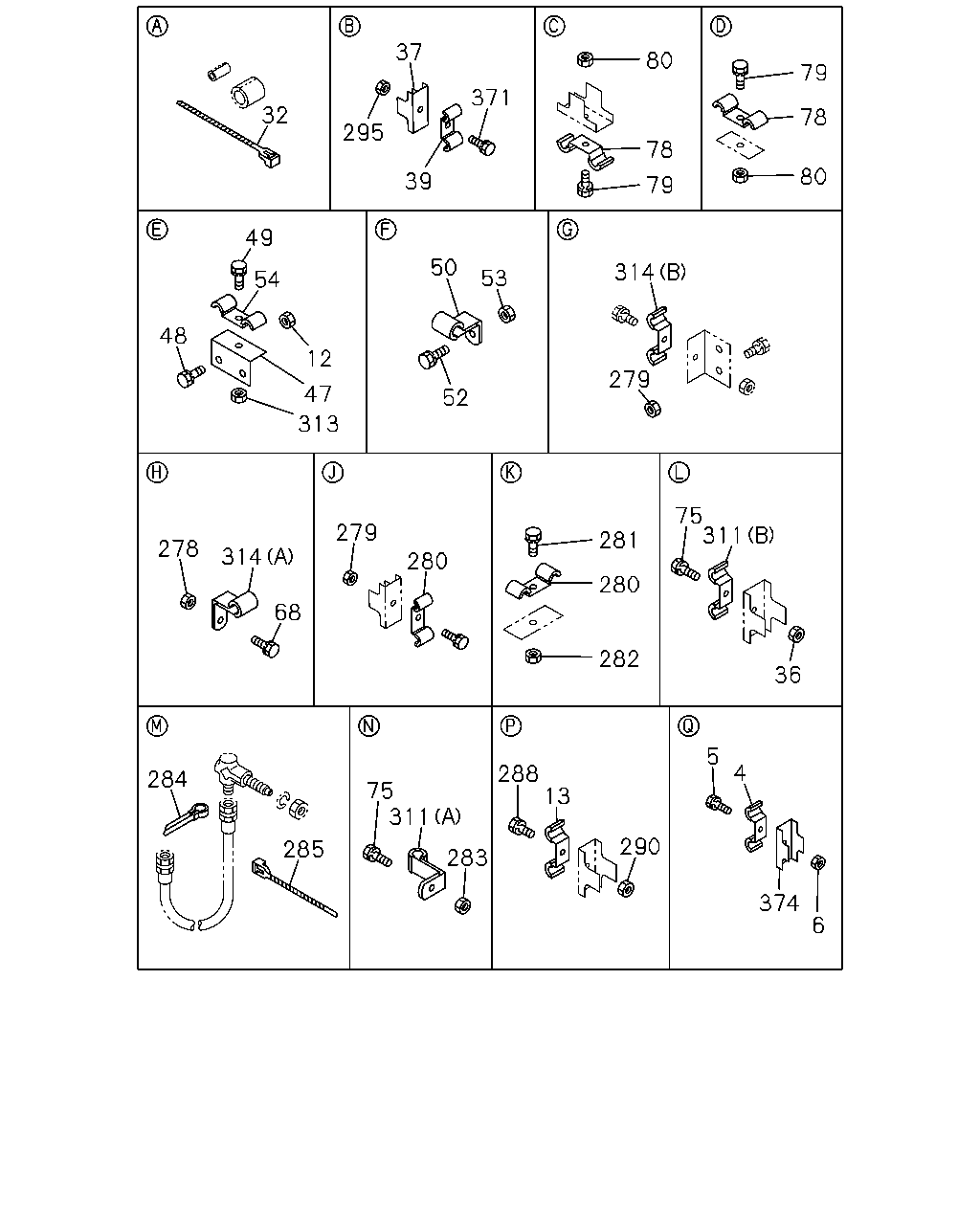

çizim 5022
37 80 79 371 32 78 295 78 80 39 79 49 50 314 53 54 48 12 279 47 52 313 75 311 279 281 278 314 280 280 68 282 36 5 4 288 13 284 75 311 290 285 283 374 6
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
ID=13 & 13 L=18 & 18 		1-09700-833-0 03 1 9104-
5 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		9-01900-845-0 03 1 9104-9204
5 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 03 1 9205-
6 NUT; PIPE CLIP
M8 		9-09110-408-0 03 1 9104-
12 NUT; CLIP BRKT
M8 		9-09110-408-0 02 1 9104-0107
12 NUT; CLIP BRKT
M8 		9-09110-408-0 02 1 0108-
13 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 03 1 9104-
32 CLIP; BAND,RUBBER SLEEVE
L=250 		5-09707-030-1 01 1 9104-
36 NUT; CLIP
M6 		9-09110-406-0 01 1 9104-0107
36 NUT; CLIP
M6 		9-09110-406-0 01 1 0108-
37 BRACKET; PIPE CLIP 1-47475-427-1 01 1 9104-
39 CLIP; AIR PIPE
ID=13 & 7 L=20 & 17 		1-09700-692-0 01 1 9104-
47 BRACKET; PIPE CLIP 1-47475-272-1 01 1 9104-0107
47 BRACKET; PIPE CLIP 1-47475-272-1 01 1 0108-
48 BOLT; CLIP BRKT
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9104-9204
48 BOLT; CLIP BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-0107
48 BOLT; CLIP BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 0108-
49 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9104-9204
49 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-0107
49 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 01 1 0108-
50 CLIP; AIR PIPE
ID=12 H=24 L=20 		1-09700-605-0 01 1 9104-0107
50 CLIP; AIR PIPE
ID=12 H=24 L=20 		1-09700-605-0 01 1 0108-
52 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9104-9204
52 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-0107
52 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		0-50040-825-0 01 1 0108-
53 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9104-0107
53 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 0108-
54 CLIP; AIR PIPE
ID=13 & 13 L=21.5 & 21.5 		1-09700-689-0 01 1 9104-0107
54 CLIP; AIR PIPE
ID=13 & 13 L=21.5 & 21.5 		1-09700-689-0 01 1 0108-
68 BOLT; CLIP,AIR PIPE
M8X25 W/LK WASHER 		9-01900-825-0 03 1 9104-9204
68 BOLT; CLIP,AIR PIPE
M8X25 W/LK WASHER 		0-50040-825-0 03 1 9205-
75 BOLT; CLIP
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9104-9204
75 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-0107
75 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 01 1 0108-
75 BOLT; CLIP
M6X40 		9-01900-640-0 01 1 9104-9204
75 BOLT; CLIP
M6X40 W/LK WASHER 		0-50040-640-0 01 1 9205-0107
75 BOLT; CLIP
M6X40 W/LK WASHER 		0-50040-640-0 01 1 0108-
78 CLIP; AIR PIPE
ID=13 & 7 L=20 & 17 		1-09700-692-0 02 1 9104-
79 BOLT; PIPE CLIP
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9104-9204
79 BOLT; PIPE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-0107
79 BOLT; PIPE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 0108-
79 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		9-01900-845-0 01 1 9104-9204
79 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9205-
80 NUT; CLIP,AIR PIPE
M8 		9-09110-408-0 02 1 9104-
278 NUT; CLIP,AIR PIPE
M8 		9-09110-408-0 03 1 9104-
279 NUT; BRKT
M8 		9-09110-408-0 05 1 9104-
280 CLIP; AIR PIPE
ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 0108-
280 CLIP; AIR PIPE
ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 04 1 9104-0107
280 CLIP; AIR PIPE
ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 03 1 0108-
281 BOLT; CLIP
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9104-9204
281 BOLT; CLIP
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-
282 NUT; CLIP
M8 		9-09110-408-0 01 1 9104-
283 NUT; CLIP
M6 		9-09110-406-0 01 1 9104-0107
283 NUT; CLIP
M6 		9-09110-406-0 01 1 0108-
284 CLIP; FLEX HOSE
ID=15 L=65 		1-09700-466-0 01 1 9104-0107
284 CLIP; FLEX HOSE
ID=15 L=65 		1-09700-466-0 01 1 0108-
285 CLIP; BAND
L=250 		5-09707-030-1 01 1 9104-0107
285 CLIP; BAND
L=250 		5-09707-030-1 01 1 0108-
288 BOLT; CLIP,AIR PIPE
M8X45 W/LK WASHER 		9-01900-845-0 03 1 9104-9204
288 BOLT; CLIP,AIR PIPE
M8X45 W/LK WASHER 		0-50040-845-0 03 1 9205-
290 NUT; CLIP,AIR PIPE
M8 		9-09110-408-0 03 1 9104-
295 NUT; CLIP,AIR PIPE
M8 		9-09110-408-0 01 1 9104-
311 CLIP; AIR PIPE
(B) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 9104-0107
311 CLIP; AIR PIPE
ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 0108-
311 CLIP; AIR PIPE
(A) ID=7 H=20 L=20 		9-09527-006-0 01 1 9104-0107
311 CLIP; AIR PIPE
ID=7 H=20 L=20 		9-09527-006-0 01 1 0108-
313 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9104-0107
313 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 0108-
314 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9104-
314 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9104-
333 BRACKET; BRK AIR PIPE 1-47475-427-1 03 1 9104-
371 BOLT; CLIP,AIR PIPE
M8X45 W/LK WASHER 		9-01900-845-0 01 1 9104-9204
371 BOLT; CLIP,AIR PIPE
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9205-
374 BRACKET; PIPE CLIP 1-47475-427-1 03 1 9104-
çizim 5188
BalonParca AdiParca NoAdetTipApplied Date
333 BRACKET; BRK AIR PIPE 1-47475-427-1 03 1 9104-

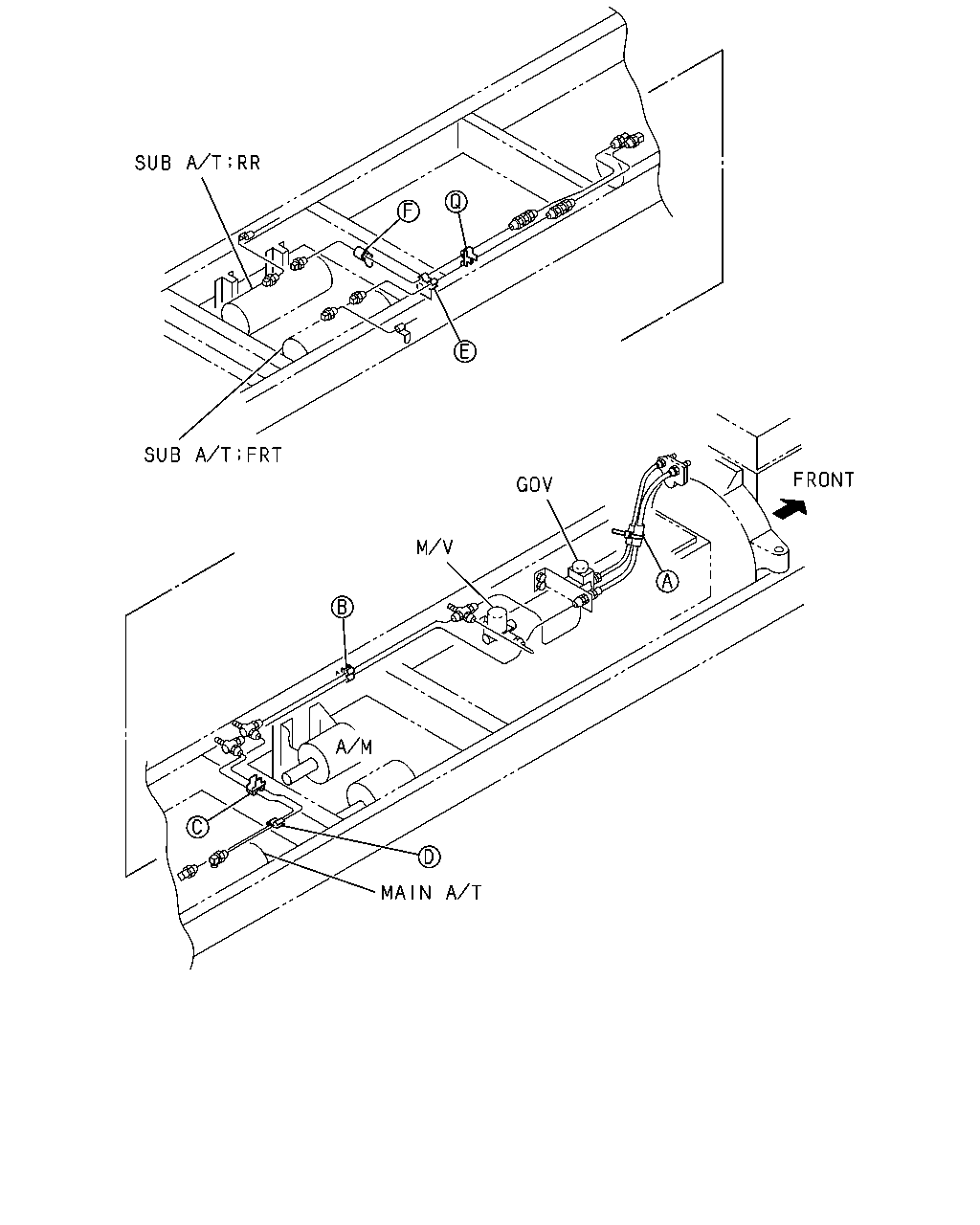

çizim 37472
BalonParca AdiParca NoAdetTipApplied Date
333 BRACKET; BRK AIR PIPE 1-47475-427-1 03 1 9104-
çizim 38832
138 129 134 134 131 136 137 139 130 13 135 138 135 134 134 137 137 139 139 137 165 168 139 134 161 164 163 166 169 135 162 138
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 03 1 9104-
129 CLIP; AIR PIPE
ID=12 H=24 L=20 		1-09700-605-0 02 1 9104-0107
129 CLIP; AIR PIPE
ID=12 H=24 L=20 		1-09700-605-0 02 1 0108-
130 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9104-9204
130 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-0107
130 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		0-50040-825-0 02 1 0108-
131 NUT; PIPE CLIP
M8 		9-09110-408-0 02 1 9104-0107
131 NUT; PIPE CLIP
M8 		9-09110-408-0 02 1 0108-
134 CLIP; AIR PIPE
ID=12 H=24 L=20 		1-09700-605-0 01 1 0108-
134 CLIP; AIR PIPE
(A) ID=12 H=24 L=20 		1-09700-605-0 05 1 9104-0107
134 CLIP; AIR PIPE
ID=12 H=24 L=20 		1-09700-605-0 04 1 0108-
134 CLIP; AIR PIPE
(C) ID=13 & 7 L=20 & 17 		1-09700-692-0 01 1 9104-
134 CLIP; AIR PIPE
(B) ID=13 & 13 L=18 & 18 		1-09700-833-0 05 1 9104-
135 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		9-01900-816-0 03 1 9104-9204
135 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9205-0107
135 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 03 1 0108-
135 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9104-9204
135 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-
135 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9104-9204
135 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-
136 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 0108-
136 NUT; PIPE CLIP
M8 		9-09110-408-0 05 1 9104-0107
136 NUT; PIPE CLIP
M8 		9-09110-408-0 04 1 0108-
137 BRACKET; PIPE CLIP
(C) M8 W/NUT 		1-47475-439-2 02 1 9104-
137 BRACKET; PIPE CLIP
(B) 25X77 		1-47475-641-1 01 1 9104-
137 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 03 1 9104-0107
137 BRACKET; PIPE CLIP 1-47475-427-1 03 1 0108-
138 BOLT; CLIP BRKT
M8X25 W/LK WASHER 		9-01900-825-0 03 1 9104-9204
138 BOLT; CLIP BRKT
M8X25 W/LK WASHER 		0-50040-825-0 03 1 9205-0107
138 BOLT; CLIP BRKT
M8X25 W/LK WASHER 		0-50040-825-0 03 1 0108-
138 BOLT; CLIP BRKT
M8X40 W/LK WASHER 		9-01900-840-0 01 1 9104-9204
138 BOLT; CLIP BRKT
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9205-
138 BOLT; CLIP BRKT
M8X45 W/LK WASHER 		9-01900-845-0 02 1 9104-9204
138 BOLT; CLIP BRKT
M8X45 W/LK WASHER 		0-50040-845-0 02 1 9205-0107
138 BOLT; CLIP BRKT
M8X45 W/LK WASHER 		0-50040-845-0 02 1 0108-
139 NUT; CLIP BRKT
M8 		9-09110-408-0 06 1 9104-0107
139 NUT; CLIP BRKT
M8 		9-09110-408-0 06 1 0108-
161 CLIP; AIR PIPE
ID=13 & 13 L=18 & 18 		1-09700-833-0 03 1 9104-0107
161 CLIP; AIR PIPE
ID=13 & 13 L=18 & 18 		1-09700-833-0 03 1 0108-
162 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		9-01900-816-0 02 1 9104-9204
162 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-
163 BRACKET; PIPE CLIP 1-47475-427-1 01 1 9104-
164 CLIP; AIR PIPE
ID=13 & 13 L=18 & 18 		1-09700-833-0 01 1 9104-
165 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		9-01900-845-0 01 1 9104-9204
165 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9205-0107
165 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0108-
166 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9104-0107
166 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 0108-
168 BOLT; CLIP BRKT
M8X45 W/LK WASHER 		9-01900-845-0 01 1 9104-9204
168 BOLT; CLIP BRKT
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9205-
169 NUT; CLIP BRKT
M8 		9-09110-408-0 01 1 9104-
333 BRACKET; BRK AIR PIPE 1-47475-427-1 03 1 9104-
çizim 38865
193 178 196 198 177 192 181 195 197 179 197 187 186 189 188
BalonParca AdiParca NoAdetTipApplied Date
177 CLIP; AIR PIPE
ID=13 & 7 L=20 & 17 		1-09700-692-0 03 1 9104-
178 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		9-01900-845-0 03 1 9104-9204
178 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 03 1 9205-
179 NUT; PIPE CLIP
M8 		9-09110-408-0 03 1 9104-
181 BRACKET; PIPE CLIP 1-47475-427-1 03 1 9104-
186 CLIP; AIR PIPE
ID=13 & 7 L=20 & 17 		1-09700-692-0 03 1 9104-
187 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		9-01900-845-0 03 1 9104-9204
187 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 03 1 9205-
188 NUT; PIPE CLIP
M8 		9-09110-408-0 03 1 9104-
189 BRACKET; PIPE CLIP 1-47475-427-1 03 1 9104-
192 CLIP; AIR PIPE
ID=13 & 7 L=20 & 17 		1-09700-692-0 02 1 9104-0107
192 CLIP; AIR PIPE
ID=13 & 7 L=20 & 17 		1-09700-692-0 02 1 0108-
193 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		9-01900-845-0 02 1 9104-9204
193 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 02 1 9205-
195 BRACKET; PIPE CLIP 1-47475-427-1 02 1 9104-0107
195 BRACKET; PIPE CLIP 1-47475-427-1 02 1 0108-
196 BOLT; CLIP BRKT
M8X45 W/LK WASHER 		9-01900-845-0 02 1 9104-9204
196 BOLT; CLIP BRKT
M8X45 W/LK WASHER 		0-50040-845-0 02 1 9205-0107
196 BOLT; CLIP BRKT
M8X45 W/LK WASHER 		0-50040-845-0 02 1 0108-
197 NUT; CLIP BRKT
M8 		9-09110-408-0 04 1 9104-0107
197 NUT; CLIP BRKT
M8 		9-09110-408-0 02 1 0108-
198 CLIP; AIR PIPE
ID=13 & 7 L=20 & 17 		1-09700-692-0 01 1 9104-
198 CLIP; AIR PIPE
ID=13 & 13 L=18 & 18 		1-09700-833-0 01 1 9104-
333 BRACKET; BRK AIR PIPE 1-47475-427-1 03 1 9104-
