Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#31899) — 71 parça

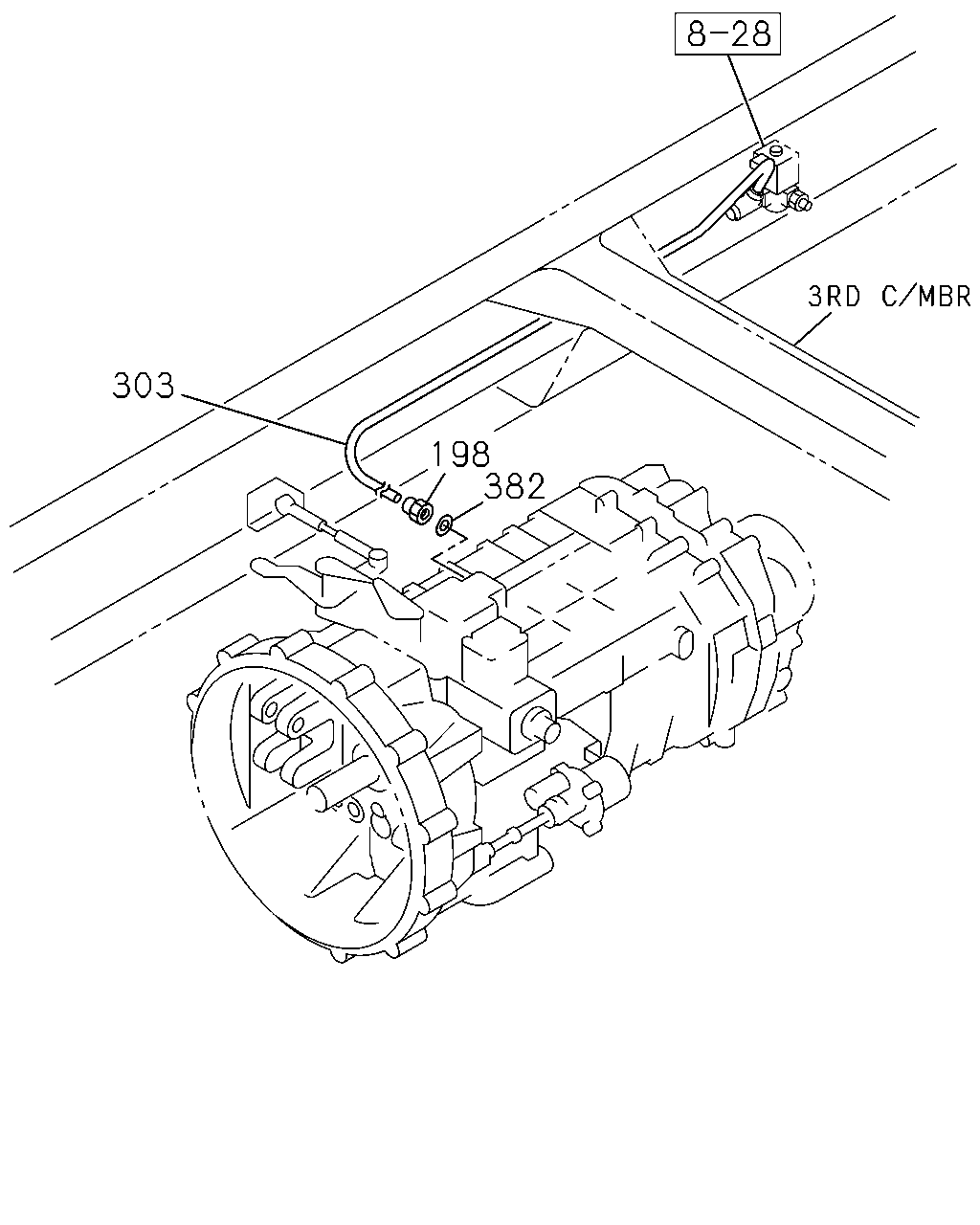

303 198 382

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
198	ADAPTER; NYLON TUBE DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0210-0407
198	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0408-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0210-0212
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
382	GASKET; ADAPTER ID=11 OD=18	9-09572-510-0	01	1	0210-0407

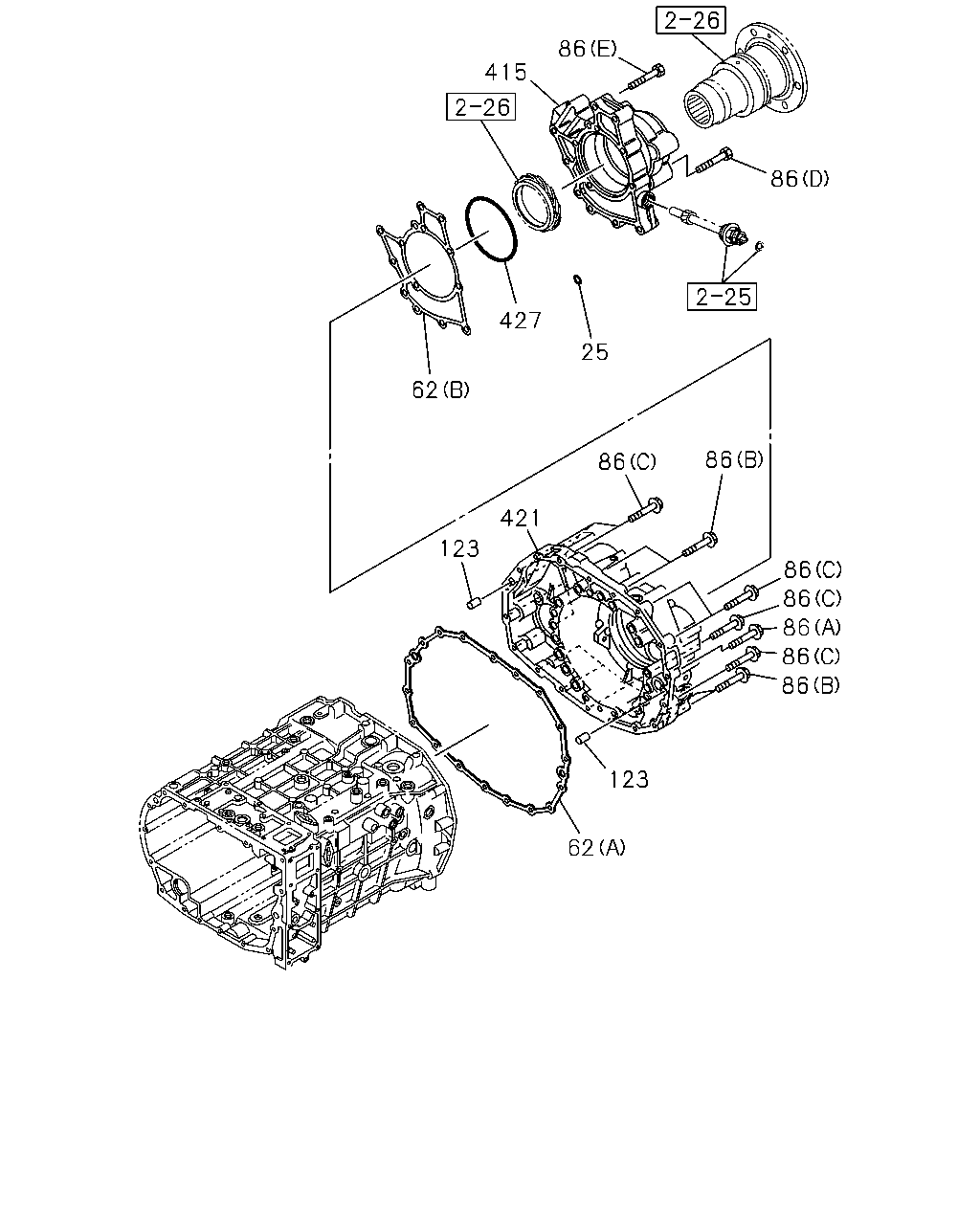

86 415 86 427 25 62 86 86 421 123 86 86 86 86 86 123 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-060-0	01	1	0210-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33132-076-0	01	1	0210-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33132-077-0	01	1	0210-
86	BOLT; RR COVER (C)	1-33119-266-0	13	1	0210-
86	BOLT; RR COVER (B)	1-33139-057-0	04	1	0210-
86	BOLT; RR COVER (A)	1-33139-058-0	01	1	0210-
86	BOLT; RR COVER (E)	1-33139-061-0	08	1	0210-
86	BOLT; RR COVER (D)	1-33139-062-0	05	1	0210-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	0210-
415	COVER; BRG	1-33131-204-0	01	1	0210-
421	COVER; RR,TRANS	1-33131-214-0	01	1	0210-
427	GASKET; RR COVER	1-33132-075-0	01	1	0210-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

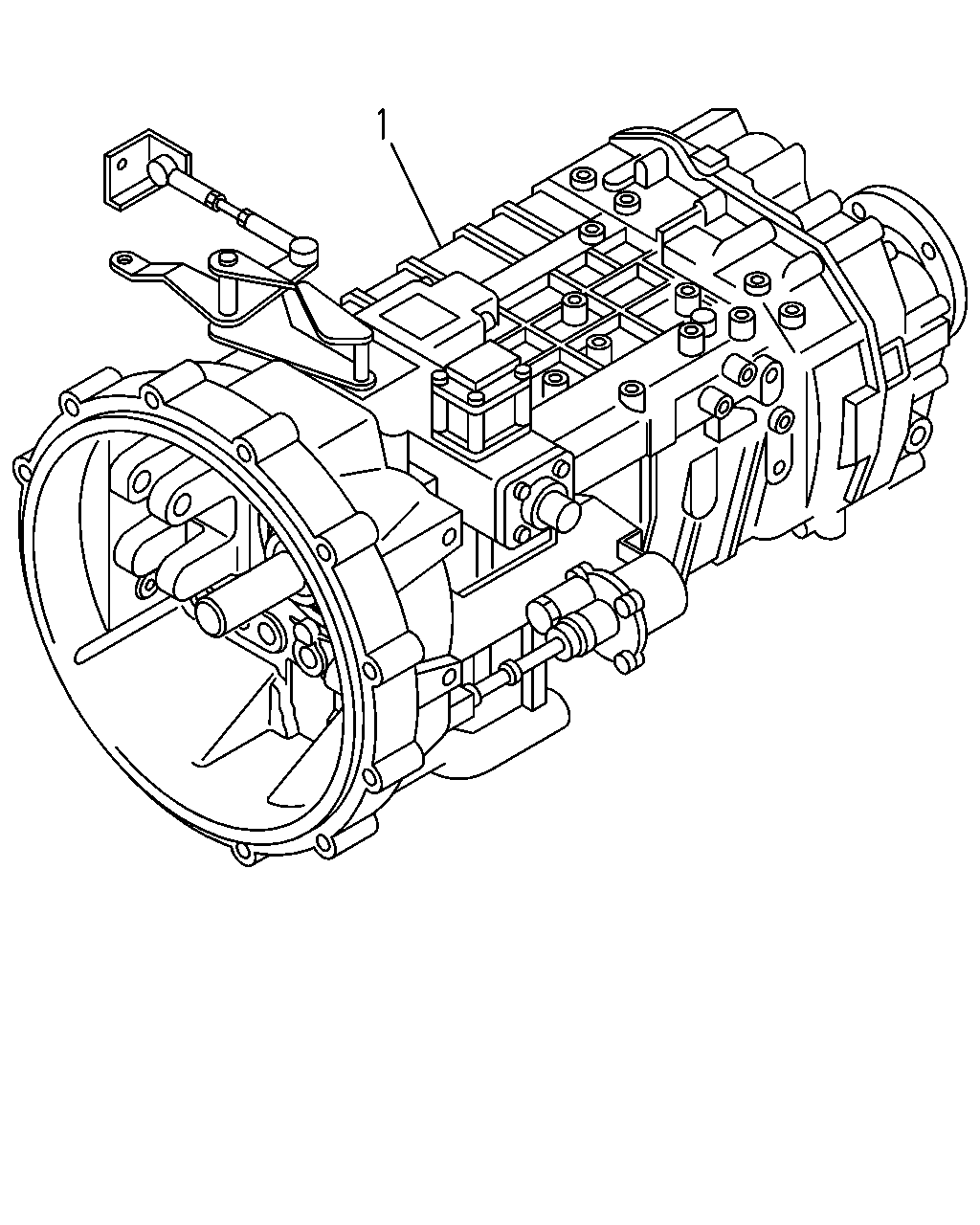

	1	TRANSMISSION ASM; MANUAL	1-33039-960-4	01	1	0210-0406
	1	TRANSMISSION ASM; MANUAL	1-33043-777-0	01	1	0407-

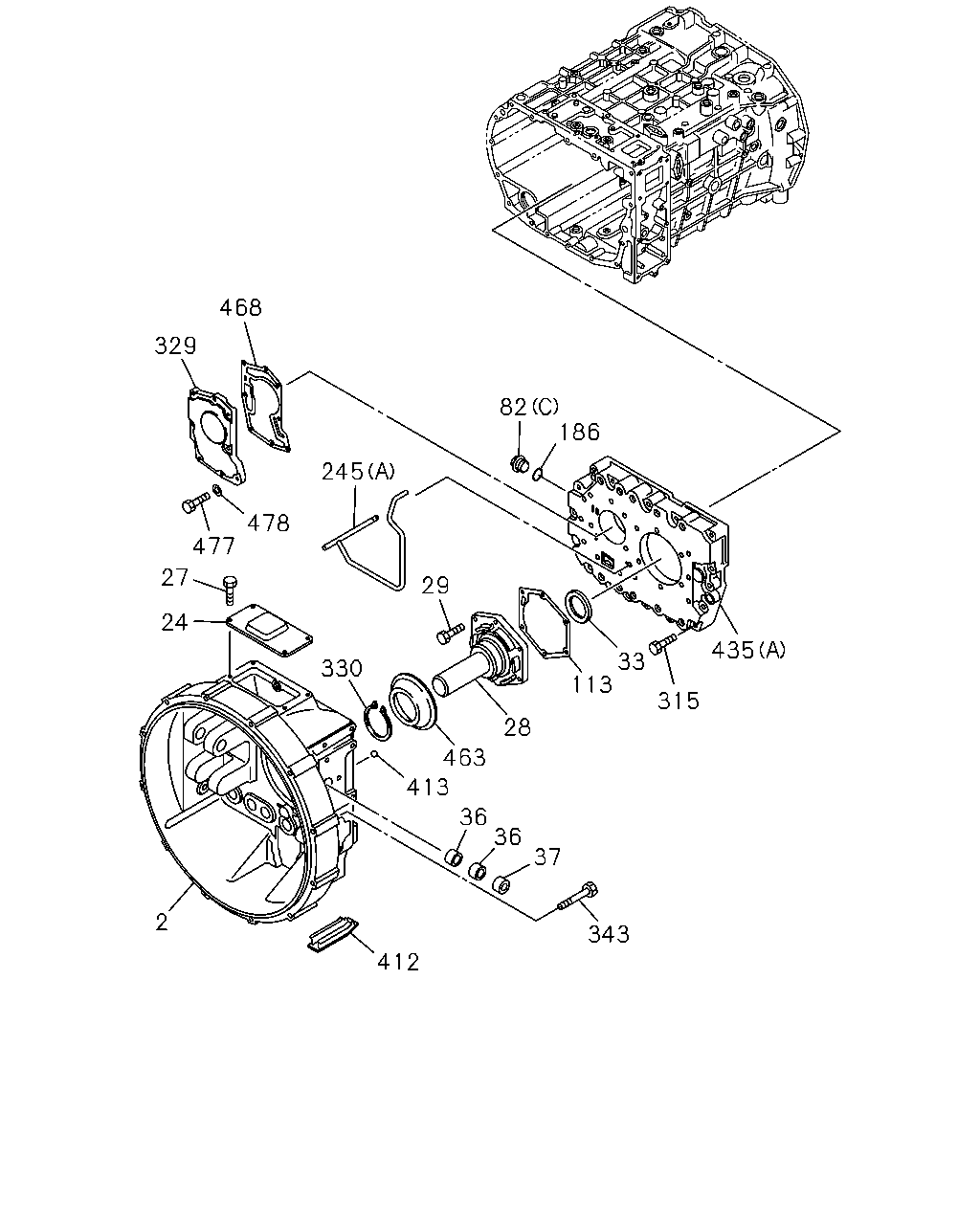

468 329 82 186 245 478 477 27 29 24 435 33 113 330 315 28 463 413 36 36 37 2 343 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	0210-
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	0210-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	0210-
28	COVER; FRT,TRANS CASE	1-33121-139-0	01	1	0210-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	0210-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-101-0	01	1	0210-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	0210-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0210-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0210-
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	0210-
82	PLUG; SCREW,CASE (B)	1-36119-004-0	01	1	0210-
82	PLUG; SCREW,CASE (D)	1-36119-014-0	01	1	0210-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-020-0	01	1	0210-
186	RING; SEAL	1-33119-286-0	02	1	0210-
245	PIPE; OIL (A)	1-33119-287-0	01	1	0210-
245	PIPE; OIL (B)	1-33119-289-0	01	1	0210-
315	BOLT; CASE	1-33119-266-0	17	1	0210-
329	PUMP ASM; OIL	1-34150-074-0	01	1	0210-
330	RING; RET	1-33129-005-0	01	1	0210-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	0210-
412	CAP; CLU HSG	1-31119-026-0	01	1	0210-
413	BALL; CLU HSG	1-31119-014-0	04	1	0210-
435	CASE; TRANS (B)	1-33111-264-0	01	1	0210-
435	CASE; TRANS (A)	1-33111-279-0	01	1	0210-
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	0210-
468	GASKET; OIL PUMP	1-34159-063-0	01	1	0210-
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	0210-
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	0210-

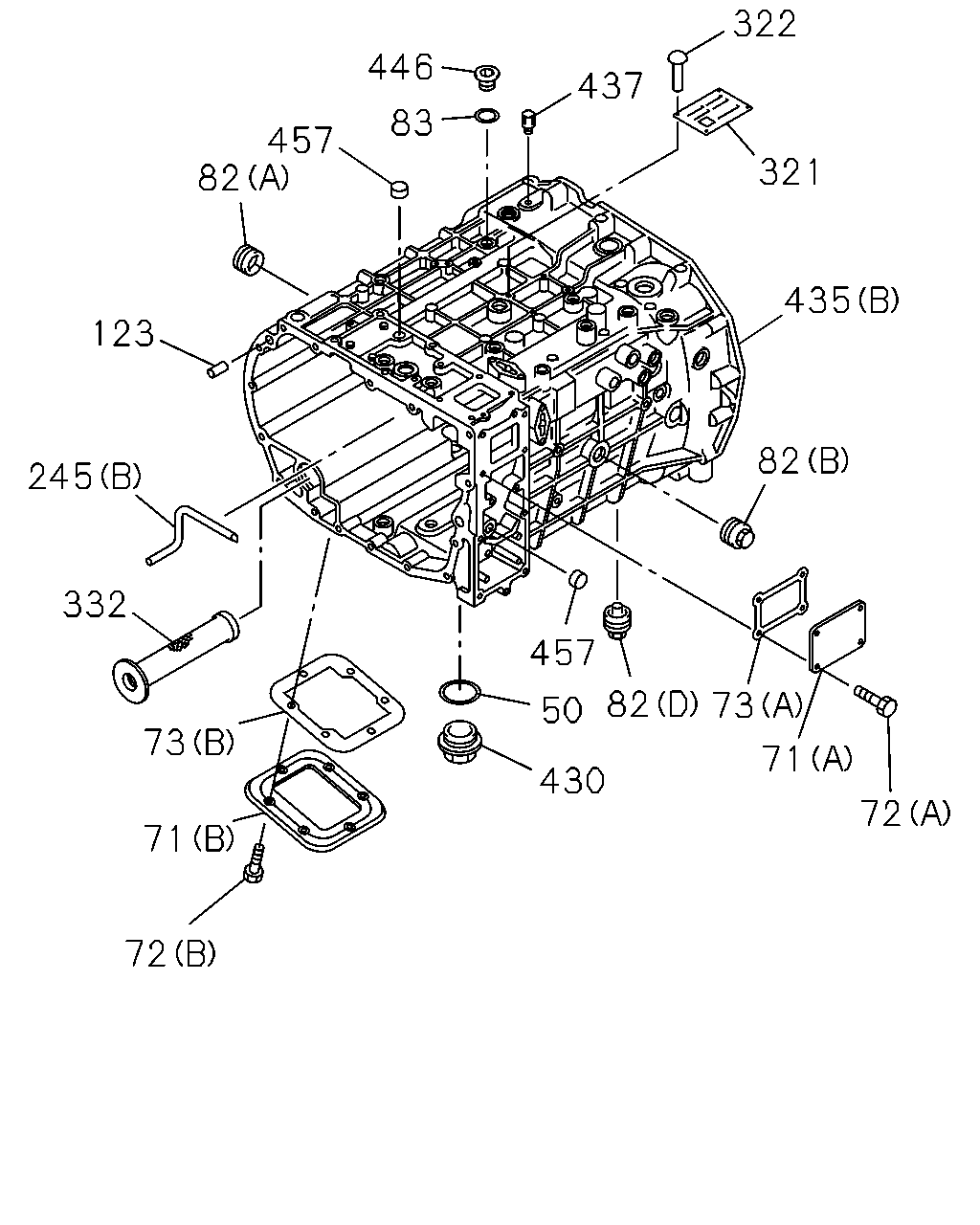

322 446 437 83 457 82 321 435 123 82 245 332 457 50 73 71 430 72 71 72 82 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	0210-
71	COVER; SIDE,TRANS CASE (B)	1-33119-235-0	01	1	0210-
71	COVER; SIDE,TRANS CASE (A)	1-33119-294-0	01	1	0210-
72	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	0210-
72	BOLT; SIDE COVER (B) M10X22	1-36129-014-1	06	1	0210-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-237-0	01	1	0210-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33119-295-0	01	1	0210-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0210-
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	0210-
82	PLUG; SCREW,CASE (B)	1-36119-004-0	01	1	0210-
82	PLUG; SCREW,CASE (D)	1-36119-014-0	01	1	0210-
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	0210-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	0210-
245	PIPE; OIL (A)	1-33119-287-0	01	1	0210-
245	PIPE; OIL (B)	1-33119-289-0	01	1	0210-
321	PLATE; NAME	1-33119-277-0	01	1	0210-
322	RIVET; NAME PLATE	1-36119-006-0	04	1	0210-
332	FILTER; OIL	1-33119-157-0	01	1	0210-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	0210-
435	CASE; TRANS (B)	1-33111-264-0	01	1	0210-
435	CASE; TRANS (A)	1-33111-279-0	01	1	0210-
437	BREATHER; TRANS	1-36122-004-0	01	1	0210-
446	PLUG; CASE,TRANS	1-33119-171-0	01	1	0210-
457	CUP; SEALING,CASE	1-33119-297-0	02	1	0210-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
