2-05A — CLUTCH PIPING (#31891) — 58 parça

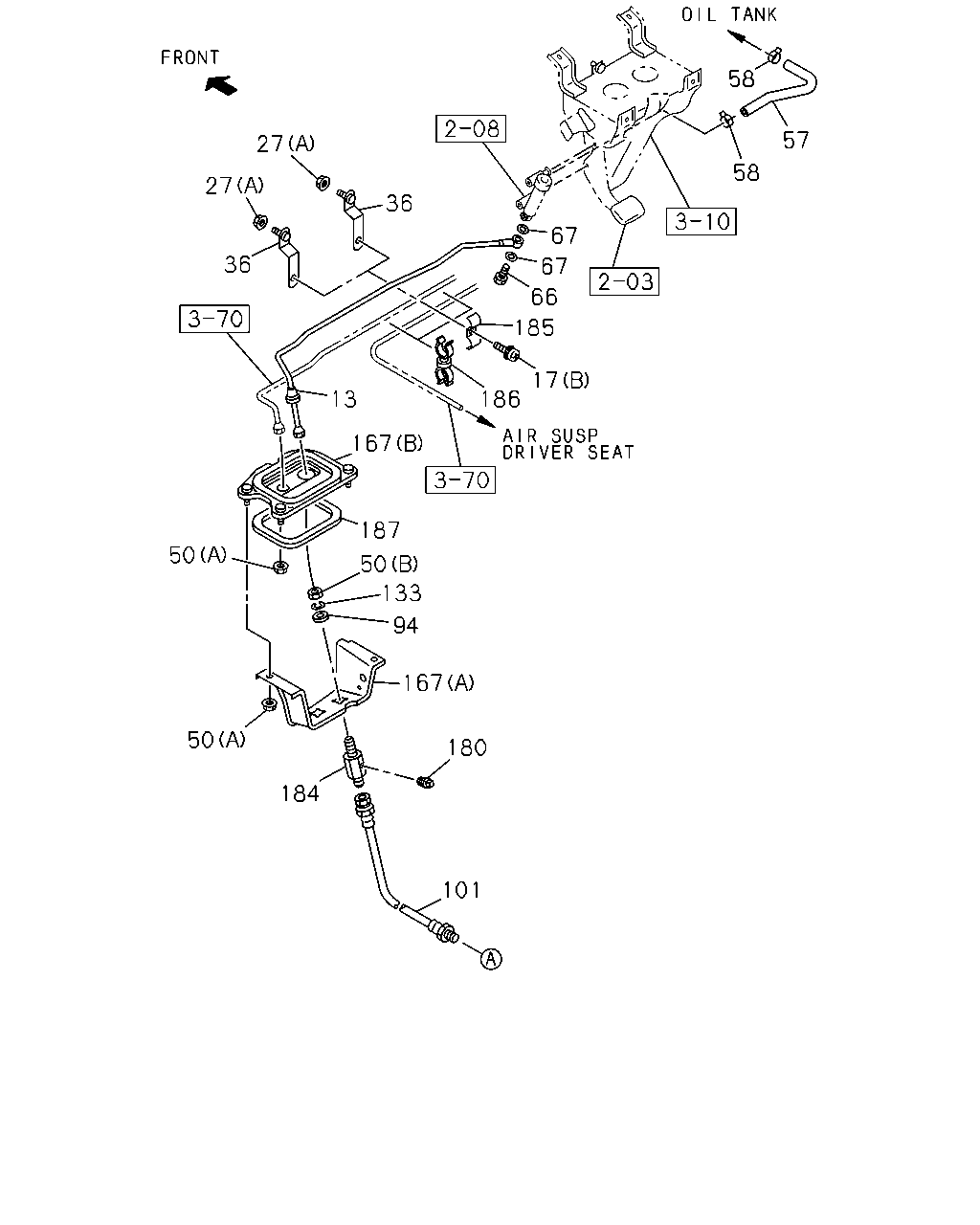

çizim 81464
58 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
THA 		8-97916-209-0 01 1 0210-
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0210-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0210-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0210-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0210-
36 BRACKET; CLIP
THA 		1-79738-186-1 02 1 0210-
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0210-
50 NUT; UNION
(B) M14 		9-99111-414-0 01 1 0210-
57 HOSE; CLU M/CYL TO OIL TANK
THA 		8-97916-100-0 01 1 0210-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0210-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0210-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0210-
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 0210-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 0210-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0210-
167 BRACKET; UNION
(A) THA 		1-79738-193-6 01 1 0210-
167 BRACKET; UNION
(B) THA 		1-79738-845-0 01 1 0210-
180 PLUG; PIPE 9-09204-510-0 01 1 0210-
184 UNION; FLEX HOSE 1-09656-679-0 01 1 0210-
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0210-
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 THA 		8-94313-325-0 02 1 0210-
187 SEAL; BRKT 1-79738-190-0 01 1 0210-

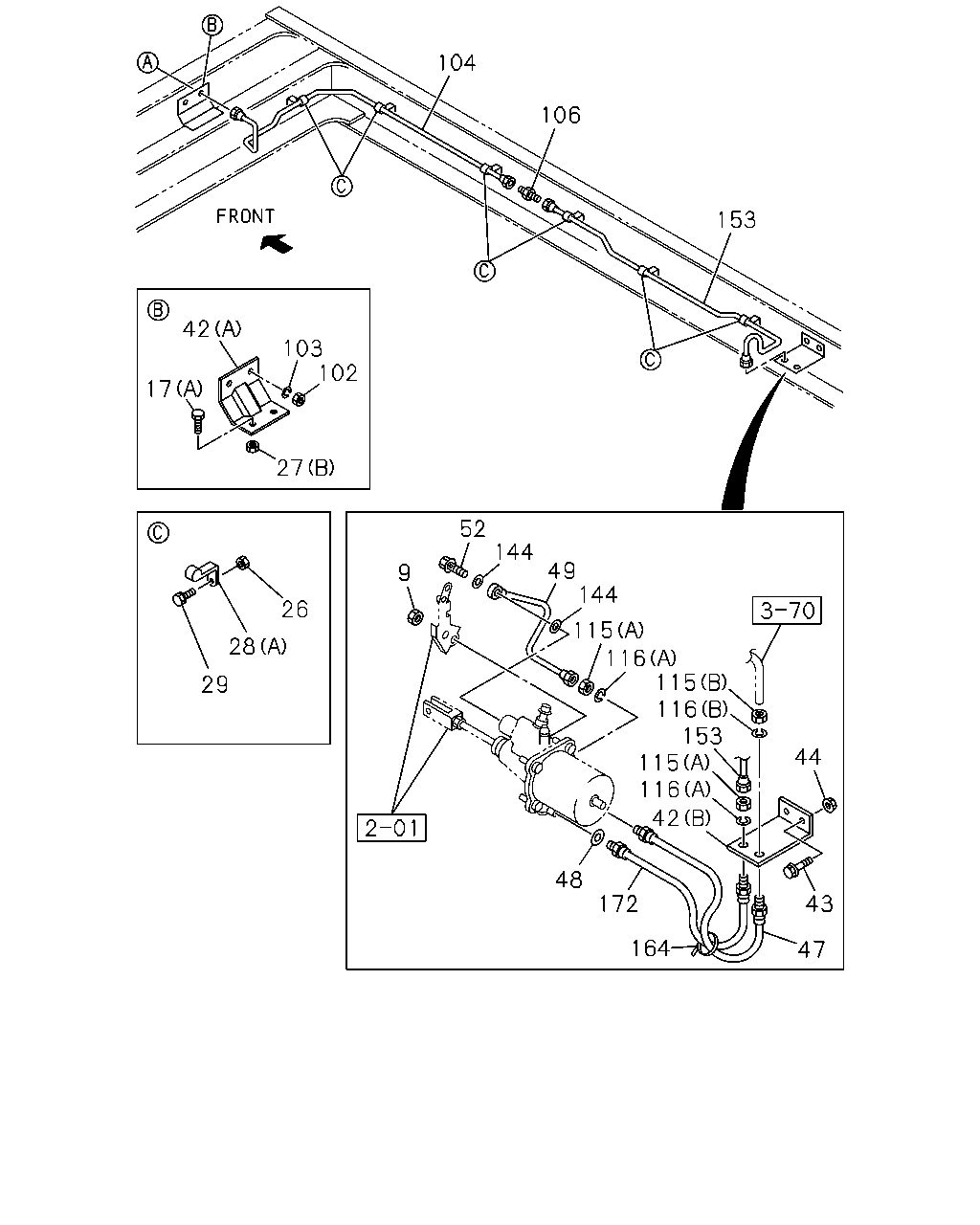

çizim 85031
104 106 153 42 103 102 17 27 52 144 49 144 9 26 115 116 115 116 153 115 116 28 29 44 42 48 172 43 164 47
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91150-210-0 02 1 0210-
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0210-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0210-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0210-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0210-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0210-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0210-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 THA 		1-09700-604-0 03 1 0210-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 THA 		1-09700-604-0 03 1 0210-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 0210-0302
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 0210-0302
29 BOLT; CLIP,OIL PIPE
M8X35 FLANGE 		0-28680-835-0 03 1 0303-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 0303-
29 BOLT; CLIP,OIL PIPE
M8X35 FLANGE 		0-28680-835-0 01 1 0305-
42 BRACKET; FLEX HOSE,CLU CONT
(A) THA 		1-47476-781-0 01 1 0210-
42 BRACKET; FLEX HOSE,CLU CONT
(B) THA 		1-47476-912-1 01 1 0210-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28680-835-0 02 1 0210-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0210-
47 HOSE; FLEX,CLU CONT
L=500 		1-09363-720-0 01 1 0210-0307
47 HOSE; FLEX,CLU CONT
L=560 		1-09363-689-0 01 1 0308-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0210-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 0210-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0210-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0210-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0210-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
THA 		8-97917-650-0 01 1 0210-
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 01 1 0210-
115 NUT; FLEX HOSE,CLU CONT
(A) M12 		9-09840-280-0 02 1 0210-
115 NUT; FLEX HOSE,CLU CONT
(B) M14 		9-99111-414-0 01 1 0210-
116 WASHER; FLEX HOSE,CLU CONT
(A) ID=12.2 		9-09150-512-0 02 1 0210-
116 WASHER; FLEX HOSE,CLU CONT
(B) ID=14.2 		9-09150-514-0 01 1 0210-
144 GASKET; AIR PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0210-
153 PIPE ASM; CLU,UNION TO FLEX
THA 		8-97917-655-0 01 1 0210-
164 CLIP; BAND,FLEX HOSE
L=140 		5-09707-031-1 01 1 0210-
172 HOSE; FLEX,CLU BOOSTER
L=470 		1-09364-692-0 01 1 0308-
172 HOSE; FLEX,CLU BOOSTER
L=430 		1-09364-725-0 01 1 0210-0307
