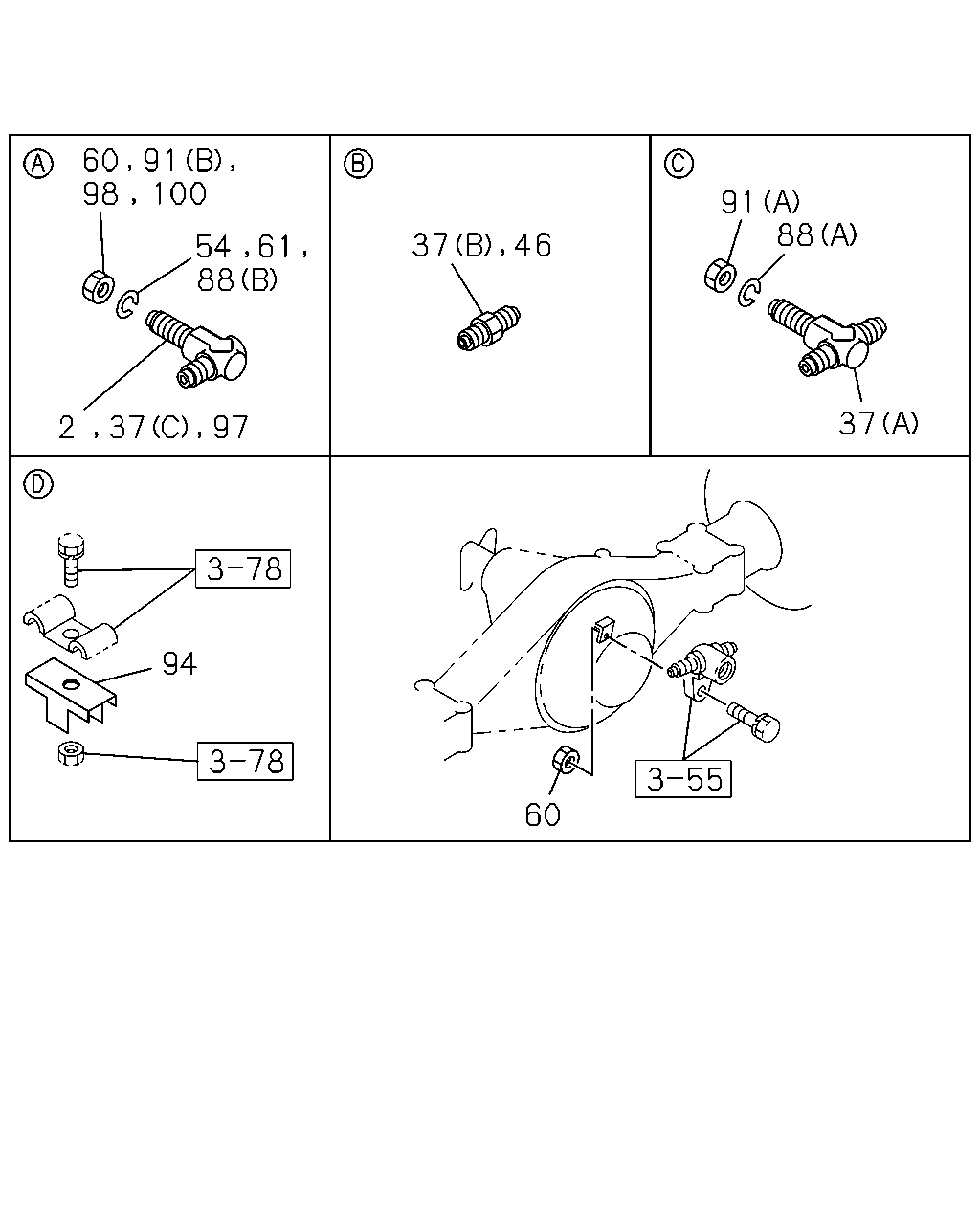

3-77 — BRAKE PIPING; AIR,REAR (#3189) — 52 parça

98 100 91 88 88 37 2 94 60 60 91 54 61 37 46 37 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE M20 ELBOW	9-09235-112-1	01	1	9104-0107
2	UNION; AIR PIPE M20 ELBOW	9-09235-112-1	01	1	0108-
37	UNION; AIR PIPE (A) M20 2WAY	1-09654-138-1	01	1	9104-0107
37	UNION; AIR PIPE M20 2WAY	1-09654-138-1	01	1	0108-
37	UNION; AIR PIPE (B) M20 STRAIGHT	9-09233-012-1	01	1	9104-0107
37	UNION; AIR PIPE M20 STRAIGHT	9-09233-012-1	01	1	0108-
37	UNION; AIR PIPE (B) M20 STRAIGHT	9-09233-012-1	02	1	9104-
37	UNION; AIR PIPE (C) M20 ELBOW	9-09235-112-1	02	1	9104-0107
37	UNION; AIR PIPE M20 ELBOW	9-09235-112-1	01	1	0108-
46	NIPPLE; AIR PIPE M20 STRAIGHT	9-09233-012-1	01	1	9104-
54	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9104-0107
54	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0108-
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	9104-0107
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	0108-
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9104-0107
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	0108-
88	WASHER; LK,PIPE UNION (A) ID=14.2	9-09150-514-0	01	1	9104-9312
88	WASHER; LK,PIPE UNION (B) ID=20.2	9-09150-520-0	01	1	9104-0107
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	0108-
91	NUT; PIPE UNION (A) M14	9-99111-414-0	01	1	9104-0107
91	NUT; PIPE UNION M14	9-99111-414-0	01	1	0108-
91	NUT; PIPE UNION (B) M20	9-99111-420-0	01	1	9104-0107
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	0108-
94	BRACKET; AIR PIPE	1-47475-427-1	02	1	9104-
97	UNION; AIR PIPE M20 ELBOW	9-09235-112-1	01	1	9104-
98	NUT; PIPE UNION M20	9-99111-420-0	01	1	9104-
100	NUT; UNION M20	9-99111-420-0	01	1	9104-0107
100	NUT; UNION M20	9-99111-420-0	01	1	0108-

13 93 102 95 13 96 103 120 92 93 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; AIR,BRK VLV TO UNION (B) L=609 SERVICED BY L=660	1-47437-978-0	01	1	9104-9212
13	PIPE; AIR,BRK VLV TO UNION (B) L=609 SERVICED BY L=660	1-49111-438-0	01	1	9301-0107
13	PIPE; AIR,BRK VLV TO UNION L=609 SERVICED BY L=660	1-49111-438-0	01	1	0108-
13	PIPE; AIR,BRK VLV TO UNION (A) L=200 SERVICED BY L=300	1-49111-433-0	01	1	9104-0107
13	PIPE; AIR,BRK VLV TO UNION L=200 SERVICED BY L=300	1-49111-433-0	01	1	0108-
87	PIPE; AIR,AIR TANK TO UNION L=1489 SERVICED BY L=1600	1-47437-985-0	01	1	9104-9212
87	PIPE; AIR,AIR TANK TO UNION L=1489 SERVICED BY L=1600	1-49111-448-0	01	1	9301-
92	PIPE; AIR,UNION TO UNION L=976 SERVICED BY L=1100	1-47437-982-0	01	1	9104-9212
92	PIPE; AIR,UNION TO UNION L=976 SERVICED BY L=1100	1-49111-444-0	01	1	9301-
93	PIPE; AIR,UNION TO UNION (A) L=1453 SERVICED BY L=1600	1-47437-985-0	01	1	9104-9212
93	PIPE; AIR,UNION TO UNION (A) L=1454 SERVICED BY L=1600	1-49111-448-0	01	1	9301-0107
93	PIPE; AIR,UNION TO UNION L=1454 SERVICED BY L=1600	1-49111-448-0	01	1	0108-
93	PIPE; AIR,UNION TO UNION (B) L=1547 SERVICED BY L=1600	1-47437-985-0	01	1	9104-9212
93	PIPE; AIR,UNION TO UNION (B) L=1547 SERVICED BY L=1600	1-49111-448-0	01	1	9301-
95	PIPE; AIR,UNION TO UNION L=2006 SERVICED BY L=2250	1-47437-987-0	01	1	9104-9212
95	PIPE; AIR,UNION TO UNION L=2007 SERVICED BY L=2250	1-49111-451-0	01	1	9301-
96	PIPE; AIR,UNION TO UNION L=445 SERVICED BY L=500	1-49111-435-0	01	1	9104-9212
96	PIPE; AIR,UNION TO UNION	1-47496-563-0	01	1	9301-
102	PIPE; AIR,UNION TO UNION L=445 SERVICED BY L=500	1-49111-435-0	01	1	9104-9212
102	PIPE; AIR,UNION TO UNION L=445	1-47496-566-0	01	1	9301-
103	PIPE; AIR,UNION TO UNION L=1880 SERVICED BY L=2000	1-47437-986-0	01	1	9104-9212
103	PIPE; AIR,UNION TO UNION L=1880 SERVICED BY L=2000	1-49111-450-0	01	1	9301-
120	PIPE; AIR,CONN TO AIR MASTER L=1670 SERVICED BY L=1800	1-47434-487-0	01	1	9104-9212
120	PIPE; AIR,CONN TO AIR MASTER L=1671 SERVICED BY L=1800	1-49111-449-0	01	1	9301-
