Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

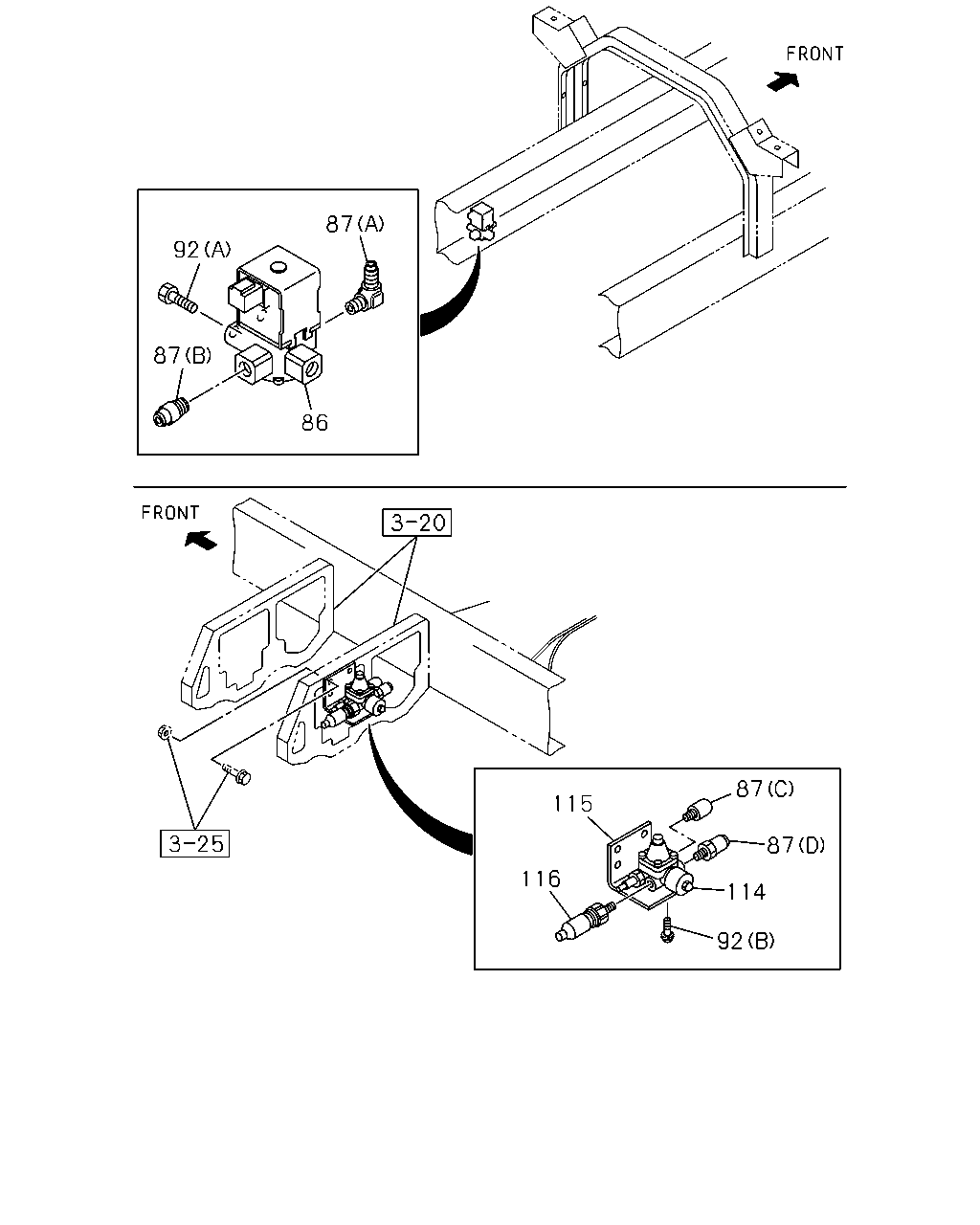

1-56 — EXHAUST BRAKE SYSTEM
(#31887) — 16 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
87
92
87
86
87
115
87
116
114
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
86
VALVE; MAG,EXH BRK
1-82563-602-6
01
1
0210-
●
●
87
CONNECTOR
SHORT CHASSIS<FX***C> DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0307-
●
●
87
CONNECTOR
SHORT CHASSIS<FX***C> DIN12 & R1/4 STRAIGHT
1-09660-967-0
01
1
0307-
●
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0210-
●
●
87
CONNECTOR
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0210-
●
●
87
CONNECTOR
SHORT CHASSIS<FX***C> (C) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0210-
●
●
87
CONNECTOR
SHORT CHASSIS<FX***C> (D) DIN12 & R1/4 STRAIGHT
1-09660-967-0
01
1
0210-
●
●
92
BOLT; MAG VLV
SHORT CHASSIS<FX***C> THA
8-97916-572-0
03
1
0307-
●
●
92
BOLT; MAG VLV
(A) M8X25 FLANGE
0-28080-825-0
02
1
0210-
●
●
92
BOLT; MAG VLV
SHORT CHASSIS<FX***C> (B) M5X14 W/LK WASHER
9-03910-514-0
03
1
0210-
●
●
114
VALVE; CONT,BRK LOCK
SHORT CHASSIS<FX***C>
1-46362-084-0
01
1
0307-
●
●
114
VALVE; CONT,BRK LOCK
SHORT CHASSIS<FX***C>
1-46362-084-0
01
1
0210-
●
●
115
BRACKET; CONT VLV
SHORT CHASSIS<FX***C>
1-47478-155-0
01
1
0307-
●
●
115
BRACKET; CONT VLV
SHORT CHASSIS<FX***C>
1-47478-155-0
01
1
0210-
●
●
116
SWITCH; AIR PRESSURE
SHORT CHASSIS<FX***C>
1-82410-195-0
01
1
0307-
●
●
116
SWITCH; AIR PRESSURE
SHORT CHASSIS<FX***C>
1-82410-195-0
01
1
0210-
●
●
