1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#31886) — 43 parça

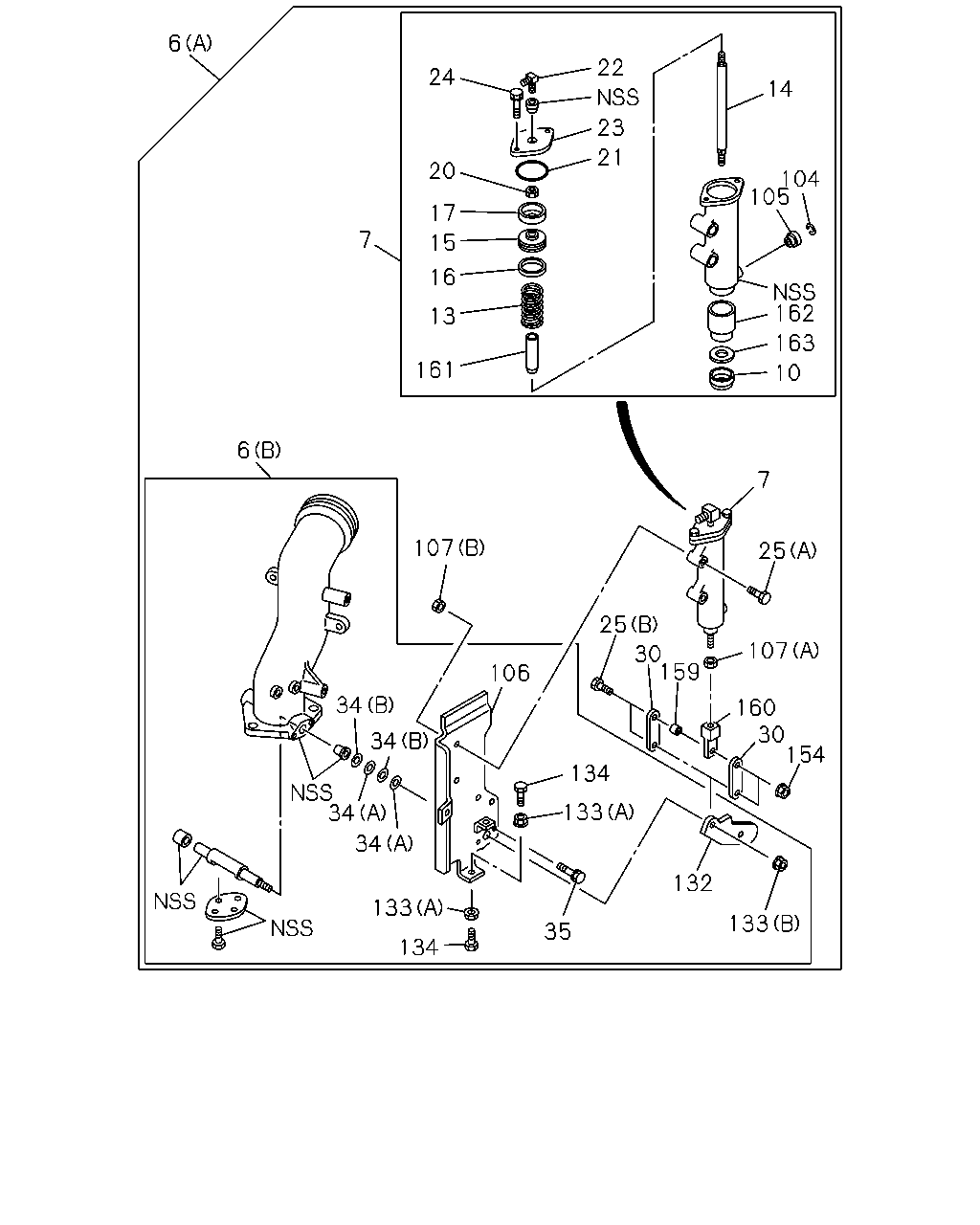

çizim 25451
6 22 24 14 23 21 20 104 105 17 7 15 16 162 13 163 161 10 6 7 107 25 25 107 30 159 106 34 160 30 154 34 134 34 133 34 132 133 133 35 134
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-14144-636-1 01 1 0210- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0210- ● ●
7 CYLINDER ASM; CONT 1-22190-650-1 01 1 0210- ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0210- ● ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 0210- ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0210- ● ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 0210- ● ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0210- ● ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0210- ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 0210- ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0210- ● ●
22 CONNECTOR; CONT CYL
M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 0210- ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0210- ● ●
24 BOLT; COVER 1-22199-217-0 02 1 0210- ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0210- ● ●
25 BOLT; CONT CYL
(B) 		1-33739-200-0 02 1 0210- ● ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 0210- ● ●
34 RING; SEAL 1-14149-207-0 02 1 0210- ● ●
34 RING; SEAL
(B) 		1-22189-272-0 02 1 0210- ● ●
34 RING; SEAL
(A) 		1-22189-273-0 02 1 0210- ● ●
35 BOLT; PLATE FIX 1-22189-308-0 04 1 0210- ● ●
104 RING; RET 9-88510-331-0 01 1 0210- ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0210- ● ●
106 BRACKET; CONT CYL 1-22186-141-0 01 1 0210- ● ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 0210- ● ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 0210- ● ●
132 LEVER; BRK VLV 1-22196-347-1 01 1 0210- ● ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 0210- ● ●
133 NUT; LK
(B) M8 W/LK WASHER 		8-94279-050-0 01 1 0210- ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0210- ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0210- ● ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 0210- ● ●
160 JOINT; CONT CYL 1-22199-163-0 01 1 0210- ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0210- ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0210- ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0210- ● ●
173 STUD; EXH BRK VLV
M12X40 L=64 		9-94321-240-0 03 1 0210- ● ●

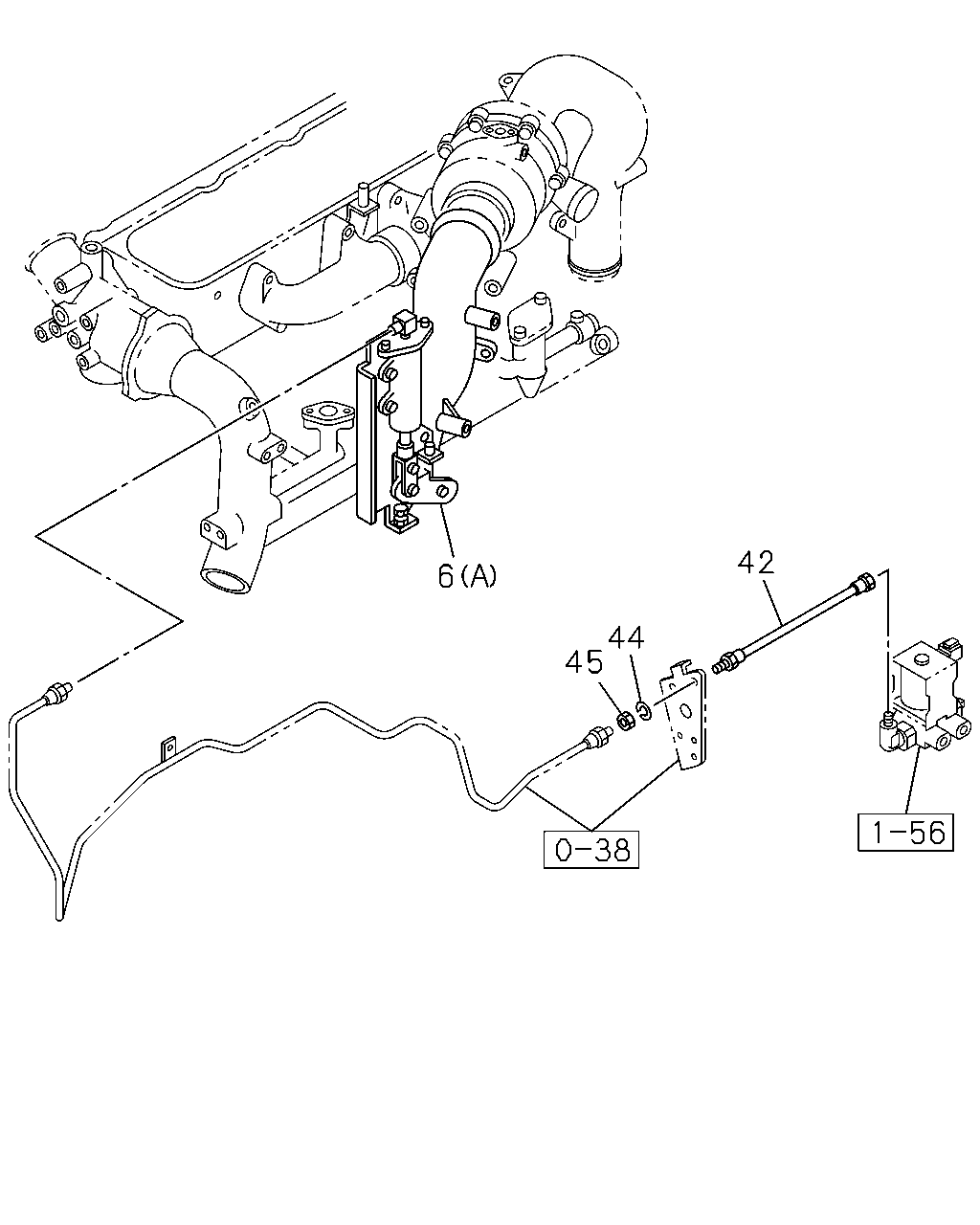

çizim 81419
42 6 44 45
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-14144-636-1 01 1 0210- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0210- ● ●
42 HOSE; FLEX,EXH BRK
L=340 		1-09363-622-0 01 1 0210- ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0210- ● ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0210- ● ●
173 STUD; EXH BRK VLV
M12X40 L=64 		9-94321-240-0 03 1 0210- ● ●
