1-41 — FUEL PIPING; CHASSIS (#31883) — 22 parça

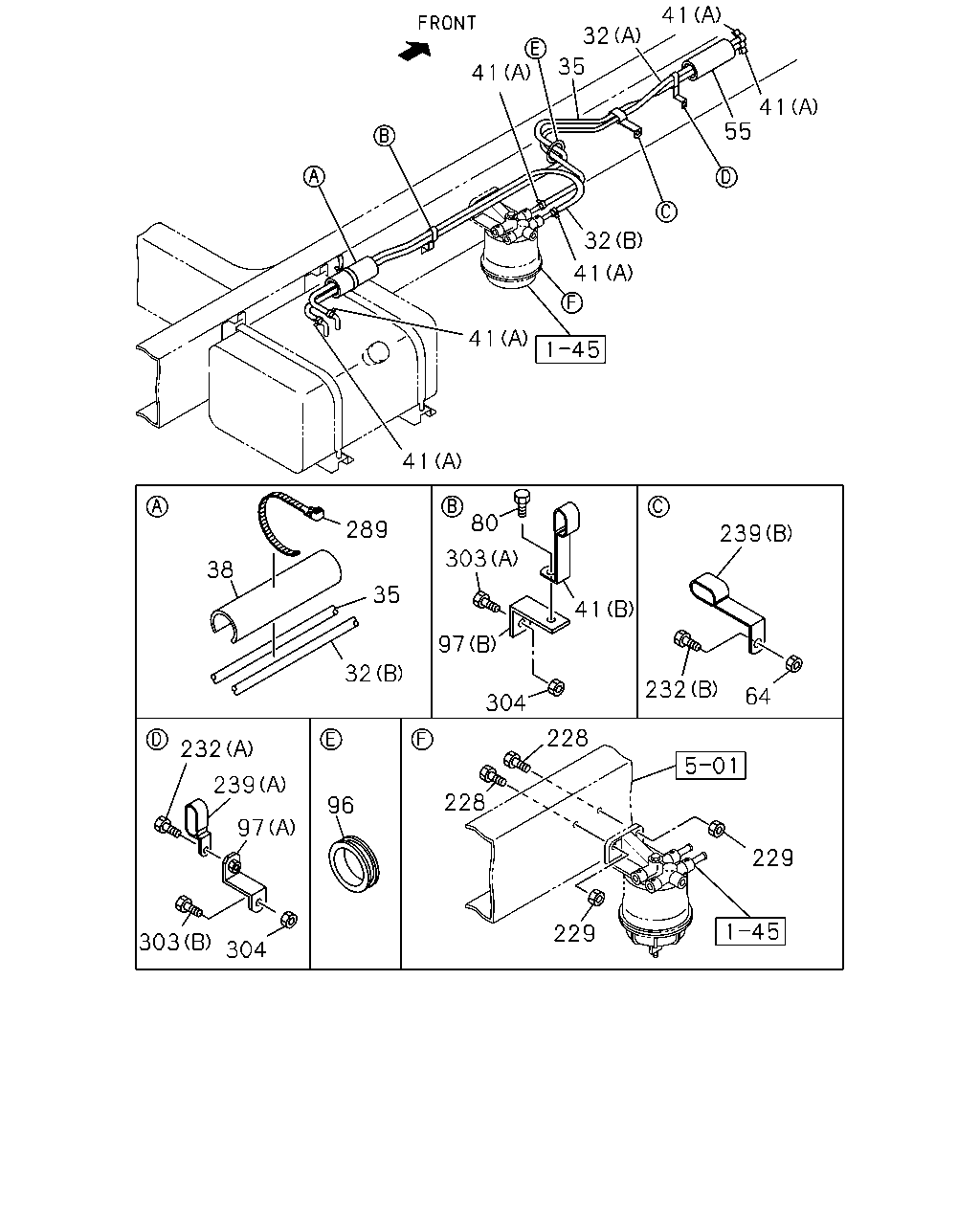

çizim 80275
41 32 35 41 41 55 32 41 41 41 80 289 239 303 38 35 41 97 32 232 64 304 228 232 239 228 96 97 229 229 303 304
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(B) THA 		8-97910-625-0 01 1 0210- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) THA 		8-97910-627-0 01 1 0210- ● ●
35 PIPE; FUEL TANK,RETURN
THA 		8-97910-628-0 01 1 0210- ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0210- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=14X2 H=30 L=25 THA 		1-09701-101-0 01 1 0210- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 THA 		1-09704-102-0 06 1 0210- ● ●
55 COVER; PIPE,FUEL TANK
L=200 SERVICED BY L=1300 		1-09360-677-1 01 1 0210- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0210- ● ●
80 BOLT; CLIP,FUEL TANK
M8X16 FLANGE 		0-28080-816-0 01 1 0210- ● ●
96 GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0210- ● ●
97 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0210- ● ●
97 BRACKET; CLIP
(B) L=60 		1-47476-217-0 01 1 0210- ● ●
228 BOLT; BRKT,SEDIMENTER
M10X45 FLANGE 		0-28081-045-0 02 1 0210- ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0210- ● ●
232 BOLT; CLIP,PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0210- ● ●
232 BOLT; CLIP,PIPE
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0210- ● ●
239 CLIP; FUEL PIPE
(A) H=15 ID=14 		1-09700-744-0 01 1 0210- ● ●
239 CLIP; FUEL PIPE
(B) ID=14X2 H=30 L=25 THA 		1-09701-101-0 01 1 0210- ● ●
289 CLIP; BAND,HOSE
L=250 THA 		5-09707-030-1 01 1 0210- ● ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0210- ● ●
303 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0210- ● ●
304 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0210- ● ●
