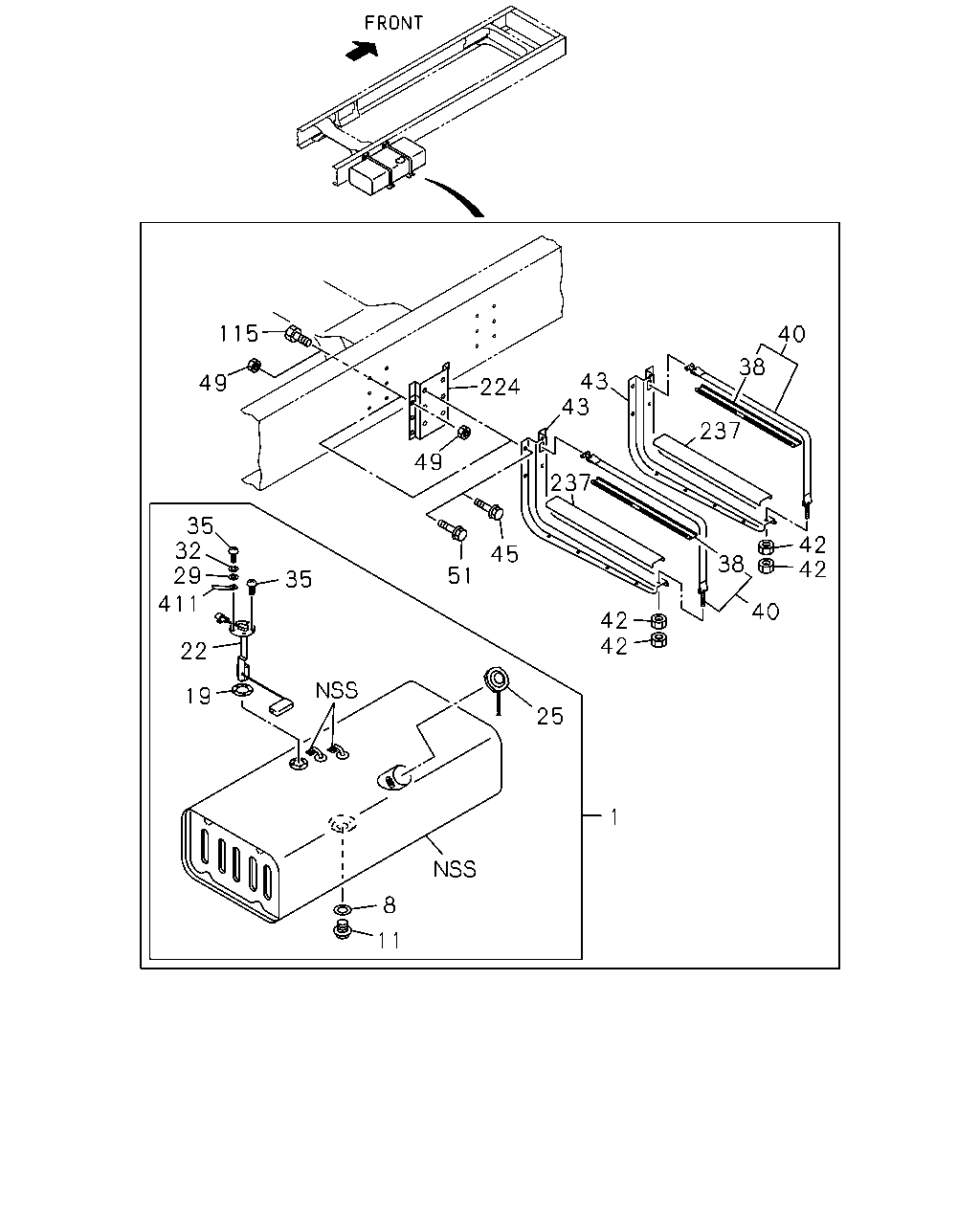

1-40 — FUEL TANK
(#31882) — 20 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
115
40
38
43
43
49
224
237
237
49
35
32
29
42
42
45
38
51
35
411
40
42
42
22
19
25
1
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1100X633X333 200L THA
8-97917-933-1
01
1
0210-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
THA
8-97917-956-0
01
1
0210-
●
●
11
PLUG; DRAIN,FUEL TANK
THA
8-97917-955-0
01
1
0210-
●
●
19
GASKET; FUEL TANK UNIT
SHORT CHASSIS<FX***C> ID=42 THA
9-83135-011-0
01
1
0210-
●
●
22
UNIT; FUEL TANK
THA
8-97915-996-0
01
1
0210-
●
●
25
CAP; FILLER,FUEL TANK
THA
8-97917-957-0
01
1
0210-
●
●
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
9-09160-505-0
01
1
0210-
●
●
32
WASHER; LK,FUEL TANK UNIT
SHORT CHASSIS<FX***C> ID=5.1
9-09150-505-0
01
1
0210-
●
●
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
9-03910-510-0
05
1
0210-
●
●
38
INSULATION; SUPPORT BELT
THA
8-97916-866-0
02
1
0210-
●
●
40
BELT; SUPPORT,FUEL TANK
THA
8-97917-657-0
02
1
0210-
●
●
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
0210-
●
●
43
BRACKET; FUEL TANK
THA
8-97910-388-1
02
1
0210-
●
●
45
BOLT; BRKT,FUEL TANK
SHORT CHASSIS<FX***C> M12X45 FLANGE
0-28081-245-0
12
1
0210-
●
●
49
NUT; BRKT
M12
9-99110-512-0
12
1
0210-
●
●
51
BOLT; BRKT TO FRAME
MIDDLE CHASSIS<FX***F> M12X40 FLANGE
0-28081-240-0
12
1
0210-
●
●
115
BOLT; BRKT
SHORT CHASSIS<FX***C> M12X45 FLANGE
0-28081-245-0
12
1
0210-
●
●
224
BRACKET; FUEL TANK BRKT TO FRAME
SHORT CHASSIS<FX***C> THA
8-97910-886-0
02
1
0210-
●
●
237
GASKET; BRKT TO FUEL TANK
THA
8-97916-877-0
02
1
0210-
●
●
411
CLIP; FUEL TANK UNIT HARNESS
SHORT CHASSIS<FX***C> L=50 THA
1-09700-416-0
01
1
0210-
●
●
