Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

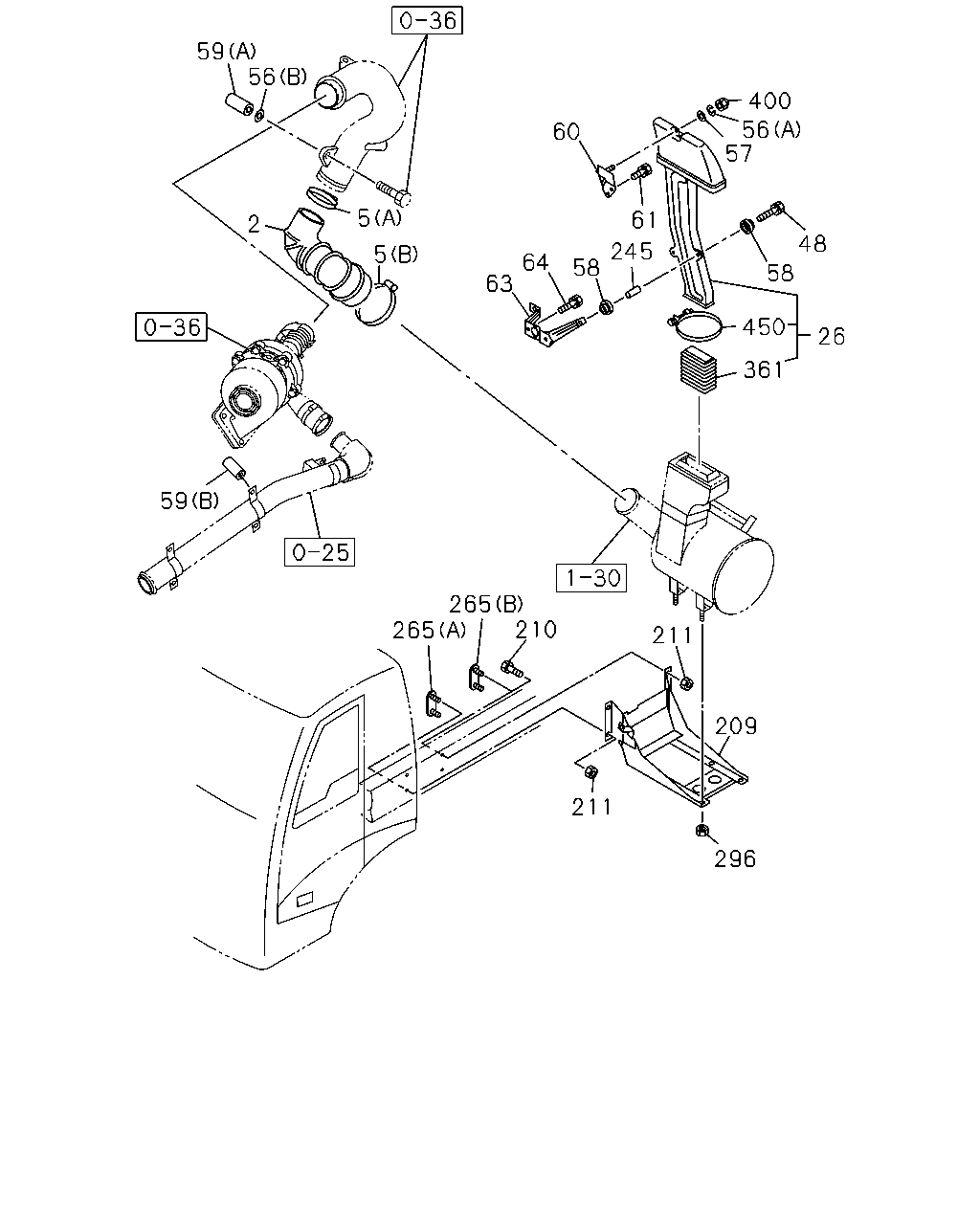

1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#31880) — 29 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
59
56
400
56
57
60
5
61
2
48
245
5
64
58
58
63
450
26
361
59
265
265
210
211
209
211
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOSE; ACL
1-14231-914-1
01
1
0210-
●
●
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-114-0
01
1
0210-0212
●
●
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-198-0
01
1
0301-
●
●
5
CLIP; AIR DUCT
(B) ID=130-169
1-09707-157-0
01
1
0210-0212
●
●
5
CLIP; AIR DUCT
(B) ID=130-165
1-09707-201-0
01
1
0301-
●
●
26
DUCT; AIR INT
1-14230-175-2
01
1
0210-
●
●
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0210-
●
●
56
WASHER; LK,AIR INT DUCT
(A) M10
1-09500-046-0
01
1
0210-
●
●
56
WASHER; LK,AIR INT DUCT
(B) T=5.5
1-14149-042-0
02
1
0210-
●
●
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0210-
●
●
58
SUPPORT; AIR INL DUCT
1-14119-397-0
04
1
0210-0211
●
●
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0212-
●
●
59
TUBE; DIST,AIR INT DUCT
(B) L=43
1-14149-048-1
02
1
0210-
●
●
59
TUBE; DIST,AIR INT DUCT
(A) L=55
1-14149-166-0
02
1
0210-
●
●
60
BRACKET; AIR DUCT,UPR
THA
8-97914-643-0
01
1
0210-
●
●
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0210-
●
●
63
BRACKET; AIR DUCT,LWR
THA
8-97914-645-0
01
1
0210-
●
●
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0210-
●
●
209
BRACKET; ACL
SHORT CHASSIS<FX***C> THA
8-97913-971-0
01
1
0210-
●
●
209
BRACKET; ACL
MIDDLE CHASSIS<FX***F> THA
8-97913-970-0
01
1
0210-
●
●
210
BOLT; ACL BRKT
MIDDLE CHASSIS<FX***F> M12X40 FLANGE
0-28681-240-0
02
1
0210-
●
●
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
04
1
0210-
●
●
245
PIECE; DIST,AIR DUCT
THA
1-79998-228-0
02
1
0210-
●
●
265
BRACKET; STUD,ACL
(A) THA
1-53497-454-1
01
1
0210-
●
●
265
BRACKET; STUD,ACL
SHORT CHASSIS<FX***C> (B)
1-53497-523-0
01
1
0210-
●
●
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0210-
●
●
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-1
01
1
0210-
●
●
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0210-
●
●
450
CLAMP; HOSE
9-09915-504-1
01
1
0210-
●
●
