0-87 — COUPLING; INJECTION PUMP (#31874) — 15 parça

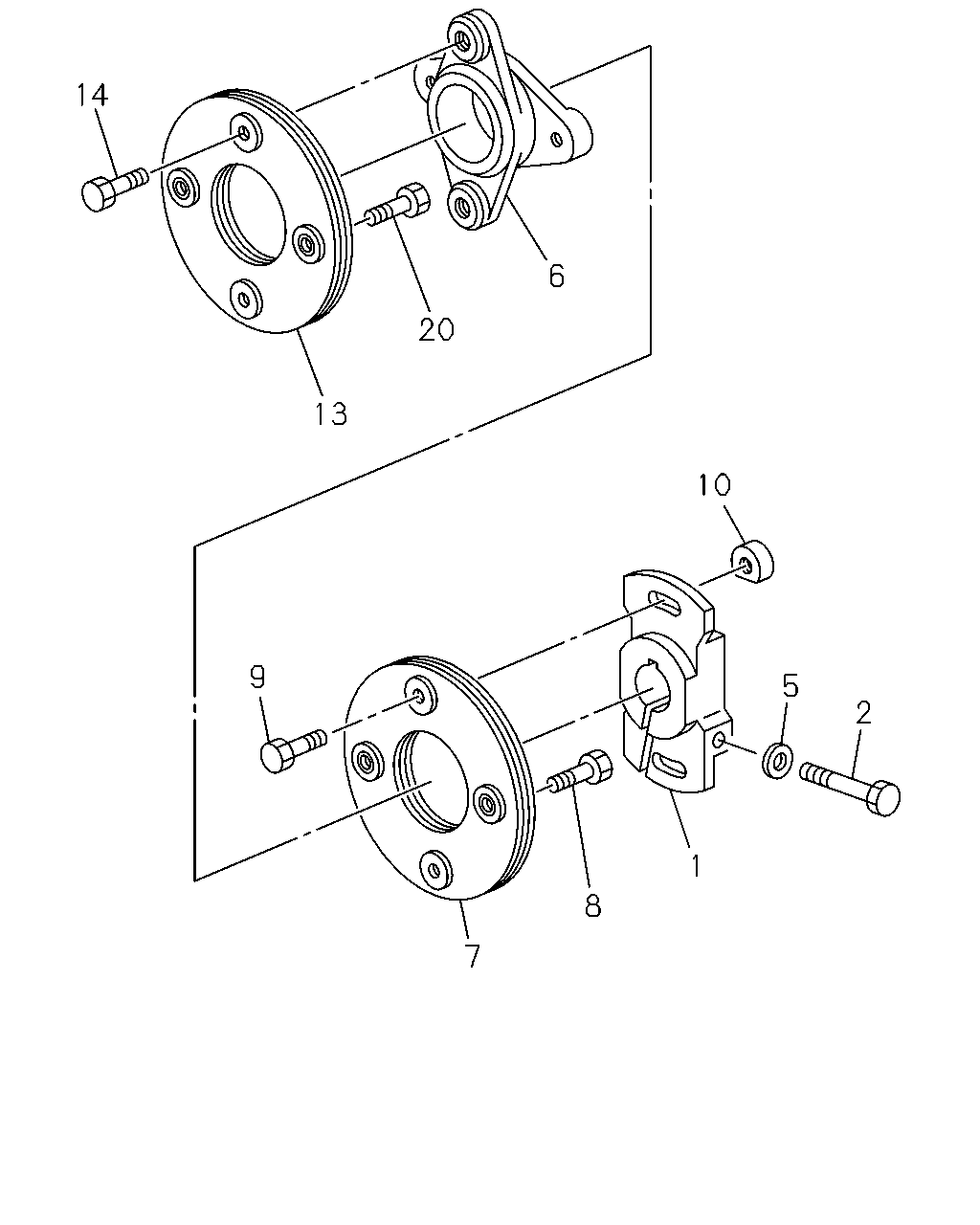

çizim 80757
14 6 20 13 10 9 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 0210- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0210- ● ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 0210- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-221-0 01 1 0210- ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0210- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0210- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0210- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0210- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0210- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0210- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0210- ● ●

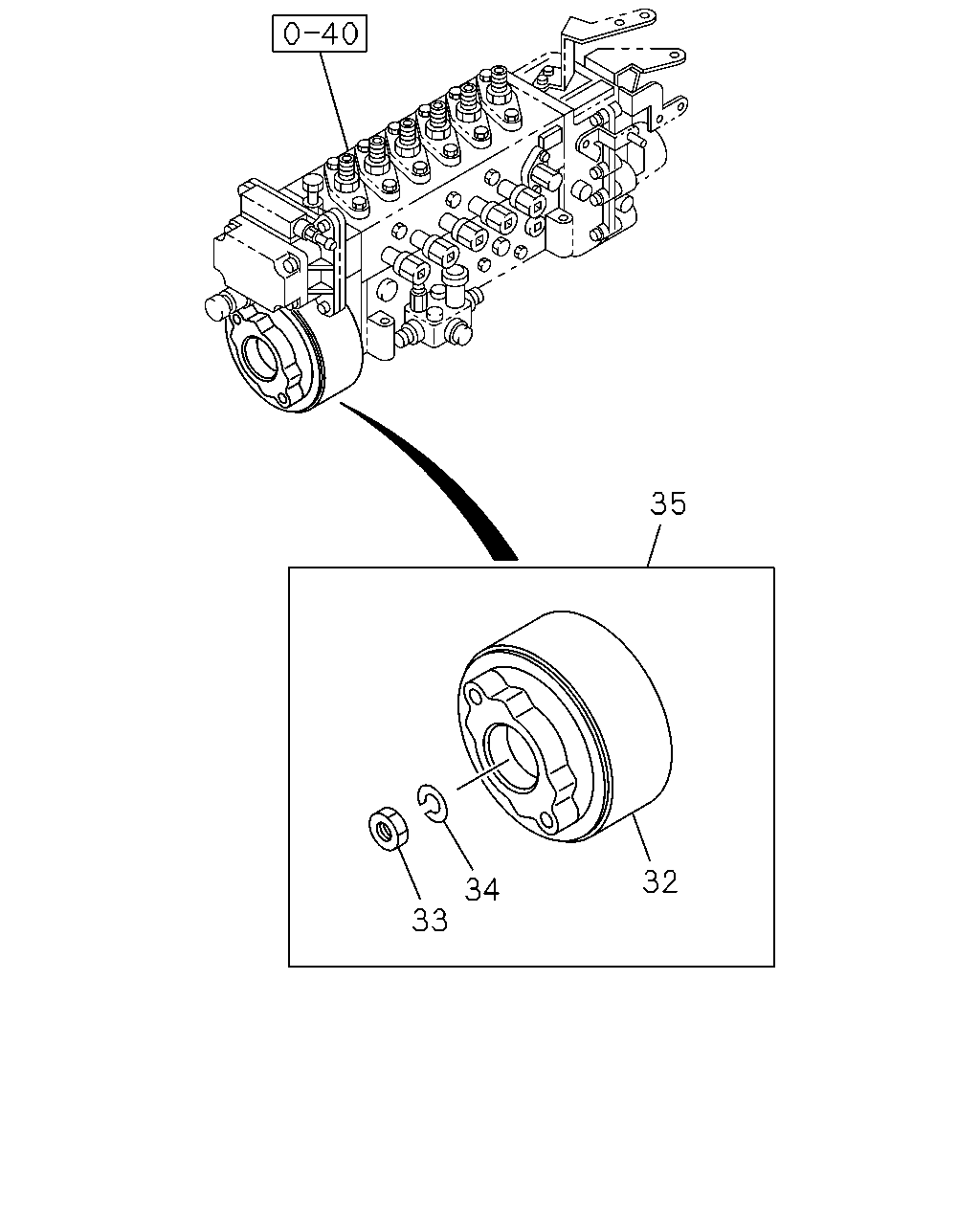

çizim 81348
35 32 34 33
BalonParca AdiParca NoAdetTipApplied Date A B
32 DAMPER; INJ PUMP 1-15744-008-1 01 1 0210-0409 ●
33 NUT; DAMPER 1-19179-020-0 01 1 0210-0409 ● ●
34 WASHER; DAMPER 1-19179-002-0 01 1 0210-0409 ● ●
35 DAMPER ASM; INJ PUMP 1-15744-014-1 01 1 0210-0409 ● ●
