3-70 — BRAKE PIPING; AIR,AIR MASTER (#3187) — 101 parça

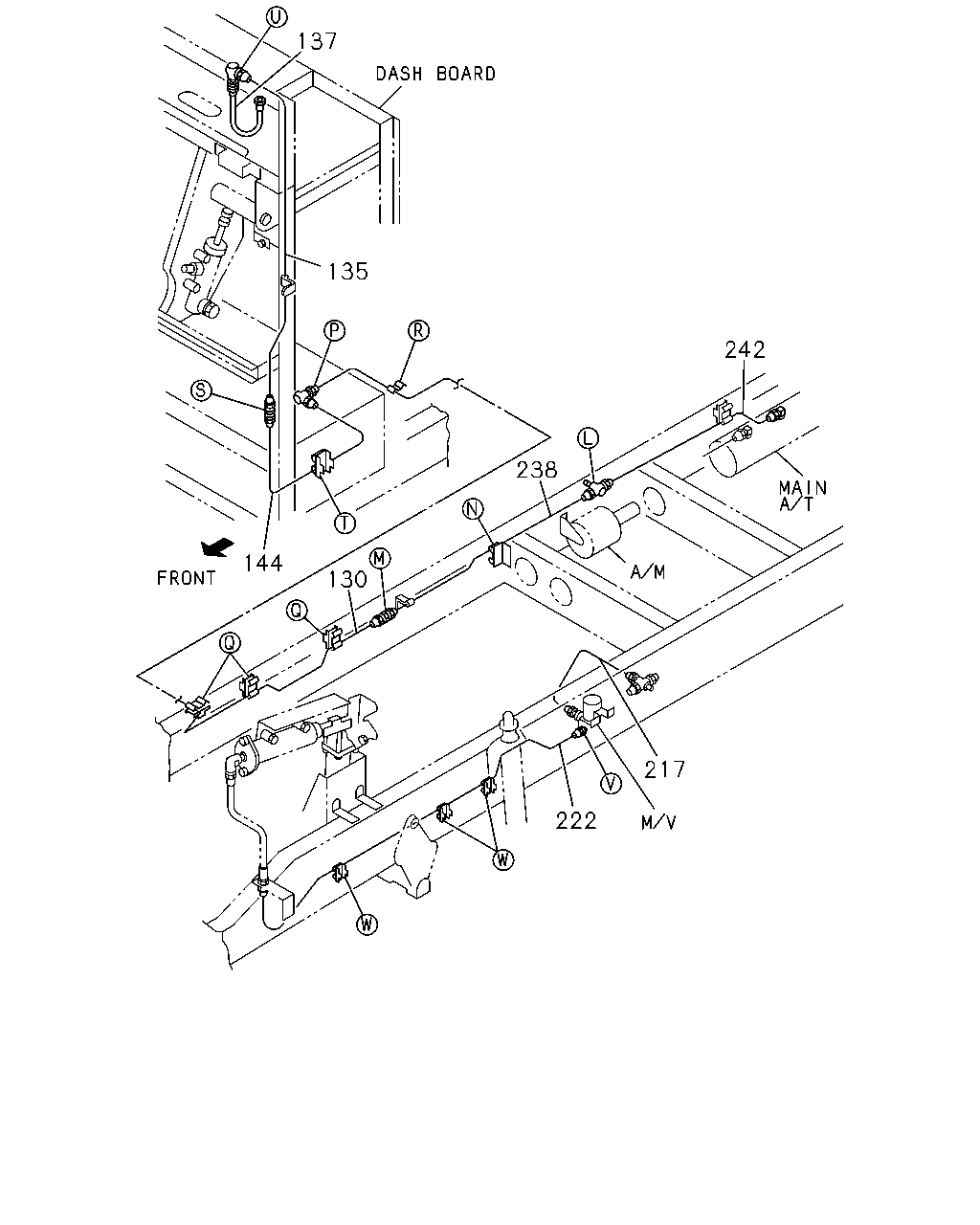

çizim 4713
137 135 242 238 130 144 217 222
BalonParca AdiParca NoAdetTipApplied Date
130 PIPE; AIR,UNION TO UNION
L=1786 SERVICED BY L=1820 		1-47434-394-0 01 1 9104-
135 PIPE; AIR,UNION TO UNION
L=657 		8-94300-624-0 01 1 9104-0107
135 PIPE; AIR,UNION TO UNION
L=657 		8-94300-624-0 01 1 0108-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=440 		0-07210-440-0 01 1 9104-0107
137 HOSE; FLEX,AIR PRESSURE GAGE
L=440 		0-07210-440-0 01 1 0108-
144 PIPE; AIR,UNION TO UNION
L=594 SERVICED BY L=600 		9-47415-352-0 01 1 9104-0107
144 PIPE; AIR,UNION TO UNION
L=594 SERVICED BY L=600 		9-47415-352-0 01 1 0108-
217 PIPE; VAC,UNION TO MAG VLV
L=321 SERVICED BY L=350 		9-47415-348-0 01 1 9104-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1622 SERVICED BY L=1700 		1-47434-393-0 01 1 9104-
238 PIPE; AIR,UNION TO UNION
L=1644 SERVICED BY L=1700 		1-47434-393-0 01 1 9104-
242 PIPE; AIR,AIR TANK TO UNION
L=921 		1-47481-708-1 01 1 9104-

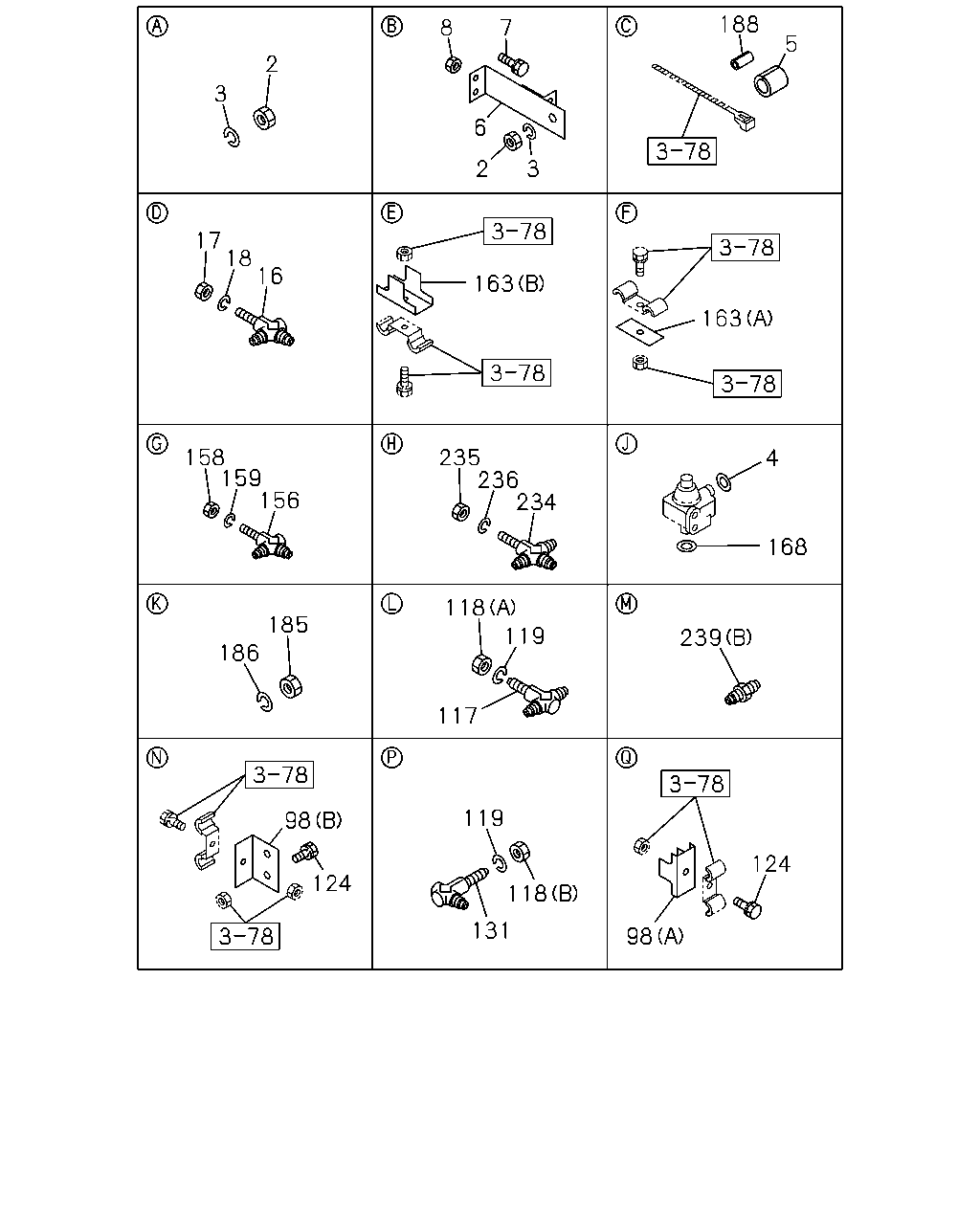

çizim 5187
188 8 7 5 2 3 6 2 3 17 18 16 163 163 158 159 156 235 236 234 4 168 118 185 119 239 186 117 119 98 124 124 118 131 98
BalonParca AdiParca NoAdetTipApplied Date
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 02 1 9104-0107
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 02 1 0108-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 02 1 9104-0107
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 02 1 0108-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9104-0107
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0108-
5 SLEEVE; FLEX HOSE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9104-
6 BRACKET; FLEX HOSE,AIR TANK 1-48359-024-0 01 1 9104-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9104-9204
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-0107
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 W/LK WASHER 		0-50040-830-0 02 1 0108-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9104-0107
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 0108-
16 UNION; AIR PIPE
M20 2WAY 		1-09654-143-1 01 1 9104-9305
16 UNION; AIR PIPE
M20 2WAY 		1-09654-218-1 01 1 9306-0107
16 UNION; AIR PIPE
M20 2WAY 		1-09654-218-1 01 1 0108-
17 NUT; UNION
M14 		9-99111-414-0 01 1 9104-0107
17 NUT; UNION
M14 		9-99111-414-0 01 1 0108-
18 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9104-9312
98 BRACKET; AIR PIPE
(B) 		1-47475-272-1 01 1 9104-
98 BRACKET; AIR PIPE
(C) L=50 		1-47475-299-2 01 1 9104-
98 BRACKET; AIR PIPE
(A) 		1-47475-427-1 01 1 9104-0107
98 BRACKET; AIR PIPE 1-47475-427-1 01 1 0108-
98 BRACKET; AIR PIPE
(A) 		1-47475-427-1 03 1 9104-
117 UNION; AIR PIPE 9-09228-206-1 01 1 9104-
118 NUT; UNION
(B) M12 		9-09840-280-0 01 1 9104-
118 NUT; UNION
(A) M12 		9-99111-412-0 01 1 9104-0107
118 NUT; UNION
M12 		9-99111-412-0 01 1 0108-
119 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9104-9312
124 BOLT; BRKT
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9104-9204
124 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-
124 BOLT; BRKT
M8X45 W/LK WASHER 		9-01900-845-0 03 1 9104-9204
124 BOLT; BRKT
M8X45 W/LK WASHER 		0-50040-845-0 03 1 9205-
131 UNION; AIR PIPE
M12 L=69 		9-09225-106-1 01 1 9104-
156 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 01 1 9104-
158 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 9104-0107
158 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 0108-
159 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 9104-9312
163 BRACKET; AIR PIPE
(A) L=50 		1-47475-299-2 01 1 9104-0107
163 BRACKET; AIR PIPE
L=50 		1-47475-299-2 01 1 0108-
163 BRACKET; AIR PIPE
(B) 		1-47475-427-1 01 1 9104-
168 GASKET; AIR PIPE,GOV
ID=11 OD=18 		9-09572-510-0 01 1 9104-0107
168 GASKET; AIR PIPE,GOV
ID=11 OD=18 		9-09572-510-0 01 1 0108-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9104-0107
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0108-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9104-9312
188 SLEEVE; RUBBER,FLEX HOSE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9104-
234 UNION; AIR PIPE 9-09228-206-1 01 1 9104-
235 NUT; PIPE UNION
M12 		9-99111-412-0 01 1 9104-0107
235 NUT; PIPE UNION
M12 		9-99111-412-0 01 1 0108-
236 WASHER; LK,UNION,PIPE
ID=12.2 		9-09150-512-0 01 1 9104-9312
239 UNION; AIR PIPE
(A) M10 & M12 ELBOW 		1-09654-111-1 01 1 9104-0107
239 UNION; AIR PIPE
M10 & M12 ELBOW 		1-09654-111-1 01 1 0108-
239 UNION; AIR PIPE
(B) M12 L=40 		9-09223-006-1 01 1 9104-
çizim 36514
100 98 98 134 133 239 219 163 134 133 219 39 247
BalonParca AdiParca NoAdetTipApplied Date
39 UNION; AIR PIPE
M20 STRAIGHT 		9-09233-012-1 01 1 9104-
98 BRACKET; AIR PIPE
(B) 		1-47475-272-1 01 1 9104-
98 BRACKET; AIR PIPE
(C) L=50 		1-47475-299-2 01 1 9104-
98 BRACKET; AIR PIPE
(A) 		1-47475-427-1 01 1 9104-0107
98 BRACKET; AIR PIPE 1-47475-427-1 01 1 0108-
98 BRACKET; AIR PIPE
(A) 		1-47475-427-1 03 1 9104-
100 CONNECTOR; AIR PIPE
M12 L=62.5 		9-09223-206-1 01 1 9104-0107
100 CONNECTOR; AIR PIPE
M12 L=62.5 		9-09223-206-1 01 1 0108-
133 NUT; UNION
M12 		9-09840-280-0 02 1 9104-0107
133 NUT; UNION
M12 		9-09840-280-0 02 1 0108-
134 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9104-9312
163 BRACKET; AIR PIPE
(A) L=50 		1-47475-299-2 01 1 9104-0107
163 BRACKET; AIR PIPE
L=50 		1-47475-299-2 01 1 0108-
163 BRACKET; AIR PIPE
(B) 		1-47475-427-1 01 1 9104-
219 UNION; MAG VLV IN
M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9104-
239 UNION; AIR PIPE
(A) M10 & M12 ELBOW 		1-09654-111-1 01 1 9104-0107
239 UNION; AIR PIPE
M10 & M12 ELBOW 		1-09654-111-1 01 1 0108-
239 UNION; AIR PIPE
(B) M12 L=40 		9-09223-006-1 01 1 9104-
247 UNION; AIR PIPE
M20 STRAIGHT 		9-09233-012-1 01 1 9104-

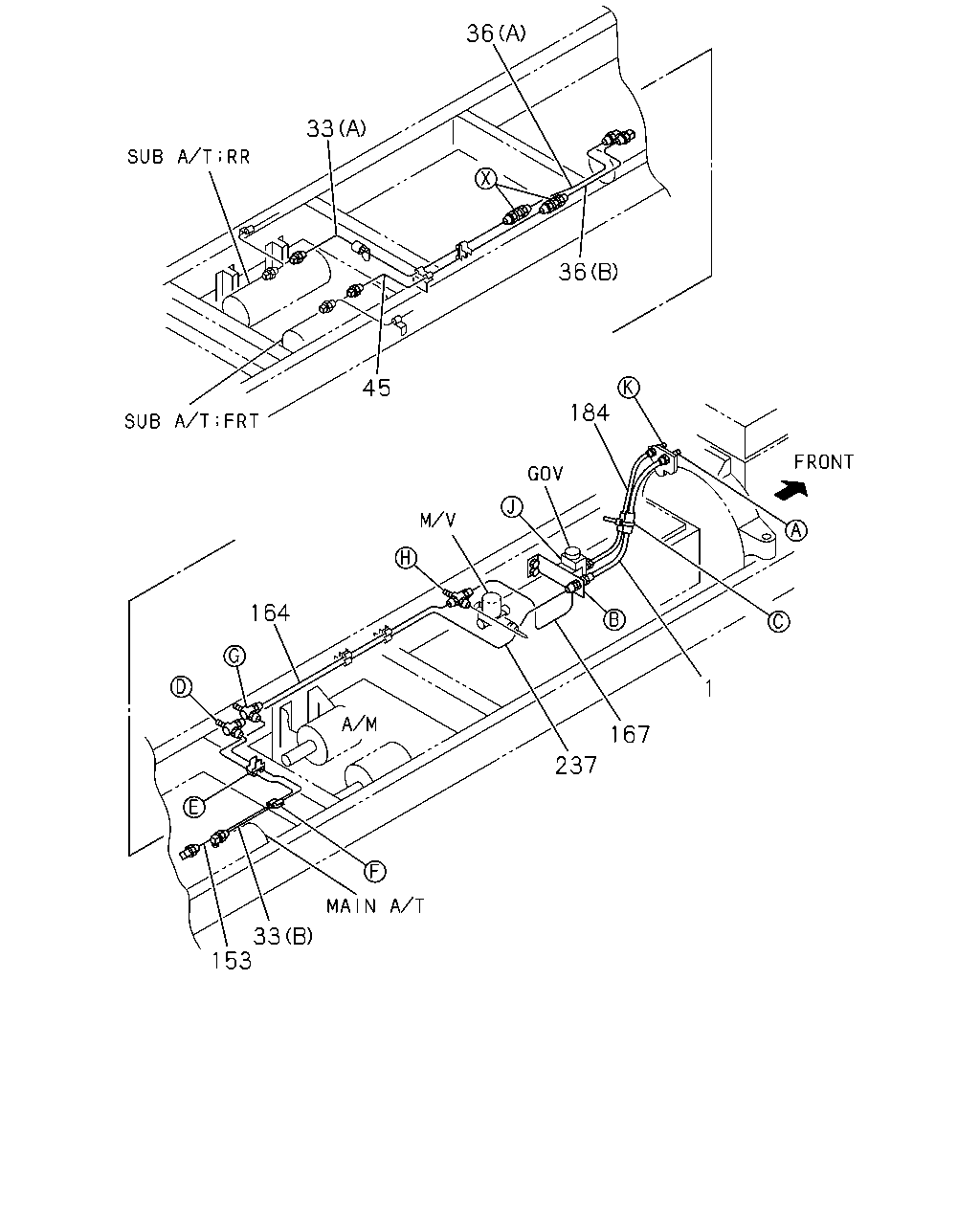

çizim 36724
36 33 36 45 184 164 1 167 237 33 153
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 0-07706-730-0 01 1 9104-
33 PIPE; AIR,UNION TO AIR TANK
(B) L=1199 SERVICED BY L=1200 		1-47437-983-0 01 1 9104-9212
33 PIPE; AIR,UNION TO AIR TANK
(B) L=1199 SERVICED BY L=1200 		1-49111-445-0 01 1 9301-
33 PIPE; AIR,UNION TO AIR TANK
(A) L=1440 SERVICED BY L=1600 		1-47437-985-0 01 1 9104-9212
33 PIPE; AIR,UNION TO AIR TANK
(A) L=1440 SERVICED BY L=1600 		1-49111-448-0 01 1 9301-
36 PIPE; AIR,AIR TANK TO UNION
(B) L=775 		1-47491-680-0 01 1 9104-9212
36 PIPE; AIR,AIR TANK TO UNION
(B) L=775 		1-49111-490-0 01 1 9301-
36 PIPE; AIR,AIR TANK TO UNION
(A) L=1239 SERVICED BY L=1300 		1-47434-486-0 01 1 9104-9212
36 PIPE; AIR,AIR TANK TO UNION
(A) L=1238 SERVICED BY L=1300 		1-49111-446-0 01 1 9301-
45 PIPE; AIR,UNION TO AIR TANK
L=1480 SERVICED BY L=1600 		1-47437-985-0 01 1 9104-9212
45 PIPE; AIR,UNION TO AIR TANK
L=1480 SERVICED BY L=1600 		1-49111-448-0 01 1 9301-
153 PIPE; AIR,AIR TANK TO UNION
L=1342 SERVICED BY L=1370 		1-47434-390-0 01 1 9104-
164 PIPE; AIR,UNION TO UNION
L=958 SERVICED BY L=1000 		1-47434-386-0 01 1 9104-
167 PIPE; AIR,CONN TO GOV
L=451 SERVICED BY L=460 		9-47415-349-0 01 1 9104-
184 HOSE; FLEX,AIR GOV 0-07120-640-0 01 1 9104-
237 PIPE; AIR,FLEX HOSE TO UNION
L=1356 SERVICED BY L=1450 		1-47437-984-0 01 1 9104-9212
237 PIPE; AIR,FLEX HOSE TO UNION
L=1357 SERVICED BY L=1450 		1-49111-447-0 01 1 9301-
