Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#31866) — 35 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
◀
[060A] ENG CONT UNIT (3 parça)
[060A] ENGINE ELECTRICAL CONTROL PARTS (10 parça)

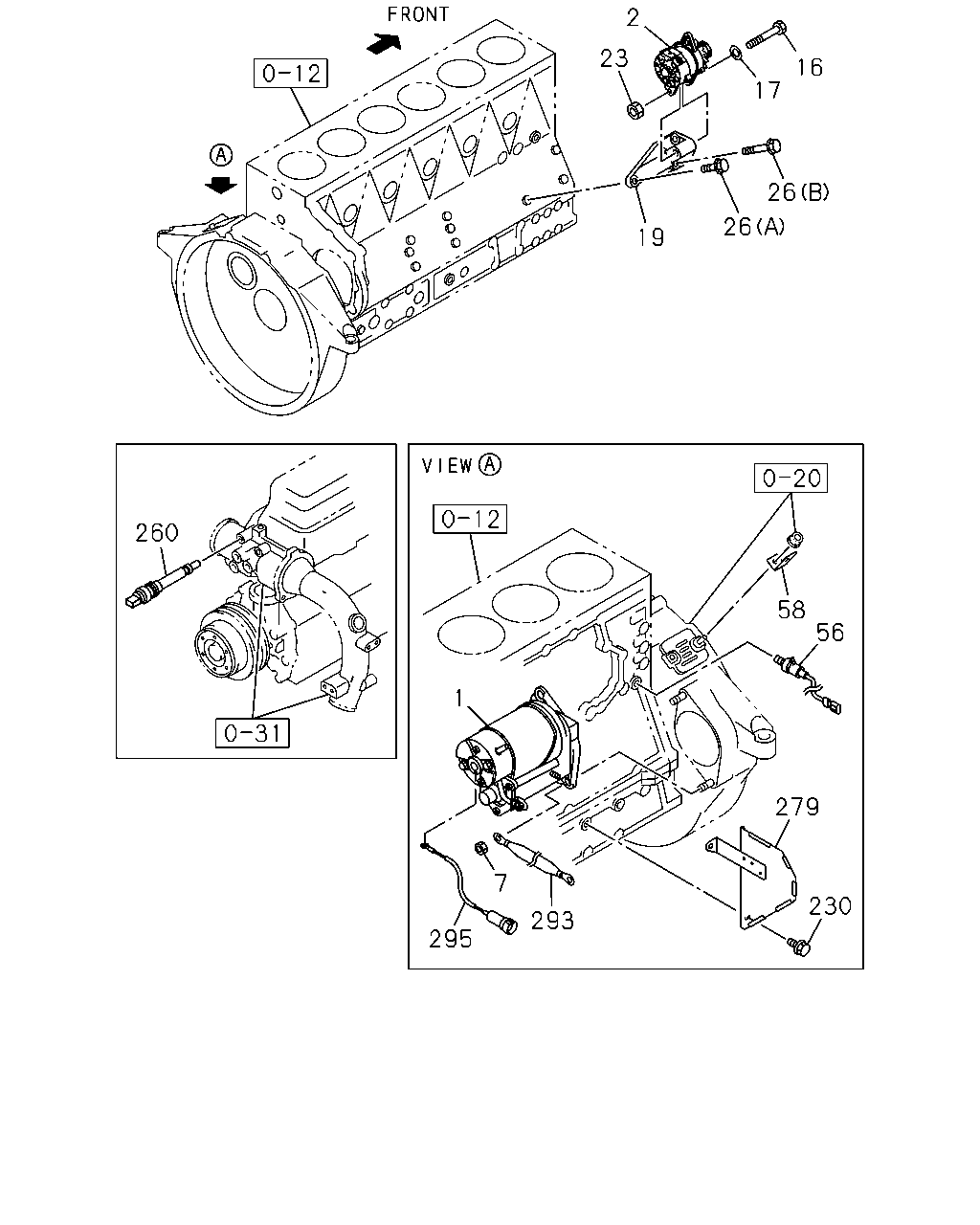

[060A] STARTER,GEN AND WATER TEMP SENSOR (22 parça)
▶
613
487
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0210-
●
●
613
CONTROL UNIT; ENG
1-80110-441-0
01
1
0210-
●
613
CONTROL UNIT; ENG
1-80110-315-1
01
1
0210-
●
428
428
441
428
441
210
488
489
492
296
10
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
0210-
●
●
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28680-825-0
02
1
0210-
●
●
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0210-
●
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0210-
●
●
428
CLIP; HARNESS
(A) ID=35 L=50 THA
1-09701-214-0
02
1
0210-
●
●
428
CLIP; HARNESS
(B) L=300 THA
1-09707-001-1
03
1
0210-
●
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0210-
●
●
488
STOPPER; ENG
1-82840-150-1
01
1
0210-
●
●
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0210-
●
●
492
BRACKET; ENG STOPPER
THA
1-82849-089-1
01
1
0210-
●
●
2
23
16
17
26
26
19
260
58
56
1
279
7
230
293
295
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THA
8-97917-337-1
01
1
0210-
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO THA
8-97913-530-2
01
1
0210-
●
●
7
NUT; STARTER
M14 FLANGE
0-91160-114-0
02
1
0406-
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
02
1
0210-0401
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
04
1
0402-0403
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
06
1
0404-0405
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
04
1
0406-
●
●
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
0210-
●
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0210-
●
●
19
BRACKET; GEN
THA
8-97916-654-0
01
1
0210-
●
●
23
NUT; GEN
M14 FLANGE
0-91160-114-0
02
1
0406-
●
●
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0210-0403
●
●
23
NUT; GEN
M14 FLANGE
0-91150-114-0
02
1
0404-
●
●
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28181-040-0
01
1
0210-
●
●
26
BOLT; GEN BRKT
(B) M10X70 FLANGE
0-28181-070-0
02
1
0210-
●
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-0
01
1
0210-
●
●
58
BRACKET; CLIP
L=55
1-47475-304-0
01
1
0210-
●
●
230
BOLT; HEAT PROTECTOR
M10X16 FLANGE
0-28181-016-0
02
1
0210-
●
●
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0210-
●
●
279
PROTECTOR; STARTER
1-14181-292-0
01
1
0210-
●
●
293
CABLE; STARTER EARTH
THA
8-97917-452-0
01
1
0210-
●
●
295
HARNESS; STARTER
THA
8-97917-453-0
01
1
0210-
●
●
