0-40 — FUEL INJECTION SYSTEM (#31860) — 70 parça

99 110 113 113 99 18 113 17 16 17 113 16 113 113 120 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	1-15416-021-0	01	1	0210-	●	●
17	PIPE; INJ NO.2	1-15416-022-0	01	1	0210-	●	●
18	PIPE; INJ NO.3	1-15416-023-0	01	1	0210-	●	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	0210-	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	05	1	0210-	●	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0210-	●	●
113	CLIP; INJ PIPE ID=15 L=30	1-09701-132-1	14	1	0210-	●	●
120	BRACKET; INJ PIPE	1-15419-430-0	01	1	0210-	●	●

31 32 34 36 36 140 44 43 47 45 138 140 43 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	1-15300-369-0	06	1	0210-	●	●
32	HOLDER ASM; NOZZLE	1-15330-119-0	06	1	0210-	●	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	0210-	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-111-0	06	1	0210-	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	0210-	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	1-15342-002-0	06	1	0210-	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	1-15342-003-0	06	1	0210-	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-005-0	06	1	0210-	●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15349-129-0	06	1	0210-	●	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-128-0	06	1	0210-	●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-006-0	06	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	1-15349-112-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	1-15349-113-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	1-15349-114-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	1-15349-115-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	1-15349-116-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	1-15349-117-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.60	1-15349-118-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	1-15349-119-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-120-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-121-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-122-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-123-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-124-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-125-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-126-0	AR	1	0210-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-127-0	AR	1	0210-	●	●
272	NOZZLE KIT; INJ	1-15319-005-0	12	1	0210-	●	●

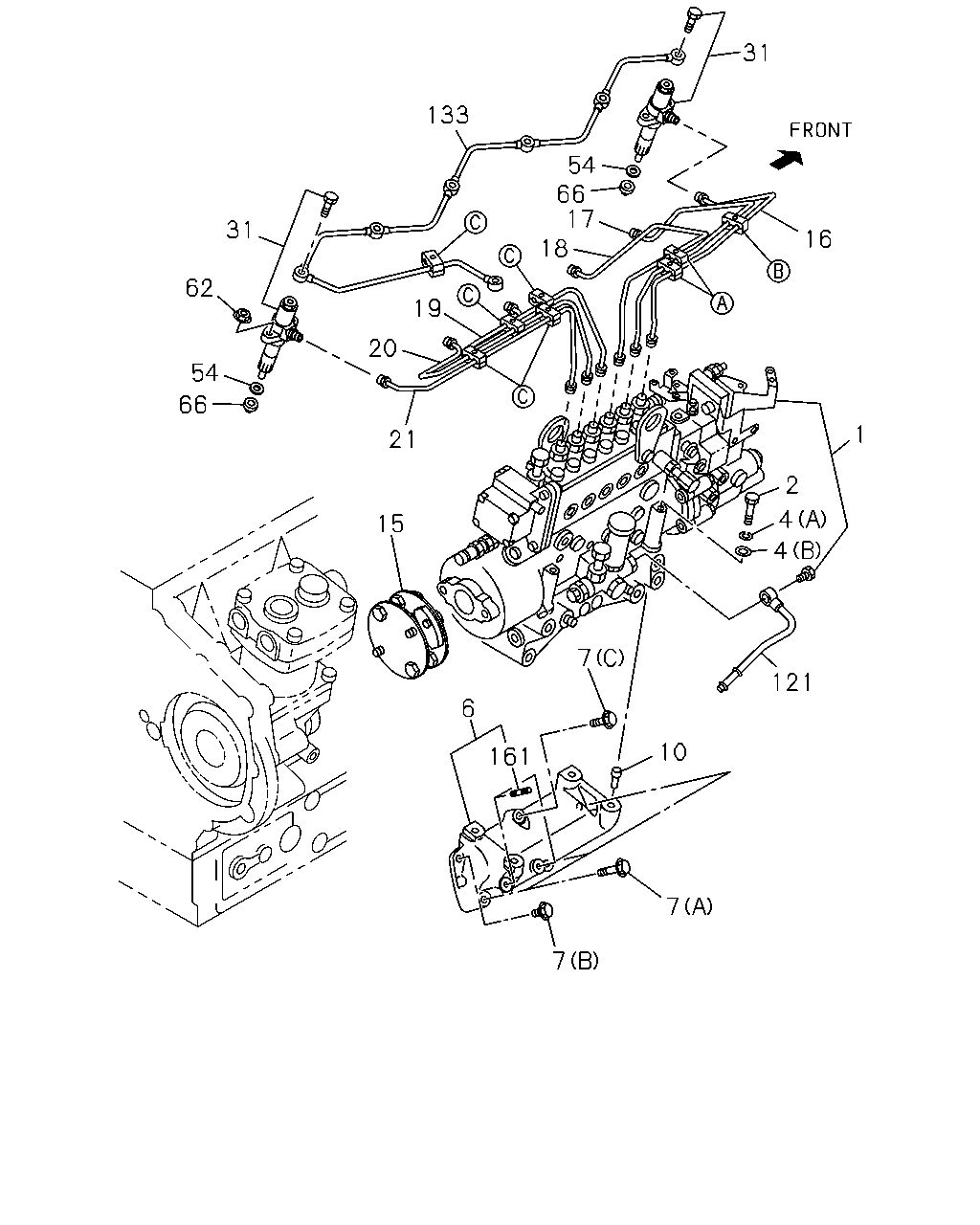

31 133 54 66 17 18 31 16 62 19 20 54 66 1 21 2 4 15 4 7 121 6 10 161 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-276-4	01	1	0210-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-279-3	01	1	0210-		●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0210-	●	●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	0210-	●	●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	0210-	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0210-	●	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0210-	●	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0210-	●	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0210-	●	●
10	DOWEL; INJ PUMP	9-19759-019-1	02	1	0210-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-202-0	01	1	0210-	●	●
16	PIPE; INJ NO.1	1-15416-021-0	01	1	0210-	●	●
17	PIPE; INJ NO.2	1-15416-022-0	01	1	0210-	●	●
18	PIPE; INJ NO.3	1-15416-023-0	01	1	0210-	●	●
19	PIPE; INJ NO.4	1-15416-024-0	01	1	0210-	●	●
20	PIPE; INJ NO.5	1-15416-025-0	01	1	0210-	●	●
21	PIPE; INJ NO.6	1-15416-026-0	01	1	0210-	●	●
31	NOZZLE ASM; INJ	1-15300-369-0	06	1	0210-	●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0210-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0210-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0210-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0210-	●	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15416-027-0	01	1	0210-	●	●
161	STUD; INJ PUMP M8X20 L=32	9-04110-820-0	02	1	0210-	●	●

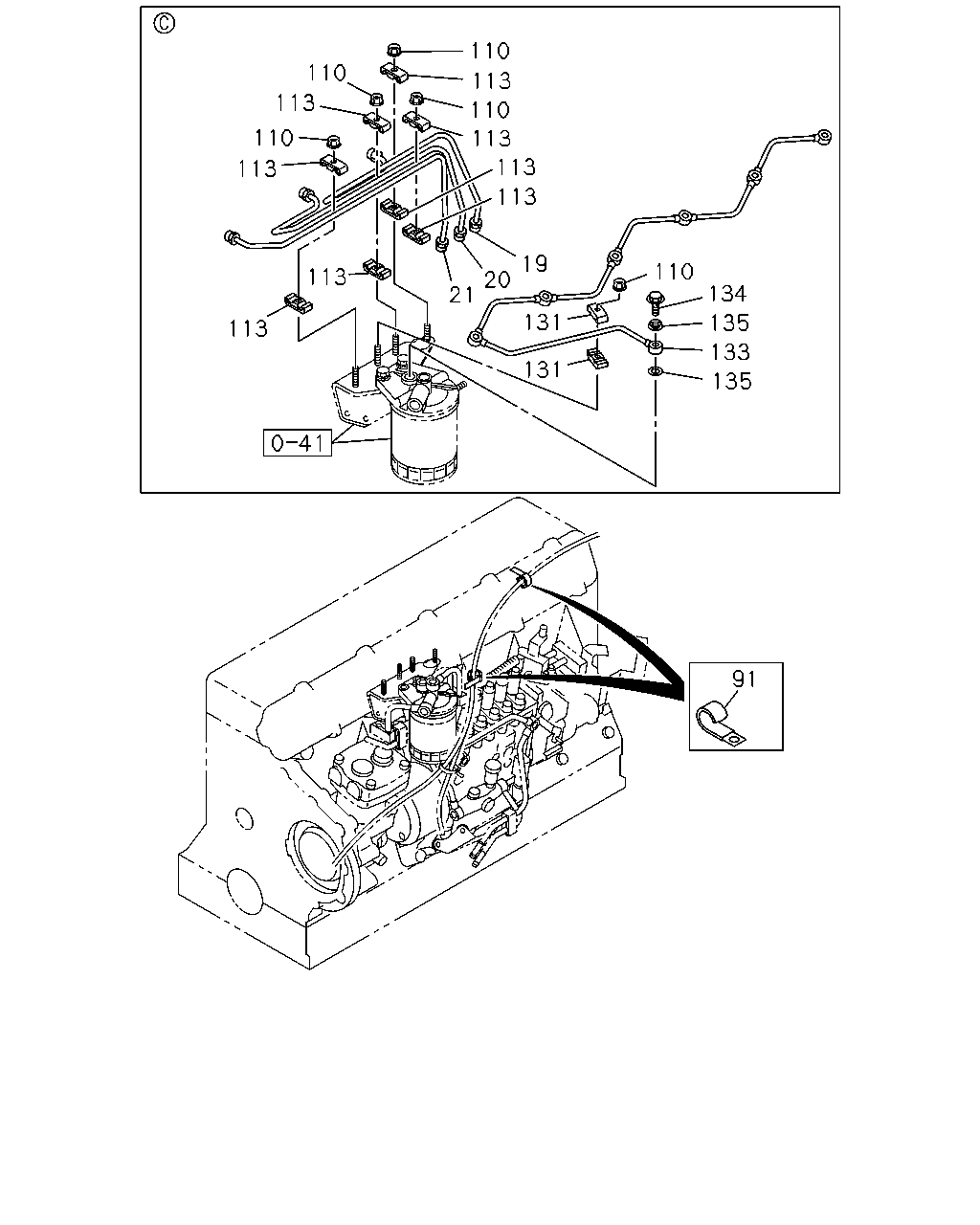

110 110 113 113 110 110 113 113 113 113 19 110 113 20 134 21 131 135 113 133 131 135 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; INJ NO.4	1-15416-024-0	01	1	0210-	●	●
20	PIPE; INJ NO.5	1-15416-025-0	01	1	0210-	●	●
21	PIPE; INJ NO.6	1-15416-026-0	01	1	0210-	●	●
91	CLIP; HARNESS,INJ PUMP L=110	8-94149-419-0	02	1	0210-	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	05	1	0210-	●	●
113	CLIP; INJ PIPE ID=15 L=30	1-09701-132-1	14	1	0210-	●	●
131	CLIP; OVERFLOW LEAK OFF ID=15 L=30	1-09701-132-1	02	1	0210-	●	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15416-027-0	01	1	0210-	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	0210-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0210-	●	●
