Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

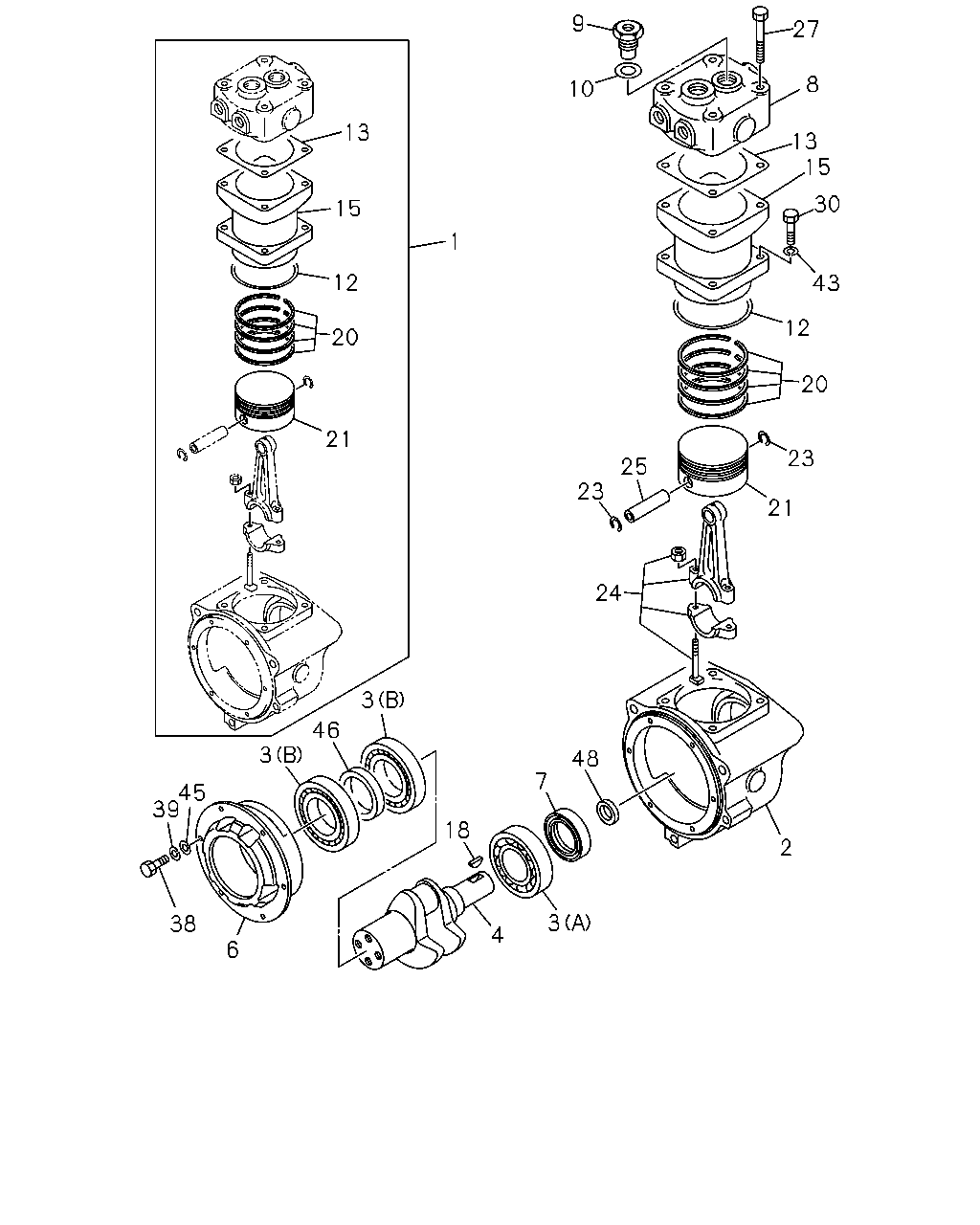

0-39 — AIR COMPRESSOR; BRAKE
(#31859) — 29 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
9
27
8
10
13
13
15
30
15
1
12
43
12
20
20
21
23
25
23
21
24
3
46
3
48
7
45
39
18
2
3
38
4
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINER KIT; CYL,AIR CMPR
1-19163-054-1
01
1
0210-0301
●
●
1
LINER KIT; CYL,AIR CMPR
1-19163-060-1
01
1
0302-
●
●
2
CRANKCASE; AIR CMPR
1-19151-288-0
01
1
0210-
●
●
3
BEARING; AIR CMPR
(A)
1-09800-232-0
01
1
0210-
●
●
3
BEARING; AIR CMPR
(B)
1-09800-282-0
02
1
0210-
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-081-1
01
1
0210-
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-080-0
01
1
0210-
●
●
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
0210-
●
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-016-0
01
1
0210-
●
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-021-1
01
1
0210-
●
●
10
SHIM; AIR CMPR
9-19139-021-0
01
1
0210-
●
●
12
GASKET; AIR CMPR
1-09623-539-0
01
1
0210-
●
●
13
GASKET; AIR CMPR
1-19139-001-0
01
1
0210-0301
●
●
13
GASKET; AIR CMPR
1-19139-017-1
01
1
0302-
●
●
15
CYLINDER; AIR CMPR
1-19151-251-0
01
1
0210-
●
●
18
KEY; AIR CMPR
1-09735-041-0
01
1
0210-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-051-1
01
1
0210-
●
●
21
PISTON; AIR CMPR
1-19161-016-0
01
1
0210-
●
●
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
0210-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-007-0
01
1
0210-
●
●
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
0210-
●
●
27
BOLT; HD
M10X60
9-01066-060-0
04
1
0210-
●
●
30
BOLT; CYL TO CRANKCASE
M10X25
9-02051-025-0
04
1
0210-
●
●
38
BOLT; COVER FIX
M6X16
9-02050-616-0
06
1
0210-
●
●
39
WASHER; LK,COVER FIX
ID=10.2
9-09150-510-0
06
1
0210-
●
●
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
04
1
0210-
●
●
45
WASHER; PL,COVER FIX,AIR CMPR
1-19159-005-0
06
1
0210-
●
●
46
SPACER; BRG
1-19179-010-0
01
1
0210-
●
●
48
SLEEVE; CR/SHF
1-19179-018-0
01
1
0210-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
