0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#31858) — 98 parça

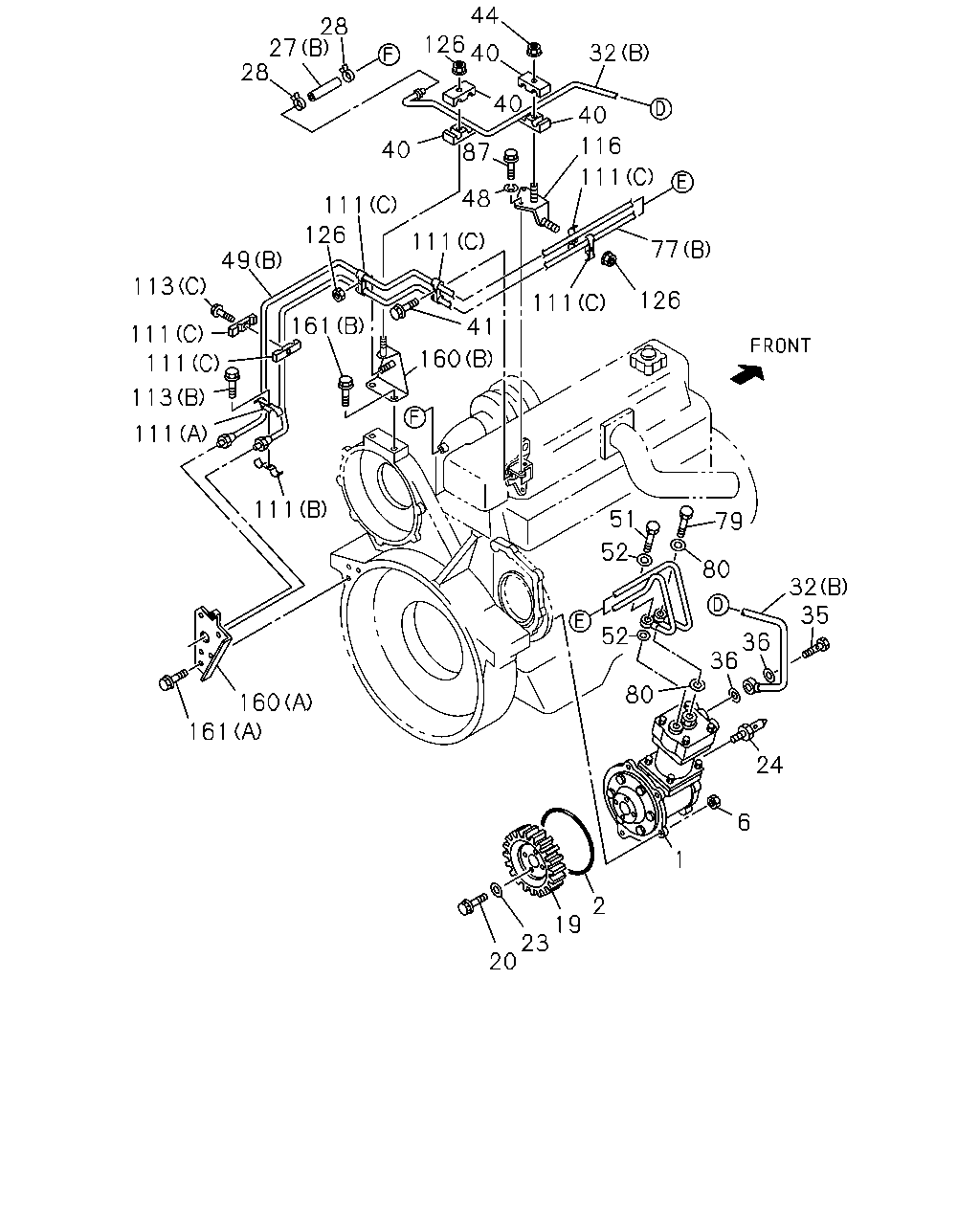

44 126 40 28 27 28 32 40 40 116 40 87 111 48 111 126 111 77 49 113 41 126 111 161 111 160 111 113 111 111 51 79 52 80 32 35 52 36 36 80 160 161 24 6 1 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	0210-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0210-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0210-	●	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0210-	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0210-	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0210-	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0210-	●	●
27	HOSE; AIR CMPR,SUCTION SHORT CHASSIS<FX***C> (B)	0-02117-080-0	01	1	0210-	●
27	HOSE; AIR CMPR,SUCTION MIDDLE CHASSIS<FX***F> (A)	1-09360-916-0	01	1	0210-	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0210-	●	●
32	PIPE; AIR,AIR CMPR SHORT CHASSIS<FX***C> (B)	1-19192-979-0	01	1	0210-	●
32	PIPE; AIR,AIR CMPR MIDDLE CHASSIS<FX***F> (A)	1-19192-892-0	01	1	0210-	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0210-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0210-	●	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0210-	●	●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0210-	●	●
44	NUT M6 FLANGE	0-91150-106-0	01	1	0210-	●	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0210-	●	●
49	PIPE; AIR,CHARGE SHORT CHASSIS<FX***C> (B)	1-19192-978-0	01	1	0210-	●
49	PIPE; AIR,CHARGE MIDDLE CHASSIS<FX***F> (A)	1-19192-963-0	01	1	0210-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0210-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0210-	●	●
77	PIPE; AIR,GOV SHORT CHASSIS<FX***C> (B)	1-19192-977-0	01	1	0210-	●
77	PIPE; AIR,GOV MIDDLE CHASSIS<FX***F> (A)	1-19192-962-0	01	1	0210-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0210-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0210-	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0210-	●	●
111	CLIP; AIR PIPE SHORT CHASSIS<FX***C> (C)	1-09701-208-0	02	1	0210-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0210-	●	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0210-	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0210-	●	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (C) M6X35 FLANGE	0-28080-635-0	01	1	0210-	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	0210-	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (A) M6X40 FLANGE	0-28080-640-0	02	1	0210-	●	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0210-	●	●
126	NUT; CLIP FIX SHORT CHASSIS<FX***C> M6 FLANGE	0-91150-106-0	02	1	0210-	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0210-	●	●
160	BRACKET; AIR PIPE SHORT CHASSIS<FX***C> (B)	1-19199-277-0	01	1	0210-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-0	01	1	0210-	●	●
161	BOLT; BRKT,AIR PIPE SHORT CHASSIS<FX***C> (B) M8X16 FLANGE	0-28080-816-0	02	1	0210-	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	0210-	●	●

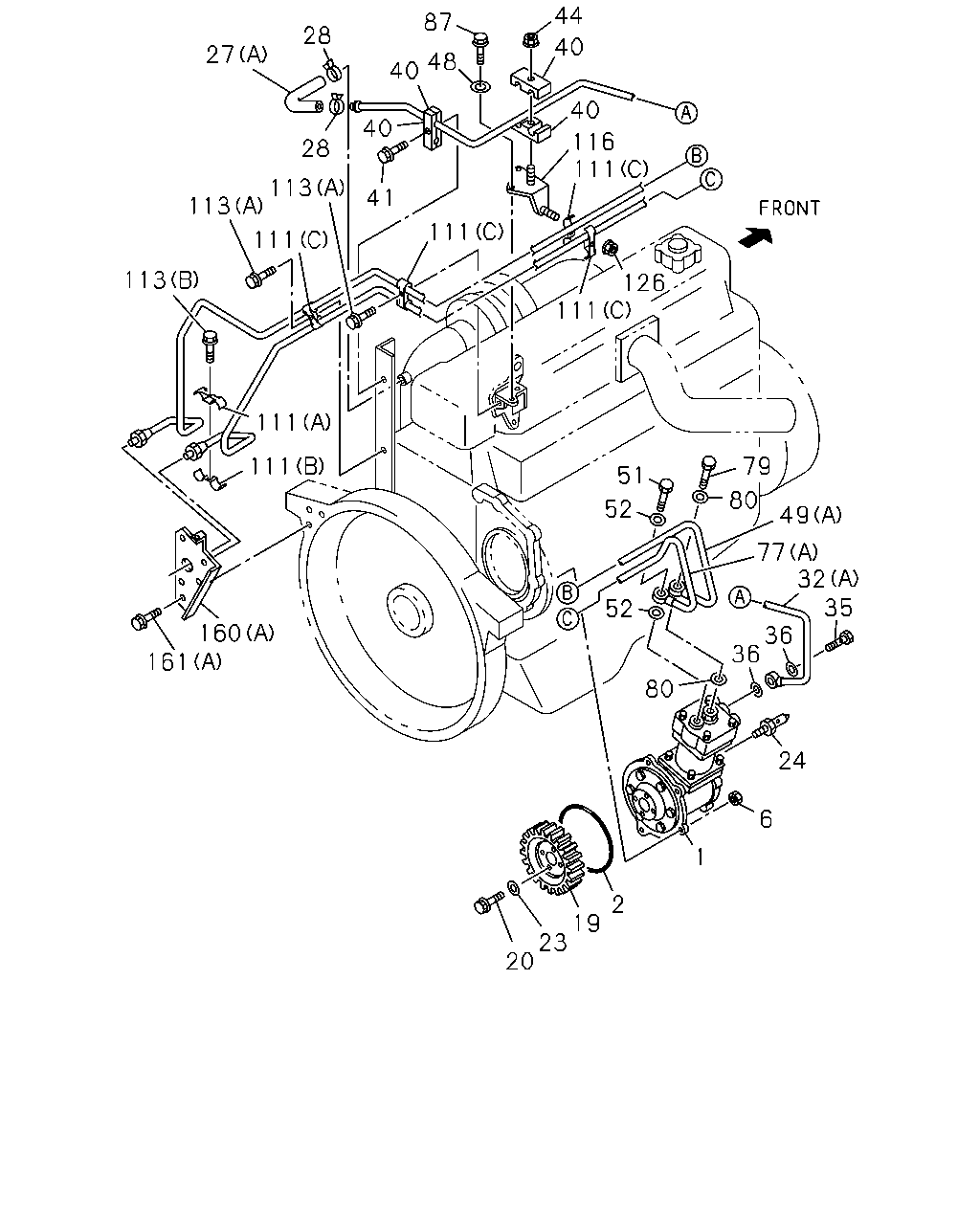

44 87 28 40 27 48 40 40 40 116 111 28 113 41 113 111 111 113 126 111 111 111 79 51 80 52 49 77 32 35 52 160 161 36 36 80 24 6 1 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	0210-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0210-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0210-	●	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0210-	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0210-	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0210-	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0210-	●	●
27	HOSE; AIR CMPR,SUCTION SHORT CHASSIS<FX***C> (B)	0-02117-080-0	01	1	0210-	●
27	HOSE; AIR CMPR,SUCTION MIDDLE CHASSIS<FX***F> (A)	1-09360-916-0	01	1	0210-	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0210-	●	●
32	PIPE; AIR,AIR CMPR SHORT CHASSIS<FX***C> (B)	1-19192-979-0	01	1	0210-	●
32	PIPE; AIR,AIR CMPR MIDDLE CHASSIS<FX***F> (A)	1-19192-892-0	01	1	0210-	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0210-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0210-	●	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0210-	●	●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0210-	●	●
44	NUT M6 FLANGE	0-91150-106-0	01	1	0210-	●	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0210-	●	●
49	PIPE; AIR,CHARGE SHORT CHASSIS<FX***C> (B)	1-19192-978-0	01	1	0210-	●
49	PIPE; AIR,CHARGE MIDDLE CHASSIS<FX***F> (A)	1-19192-963-0	01	1	0210-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0210-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0210-	●	●
77	PIPE; AIR,GOV SHORT CHASSIS<FX***C> (B)	1-19192-977-0	01	1	0210-	●
77	PIPE; AIR,GOV MIDDLE CHASSIS<FX***F> (A)	1-19192-962-0	01	1	0210-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0210-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0210-	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0210-	●	●
111	CLIP; AIR PIPE SHORT CHASSIS<FX***C> (C)	1-09701-208-0	02	1	0210-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0210-	●	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0210-	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0210-	●	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (C) M6X35 FLANGE	0-28080-635-0	01	1	0210-	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	0210-	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (A) M6X40 FLANGE	0-28080-640-0	02	1	0210-	●	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0210-	●	●
126	NUT; CLIP FIX SHORT CHASSIS<FX***C> M6 FLANGE	0-91150-106-0	02	1	0210-	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0210-	●	●
160	BRACKET; AIR PIPE SHORT CHASSIS<FX***C> (B)	1-19199-277-0	01	1	0210-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-0	01	1	0210-	●	●
161	BOLT; BRKT,AIR PIPE SHORT CHASSIS<FX***C> (B) M8X16 FLANGE	0-28080-816-0	02	1	0210-	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	0210-	●	●

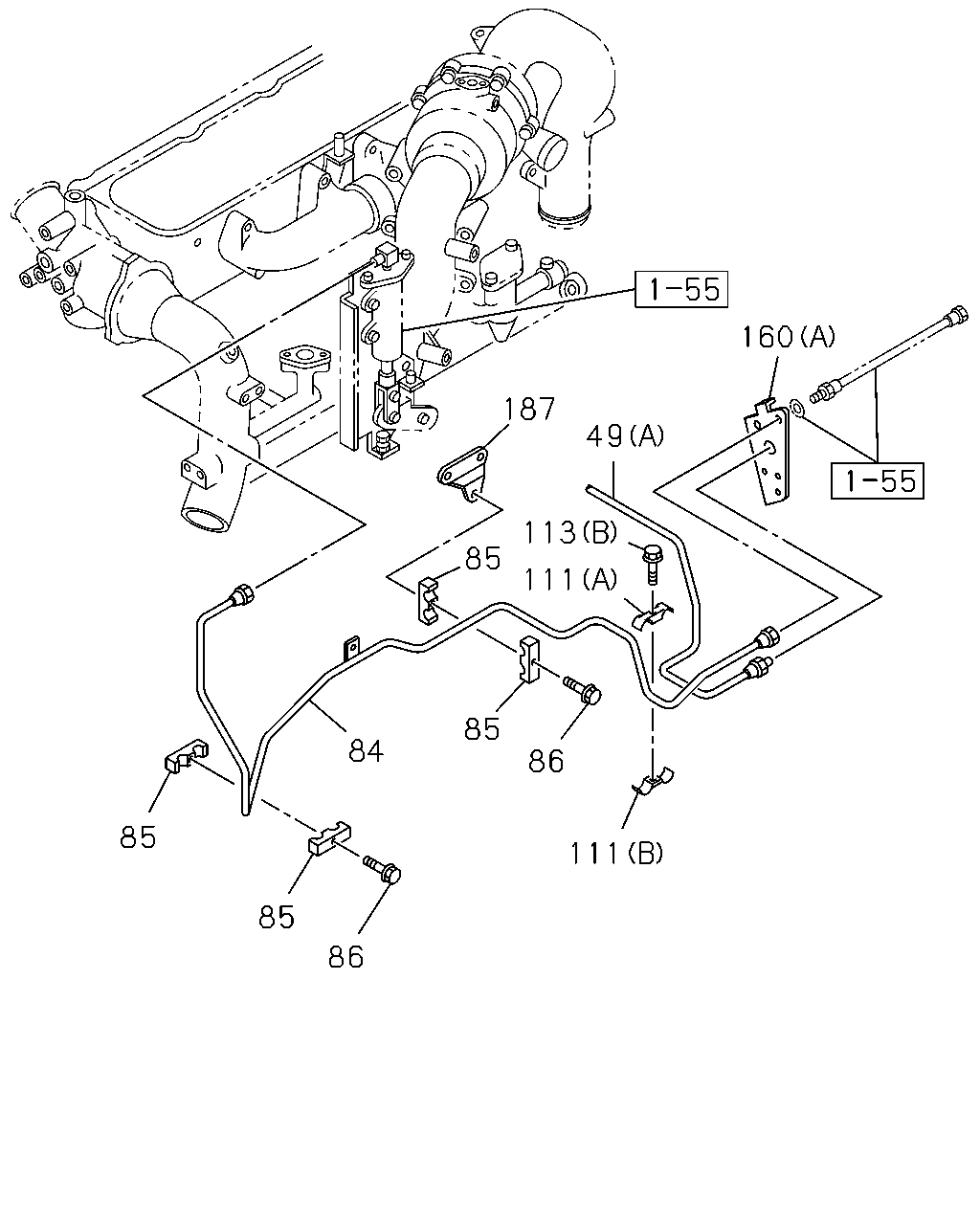

160 187 49 113 85 111 85 84 86 85 111 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; AIR,CHARGE SHORT CHASSIS<FX***C> (B)	1-19192-978-0	01	1	0210-	●
49	PIPE; AIR,CHARGE MIDDLE CHASSIS<FX***F> (A)	1-19192-963-0	01	1	0210-	●	●
84	PIPE; AIR SHORT CHASSIS<FX***C>	1-19192-976-0	01	1	0210-	●
84	PIPE; AIR MIDDLE CHASSIS<FX***F>	1-19192-964-0	01	1	0210-	●	●
85	CLIP; PIPE	1-09701-240-0	04	1	0210-	●	●
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	0210-	●	●
111	CLIP; AIR PIPE SHORT CHASSIS<FX***C> (C)	1-09701-208-0	02	1	0210-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0210-	●	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0210-	●	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0210-	●	●
113	BOLT; CLIP,AIR PIPE SHORT CHASSIS<FX***C> (C) M6X35 FLANGE	0-28080-635-0	01	1	0210-	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	0210-	●	●
113	BOLT; CLIP,AIR PIPE MIDDLE CHASSIS<FX***F> (A) M6X40 FLANGE	0-28080-640-0	02	1	0210-	●	●
160	BRACKET; AIR PIPE SHORT CHASSIS<FX***C> (B)	1-19199-277-0	01	1	0210-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-0	01	1	0210-	●	●
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	0210-	●	●
