Sayfa 0-32 - Isuzu EPC

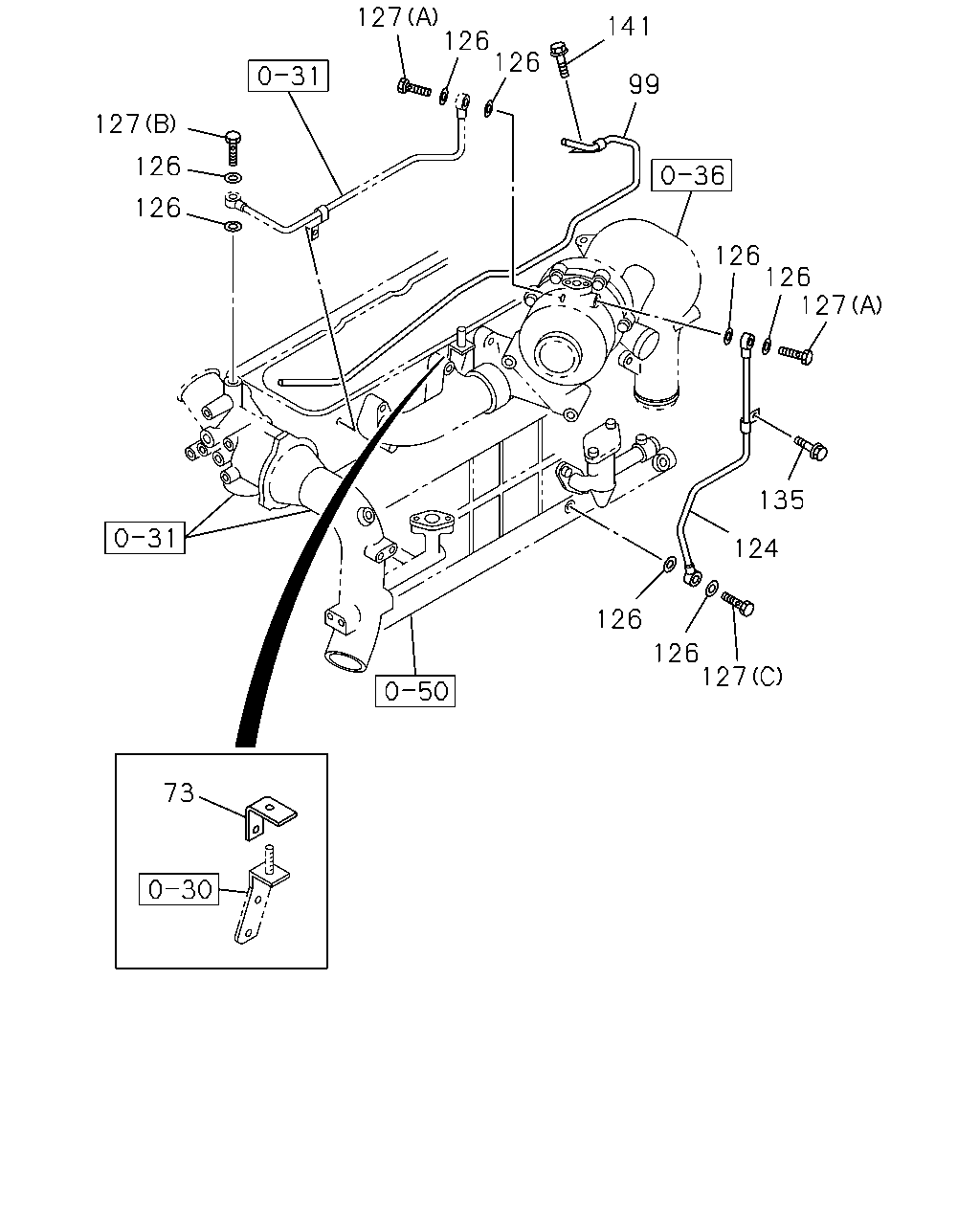

127 126 126 141 99 127 126 126 126 126 127 135 124 126 126 127 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	0210-	●	●
99	PIPE; WATER,OVERFLOW	1-13721-629-0	01	1	0210-	●	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-1	01	1	0210-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0210-	●	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0210-	●	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0210-	●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0210-	●	●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28080-825-0	01	1	0210-	●	●
141	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	01	1	0210-	●	●

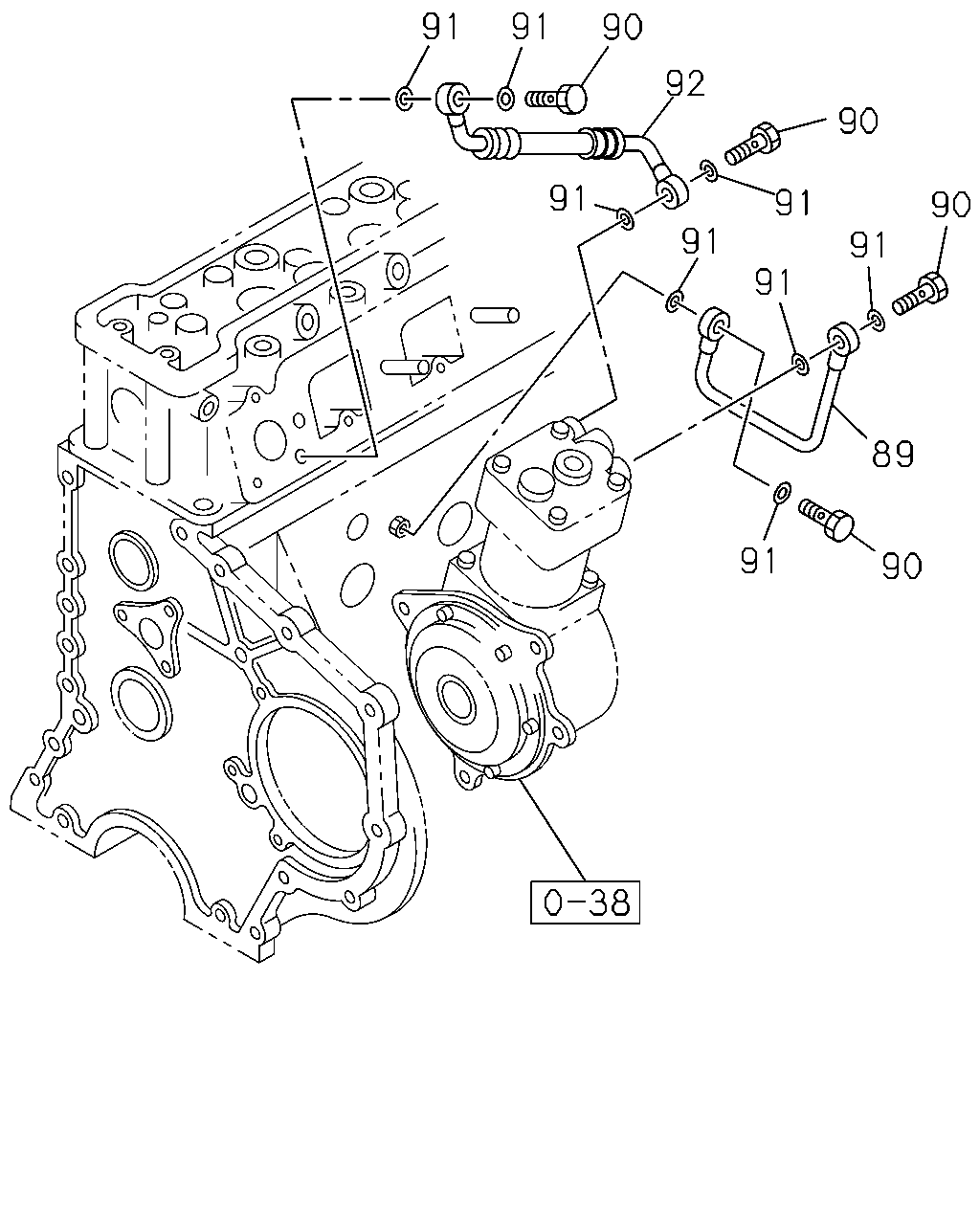

91 91 90 92 90 91 91 90 91 91 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	0210-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0210-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0210-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	0210-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
