◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#3185) — 32 parça

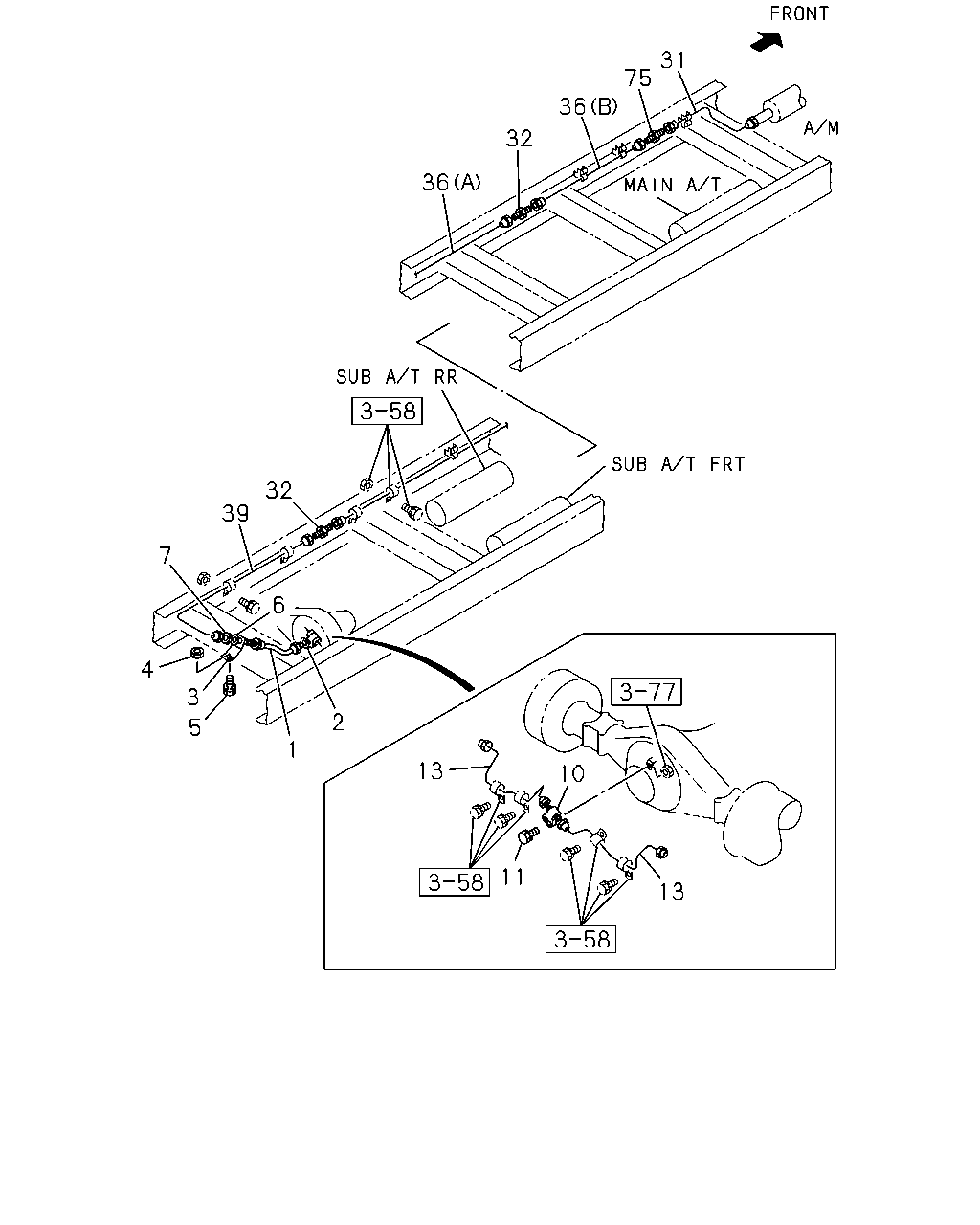

çizim 35462
31 75 36 32 36 32 39 7 6 4 3 2 5 1 13 10 11 13
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=700 		1-09364-203-0 01 1 9104-
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 9104-0107
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 0108-
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 9104-0107
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 0108-
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 		9-09110-408-0 02 1 9104-0107
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 		9-09110-408-0 02 1 0108-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9104-9204
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-0107
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 W/LK WASHER 		0-50040-825-0 02 1 0108-
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9104-9312
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9104-0107
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0108-
10 NIPPLE; RR AXLE CASE 9-09903-668-3 01 1 9104-
10 NIPPLE; RR AXLE CASE 9-09903-668-3 01 1 0108-
11 BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9205-9409
11 BOLT; NIPPLE,RR AXLE CASE
M10X20 FLANGE 		0-28681-020-0 01 1 9410-9410
11 BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9411-
11 BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER 		0-50041-025-0 01 1 0108-
13 PIPE; BRK,RR AXLE 1-47417-972-0 01 1 9104-0107
13 PIPE; BRK,RR AXLE 1-47417-972-0 01 1 0108-
13 PIPE; BRK,RR AXLE 1-47417-973-0 01 1 9104-0107
13 PIPE; BRK,RR AXLE 1-47417-973-0 01 1 0108-
31 PIPE; OIL,AIR MASTER TO UNION
SERVICED BY L=1250 		1-47426-353-0 01 1 9104-0107
31 PIPE; OIL,AIR MASTER TO UNION
SERVICED BY L=1250 		1-47426-353-0 01 1 0108-
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 02 1 9104-0107
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 0108-
36 PIPE; OIL,UNION TO UNION
(A) L=2240 SERVICED BY L=2350 		1-47413-565-0 01 1 9104-
36 PIPE; OIL,UNION TO UNION
(B) L=989 SERVICED BY L=1100 		1-47434-387-0 01 1 9104-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1476 SERVICED BY L=1500 		1-47434-391-0 01 1 9104-
75 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9104-0107
75 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 0108-
