Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#31847) — 24 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
◀

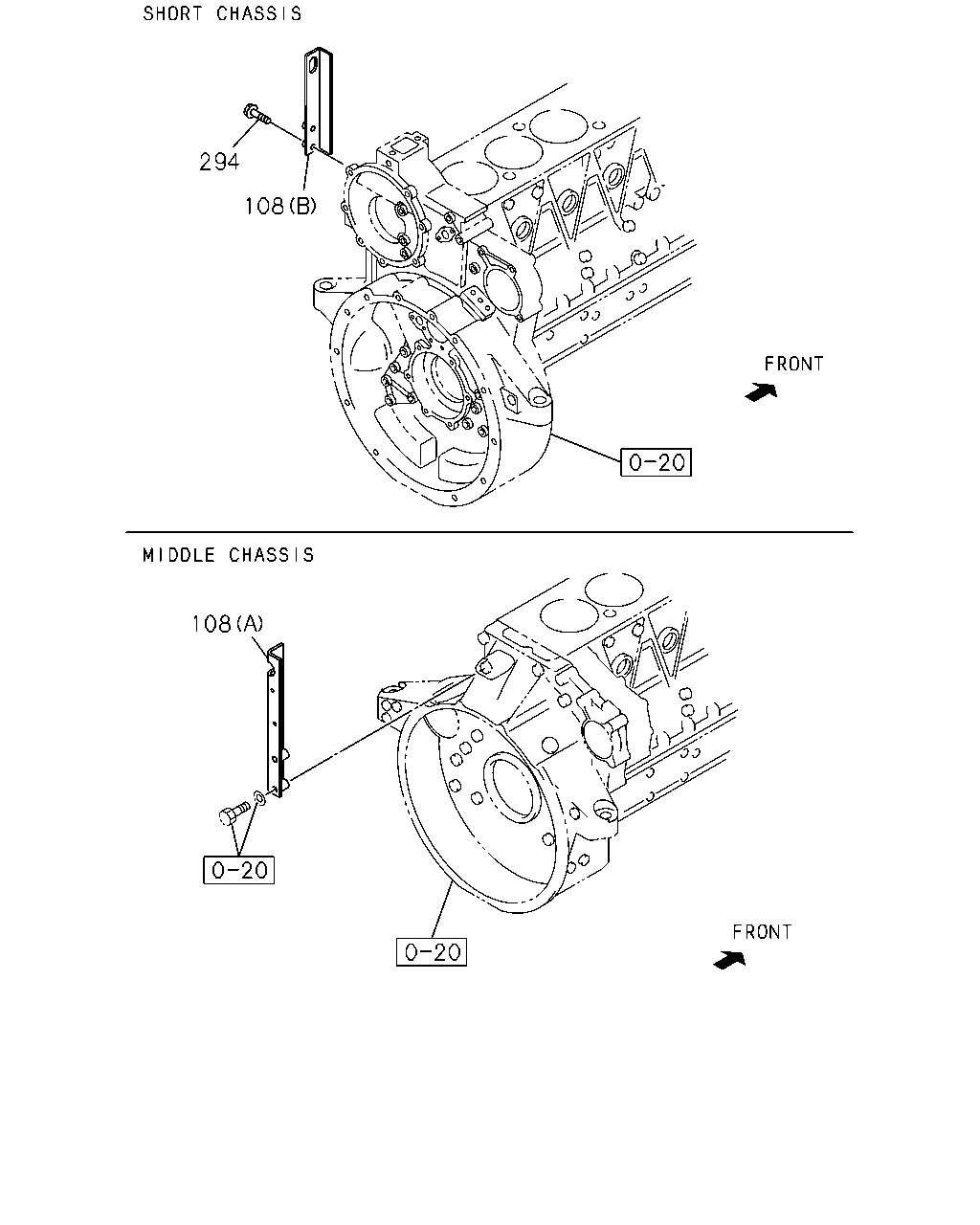

[022A] FIXING;ENG FLYWHEEL HSG HANGER (3 parça)

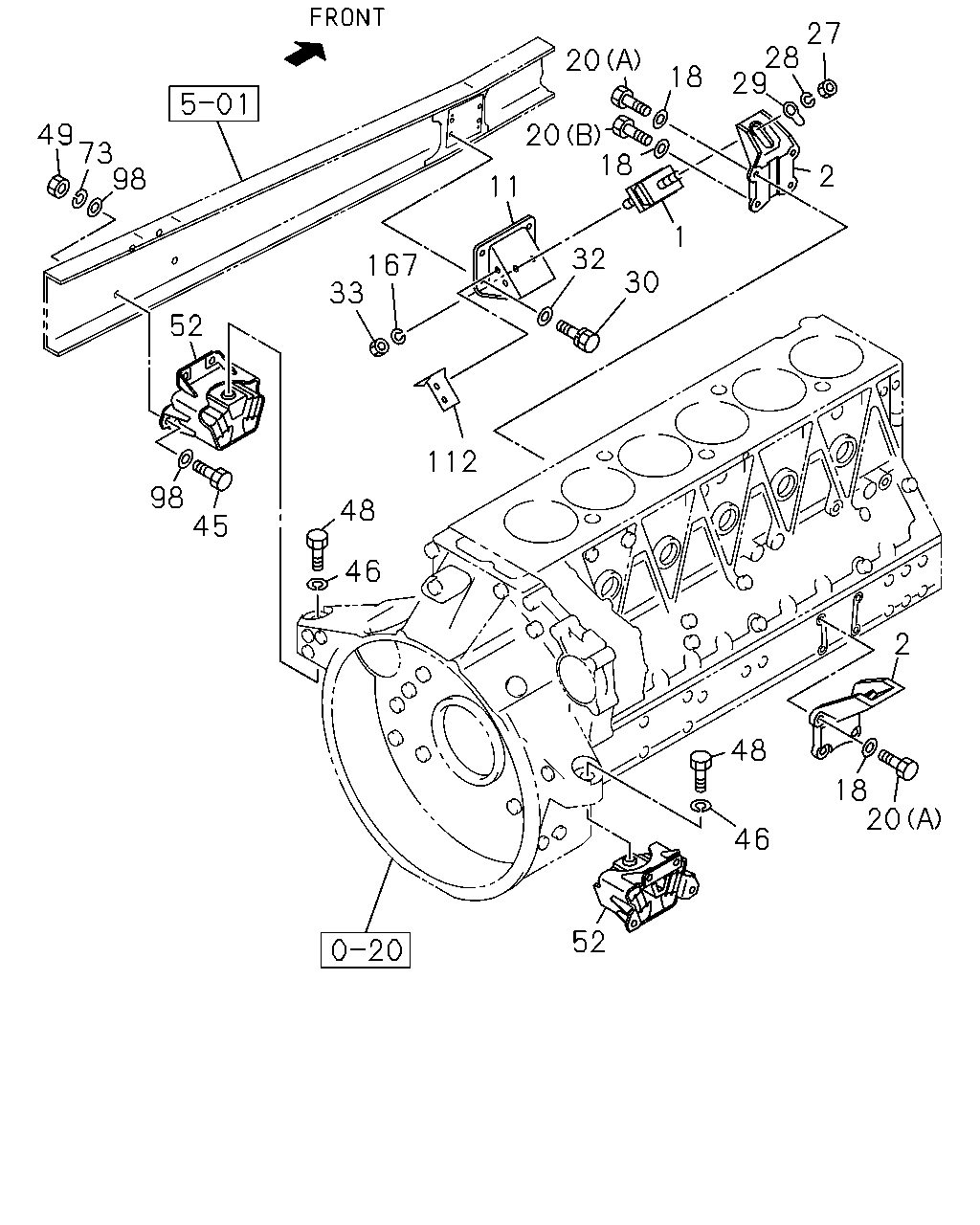

[022A] FIXING;ENG FOOT (21 parça)
▶
294
108
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
108
HANGER; ENG FLYWHEEL HSG
SHORT CHASSIS<FX***C> (B)
1-11777-224-0
01
1
0210-
●
108
HANGER; ENG FLYWHEEL HSG
MIDDLE CHASSIS<FX***F> (A)
1-11777-268-0
01
1
0210-
●
●
294
BOLT; HANGER
SHORT CHASSIS<FX***C> M12X40 FLANGE
0-28181-240-0
02
1
0210-
●
27
28
29
20
18
20
18
49
73
98
2
11
1
32
167
33
30
52
112
98
45
48
46
2
48
18
20
46
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-132-2
02
1
0210-
●
●
2
FOOT; ENG
1-11771-172-0
02
1
0210-
●
●
11
BRACKET; CUSHION RUBBER,FRT
THA
8-97916-044-0
02
1
0210-
●
●
18
WASHER; PL,ENG FOOT
ID=12.2
1-09503-008-0
08
1
0210-
●
●
20
BOLT; ENG FOOT
(A) M12X28.5
1-09020-100-0
04
1
0210-
●
●
20
BOLT; ENG FOOT
(B) M12X24
1-09020-101-0
04
1
0210-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
9-99110-518-0
02
1
0210-
●
●
28
WASHER; LK,SUPPORT BRKT
ID=18.2
9-09150-518-0
02
1
0210-
●
●
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-040-0
02
1
0210-
●
●
30
BOLT; BRKT TO FRAME
M12X40 W/LK WASHER
0-50041-240-0
08
1
0210-
●
●
32
WASHER; PL,BRKT TO FRAME
ID=12.5
1-09503-171-0
08
1
0210-
●
●
33
NUT; CUSHION RUBBER TO BRKT
M14
9-99110-414-0
04
1
0210-
●
●
45
BOLT; CUSHION RUBBER TO FRAME
M14X50
9-92061-450-0
08
1
0210-
●
●
46
WASHER; PL,CUSHION TO ENG,RR
ID=23
9-09164-522-0
02
1
0210-
●
●
48
BOLT; CUSHION RUBBER TO ENG
M22X75
1-09020-087-2
02
1
0210-
●
●
49
NUT; CUSHION RUBBER TO FRAME
M14
9-99110-514-0
08
1
0210-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-316-0
02
1
0210-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
9-09150-814-0
08
1
0210-
●
●
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 THA
9-09651-069-0
16
1
0210-
●
●
112
PROTECTOR; HEAT
1-53219-322-0
01
1
0210-
●
●
167
WASHER; LK,CUSHION RUBBER
ID=14.2
9-09150-514-0
04
1
0210-
●
●
