Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#31846) — 45 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCR ENG
◀

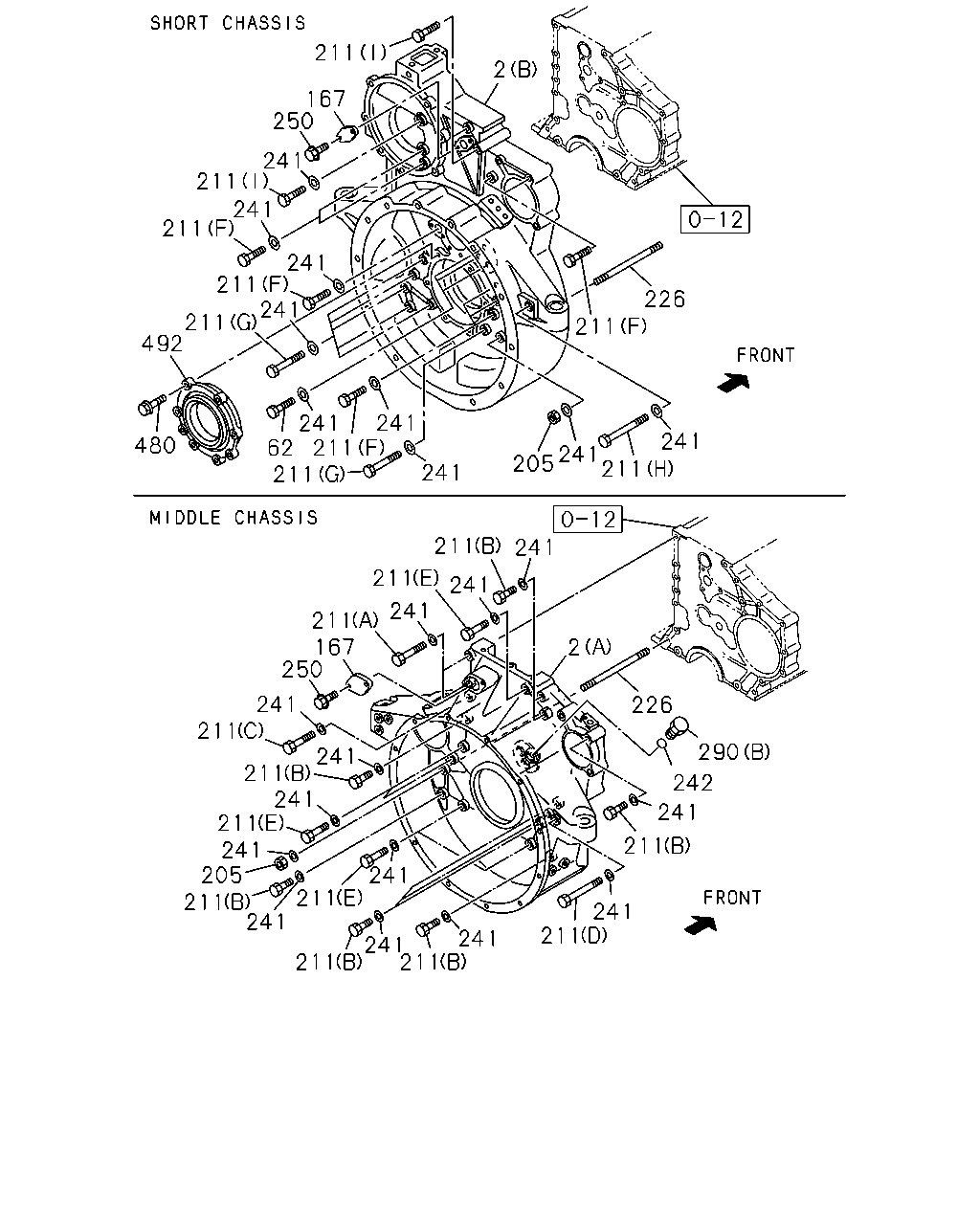

[020A] FIXING FLYWHEEL HOUSING (23 parça)

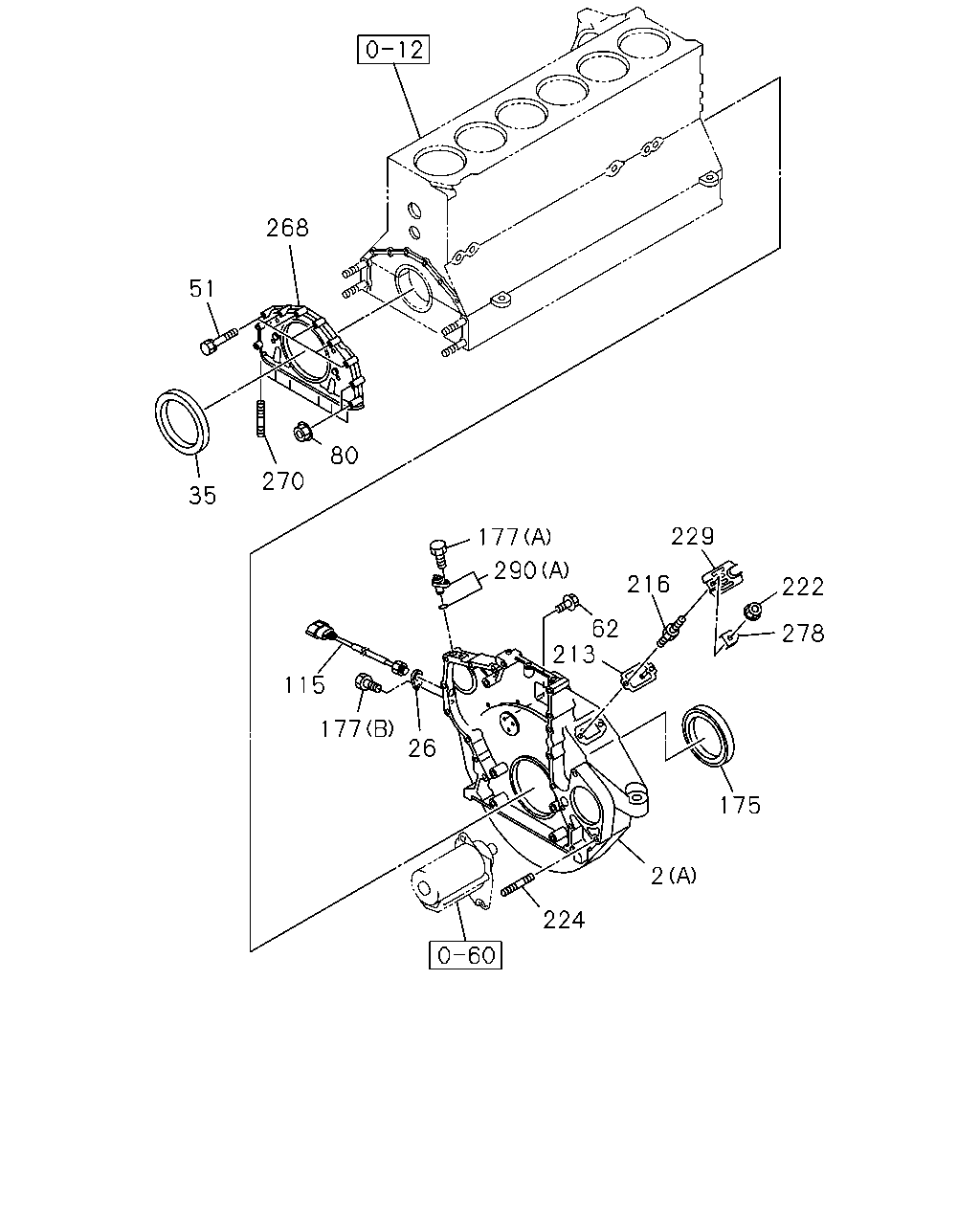

[020A] FRT COVER AND OTHER PARTS (22 parça)
▶
211
2
167
250
241
211
241
211
241
211
241
226
211
211
492
241
241
211
480
241
241
205
211
241
211
241
211
241
241
211
167
250
2
241
211
226
241
211
241
211
241
205
211
241
290
242
241
211
241
211
241
211
241
241
211
211
62
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
SHORT CHASSIS<FX***C> (B)
1-11341-552-0
01
1
0210-
●
2
HOUSING; FLYWHEEL
MIDDLE CHASSIS<FX***F> (A)
1-11341-521-5
01
1
0210-
●
●
62
BOLT; COVER
SHORT CHASSIS<FX***C> M8X25 FLANGE
0-28680-825-0
03
1
0210-
●
62
BOLT; COVER
MIDDLE CHASSIS<FX***F> M8X14 FLANGE
0-28080-814-0
03
1
0210-
●
●
167
COVER; OIL
1-11749-103-0
01
1
0210-
●
●
205
NUT; HSG
M12
9-99110-412-0
01
1
0210-
●
●
211
BOLT; HSG
SHORT CHASSIS<FX***C> (F) M12X60
0-16806-260-0
08
1
0210-
●
211
BOLT; HSG
SHORT CHASSIS<FX***C> (G) M12X130
1-09020-040-0
06
1
0210-
●
211
BOLT; HSG
SHORT CHASSIS<FX***C> (H) M12X185
8-94393-483-0
01
1
0210-
●
211
BOLT; HSG
SHORT CHASSIS<FX***C> (I) M12X75
9-01666-275-0
03
1
0210-
●
211
BOLT; HSG
MIDDLE CHASSIS<FX***F> (A) M12X100
0-16806-200-0
02
1
0210-
●
●
211
BOLT; HSG
MIDDLE CHASSIS<FX***F> (B) M12X60
0-16806-260-0
09
1
0210-
●
●
211
BOLT; HSG
MIDDLE CHASSIS<FX***F> (C) M12X90
0-16806-290-0
01
1
0210-
●
●
211
BOLT; HSG
MIDDLE CHASSIS<FX***F> (D) M12X173
1-09020-057-1
01
1
0210-
●
●
211
BOLT; HSG
MIDDLE CHASSIS<FX***F> (E) M12X75
9-01666-275-0
05
1
0210-
●
●
226
STUD; HSG
M12X60 L=78
9-94411-260-0
01
1
0210-
●
●
241
WASHER; PL,HSG
ID=12.2
9-09851-933-0
19
1
0210-
●
●
242
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24
9-09571-416-0
01
1
0210-
●
●
250
BOLT; COVER,OIL
M8X16 FLANGE
0-28080-816-0
02
1
0210-
●
●
290
PLUG; SENSOR HOLE
(A)
8-97101-974-0
01
1
0210-
●
●
290
PLUG; SENSOR HOLE
(B) M16X12
9-99202-316-0
01
1
0210-
●
●
480
BOLT; COVER
SHORT CHASSIS<FX***C> M8X25 FLANGE
0-28680-825-0
08
1
0210-
●
492
COVER; OIL SEAL
SHORT CHASSIS<FX***C>
1-12363-041-0
01
1
0210-
●
268
51
80
270
35
229
177
290
216
222
62
213
278
115
177
26
175
2
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
SHORT CHASSIS<FX***C> (B)
1-11341-552-0
01
1
0210-
●
2
HOUSING; FLYWHEEL
MIDDLE CHASSIS<FX***F> (A)
1-11341-521-5
01
1
0210-
●
●
26
ADAPTER
1-81519-012-0
01
1
0210-
●
●
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09625-540-3
01
1
0210-
●
●
51
BOLT; GEAR CASE COVER
M8X45 W/LK&PL WASHER
0-50140-845-0
08
1
0210-
●
●
62
BOLT; COVER
SHORT CHASSIS<FX***C> M8X25 FLANGE
0-28680-825-0
03
1
0210-
●
62
BOLT; COVER
MIDDLE CHASSIS<FX***F> M8X14 FLANGE
0-28080-814-0
03
1
0210-
●
●
80
NUT; COVER
M10 FLANGE
0-91150-110-0
04
1
0210-
●
●
115
SENSOR; REVOLUTION,ENG SPD
1-80240-003-3
01
1
0210-
●
●
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09625-541-2
01
1
0210-
●
●
177
BOLT; SENSOR
(B) M8X20 FLANGE
0-28680-820-0
01
1
0210-
●
●
177
BOLT; SENSOR
(A) M6X18 W/LK WASHER
0-50040-618-0
01
1
0210-
●
●
213
POINTER; FLYWHEEL HSG
1-11342-018-0
01
1
0210-
●
●
216
STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33
1-09300-058-1
02
1
0210-
●
●
222
NUT; COVER,TIMING CHECK HOLE
M8 FLANGE
0-91150-108-0
02
1
0210-
●
●
224
STUD; STARTER
M14X40 L=61
9-04411-440-0
02
1
0210-
●
●
229
COVER; TIMING CHECK HOLE
1-11349-126-0
01
1
0210-
●
●
268
COVER; FRT
1-11321-085-3
01
1
0210-
●
●
270
STUD; FRT COVER
M8X20
9-04010-820-0
06
1
0210-
●
●
278
WASHER; COVER FIX
1-11349-127-0
01
1
0210-
●
●
290
PLUG; SENSOR HOLE
(A)
8-97101-974-0
01
1
0210-
●
●
290
PLUG; SENSOR HOLE
(B) M16X12
9-99202-316-0
01
1
0210-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
