9-01 — TOOLS (#31838) — 91 parça

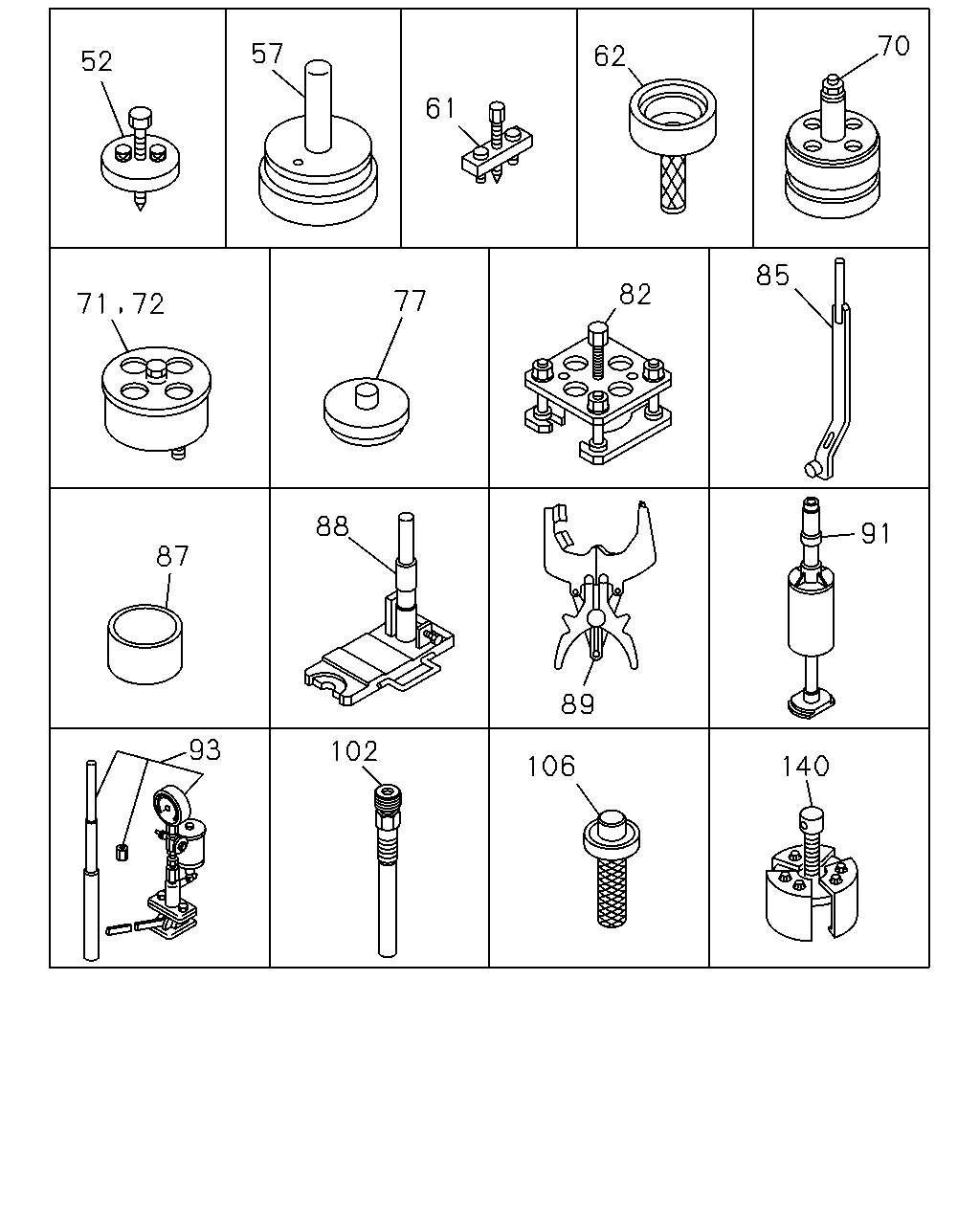

70 57 62 52 61 85 82 77 71 72 88 91 87 89 93 102 106 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	REMOVER; WATER PUMP 6SD1 TCN ENG<31L>	1-85210-047-0	01	1	0202-0207
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	0208-
57	TOOL; SETTING CRANK GEAR 6SD1 TCN ENG<31L> ID=144.5	1-85221-072-0	01	1	0202-0207
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	0208-
57	TOOL; SETTING CRANK GEAR 6SD1 TCS ENG<83L> ID=165.8	1-85221-075-0	01	1	0208-
61	PULLER ASM; PILOT BRG 6SD1 TCS ENG<83L>	1-85220-028-0	01	1	0208-
62	TOOL ASM; SETTING WEAR RING 6SD1 TCS ENG<83L>	1-85221-079-0	01	1	0208-
70	TOOL; SETTING,OIL SEAL 6SD1 TCN ENG<31L>	1-85220-025-1	01	1	0202-
71	TOOL; SETTING,OIL SEAL,FRT 6SD1 TCS ENG<83L>	1-85220-029-0	01	1	0208-
72	TOOL; SETTING,OIL SEAL,RR 6SD1 TCS ENG<83L>	1-85220-030-0	01	1	0208-
77	TOOL; SETTING,CYL LINER 6SD1 TCN ENG<31L>	1-85221-073-0	01	1	0202-0207
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	0208-
82	PULLER ASM; CR/SHF GEAR 6SD1 TCS ENG<83L>	1-85210-051-0	01	1	0208-
85	REPLACER ASM; VALVE SPR 6SD1 TCN ENG<31L>	1-85235-007-0	01	1	0202-0207
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	0208-
87	TOOL; PISTON 6SD1 TCN ENG<31L>	1-85221-082-0	01	1	0202-0207
87	TOOL; PISTON	1-85221-082-0	01	1	0208-
88	TOOL; CONNROD BUSHING 6SD1 TCN ENG<31L>	1-85220-037-0	01	1	0202-0207
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	0208-
89	TOOL; PISTON RING 6SD1 TCN ENG<31L>	1-85221-029-0	01	1	0202-0207
89	TOOL; PISTON RING	1-85221-029-0	01	1	0208-
91	REPLACER ASM; CYL LINER 6SD1 TCN ENG<31L>	1-85231-021-0	01	1	0202-0207
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	0208-
93	SETTING KIT; VALVE GUIDE 6SD1 TCN ENG<31L> L=260	9-85231-202-0	01	1	0202-0207
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0208-
102	ADAPTER; COMP GAGE 6SD1 TCN ENG<31L>	5-85317-001-0	01	1	0202-0207
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	0208-
106	TOOL; SETTING PILOT BRG 6SD1 TCS ENG<83L>	1-85221-080-0	01	1	0208-
140	REMOVER; WEAR RING 6SD1 TCS ENG<83L>	1-85210-053-0	01	1	0208-

13 17 9 12 23 22 21 20 29 29 29 115 39 40 38 37 36 237 193 208 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	WRENCH; WHEEL PIN 41X21 L=440 THA	1-85113-015-1	01	1	0202-
9	WRENCH; WHEEL PIN 41X21 L=445 THA	8-97118-906-0	01	1	0202-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480 THA	1-85116-011-0	01	1	0202-
13	WRENCH; MONKEY L=255 THA	1-85117-002-1	01	1	0202-0211
13	WRENCH; MONKEY L=247	1-85117-006-0	01	1	0212-
17	HAMMER THA	9-85121-406-0	01	1	0202-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0202-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0202-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0202-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0202-
29	DRIVER; SCREW (B) <-> L=285 THA	1-85151-004-0	01	1	0202-
29	DRIVER; SCREW (C) <+>,<-> L=160 THA	8-94242-798-1	01	1	0202-
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	0202-
36	WRENCH; 24	9-85111-377-0	01	1	0202-
37	WRENCH; 27	9-85111-375-0	01	1	0202-
38	WRENCH; 32	9-85111-358-0	01	1	0202-
39	WRENCH; 36	9-85111-374-0	01	1	0202-
40	WRENCH; 41	9-85111-356-0	01	1	0202-
115	PLIER THA	5-85171-002-0	01	1	0202-
193	JACK ASM 10TON THA	1-85510-013-1	01	1	0202-
208	HANDLE; JACK L=600 THA	1-85515-009-0	01	1	0202-
230	PUMP; GREASE THA	1-85556-007-2	01	1	0202-
237	BAG; TOOL THA	8-97917-409-1	01	1	0202-

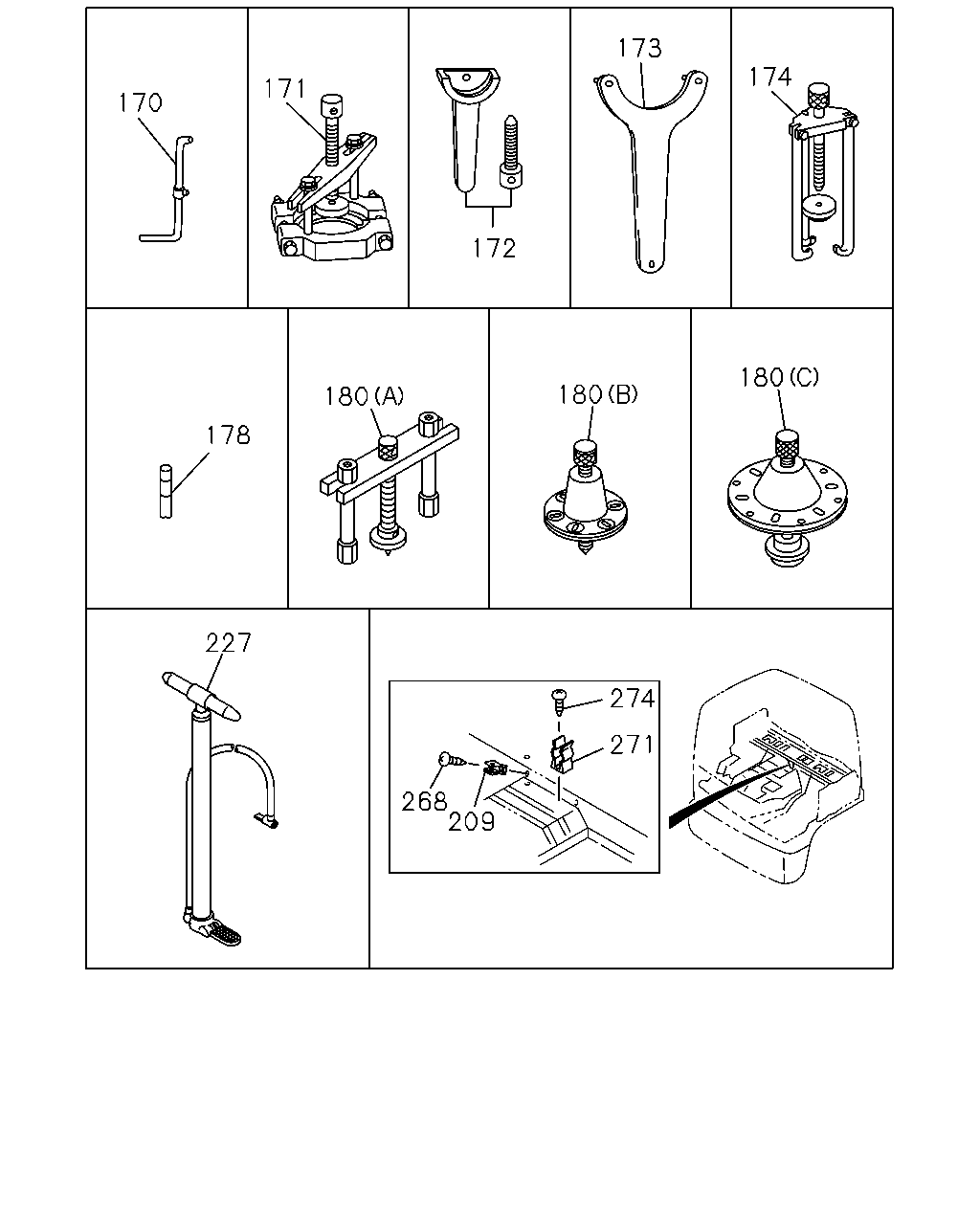

173 174 171 170 172 180 180 180 178 227 274 271 268 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0202-
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	0202-
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	0202-
173	WRENCH; COUPLING DRIVER	9-85111-942-0	01	1	0202-
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0202-
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	0202-
180	PULLER; FRT & RR HUB (B)	1-85210-002-0	02	1	0202-
180	PULLER; FRT & RR HUB (C)	1-85210-003-0	01	1	0202-
180	PULLER; FRT & RR HUB (A) M20	9-85210-187-0	01	1	0202-
209	CLIP; JACK HANDLE THA	1-73638-011-1	02	1	0202-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0202-
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	0202-
271	CLIP; TIRE HANGER THA	1-73638-012-1	02	1	0202-
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	0202-

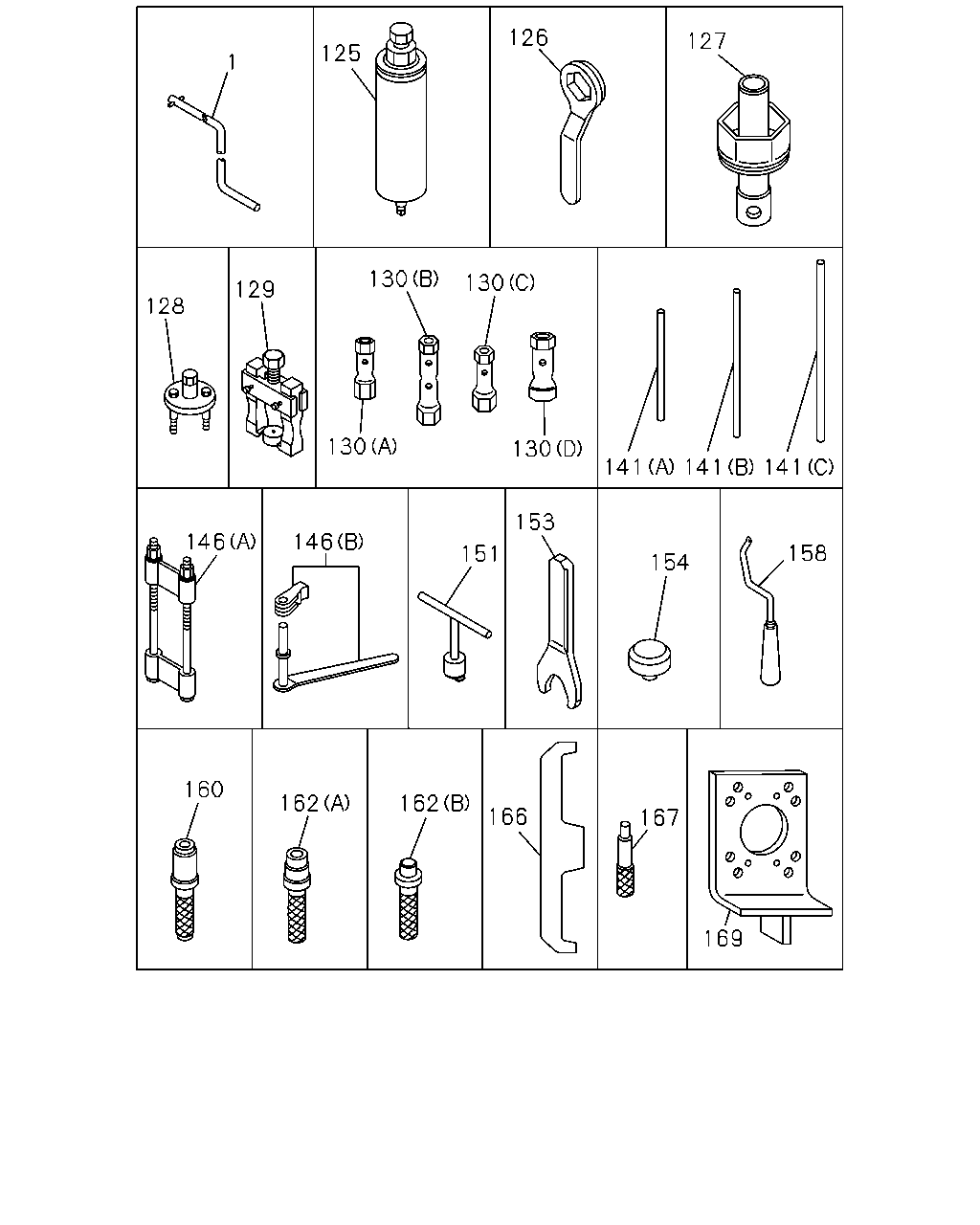

126 127 125 1 130 130 129 128 130 130 141 141 141 153 146 146 158 151 154 160 162 162 166 167 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-019-0	01	1	0202-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0202-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	0202-
127	WRENCH ASM; HUB BRG NUT L=400 B=105	9-85113-509-0	01	1	0202-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0202-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0202-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0202-
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0202-
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	0202-
130	WRENCH; BOX (C) B=41 & 46 L=165	9-85113-401-0	01	1	0202-
141	HANDLE; WRENCH (C) OD=25 L=480 THA	1-85116-011-0	01	1	0202-
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	0202-
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	0202-
146	REPLACER KIT; LEAF SPR (B)	1-85237-016-0	01	1	0202-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0202-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	0202-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0202-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0202-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0202-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0202-
162	SETTING TOOL; NEEDLE BRG (B) L=181	1-85238-008-0	01	1	0202-
162	SETTING TOOL; NEEDLE BRG (A) L=213	1-85238-009-0	01	1	0202-
166	ALIGNER; CLU RELEASE LEVER L=480	1-85253-011-0	01	1	0202-
167	ALIGNER; CLU PILOT L=190	1-85253-022-0	01	1	0202-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0202-
