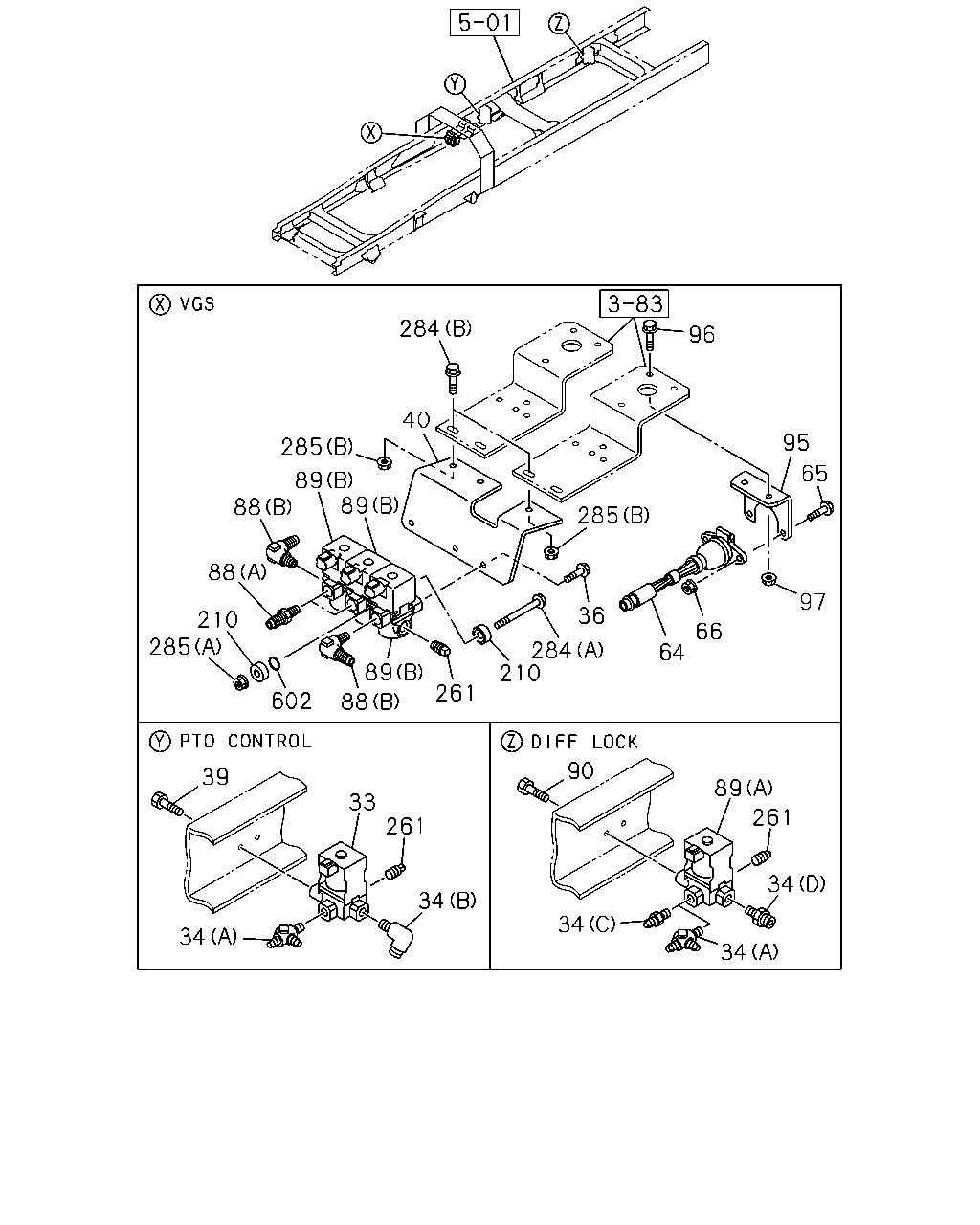

8-28 — CHASSIS ELECTRICAL (#31830) — 63 parça

284 96 40 95 285 65 89 88 89 285 88 97 36 210 285 66 284 210 64 89 261 602 88 90 39 89 33 261 261 34 34 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR<BDM>	1-82563-600-5	01	1	0202-
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0202-0204
34	CONNECTOR; MAG VLV,INL PORT (D) M20 & PT1/4	9-09902-386-0	01	1	0202-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0202-0406
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0407-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0202-0204
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0205-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0205-
36	BOLT; MAG VLV,PTO CONT 6SD1 TCS ENG<83L> M8X20 FLANGE	0-28680-820-0	03	1	0208-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR<BDM> M8X25 FLANGE	0-28080-825-0	02	1	0202-
40	BRACKET; MAG VLV 6SD1 TCS ENG<83L>	1-82569-340-0	01	1	0208-
64	SOCKET; TRAILER 7P	1-82523-014-0	01	1	0205-
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28680-825-0	02	1	0204-
66	NUT; SOCKET FIX M8 FLANGE	0-91150-108-0	02	1	0205-
88	CONNECTOR; MAG VLV 6SD1 TCS ENG<83L> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0208-
88	CONNECTOR; MAG VLV 6SD1 TCS ENG<83L> (B) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	0208-
89	VALVE; MAG,DIFF LOCK 6SD1 TCN ENG<31L> (A)	1-82563-600-4	01	1	0202-0204
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-5	01	1	0205-
89	VALVE; MAG,DIFF LOCK 6SD1 TCS ENG<83L> (B)	1-82563-871-2	03	1	0208-
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	0202-
95	BRACKET; SOCKET,TRAILER THA	8-97922-201-0	01	1	0204-
96	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0204-
97	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	0205-
210	WASHER; PL,BRKT 6SD1 TCS ENG<83L>	1-82569-266-0	04	1	0208-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0202-0207
261	PLUG; MAG VLV PTO ZF TRANS RR<BDM> PT1/4	9-99204-513-0	01	1	0202-0207
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0208-
261	PLUG; MAG VLV PTO ZF TRANS RR<BDM> PT1/4	9-99204-513-0	01	1	0208-
261	PLUG; MAG VLV 6SD1 TCS ENG<83L> PT1/4	9-99204-513-0	01	1	0208-
284	BOLT; MAG VLV 6SD1 TCS ENG<83L> (A) M6X50 FLANGE	0-28080-650-0	02	1	0208-
284	BOLT; MAG VLV 6SD1 TCS ENG<83L> (B) M8X25 FLANGE	0-28680-825-0	03	1	0208-
285	NUT; MAG VLV 6SD1 TCS ENG<83L> (A) M6 FLANGE	0-91150-106-0	02	1	0208-
285	NUT; MAG VLV 6SD1 TCS ENG<83L> (B) M8 FLANGE	0-91150-108-0	03	1	0208-
602	GASKET; MAG VLV 6SD1 TCS ENG<83L> ID=16.8	9-09565-117-0	02	1	0208-

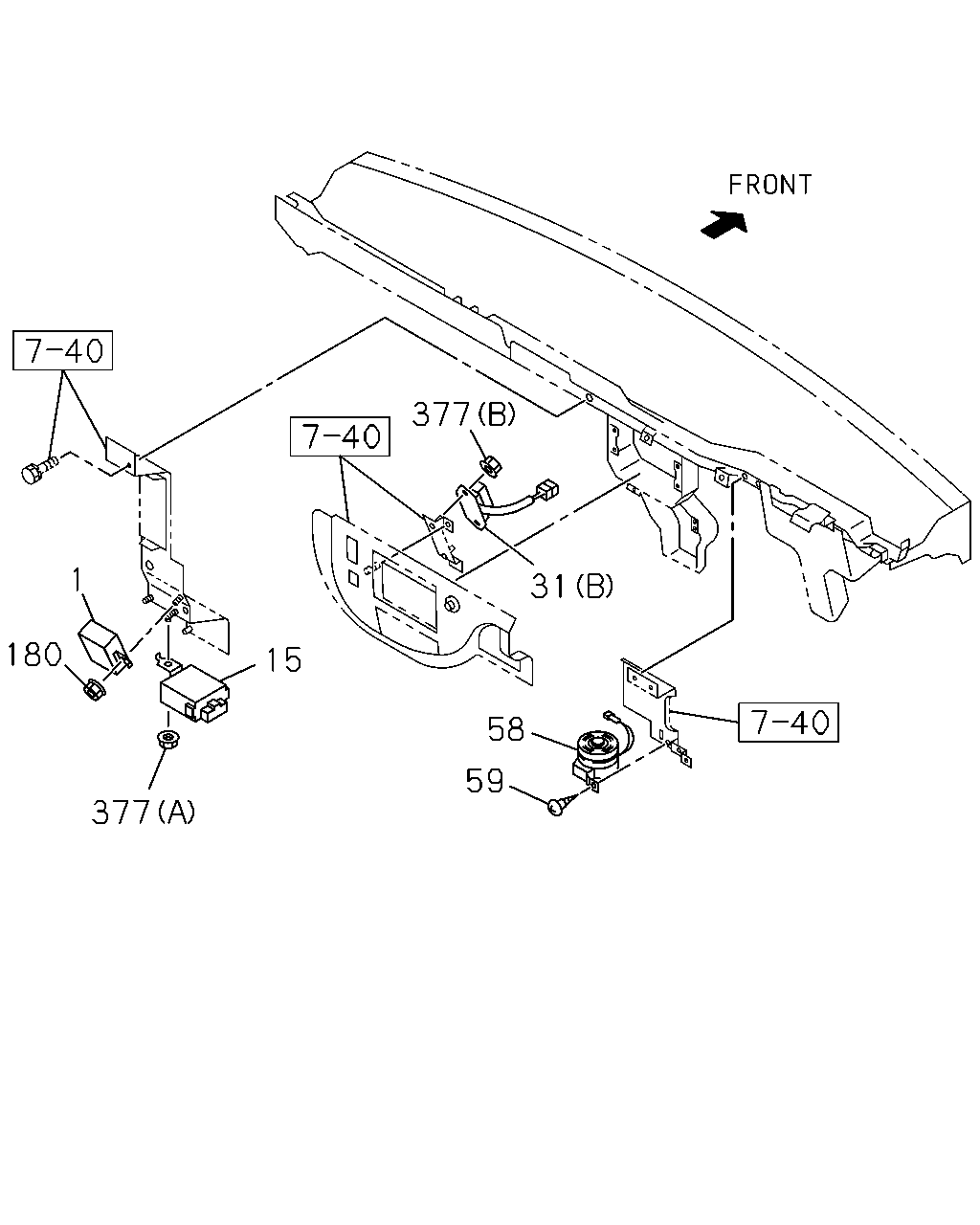

377 1 31 180 15 58 59 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-0	01	1	0202-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0202-
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	0202-
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	0202-
59	SCREW; BUZZER M5X14 THA	8-94279-325-0	01	1	0202-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0202-
377	NUT; RELAY (A) M6 FLANGE	0-91150-106-0	01	1	0202-
377	NUT; RELAY PTO CONTROL<SV6> (B) M6 FLANGE	0-91150-106-0	02	1	0202-

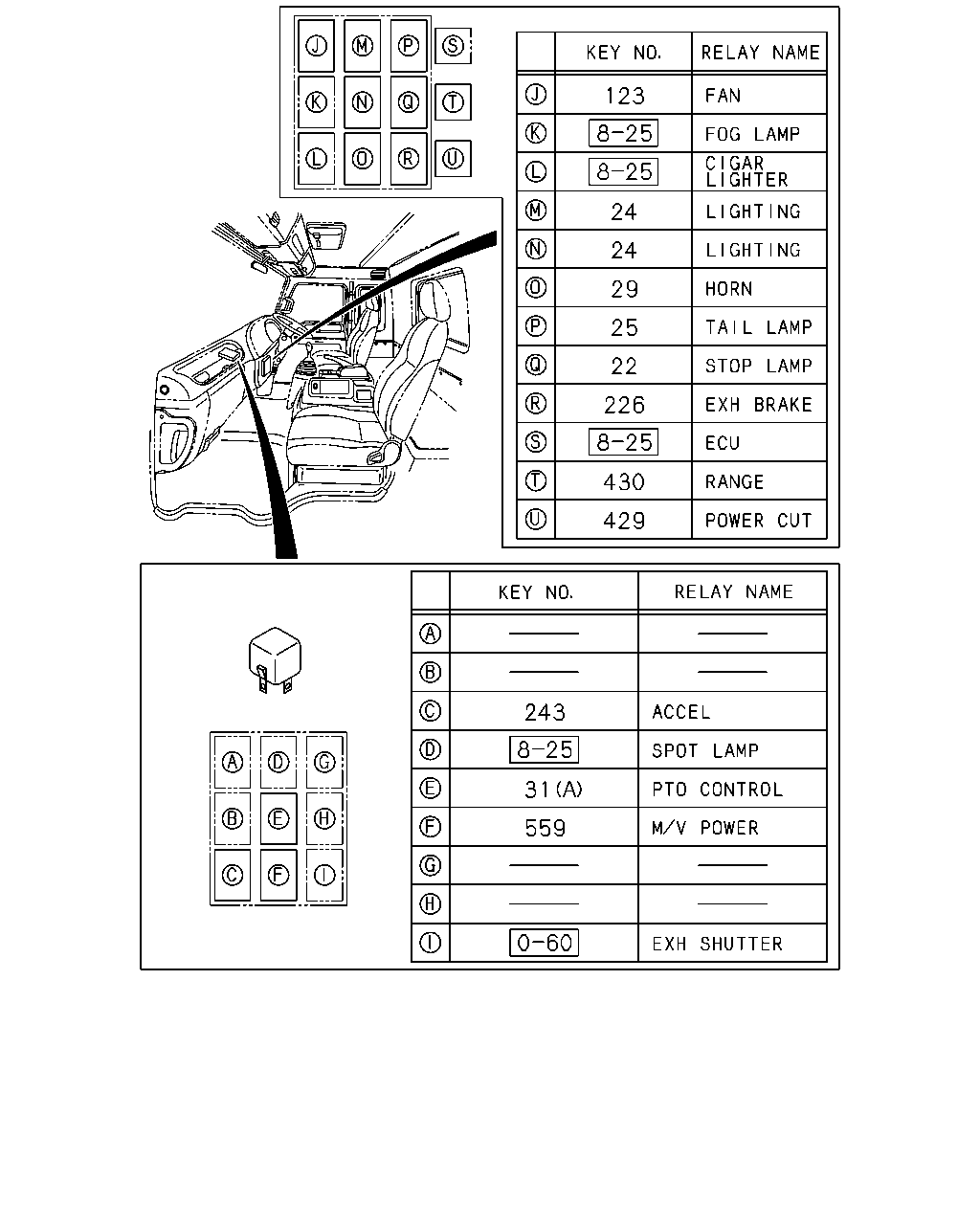

123 24 24 29 25 22 226 430 429 243 31 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA THA	8-97262-933-0	02	1	0202-
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
29	RELAY; HORN 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	0202-
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
123	RELAY; HTR 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
243	RELAY; ACCEL CONT ELECTRONIC GOV RED4<Q4F> 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0208-
429	RELAY; POWER CUT 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
430	RELAY; RANGE 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
559	RELAY; MAG VLV ELECTRONIC GOV RED4<Q4F> 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0208-

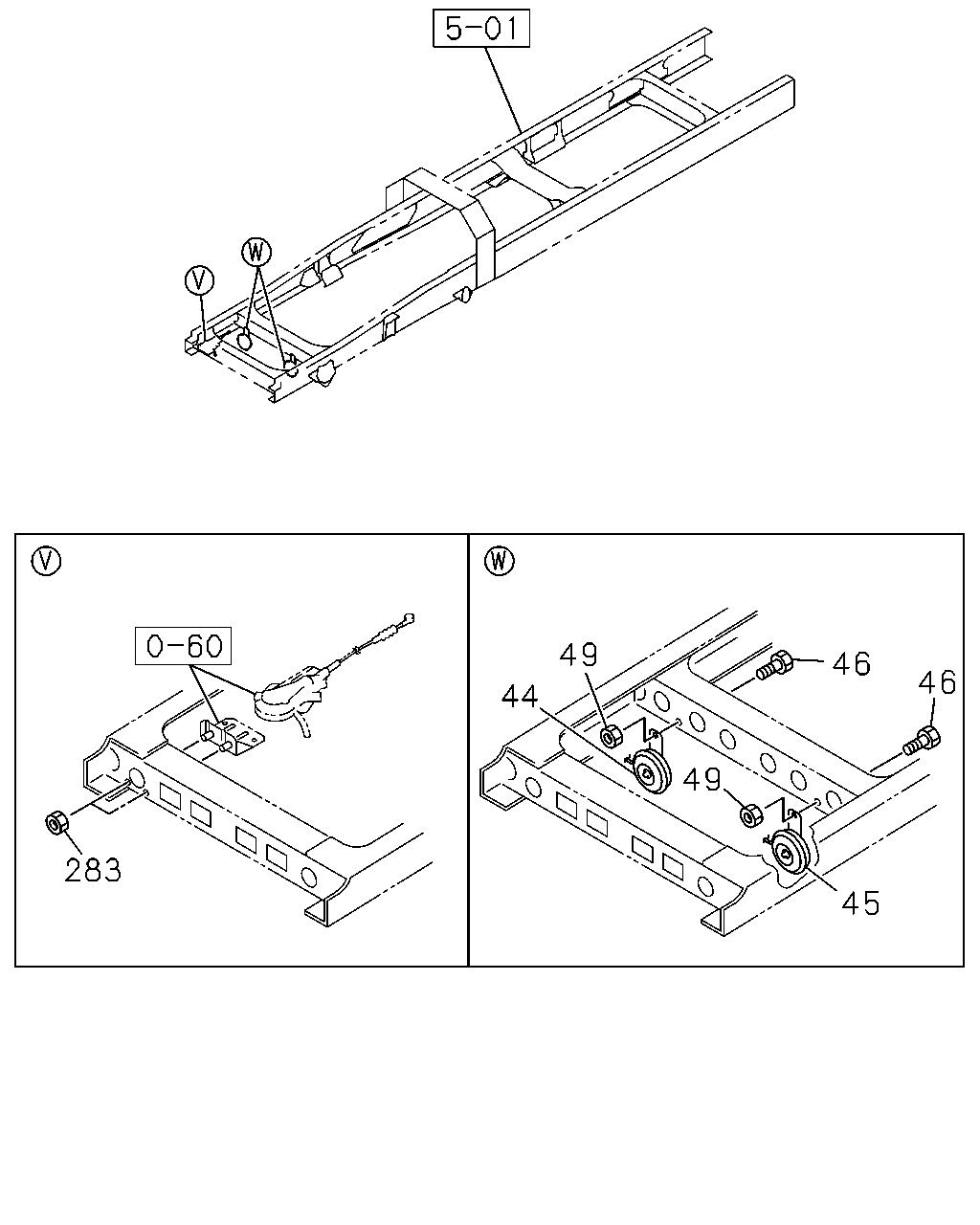

49 46 46 44 49 283 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE THA	8-97915-997-1	01	1	0202-
45	HORN; LOW NOTE THA	1-83410-058-1	01	1	0202-0210
45	HORN; LOW NOTE THA	1-83410-064-0	01	1	0211-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0202-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0202-
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0202-0207
283	NUT; BRKT EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE	0-91150-108-0	02	1	0208-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0202-
