3-34 — BRAKE VALVE; AIR (#3183) — 64 parça

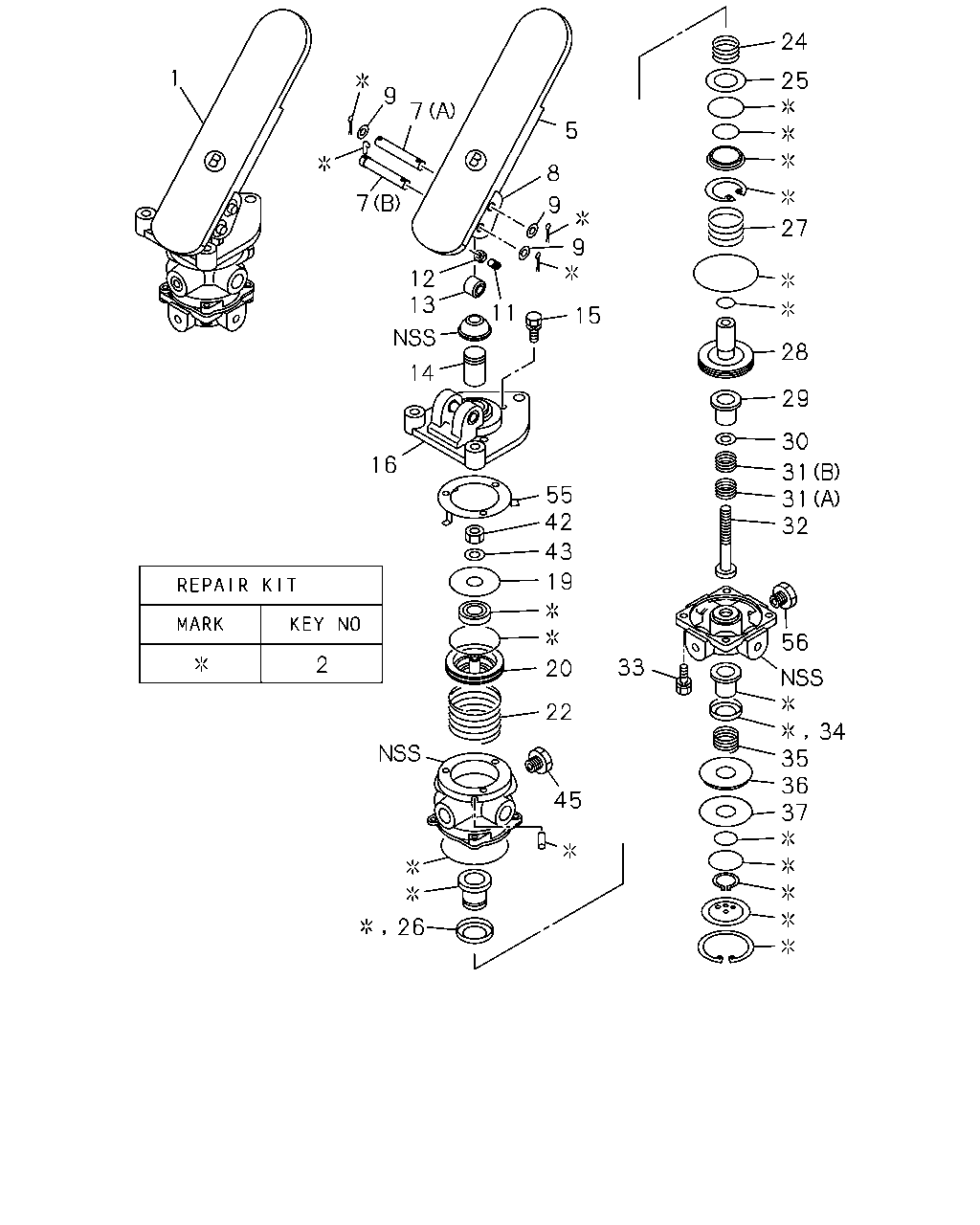

çizim 4833
24 1 25 9 7 5 8 7 9 27 9 12 13 11 15 28 14 29 30 16 31 31 32 55 42 43 19 56 2 33 20 22 34 35 36 37 45 26
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; BRK 1-48100-599-2 01 1 9104-0101
1 VALVE; BRK 1-48100-832-0 01 1 0102-
2 REPAIR KIT; BRK VLV 1-48119-307-0 01 1 9104-0101
2 REPAIR KIT; BRK VLV 1-85576-292-0 01 1 0102-
5 COVER; PEDAL,BRK VLV 1-48119-201-0 01 1 9104-0101
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0102-
7 PIN; PEDAL,BRK VLV
(A) 		1-48119-098-0 01 1 9104-0101
7 PIN; PEDAL,BRK VLV
(A),(B) 		1-48119-431-0 02 1 0102-
7 PIN; PEDAL,BRK VLV
(B) 		1-48119-102-0 01 1 9104-0101
8 PEDAL; BRK VLV 1-48119-200-0 01 1 9104-0101
8 PEDAL; BRK VLV 1-48119-428-0 01 1 0102-
9 WASHER; PIN,BRK VLV
ID=10.5 		9-09164-510-0 03 1 9104-0101
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 9104-0101
11 SCREW; SET,BRK VLV 1-48119-570-0 01 1 0102-
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9104-0107
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 0108-
13 ROLLER; PEDAL,BRK VLV 1-48119-031-0 01 1 9104-0101
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0102-
14 PLUNGER; BRK VLV 1-48119-203-0 01 1 9104-0101
14 PLUNGER; BRK VLV 1-48119-571-0 01 1 0102-
15 BOLT; PLATE,BRK VLV 1-48129-039-0 03 1 9104-0101
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 0102-
16 PLATE; MTG,BRKT VLV 1-48119-202-0 01 1 9104-9307
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9308-0101
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0102-
19 SEAT; SPRING,BRK VLV 1-48123-017-0 01 1 9104-0101
19 SEAT; SPRING,BRK VLV 1-48123-092-0 01 1 0102-
20 PISTON; UPR,BRK VLV 1-48119-092-0 01 1 9104-0101
20 PISTON; UPR,BRK VLV 1-48119-546-0 01 1 0102-
22 SPRING; PISTON,LWR,BRK VLV 1-48143-002-0 01 1 9104-0101
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 0102-
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 0102-
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9104-0107
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 0108-
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9104-0101
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 0102-
26 RETAINER; VLV,BRK VLV 1-48129-139-0 01 1 9104-0101
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9104-0107
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 0108-
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9104-0101
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0102-
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9104-0107
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 0108-
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9104-0107
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 0108-
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9104-0107
31 SPRING; VLV,BRK VLV 1-48123-032-0 01 1 0108-
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9104-0107
31 SPRING; VLV,BRK VLV 1-48123-033-0 01 1 0108-
32 SCREW; BRK VLV 1-48129-081-1 01 1 9104-0101
33 BOLT; BODY,BRK VLV 1-48119-212-0 04 1 9104-0107
33 BOLT; BODY,BRK VLV 1-48119-212-0 04 1 0108-
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 0102-
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9104-0107
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 0108-
36 RETAINER; GASKET,BRK VLV 1-48129-143-0 01 1 9104-0101
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9104-0107
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 0108-
42 NUT; SPR SEAT,BRK VLV 1-48129-069-0 01 1 9104-0101
43 WASHER; SPR SEAT,BRK VLV 1-48149-002-0 01 1 9104-0101
43 WASHER; SPR SEAT,BRK VLV 1-48419-002-0 01 1 0102-
45 CONNECTOR; UPR,BRK VLV 1-48119-025-0 01 1 9104-9307
55 RETAINER; PLATE,BRK VLV 1-48119-026-0 01 1 9104-0101
56 CONNECTOR; BODY,BRK VLV 1-48119-025-0 01 1 9104-9307
