8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#31828) — 25 parça

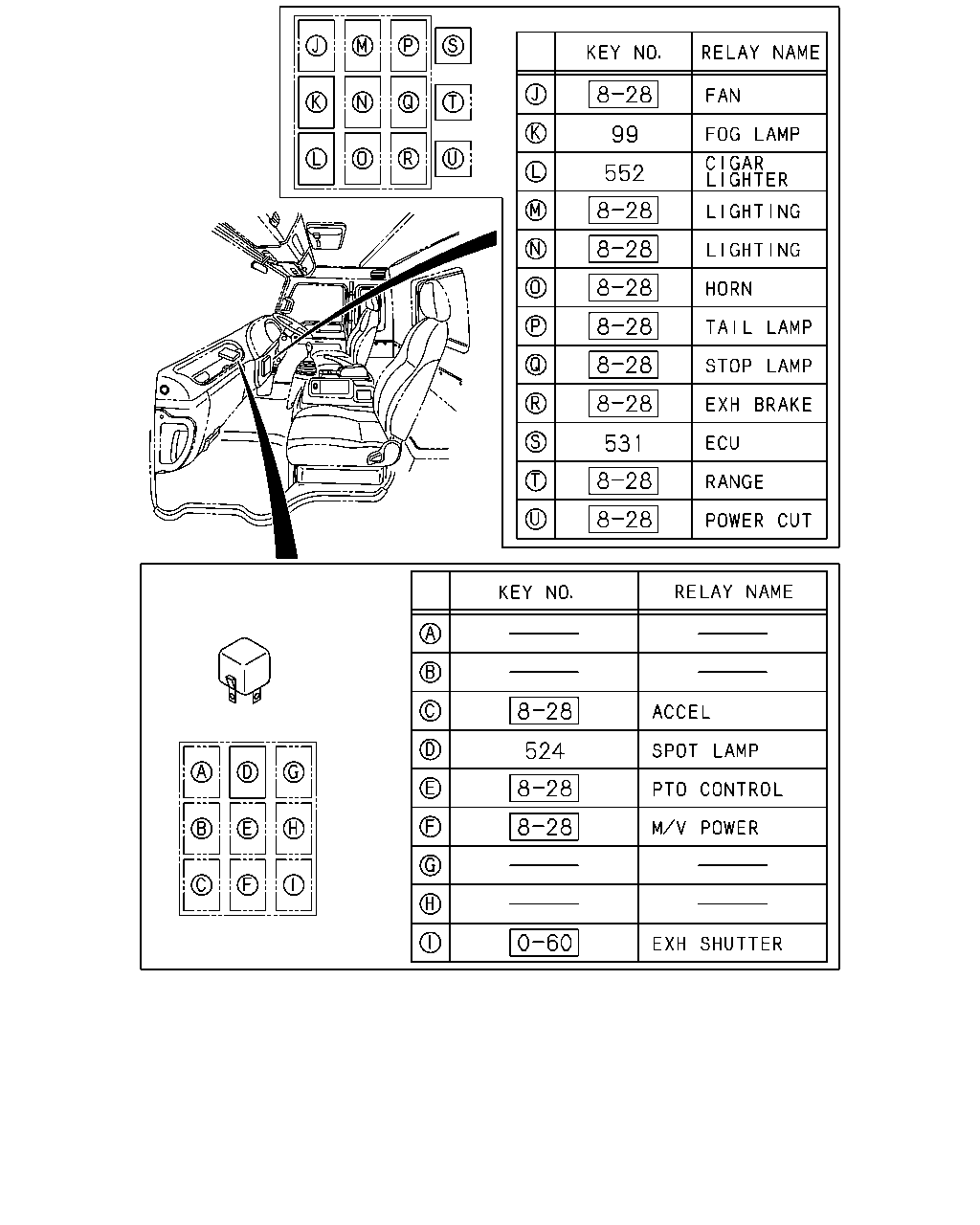

99 552 531 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
99	RELAY; FOG LAMP 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-
524	RELAY; LAMP INSPECTION LAMP<T95> 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0208-
531	RELAY; ECU ELECTRONIC GOV RED4<Q4F> 24V	1-82550-308-1	01	1	0208-
552	RELAY; CIGAR LIGHTER 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0202-

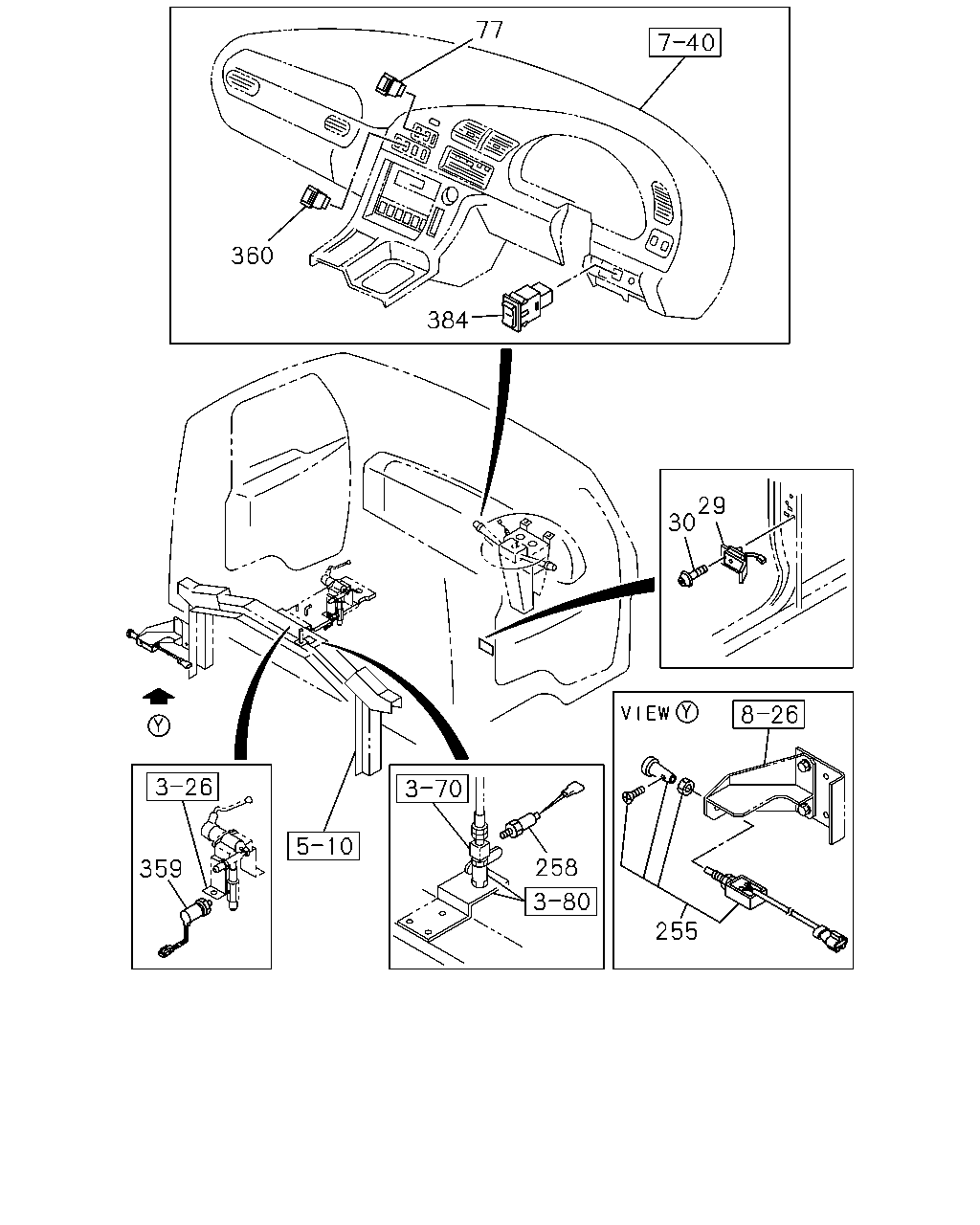

77 360 384 29 30 258 359 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR	8-97855-032-3	01	1	0202-
30	SCREW; DOOR SW M5X11	1-09981-536-1	01	1	0202-
77	SWITCH; PTO PTO CONTROL<SV6>	1-82340-403-0	01	1	0202-
255	SWITCH; SEARCH LIGHT INSPECTION LAMP<T95>	1-82340-360-1	01	1	0208-
258	SWITCH; FLASHER UNIT	1-82410-137-0	01	1	0202-
359	SWITCH; TRAILER PARKING 6SD1 TCN ENG<31L> GREEN	1-82410-176-0	01	1	0202-0204
360	SWITCH ASM; DIFF LK	1-82340-404-0	01	1	0202-
384	SWITCH; IDLING CONT,ELEC ELECTRONIC GOV RED4<Q4F>	1-82350-213-1	01	1	0208-

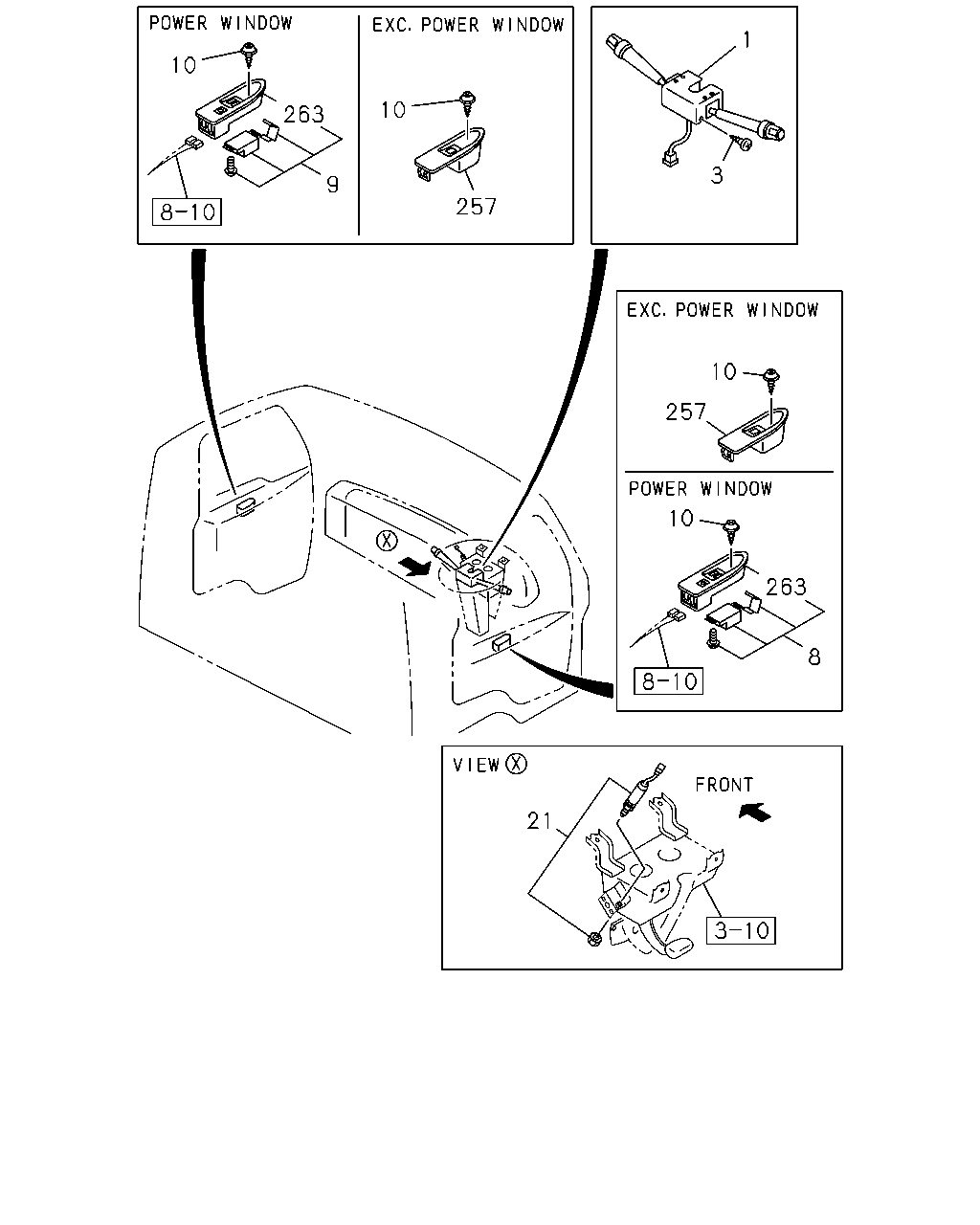

1 10 10 263 3 9 257 10 257 10 263 8 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB	1-82360-619-0	01	1	0202-0312
1	SWITCH; COMB	1-82360-715-0	01	1	0401-
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	0202-
8	SWITCH; POWER WINDOW POWER WINDOW<A30>	1-82380-155-3	01	1	0202-
9	SWITCH; POWER WINDOW POWER WINDOW<A30>	1-82380-154-3	01	1	0202-
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0202-
21	SWITCH; CLU	1-82380-114-2	01	1	0202-0207
21	SWITCH; CLU EXC. ELECTRONIC GOV RED4<Q4F>	1-82380-114-2	01	1	0208-
21	SWITCH; CLU ELECTRONIC GOV RED4<Q4F>	1-82440-116-0	01	1	0208-
257	COVER; HOLE,SW EXC. POWER WINDOW<A30>	1-82389-012-2	01	1	0202-
257	COVER; HOLE,SW EXC. POWER WINDOW<A30>	1-82389-011-2	01	1	0202-
263	COVER; SW POWER WINDOW<A30>	1-82385-006-3	01	1	0202-
263	COVER; SW POWER WINDOW<A30>	1-82385-005-2	01	1	0202-
