◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10899 - GXZ(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#31825) — 154 parça

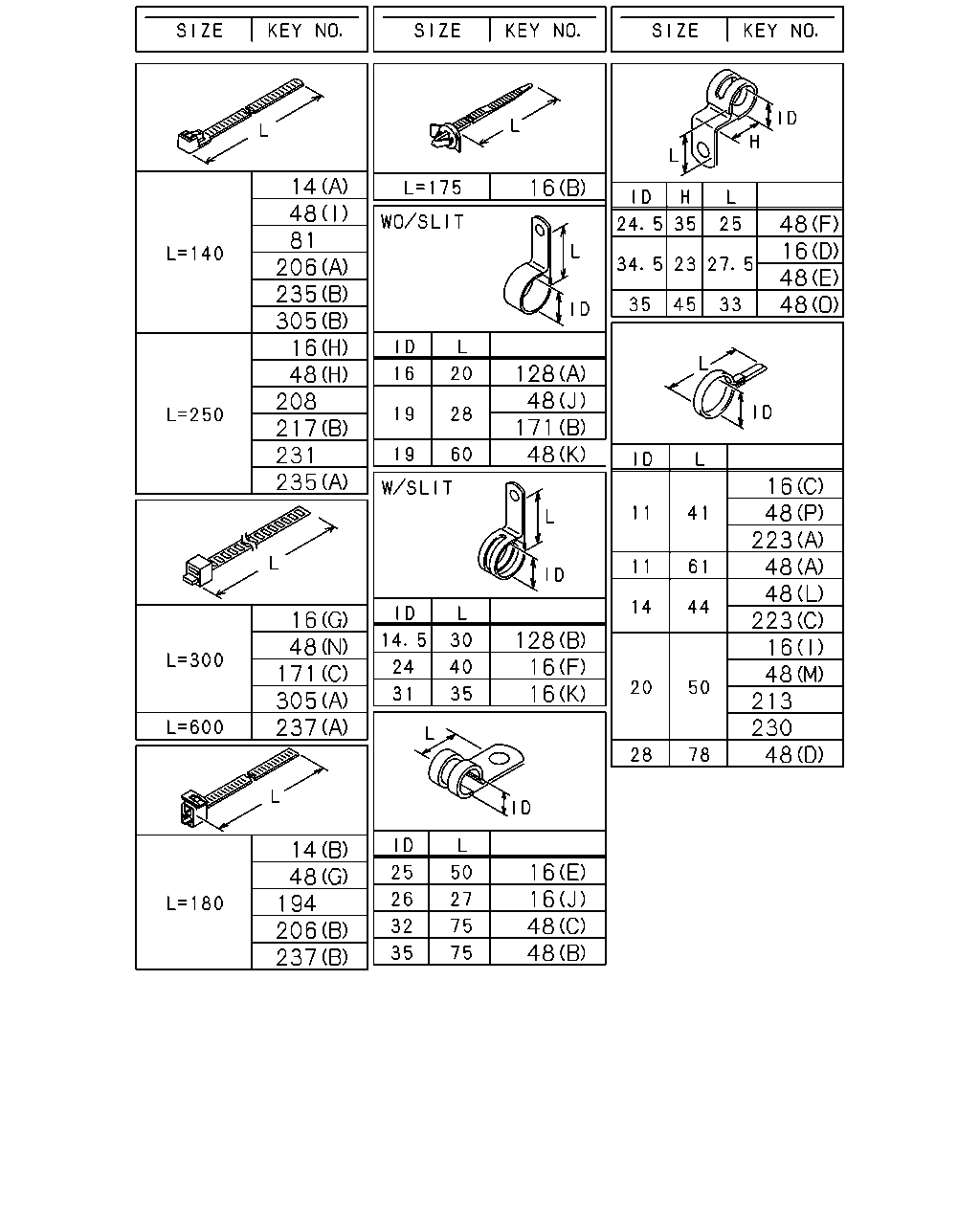

çizim 23113
14 48 81 206 235 305 16 48 208 217 231 235 16 48 16 48 48 128 48 171 48 16 48 223 48 48 223 16 48 213 230 48 16 48 171 305 237 128 16 16 14 48 194 206 237 16 16 48 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 01 1 0202-0207
14 CLIP; BAND,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (A) L=140 		5-09707-031-1 01 1 0208-
14 CLIP; BAND,HARNESS
INSPECTION LAMP<T95> (B) L=180 THA 		1-09707-162-1 01 1 0208-
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 03 1 0202-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0202-
16 CLIP; HARNESS
(E) ID=25 L=50 		1-09701-019-0 01 1 0202-0207
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (E) ID=25 L=50 		1-09701-019-0 01 1 0208-
16 CLIP; HARNESS
(F) ID=24 L=40 		1-09701-139-0 01 1 0202-0207
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24 L=40 		1-09701-139-0 01 1 0208-
16 CLIP; HARNESS
(G) L=300 THA 		1-09707-001-1 01 1 0202-
16 CLIP; HARNESS
(H) L=250 THA 		5-09707-030-1 01 1 0202-
16 CLIP; HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 03 1 0202-
16 CLIP; HARNESS
(M) W/SPONGE RUBBER 		1-09709-150-0 01 1 0205-
16 CLIP; HARNESS
(L) ID=6-10 & 10-14 		1-09709-201-1 02 1 0205-
16 CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (K) ID=31 L=35 		1-09700-329-1 01 1 0208-
16 CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (J) ID=26 L=27 		1-09701-006-0 01 1 0208-
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=55 		8-94432-655-0 06 1 0202-
16 CLIP; HARNESS
POWER WINDOW<A30> (B) L=175 		8-97110-167-0 06 1 0202-
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0202-0207
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) ID=35 L=75 		1-09700-608-2 01 1 0208-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 THA 		1-09700-858-0 08 1 0202-0204
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 THA 		1-09700-858-0 09 1 0205-0207
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 09 1 0208-
48 CLIP; FRAME HARNESS
(F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0202-0207
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0208-
48 CLIP; FRAME HARNESS
(G) L=180 THA 		1-09707-162-1 01 1 0202-0204
48 CLIP; FRAME HARNESS
(N) L=300 THA 		1-09707-001-1 03 1 0205-
48 CLIP; FRAME HARNESS
(H) L=250 THA 		5-09707-030-1 01 1 0202-0207
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (H) L=250 THA 		5-09707-030-1 01 1 0208-
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 01 1 0202-0204
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 01 1 0205-0205
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 02 1 0202-
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 08 1 0202-0207
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (M) ID=20 L=50 THA 		8-97916-115-0 08 1 0208-
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		9-09525-856-0 01 1 0202-
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		9-09525-896-0 01 1 0202-
48 CLIP; FRAME HARNESS
(L) ID=14 L=44 THA 		9-09917-427-0 03 1 0202-0204
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		9-09917-430-0 01 1 0202-0204
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		9-09917-430-0 08 1 0205-
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		9-09917-430-0 08 1 0202-0204
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		9-09917-430-0 08 1 0202-0204
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		9-09917-430-0 12 1 0205-
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0202-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0202-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 10 1 0208-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (O) ID=35 H=45 L=33 		1-09701-047-0 01 1 0208-
48 CLIP; FRAME HARNESS
ELECTRONIC GOV RED4<Q4F> (M) ID=20 L=50 THA 		8-97916-115-0 09 1 0208-
48 CLIP; FRAME HARNESS
PTO CONTROL<SV6> (A) ID=11 L=61 THA 		1-09700-484-0 01 1 0202-
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> (P) ID=11 L=41 THA 		1-09700-403-0 01 1 0208-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0202-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0202-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0202-
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 0202-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0202-
171 CLIP; STARTER HARNESS
ELECTRONIC GOV RED4<Q4F> (C) L=300 THA 		1-09707-001-1 01 1 0208-
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0202-0204
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0205-
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0205-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 0202-
206 CLIP; FUEL TANK HARNESS
(B) L=180 THA 		1-09707-162-1 01 1 0205-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL<SV6> L=250 THA 		5-09707-030-1 01 1 0202-
213 CLIP; END CROSS HARNESS
ID=20 L=50 THA 		8-97916-115-0 03 1 0202-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0202-
217 CLIP; RR BODY HARNESS
(B) L=250 THA 		5-09707-030-1 02 1 0202-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0202-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 01 1 0202-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0202-
230 CLIP; C/MBR HARNESS
ID=20 L=50 THA 		9-09917-430-0 02 1 0202-
231 CLIP; BAND,OIL PRESS
L=250 THA 		5-09707-030-1 01 1 0202-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 THA 		5-09707-030-1 01 1 0202-0204
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 		5-09707-031-1 01 1 0202-
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0202-0204
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0202-
305 CLIP; ENG HARNESS
(A) L=300 THA 		1-09707-001-1 01 1 0202-
305 CLIP; ENG HARNESS
(B) L=140 THA 		8-97920-656-0 02 1 0303-
çizim 80213
16 217 148 148 168 223 470 16 116 421 171 121 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 03 1 0202-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0202-
16 CLIP; HARNESS
(E) ID=25 L=50 		1-09701-019-0 01 1 0202-0207
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (E) ID=25 L=50 		1-09701-019-0 01 1 0208-
16 CLIP; HARNESS
(F) ID=24 L=40 		1-09701-139-0 01 1 0202-0207
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24 L=40 		1-09701-139-0 01 1 0208-
16 CLIP; HARNESS
(G) L=300 THA 		1-09707-001-1 01 1 0202-
16 CLIP; HARNESS
(H) L=250 THA 		5-09707-030-1 01 1 0202-
16 CLIP; HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 03 1 0202-
16 CLIP; HARNESS
(M) W/SPONGE RUBBER 		1-09709-150-0 01 1 0205-
16 CLIP; HARNESS
(L) ID=6-10 & 10-14 		1-09709-201-1 02 1 0205-
16 CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (K) ID=31 L=35 		1-09700-329-1 01 1 0208-
16 CLIP; HARNESS
ELECTRONIC GOV RED4<Q4F> (J) ID=26 L=27 		1-09701-006-0 01 1 0208-
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=55 		8-94432-655-0 06 1 0202-
16 CLIP; HARNESS
POWER WINDOW<A30> (B) L=175 		8-97110-167-0 06 1 0202-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0202-
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> OD=7 H=1.2 		8-94364-750-0 02 1 0202-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 THA 		8-94232-611-0 01 1 0202-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 THA 		8-97069-515-0 01 1 0202-
168 CLIP; DASH HARNESS
ID=6 & 10-13 THA 		8-97069-515-0 05 1 0202-
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 0202-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0202-
171 CLIP; STARTER HARNESS
ELECTRONIC GOV RED4<Q4F> (C) L=300 THA 		1-09707-001-1 01 1 0208-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0202-
217 CLIP; RR BODY HARNESS
(B) L=250 THA 		5-09707-030-1 02 1 0202-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0202-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 01 1 0202-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0202-
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 01 1 0202-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 0202-
çizim 80247
178 178 178 530 53 334 59
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS 1-47476-200-0 01 1 0202-0207
53 BRACKET; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> 		1-47476-200-0 01 1 0208-
59 BRACKET; FRAME HARNESS
L=95 THA 		1-82699-085-0 01 1 0202-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0202-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0202-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0202-
178 GROMMET; HARNESS
ELECTRONIC GOV RED4<Q4F> (C) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0208-
334 BRACKET
ELECTRONIC GOV RED4<Q4F> 		1-47477-571-3 01 1 0208-
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0202-

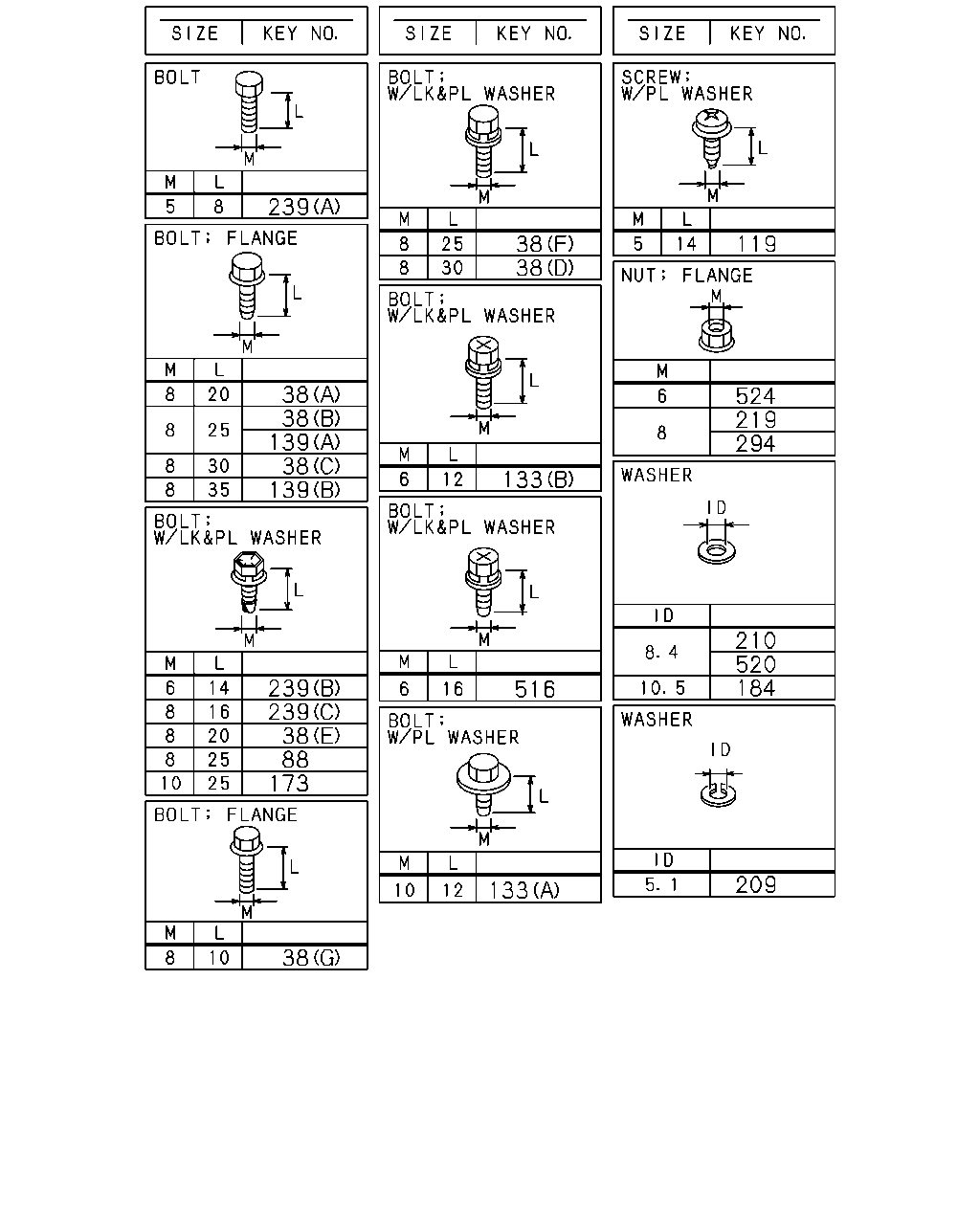

çizim 80272
239 38 38 119 38 38 139 38 139 524 219 294 133 210 520 184 239 239 38 88 173 516 209 133 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0202-0207
38 BOLT; CLIP,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0208-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0202-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0202-0207
38 BOLT; CLIP,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) M8X25 FLANGE 		0-28680-825-0 03 1 0208-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0202-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0202-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 04 1 0202-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0202-
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0202-
38 BOLT; CLIP,HARNESS
(F) M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 0205-
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED4<Q4F> (G) M8X20 FLANGE 		0-28080-820-0 02 1 0208-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0202-
88 BOLT; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0202-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0202-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0202-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0202-
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0202-
139 BOLT; BRKT
ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0208-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0202-
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0202-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0202-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0202-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0202-0204
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0205-0207
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0205-0207
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0208-
219 NUT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 01 1 0208-
219 NUT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 01 1 0208-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0202-
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0202-0207
219 NUT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 03 1 0208-
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0202-
239 BOLT; GRAND
(A) M5X8 THA 		0-20800-508-0 01 1 0202-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0202-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0202-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0202-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0202-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0202-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0202-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
