Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶
7-45 — CONSOLE BOX
(#31817) — 37 parça
◀

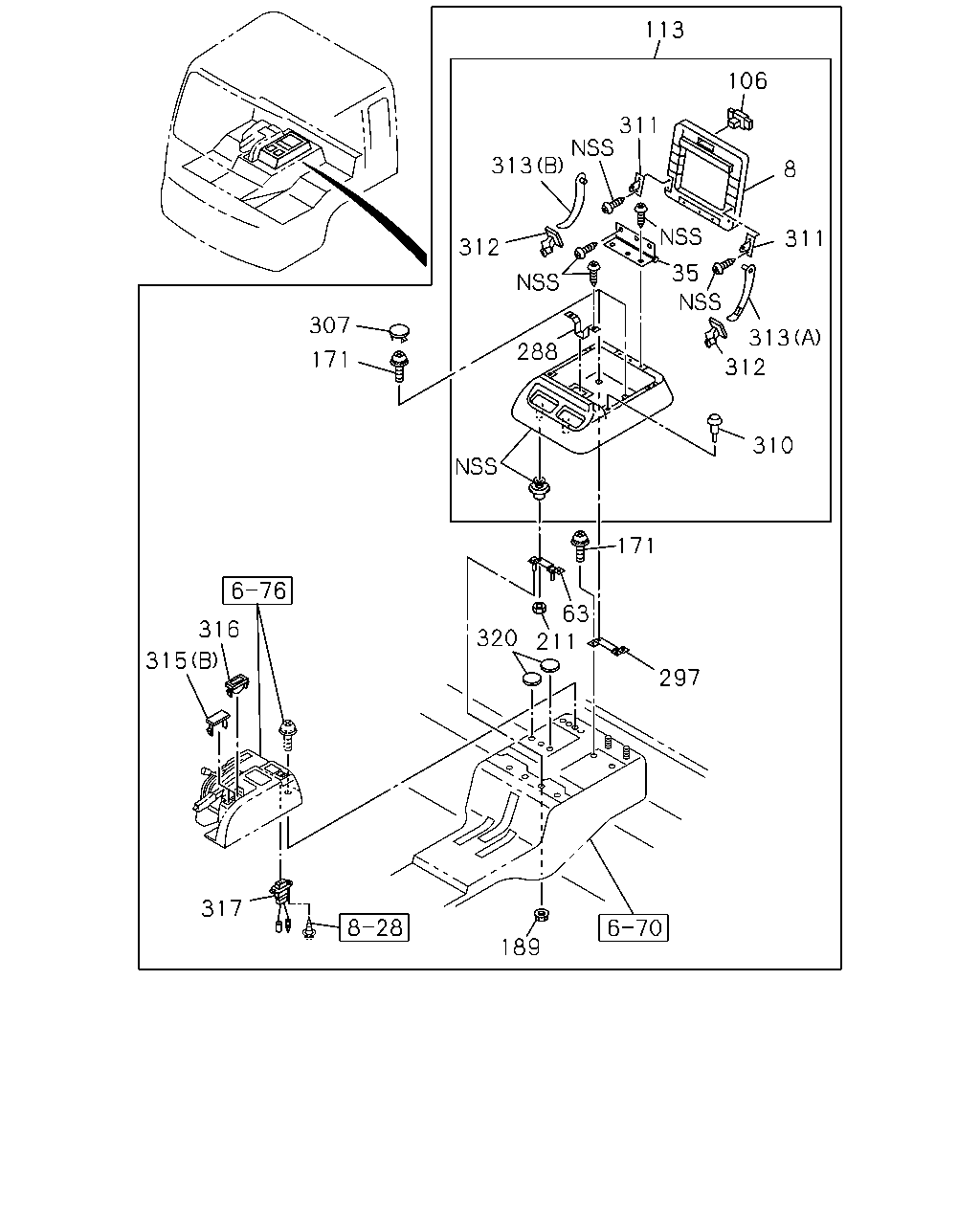

[745A] CENTER CONSOLE AND FIXING PARTS (29 parça)
[745A] SWITCH HOLE COVER (8 parça)
▶
113
106
311
313
8
311
312
35
307
313
288
171
312
310
171
63
316
320
211
315
297
317
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LID; CENTER CONSOLE
1-72538-260-0
01
1
0202-
35
HINGE; CENTER CONSOLE
1-72538-182-1
01
1
0202-
60
SCREW; BOX
M5X14 TAPPING CK-HEAD
0-70080-514-0
06
1
0210-
60
SCREW; BOX
M5X14 THA
8-94279-325-0
04
1
0210-
63
BRACKET; FRT CONSOLE
1-72538-222-0
01
1
0202-
106
LOCK; CONSOLE LID
THA
1-72538-180-0
01
1
0202-
113
BOX; CONSOLE
1-72538-272-0
01
1
0202-0209
113
BOX; CONSOLE
1-72538-298-0
01
1
0210-
171
SCREW; CONSOLE BOX
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0202-
189
NUT; CONSOLE BOX
M8 FLANGE
0-91150-108-0
02
1
0202-
211
NUT; CENTER CONSOLE
M8 FLANGE THA
8-94279-518-0
02
1
0202-0401
211
NUT; CENTER CONSOLE
M8 FLANGE THA
1-75538-207-0
02
1
0402-
288
STOPPER; LID,CONSOLE
1-72538-190-0
01
1
0202-
297
BRACKET; RR CONSOLE
1-72538-223-0
01
1
0202-
307
COVER; HOLE,CTR CONSOLE
1-76337-461-0
02
1
0202-
310
CUSHION; CTR CONSOLE
1-72538-187-0
02
1
0202-
311
HOLDER; CONSOLE
1-72538-188-2
02
1
0202-
312
STOPPER; CONSOLE
1-72538-186-1
02
1
0202-
313
ARM; CTR CONSOLE
(A)
1-72538-184-3
01
1
0202-
313
ARM; CTR CONSOLE
(B)
1-72538-185-3
01
1
0202-
315
COVER; HOLE,SW
(A)
1-82359-069-2
02
1
0202-
315
COVER; HOLE,SW
(B)
8-97043-732-1
02
1
0202-
315
COVER; HOLE,SW
PTO CONTROL<SV6> (A)
1-82359-069-2
05
1
0202-
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
06
1
0202-
316
BOX; COIN
8-94482-280-2
02
1
0202-
317
CONSENT
1-82523-020-2
01
1
0202-
320
SEAL; HOLE,TRAY
OD=25 BLACK THA
1-76798-019-0
04
1
0202-
361
RING; SNAP
ID=5
9-09185-405-0
02
1
0210-
362
STUD; CONSOLE BOX
1-72538-308-0
02
1
0210-
315
315
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
SCREW; BOX
M5X14 TAPPING CK-HEAD
0-70080-514-0
06
1
0210-
60
SCREW; BOX
M5X14 THA
8-94279-325-0
04
1
0210-
315
COVER; HOLE,SW
(A)
1-82359-069-2
02
1
0202-
315
COVER; HOLE,SW
(B)
8-97043-732-1
02
1
0202-
315
COVER; HOLE,SW
PTO CONTROL<SV6> (A)
1-82359-069-2
05
1
0202-
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
06
1
0202-
361
RING; SNAP
ID=5
9-09185-405-0
02
1
0210-
362
STUD; CONSOLE BOX
1-72538-308-0
02
1
0210-
