Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11022 - CYZ RHD
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#31816) — 28 parça
◀

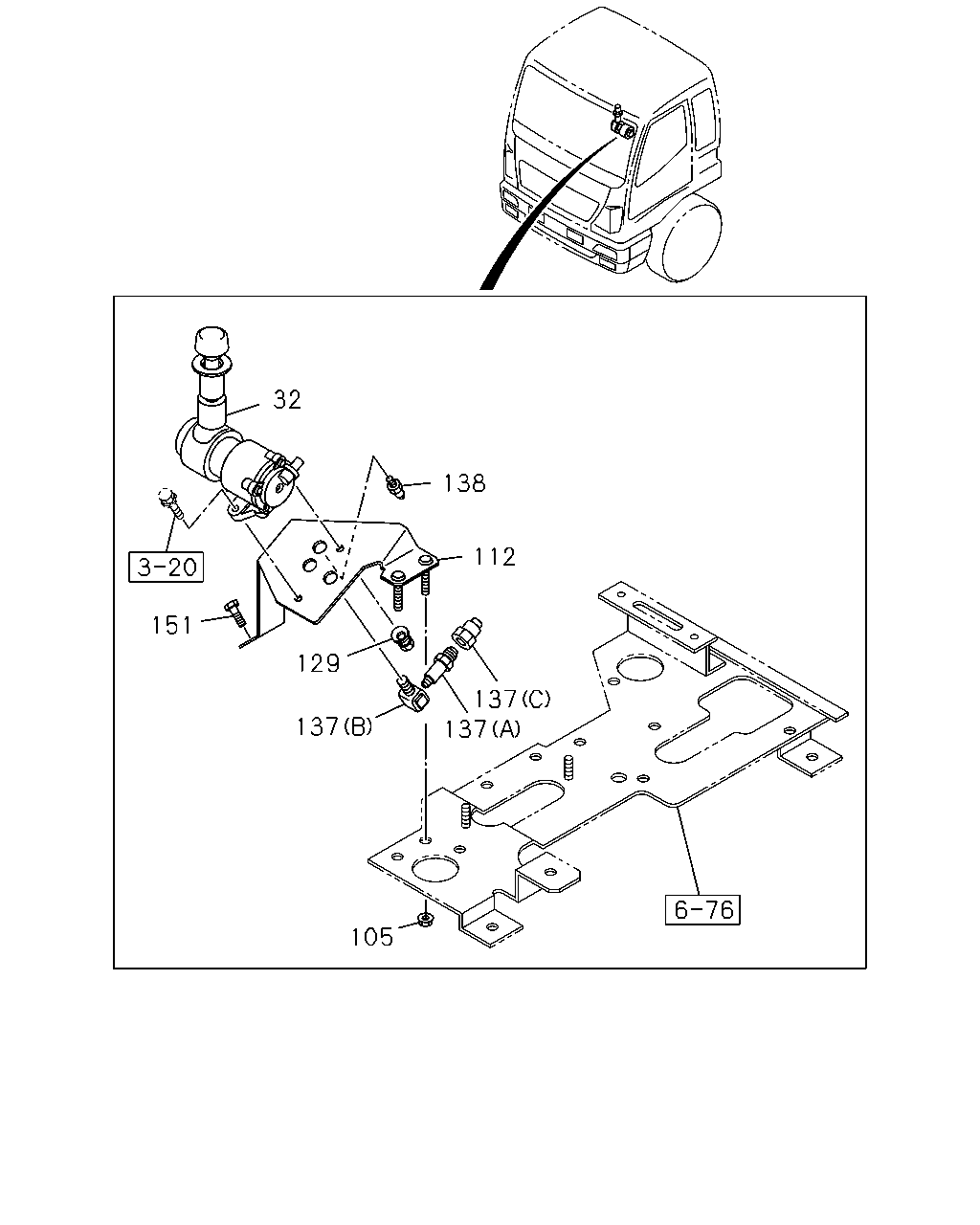

[326A] FIXING (9 parça)

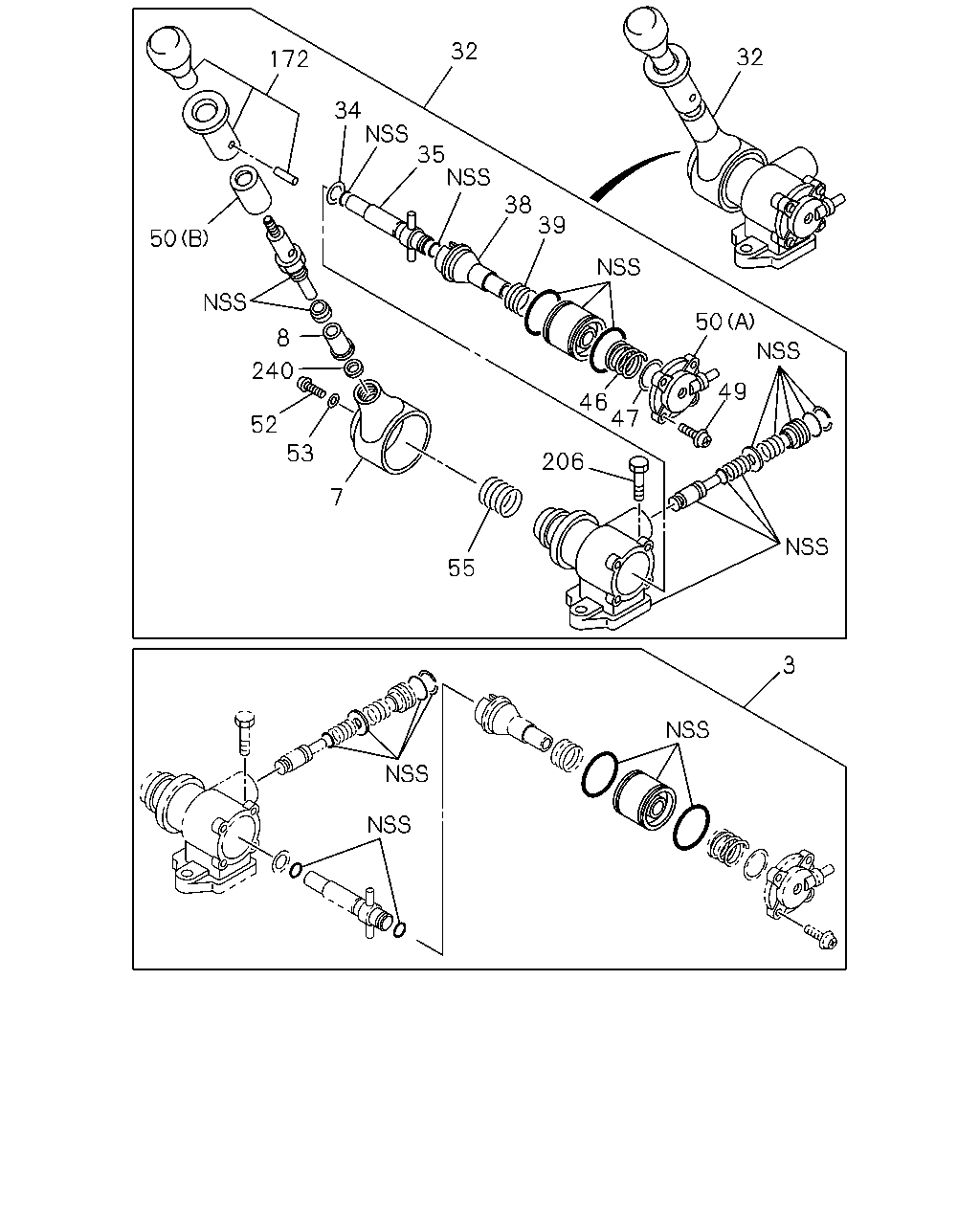

[326A] COMPONENT AND REPAIR KIT (19 parça)
▶
32
138
112
151
129
137
137
137
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-340-1
01
1
0604-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0604-
112
BRACKET; CONT VLV
1-79996-387-0
01
1
0604-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
0604-
137
CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
0604-
137
CONNECTOR; SUPPLY
(B) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
0604-
137
CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0604-
138
CONNECTOR; DELIVERY
DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0604-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0604-
32
32
172
34
35
38
39
50
50
8
240
49
46
47
52
53
206
7
55
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-85576-375-0
01
1
0604-
7
HEAD; BRK VLV
1-48469-195-0
01
1
0604-
8
STOPPER; BRK VLV
1-48469-194-0
01
1
0604-
32
VALVE; BRK,HAND CONT
1-48460-340-1
01
1
0604-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0604-
35
HOLDER; CAM
1-48469-148-0
01
1
0604-
38
SEAT; EXH VLV
1-48469-149-0
01
1
0604-
39
SPRING; RETURN,CAM RING
1-48469-150-0
01
1
0604-
46
SPRING; MAIN,PISTON
1-48469-152-0
01
1
0604-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0604-
49
SCREW; COVER
1-48469-169-0
04
1
0604-
50
COVER; HAND BRK VLV
(A)
1-48469-153-0
01
1
0604-
50
COVER; HAND BRK VLV
(B)
1-48469-196-0
01
1
0604-
52
SCREW; HANDLE
1-48469-062-0
01
1
0604-
53
WASHER; HANDLE
1-48469-061-0
01
1
0604-
55
SPRING; RETURN,HANDLE
1-48469-155-0
01
1
0604-
172
KNOB; VALVE
1-48469-204-0
01
1
0604-
206
BOLT; HAND BRK VALVE
1-48469-160-0
01
1
0604-
240
RING; STOPPER
1-48469-193-0
01
1
0604-
