2-39 — POWER ASSISTOR (#31806) — 124 parça

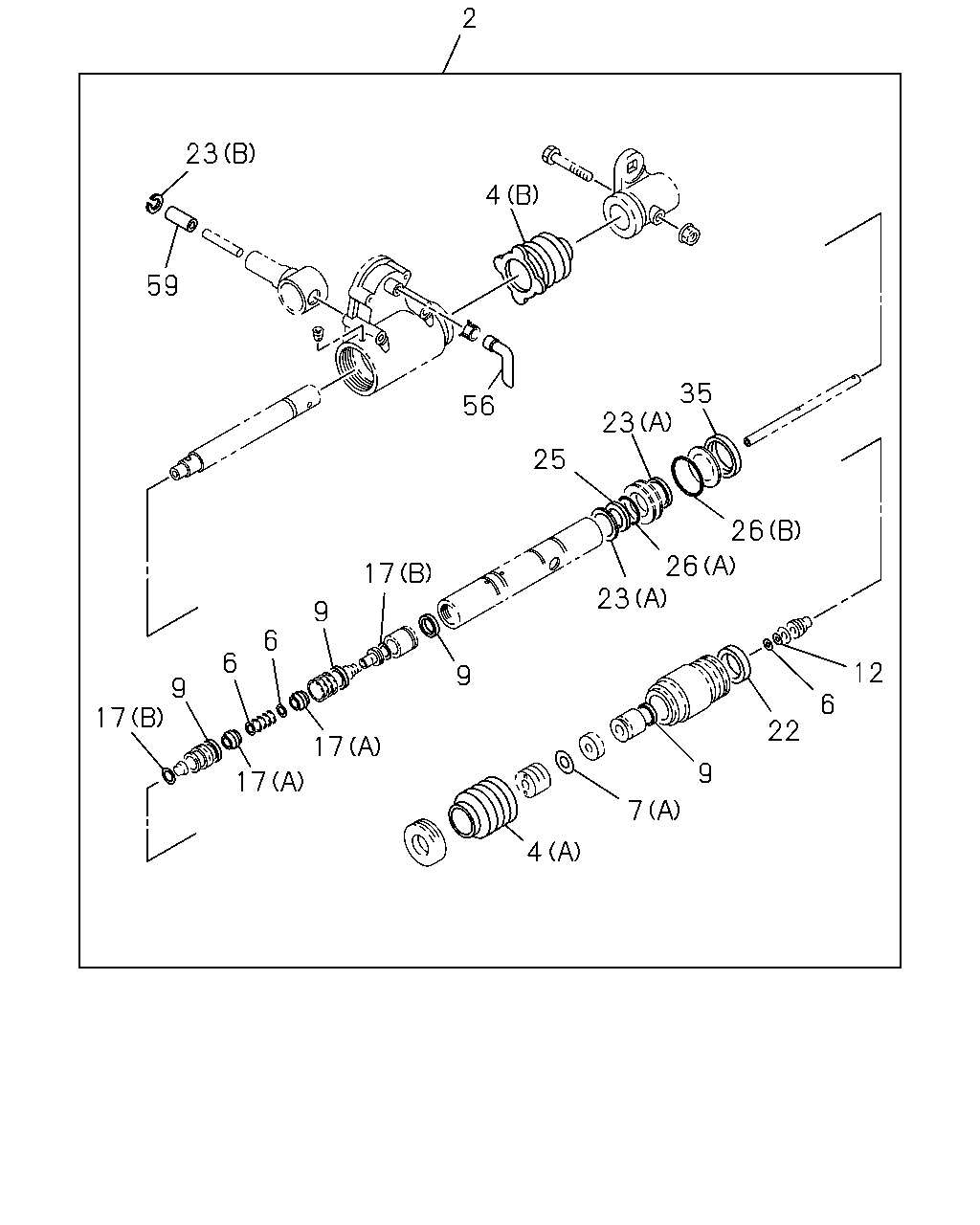

2 23 4 59 35 56 23 25 26 26 17 23 9 6 6 12 9 9 17 6 22 17 9 17 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-107-0	01	1	0604-	●
2	REPAIR KIT; POWER SHIFTER	1-33738-106-0	01	1	0604-		●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-101-0	01	1	0604-	●
4	BOOT; POWER SHIFTER (B)	1-33738-101-0	01	1	0604-		●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	0604-	●
4	BOOT; POWER SHIFTER (A)	1-33739-038-0	01	1	0604-		●
6	GASKET ASSISTOR SHIFT CONTROL<WX8>	1-33739-013-0	03	1	0604-	●
6	GASKET	1-33739-013-0	03	1	0604-		●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-036-0	01	1	0604-	●
7	FILTER; AIR (B)	1-33738-036-0	01	1	0604-		●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-033-0	01	1	0604-	●
7	FILTER; AIR (A)	1-33739-033-0	01	1	0604-		●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	0604-	●
9	RING; SQUARE	1-33739-086-0	04	1	0604-		●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	0604-	●
12	RING; RET	1-33739-016-0	01	1	0604-		●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	0604-	●
17	SEAL ASM; VALVE (A)	1-33739-012-0	02	1	0604-		●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	0604-	●
17	SEAL ASM; VALVE (B)	9-83335-055-0	02	1	0604-		●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	0604-	●
22	SEAL; OIL	1-33739-353-0	01	1	0604-		●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	0604-	●
23	RING; RET (A)	1-33739-022-0	02	1	0604-		●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0604-	●
23	RING; RET (B)	1-33739-564-0	01	1	0604-		●
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-350-0	01	1	0604-	●
25	RING; "X",PISTON	1-33739-613-0	01	1	0604-		●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	0604-	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	0604-	●
26	GASKET (A)	1-33739-124-0	01	1	0604-		●
26	GASKET (B)	1-33739-604-0	01	1	0604-		●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	0604-	●
35	GASKET; CUP	1-33739-073-0	01	1	0604-		●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	0604-	●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	0604-		●
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-102-0	01	1	0604-	●
59	SHIM; POWER SHIFTER	1-33738-102-0	01	1	0604-		●

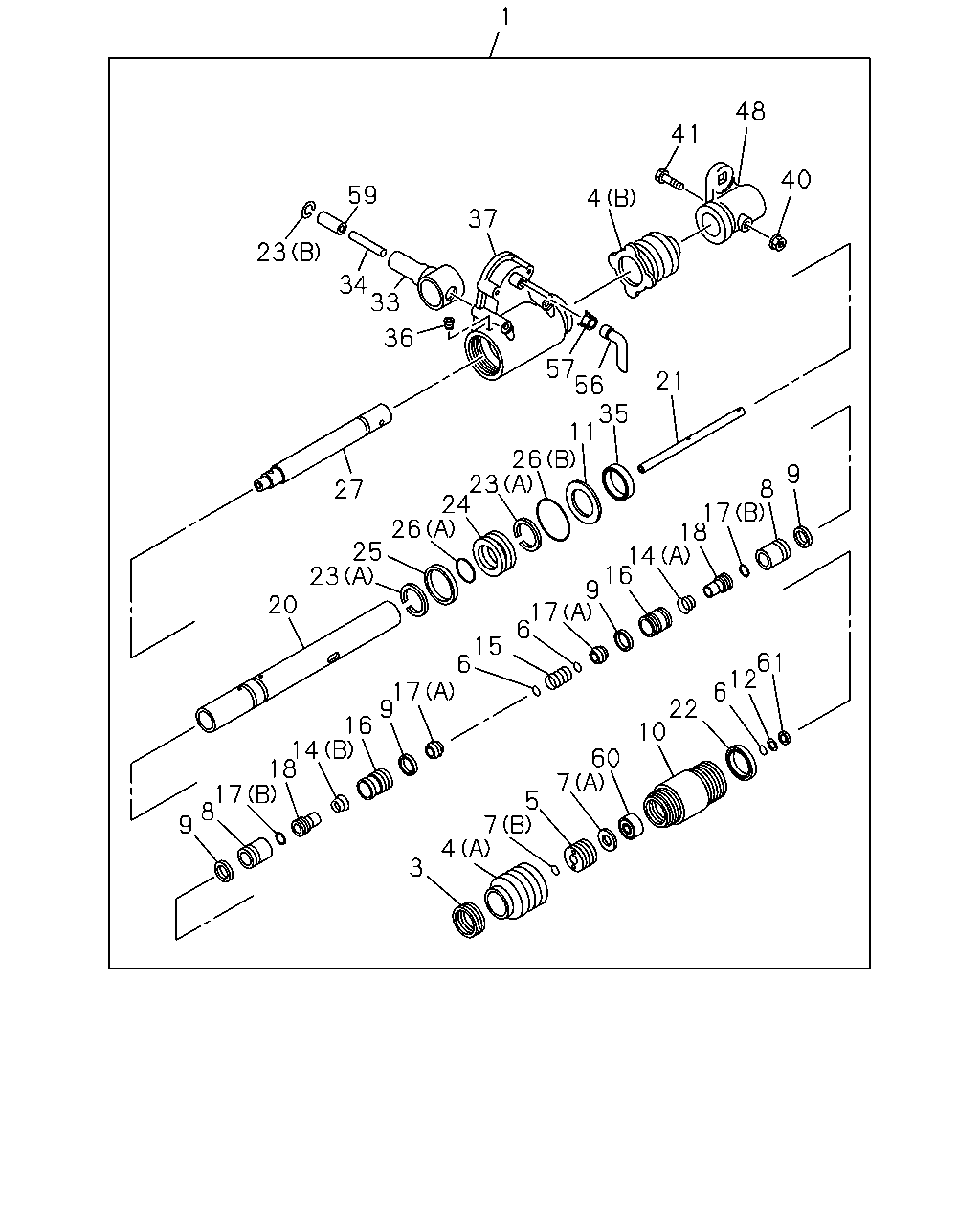

1 48 41 40 59 4 37 23 34 33 36 57 56 35 11 26 23 24 26 25 23 21 9 8 17 18 27 14 16 9 20 17 6 15 6 61 12 6 17 9 16 14 18 17 8 9 22 10 60 7 5 7 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-286-0	01	1	0604-	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-270-1	01	1	0604-		●
3	NUT; LK,ROD ASSISTOR SHIFT CONTROL<WX8>	1-33739-025-0	01	1	0604-	●
3	NUT; LK,ROD	1-33739-025-0	01	1	0604-		●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-101-0	01	1	0604-	●
4	BOOT; POWER SHIFTER (B)	1-33738-101-0	01	1	0604-		●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	0604-	●
4	BOOT; POWER SHIFTER (A)	1-33739-038-0	01	1	0604-		●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-596-0	01	1	0604-	●
5	CONNECTOR; CYL	1-33739-596-0	01	1	0604-		●
6	GASKET ASSISTOR SHIFT CONTROL<WX8>	1-33739-013-0	03	1	0604-	●
6	GASKET	1-33739-013-0	03	1	0604-		●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-036-0	01	1	0604-	●
7	FILTER; AIR (B)	1-33738-036-0	01	1	0604-		●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-033-0	01	1	0604-	●
7	FILTER; AIR (A)	1-33739-033-0	01	1	0604-		●
8	TUBE ASSISTOR SHIFT CONTROL<WX8>	1-33739-560-0	02	1	0604-	●
8	TUBE	1-33739-560-0	02	1	0604-		●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	0604-	●
9	RING; SQUARE	1-33739-086-0	04	1	0604-		●
10	CYLINDER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-352-0	01	1	0604-	●
10	CYLINDER; POWER SHIFTER	1-33739-605-0	01	1	0604-		●
11	PLATE; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-108-0	01	1	0604-	●
11	PLATE; CYL	1-33739-600-0	01	1	0604-		●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	0604-	●
12	RING; RET	1-33739-016-0	01	1	0604-		●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	0604-	●
14	SPRING; VALVE LIFTER (A)	1-33739-347-0	01	1	0604-		●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	0604-	●
14	SPRING; VALVE LIFTER (B)	1-33739-354-0	01	1	0604-		●
15	SPRING; VALVE SEAL ASSISTOR SHIFT CONTROL<WX8>	1-33739-014-0	01	1	0604-	●
15	SPRING; VALVE SEAL	1-33739-014-0	01	1	0604-		●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-067-0	02	1	0604-	●
16	SEAT; VALVE	1-33739-067-0	02	1	0604-		●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	0604-	●
17	SEAL ASM; VALVE (A)	1-33739-012-0	02	1	0604-		●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	0604-	●
17	SEAL ASM; VALVE (B)	9-83335-055-0	02	1	0604-		●
18	LIFTER; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-586-0	02	1	0604-	●
18	LIFTER; VALVE	1-33739-586-0	02	1	0604-		●
20	ROD ASM; W/CAP ASSISTOR SHIFT CONTROL<WX8>	1-33739-599-0	01	1	0604-	●
20	ROD ASM; W/CAP	1-33739-599-0	01	1	0604-		●
21	PIPE; AIR,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-598-0	01	1	0604-	●
21	PIPE; AIR,POWER SHIFTER	1-33739-598-0	01	1	0604-		●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	0604-	●
22	SEAL; OIL	1-33739-353-0	01	1	0604-		●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	0604-	●
23	RING; RET (A)	1-33739-022-0	02	1	0604-		●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0604-	●
23	RING; RET (B)	1-33739-564-0	01	1	0604-		●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-499-0	01	1	0604-	●
24	PISTON	1-33739-601-0	01	1	0604-		●
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-350-0	01	1	0604-	●
25	RING; "X",PISTON	1-33739-613-0	01	1	0604-		●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	0604-	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	0604-	●
26	GASKET (A)	1-33739-124-0	01	1	0604-		●
26	GASKET (B)	1-33739-604-0	01	1	0604-		●
27	ROD; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-597-0	01	1	0604-	●
27	ROD; POWER SHIFTER	1-33739-597-0	01	1	0604-		●
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-609-0	01	1	0604-	●
33	STRIKER; POWER SHIFTER	1-33739-609-0	01	1	0604-		●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-575-0	01	1	0604-	●
34	PIN; STRAIGHT,POWER SHIFTER	1-33739-575-0	01	1	0604-		●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	0604-	●
35	GASKET; CUP	1-33739-073-0	01	1	0604-		●
36	SCREW; SET ASSISTOR SHIFT CONTROL<WX8>	1-33739-040-0	01	1	0604-	●
36	SCREW; SET	1-33739-040-0	01	1	0604-		●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-606-0	01	1	0604-	●
37	HOUSING; POWER SHIFTER	1-33739-603-0	01	1	0604-		●
40	NUT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-940-0	01	1	0604-	●
40	NUT; LEVER	1-33739-940-0	01	1	0604-		●
41	BOLT; SET,LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-939-0	01	1	0604-	●
41	BOLT; SET,LEVER	1-33739-939-0	01	1	0604-		●
48	LEVER; CONT,CABLE ASSISTOR SHIFT CONTROL<WX8>	1-33739-591-1	01	1	0604-	●
48	LEVER; CONT,CABLE	1-33739-591-1	01	1	0604-		●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	0604-	●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	0604-		●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	0604-	●
57	CLAMP; HOSE	1-33739-569-0	01	1	0604-		●
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-102-0	01	1	0604-	●
59	SHIM; POWER SHIFTER	1-33738-102-0	01	1	0604-		●
60	COLLAR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-595-0	01	1	0604-	●
60	COLLAR; CYL	1-33739-595-0	01	1	0604-		●
61	PLATE; VLV LIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-581-0	01	1	0604-	●
61	PLATE; VLV LIFTER	1-33739-581-0	01	1	0604-		●
