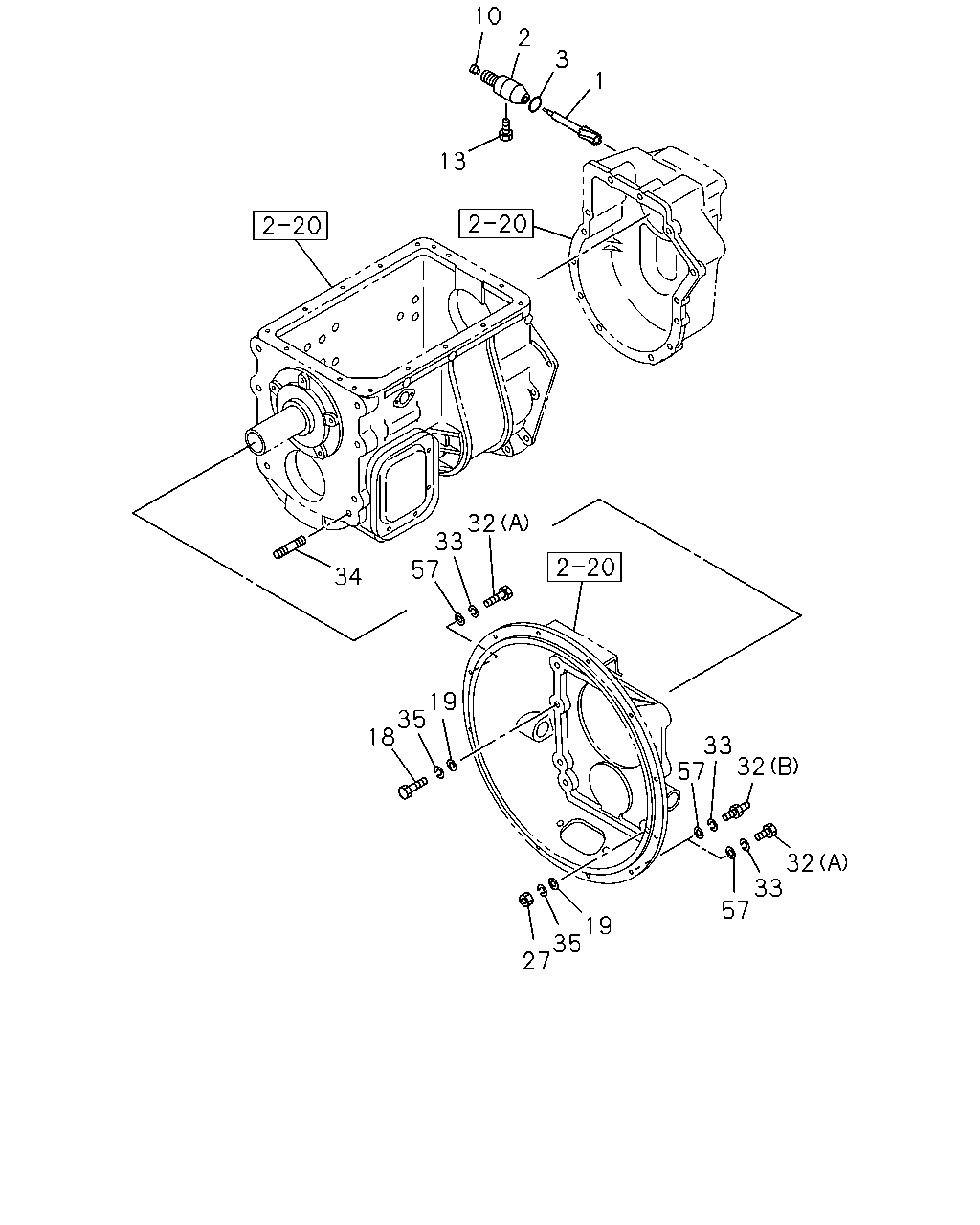

2-25 — SPEEDOMETER DRIVEN GEAR (#31800) — 51 parça

10 2 3 1 13 32 33 57 18 34 32 33 57 32 33 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0604-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0604-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0604-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0604-	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0604-0805	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0604-	●
18	BOLT; CLU HSG TO TRANS M12X50 FLANGE	0-28151-250-0	17	1	0604-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28751-235-0	10	1	0604-1108	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28151-235-0	10	1	1109-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	02	1	0604-1108	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X18,M12X35 L=64.7	1-09029-083-0	02	1	1109-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60 FLANGE	0-28151-260-0	10	1	0604-1103		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X70 FLANGE	0-28151-270-0	10	1	1104-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	02	1	0604-1103		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X70 L=97.7	1-09049-038-1	02	1	1104-		●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	02	1	0604-0604	●	●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	02	1	0604-1103	●	●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	02	1	1104-1108	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0604-	●
34	STUD; CLU HSG M10X28,M12X50 L=89.7	1-09049-037-0	02	1	0604-		●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	0604-1103	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	1104-1108	●

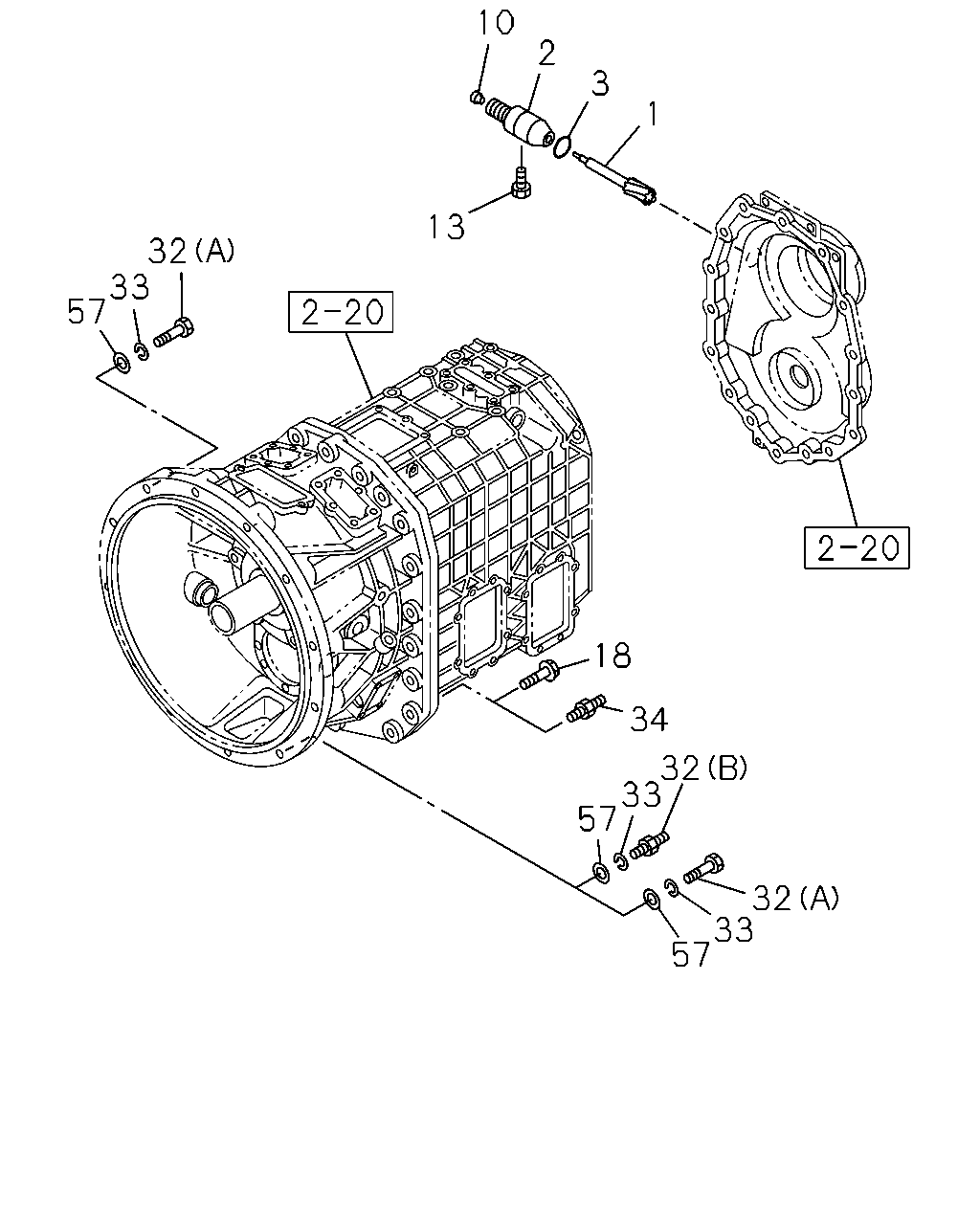

10 2 3 1 13 32 33 57 34 19 35 18 33 32 57 32 33 57 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0604-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0604-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0604-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0604-	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0604-0805	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0604-	●
18	BOLT; CLU HSG TO TRANS M12X50 FLANGE	0-28151-250-0	17	1	0604-		●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0604-0605	●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0604-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28751-235-0	10	1	0604-1108	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28151-235-0	10	1	1109-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	02	1	0604-1108	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X18,M12X35 L=64.7	1-09029-083-0	02	1	1109-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60 FLANGE	0-28151-260-0	10	1	0604-1103		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X70 FLANGE	0-28151-270-0	10	1	1104-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	02	1	0604-1103		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X70 L=97.7	1-09049-038-1	02	1	1104-		●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	02	1	0604-0604	●	●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	02	1	0604-1103	●	●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	02	1	1104-1108	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0604-	●
34	STUD; CLU HSG M10X28,M12X50 L=89.7	1-09049-037-0	02	1	0604-		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0604-0604	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	0604-1103	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	1104-1108	●
