2-05 — CLUTCH PIPING (#31795) — 104 parça

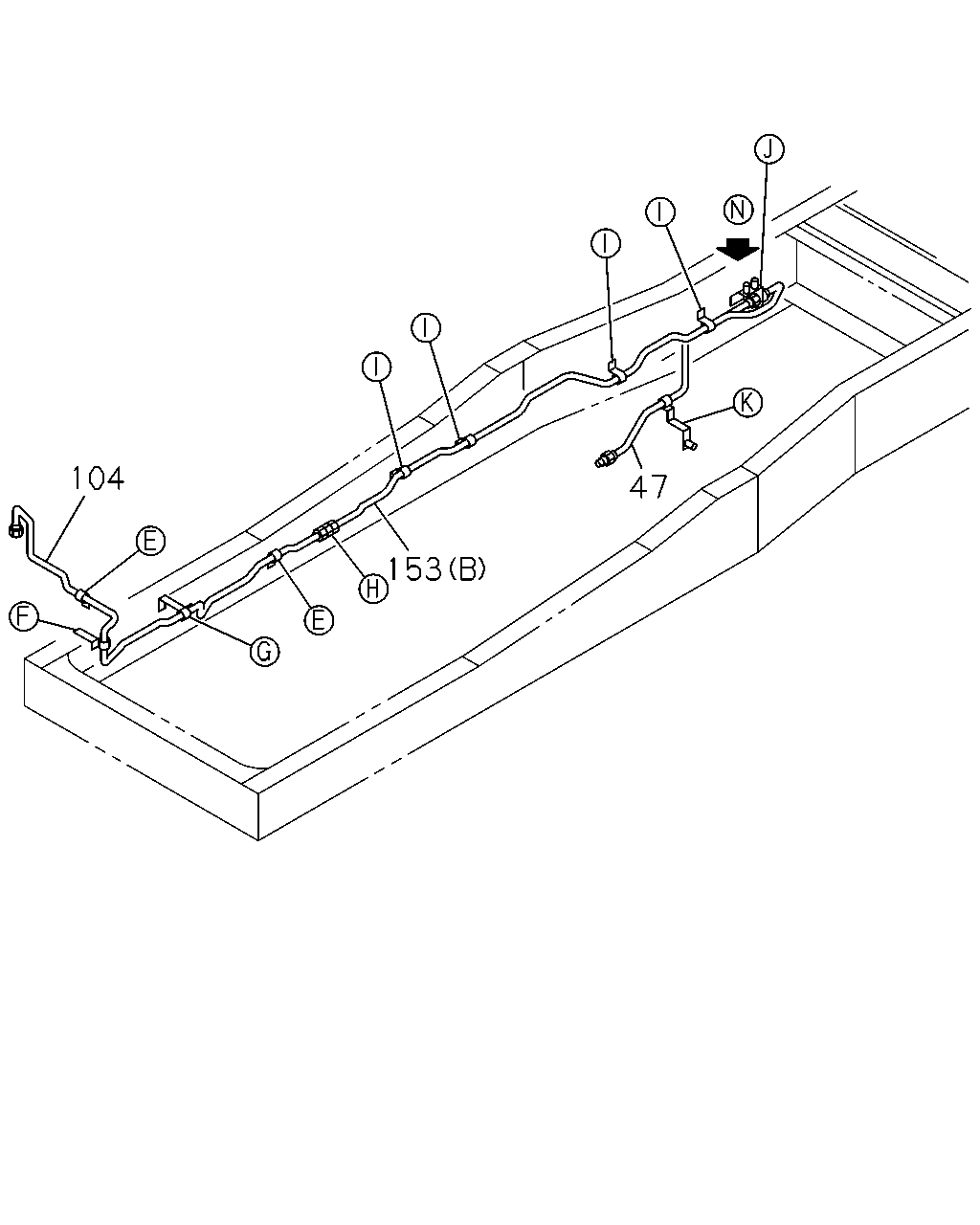

104 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=470	1-09364-692-0	01	1	0604-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0604-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0604-1110
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1858 SERVICED BY L=1950	1-47428-769-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2035 SERVICED BY L=2150	1-47426-394-0	01	1	0604-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2036 SERVICED BY L=2150	1-47428-770-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=464	1-47424-530-2	01	1	0604-

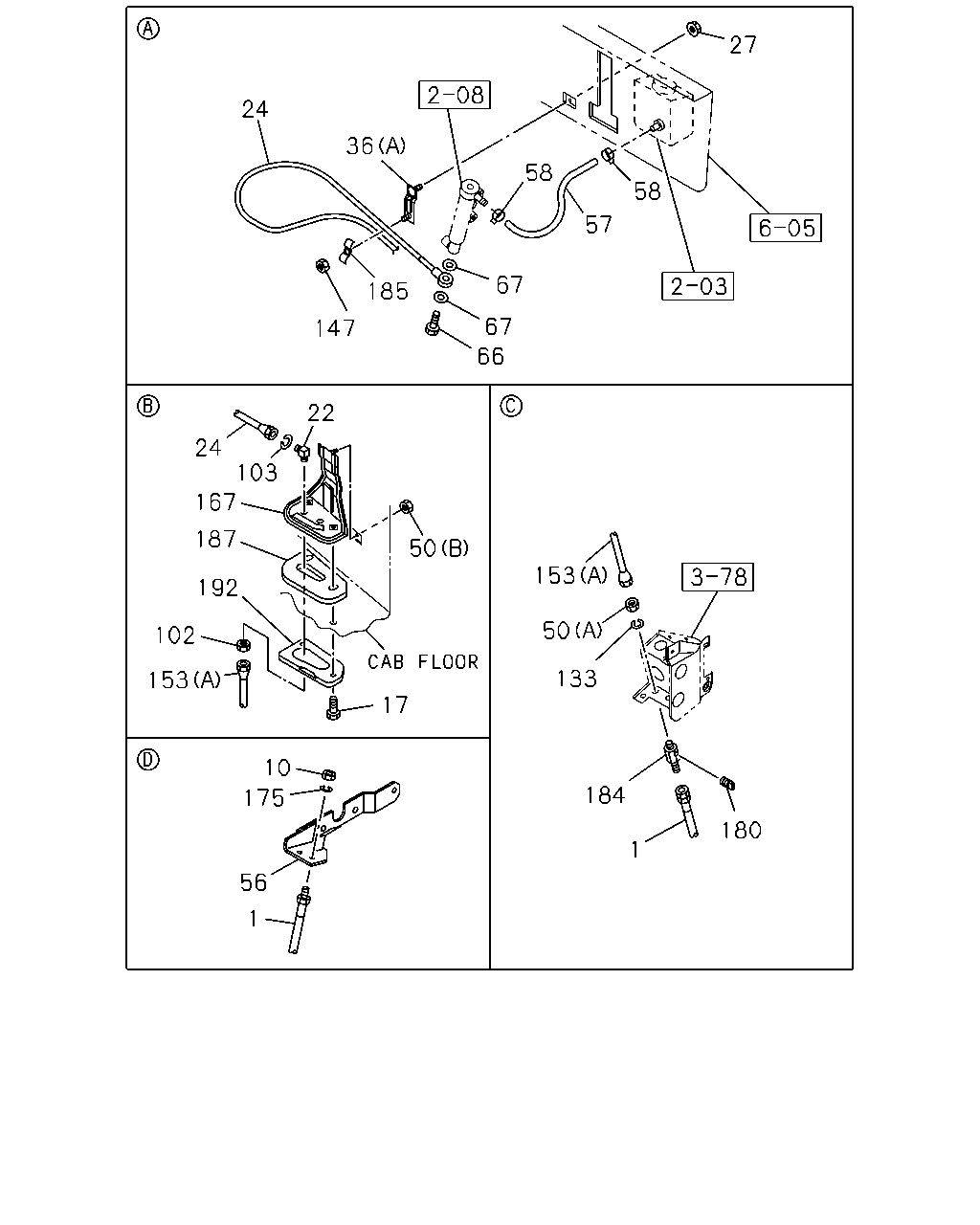

27 24 36 58 58 57 67 185 67 147 66 22 24 103 167 187 50 153 192 50 102 133 153 17 10 184 175 180 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0604-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0604-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0604-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0604-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0604-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0604-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0604-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0604-
36	BRACKET; CLIP MJT7 M/T<Y9E> (A)	1-47475-689-0	01	1	0604-
36	BRACKET; CLIP (B)	1-71117-191-1	01	1	0604-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0604-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0604-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0604-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0604-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0604-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0604-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0604-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0604-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0604-0604
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0604-0604
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0604-1110
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1858 SERVICED BY L=1950	1-47428-769-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2035 SERVICED BY L=2150	1-47426-394-0	01	1	0604-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2036 SERVICED BY L=2150	1-47428-770-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=464	1-47424-530-2	01	1	0604-
167	BRACKET; UNION	1-71117-183-3	01	1	0604-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0604-0604
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0604-0804
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0604-0804
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0604-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
187	SEAL; BRKT	1-71117-222-0	01	1	0604-
192	PLATE	1-71117-221-0	01	1	0604-

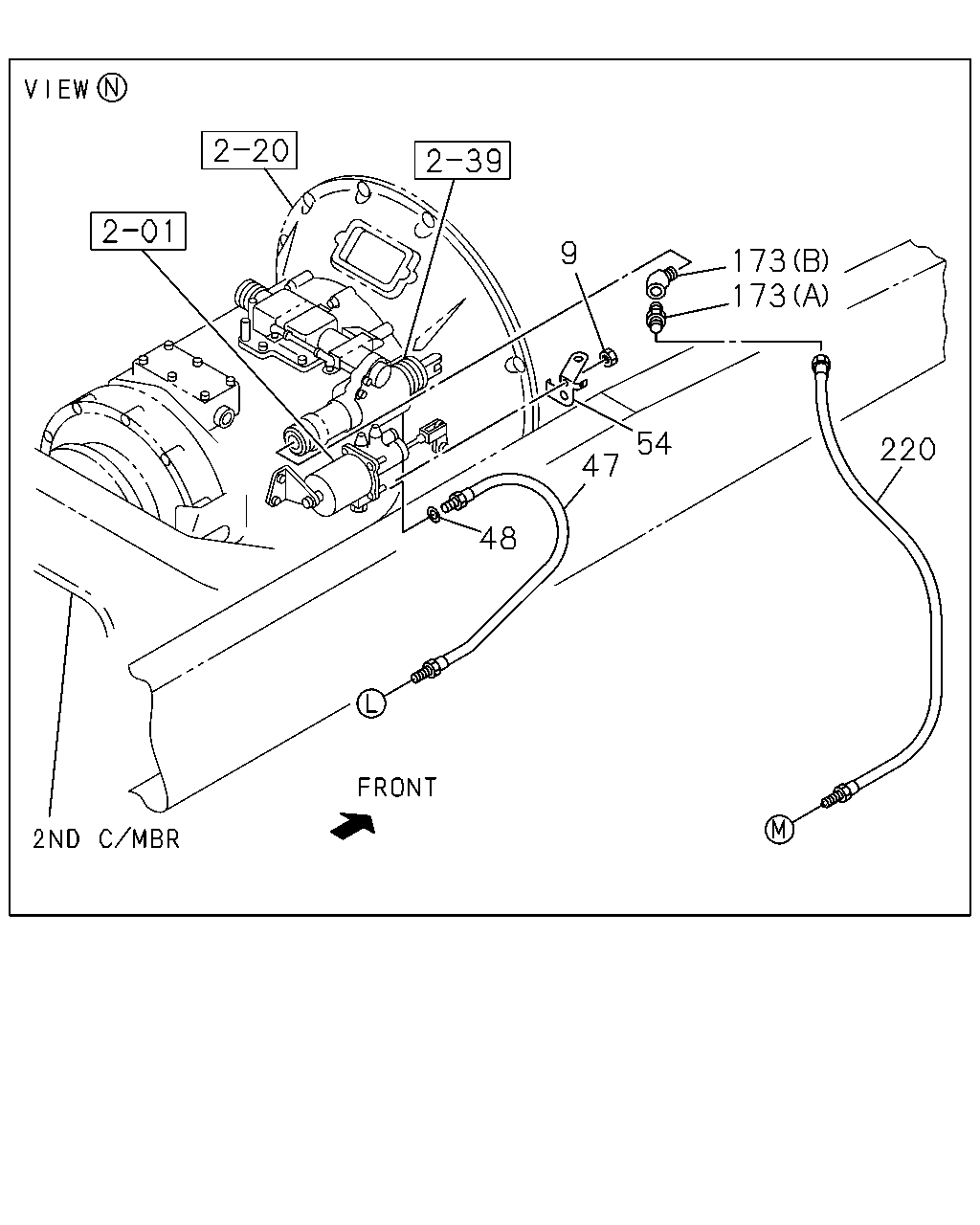

9 173 173 54 220 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0604-
47	HOSE; FLEX,CLU CONT MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=470	1-09364-692-0	01	1	0604-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0604-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0604-
54	BRACKET; AIR,FLEX HOSE MAL6U M/T(Y2R)	1-47477-284-1	01	1	0604-
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0604-
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) R1/4 & RC1/4	1-09664-211-0	01	1	0604-
220	HOSE; FLEX,POWER ASSIST MAL6 M/T<X9G> ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> L=380	1-09363-884-0	01	1	0604-
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	0604-

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0604-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0604-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0604-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0604-1110
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1858 SERVICED BY L=1950	1-47428-769-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2035 SERVICED BY L=2150	1-47426-394-0	01	1	0604-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2036 SERVICED BY L=2150	1-47428-770-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=464	1-47424-530-2	01	1	0604-
167	BRACKET; UNION	1-71117-183-3	01	1	0604-

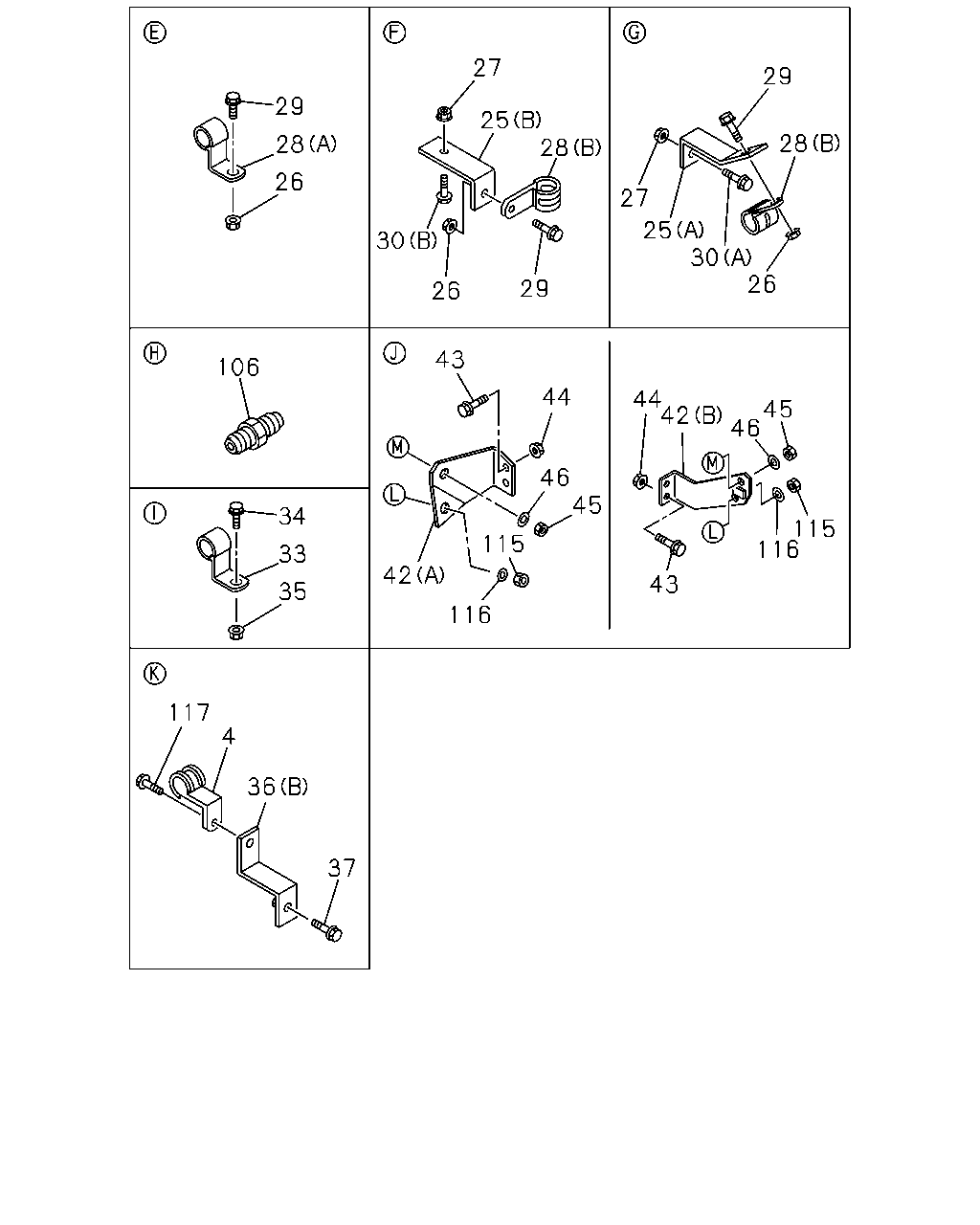

27 29 29 25 28 28 28 26 27 25 30 30 26 29 26 43 106 44 44 45 42 46 46 45 34 115 115 116 33 42 43 35 116 117 4 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> ID=16 H=25 L=25	1-09701-162-0	01	1	0604-
25	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	0604-
25	BRACKET; OIL PIPE (A)	1-47477-406-0	01	1	0604-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0604-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0604-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0604-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0604-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0604-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0604-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	0607-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0604-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0604-
30	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0604-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0604-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0604-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0604-
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0604-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0604-
36	BRACKET; CLIP MJT7 M/T<Y9E> (A)	1-47475-689-0	01	1	0604-
36	BRACKET; CLIP (B)	1-71117-191-1	01	1	0604-
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	0604-
42	BRACKET; FLEX HOSE,CLU CONT MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (A)	1-47479-812-0	01	1	0604-
42	BRACKET; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> (B)	1-47471-203-0	01	1	0604-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X40 FLANGE	0-28650-840-0	02	1	0604-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0604-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0604-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0604-0604
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0604-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0604-0604
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
117	BOLT; CLIP,FLEX HOSE MJT7 M/T<Y9E> M8X16 FLANGE	0-28050-816-0	01	1	0604-
