2-01 — CLUTCH (#31793) — 137 parça

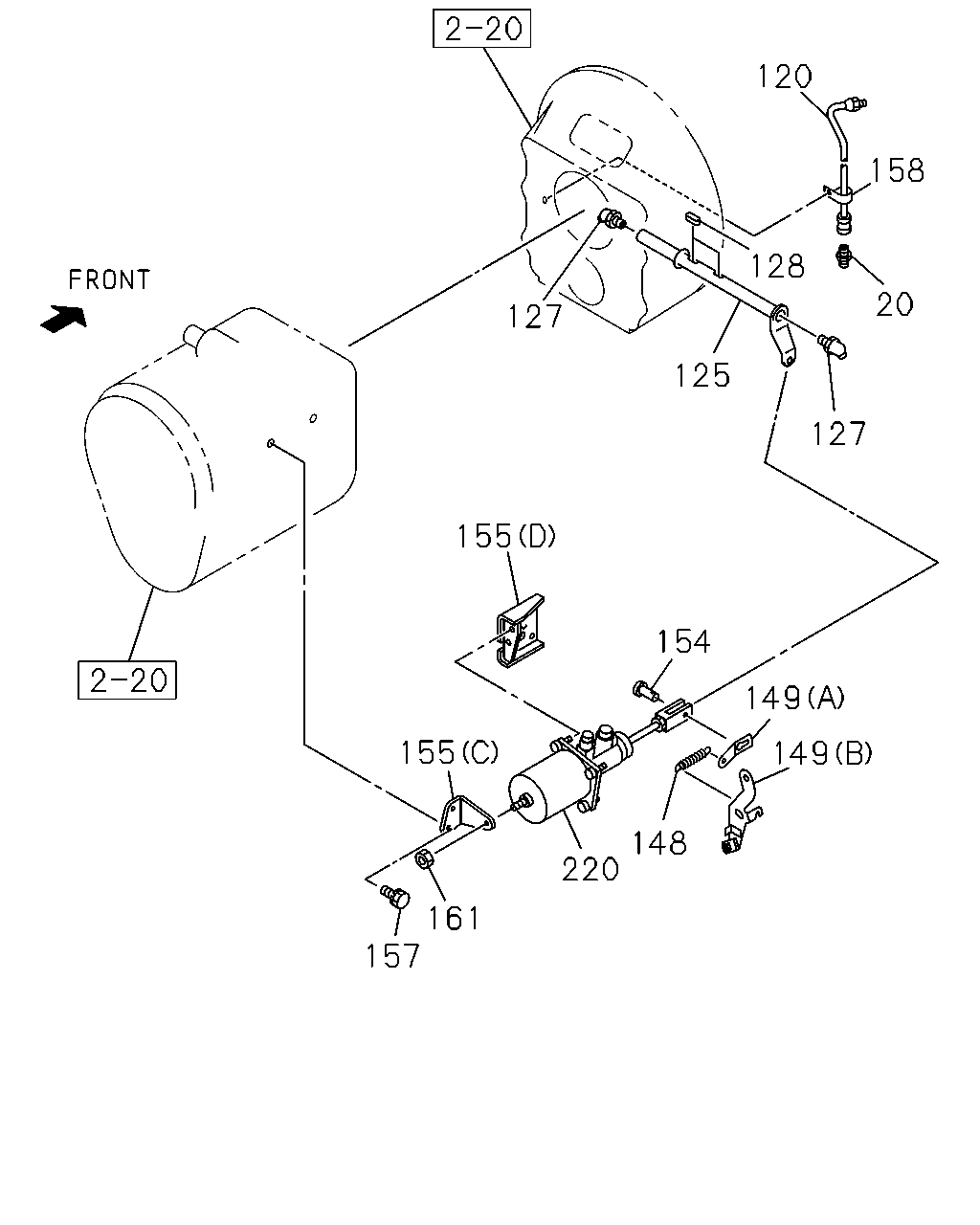

120 158 128 20 127 125 127 155 154 149 155 149 148 220 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	NIPPLE; GREASE PT1/8 STRAIGHT	0-90301-410-0	01	1	0704-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	0704-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0604-		●
125	SHAFT; CLU	1-31342-305-0	01	1	0604-		●
125	SHAFT; CLU	1-31342-290-1	01	1	0604-1308	●
125	SHAFT; CLU	8-98242-405-0	01	1	1309-	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0604-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0604-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0604-	●	●
149	EYE; SPRING,RETURN SPRING (A)	1-31426-052-0	01	1	0604-	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-056-0	01	1	0604-	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0604-	●	●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	0604-		●
155	BRACKET; MINIPACK (B)	1-31429-443-2	01	1	0604-		●
155	BRACKET; MINIPACK (C)	1-31429-350-0	01	1	0604-	●
155	BRACKET; MINIPACK (D)	1-31429-391-0	01	1	0604-	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0604-		●
157	BOLT; BRKT M10X25 FLANGE	0-28151-025-0	03	1	0604-	●
158	CLIP; FLEX HOSE	9-09917-576-0	01	1	0704-	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0604-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-091-0	01	1	0604-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-490-2	01	1	0604-	●	●

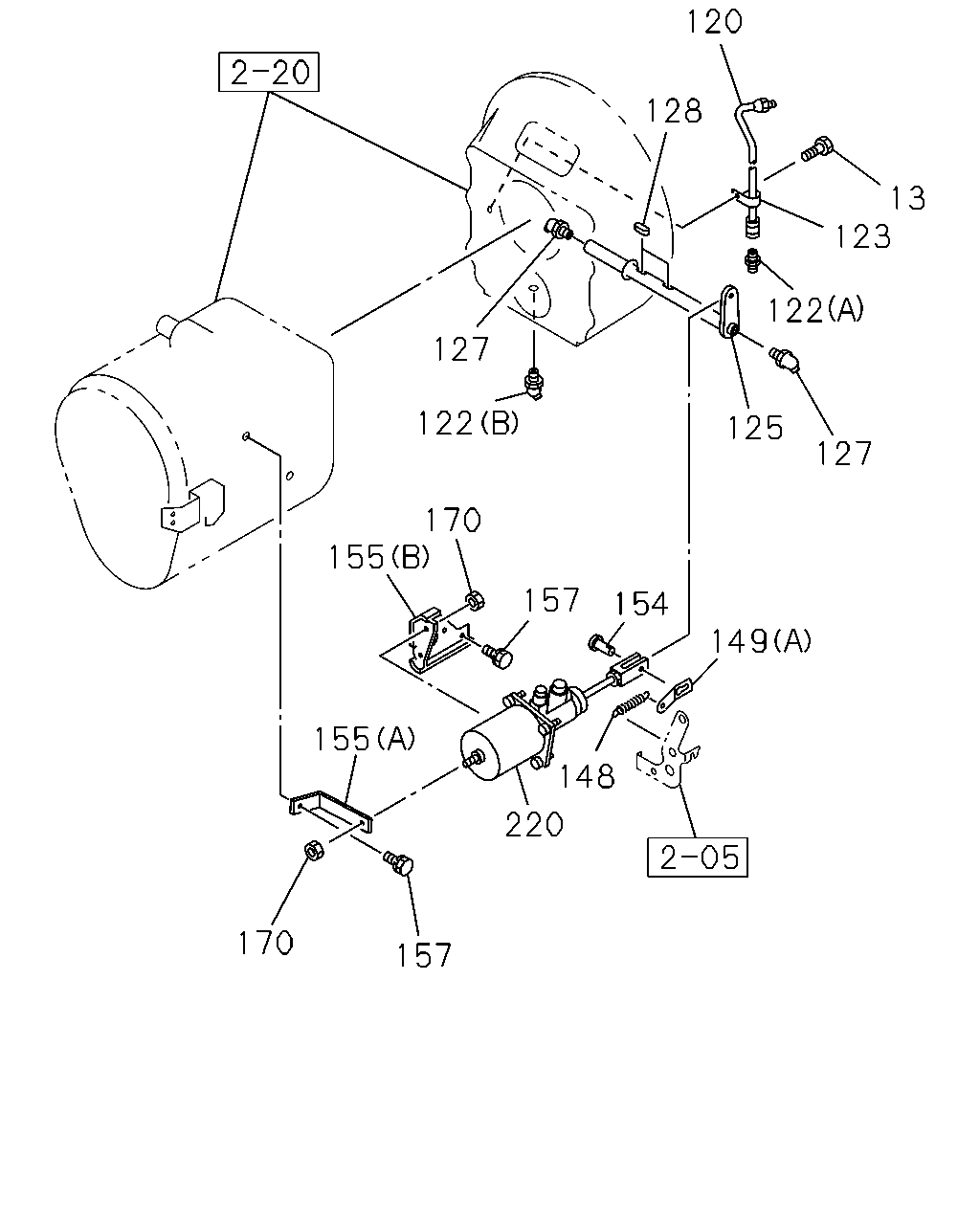

120 128 13 123 122 127 122 125 127 170 155 157 154 149 155 148 220 170 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0604-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	0704-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0604-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0604-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0604-		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0604-0606		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-		●
125	SHAFT; CLU	1-31342-305-0	01	1	0604-		●
125	SHAFT; CLU	1-31342-290-1	01	1	0604-1308	●
125	SHAFT; CLU	8-98242-405-0	01	1	1309-	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0604-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0604-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0604-	●	●
149	EYE; SPRING,RETURN SPRING (A)	1-31426-052-0	01	1	0604-	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-056-0	01	1	0604-	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0604-	●	●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	0604-		●
155	BRACKET; MINIPACK (B)	1-31429-443-2	01	1	0604-		●
155	BRACKET; MINIPACK (C)	1-31429-350-0	01	1	0604-	●
155	BRACKET; MINIPACK (D)	1-31429-391-0	01	1	0604-	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0604-		●
157	BOLT; BRKT M10X25 FLANGE	0-28151-025-0	03	1	0604-	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0604-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-091-0	01	1	0604-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-490-2	01	1	0604-	●	●

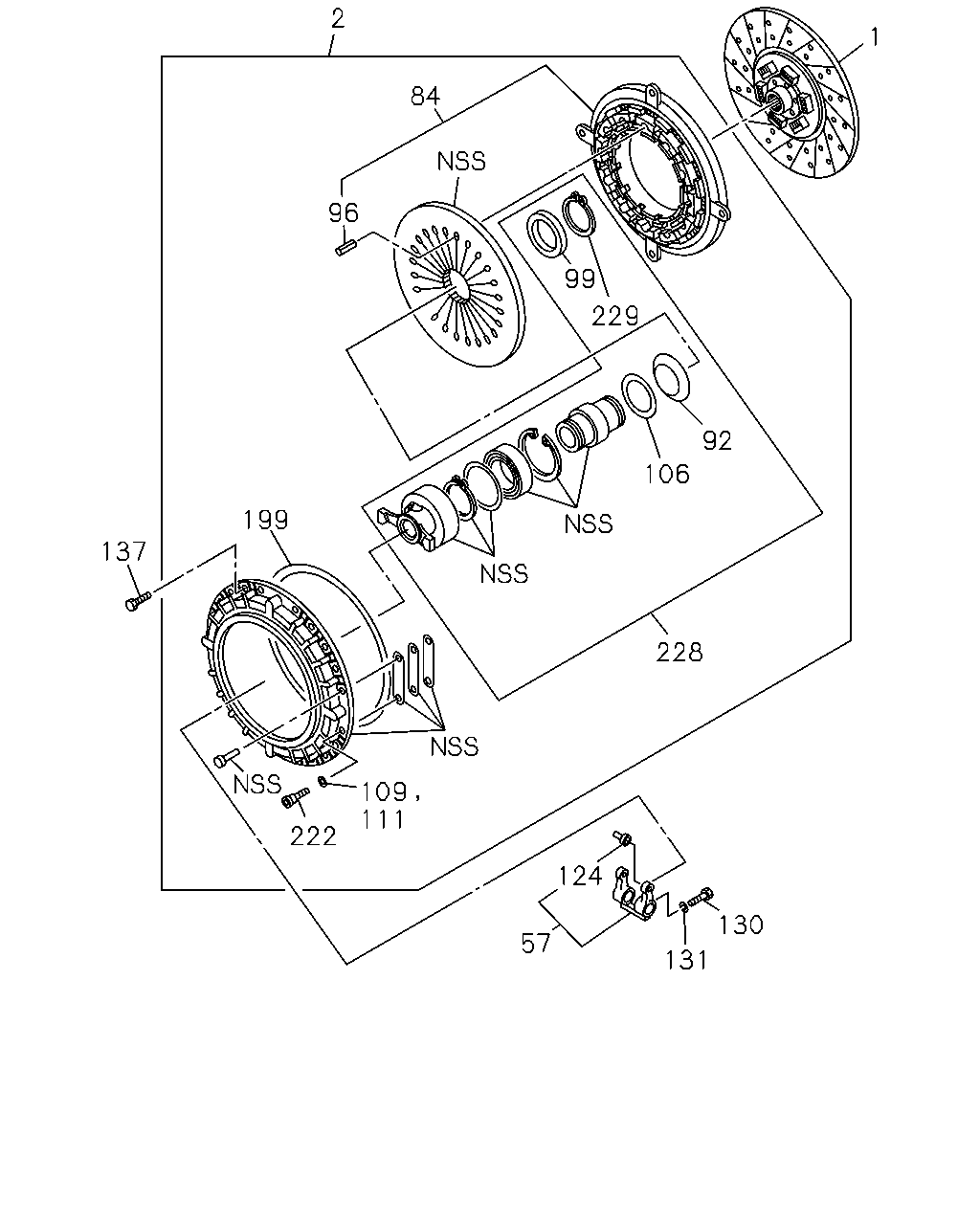

2 84 96 99 229 92 106 228 130 131 57 124 111 222 109 199 137 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 17"	1-31240-876-0	01	1	0604-		●
1	DISC; CLUTCH 17"	1-31240-864-1	01	1	0604-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-321-2	01	1	0604-1408		●
2	PLATE ASM; PRESSURE,CLU	1-31220-457-0	01	1	1409-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-400-1	01	1	0604-0710	●
2	PLATE ASM; PRESSURE,CLU	1-31220-430-0	01	1	0711-1002	●
2	PLATE ASM; PRESSURE,CLU	1-31220-445-0	01	1	1003-1404	●
2	PLATE ASM; PRESSURE,CLU	1-31220-463-0	01	1	1405-	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0604-		●
57	FORK; SHIFT,CLU	1-31340-062-0	01	1	0604-	●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0604-		●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0604-1002	●
84	PLATE; PRESSURE	1-31221-141-0	01	1	1003-	●
92	SPRING; CLU	1-31214-040-0	12	1	0604-1408		●
92	SPRING; CLU	8-98281-694-0	10	1	1409-		●
92	SPRING; CLU	1-31239-052-0	01	1	0604-	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0604-		●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0604-1002	●
99	PLATE; RELEASE LEVER	1-31239-065-0	01	1	0604-	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0604-		●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0604-	●
109	WASHER; LK,STRAP ID=13	1-31239-038-0	04	1	1405-	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0604-0604		●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-		●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	0604-		●
111	WASHER; PL,STRAP ID=13	1-31239-038-0	04	1	0604-1404	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0604-	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0604-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0604-0604	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0604-		●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	12	1	0604-	●
199	RING; WIRE,DIAPH,CLU	1-31239-036-0	01	1	0604-	●
222	BOLT; STRAP	1-09040-102-0	04	1	0604-		●
222	BOLT; STRAP	1-31239-037-0	04	1	0604-1002	●
222	BOLT; STRAP	1-31239-066-0	04	1	1003-	●
228	BEARING; RELEASE	1-31310-014-0	01	1	0604-0710	●
228	BEARING; RELEASE	1-31310-023-0	01	1	0711-1404	●
228	BEARING; RELEASE	1-31310-029-0	01	1	1405-	●
229	RING	1-31239-064-0	01	1	0604-	●

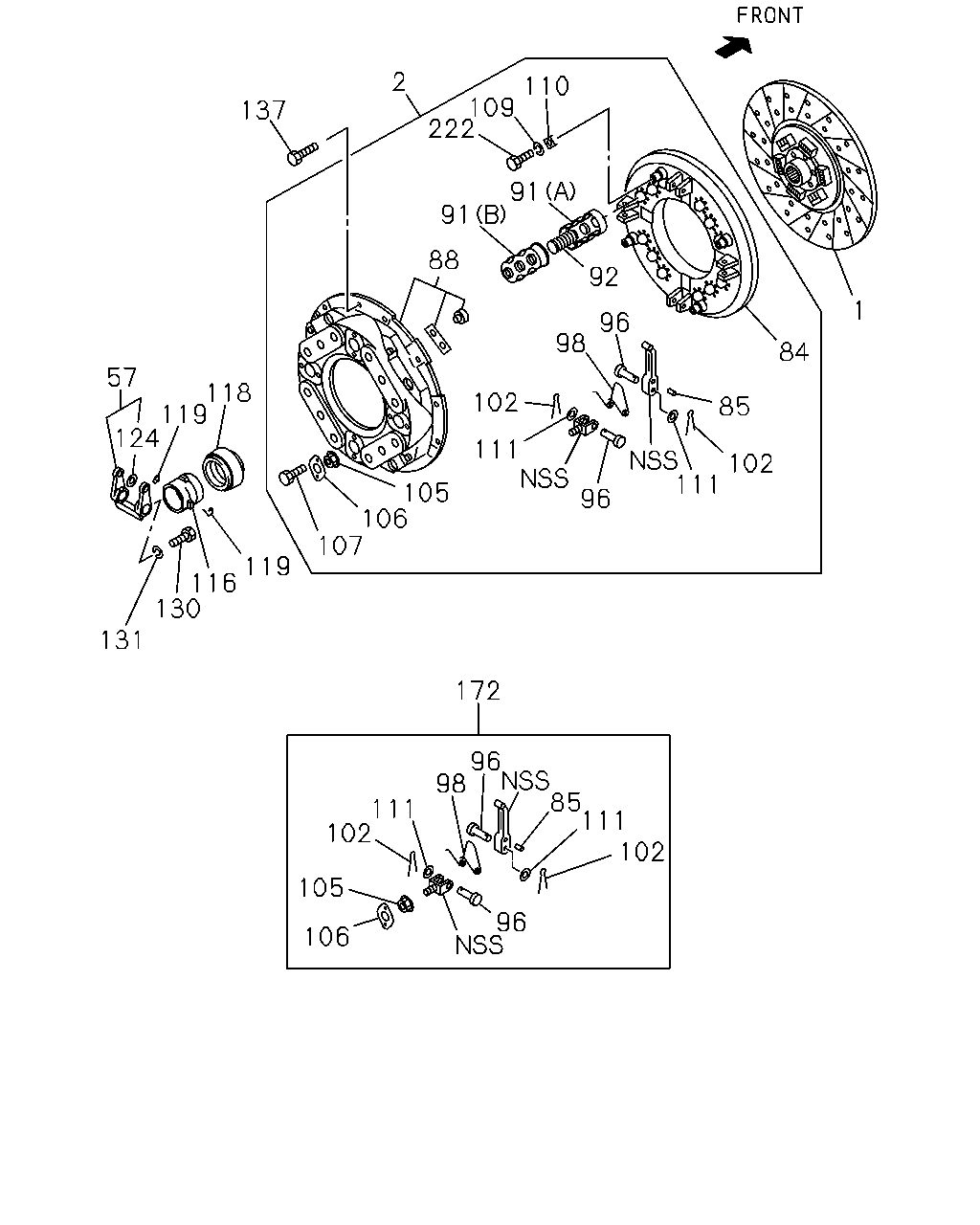

2 110 109 222 137 91 91 88 92 1 96 98 84 57 118 119 124 102 85 111 111 102 105 106 107 96 119 116 130 131 172 96 98 85 111 102 111 102 105 96 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 17"	1-31240-876-0	01	1	0604-		●
1	DISC; CLUTCH 17"	1-31240-864-1	01	1	0604-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-321-2	01	1	0604-1408		●
2	PLATE ASM; PRESSURE,CLU	1-31220-457-0	01	1	1409-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-400-1	01	1	0604-0710	●
2	PLATE ASM; PRESSURE,CLU	1-31220-430-0	01	1	0711-1002	●
2	PLATE ASM; PRESSURE,CLU	1-31220-445-0	01	1	1003-1404	●
2	PLATE ASM; PRESSURE,CLU	1-31220-463-0	01	1	1405-	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0604-		●
57	FORK; SHIFT,CLU	1-31340-062-0	01	1	0604-	●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0604-		●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0604-1002	●
84	PLATE; PRESSURE	1-31221-141-0	01	1	1003-	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0604-1408		●
85	BUSHING; RELEASE LEVER	8-98281-693-0	08	1	1409-		●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0604-		●
91	SEAT; SPR (A)	1-31219-032-0	04	1	0604-		●
91	SEAT; SPR (B)	1-31219-033-0	04	1	0604-		●
92	SPRING; CLU	1-31214-040-0	12	1	0604-1408		●
92	SPRING; CLU	8-98281-694-0	10	1	1409-		●
92	SPRING; CLU	1-31239-052-0	01	1	0604-	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0604-		●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0604-1002	●
98	SPRING; RETURN	1-31233-007-0	04	1	0604-		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0604-		●
105	NUT; SUPPORT	1-31235-014-0	04	1	0604-		●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0604-		●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0604-	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0604-		●
109	WASHER; LK,STRAP ID=13	1-31239-038-0	04	1	1405-	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0604-0604		●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-		●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0604-		●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	0604-		●
111	WASHER; PL,STRAP ID=13	1-31239-038-0	04	1	0604-1404	●
116	BLOCK; SHIFT,CLU	1-31321-073-3	01	1	0604-		●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0604-		●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-149-0	01	1	0604-		●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0604-		●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0604-		●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0604-	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0604-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0604-0604	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0604-		●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	12	1	0604-	●
172	LEVER KIT; RELEASE,CLU	1-87831-182-2	01	1	0604-		●
222	BOLT; STRAP	1-09040-102-0	04	1	0604-		●
222	BOLT; STRAP	1-31239-037-0	04	1	0604-1002	●
222	BOLT; STRAP	1-31239-066-0	04	1	1003-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
